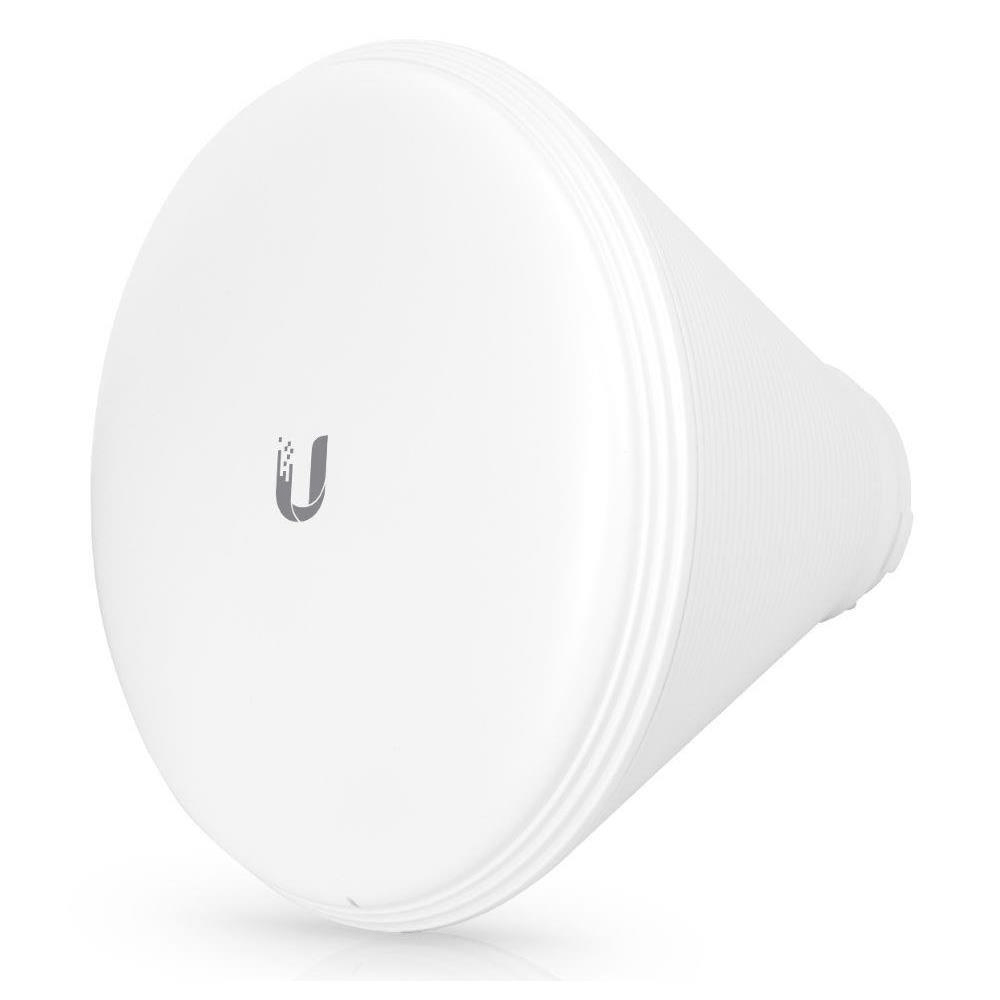

Ubiquiti HORN-5-30 19dBi 5.15 to 5.85GHz 30 Horn Antenna

Ubiquiti HORN-5-30 19dBi 5.15 to 5.85GHz 30 ° Horn Antenna

5 GHz Beamwidth Horn Antenna
With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co‐location performance without sacrificing gain.

Modular Design
The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.

Asymmetrical horn antennas
60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Specifications:

• Ubiquiti Networks HORN-5-30
• Antenna gain level (max): 19 dBi
• Frequency band: 5.15 - 5.85 GHz
• Horizontal beam width: 30°
• Antenna type: Horn antenna
• Polarization: Dual polarization
• Voltage Standing Wave Ratio (VSWR): 1.7:1
• Depth: 184.2 mm
• Diameter: 22.1 cm
• Weight: 1.1 kg
