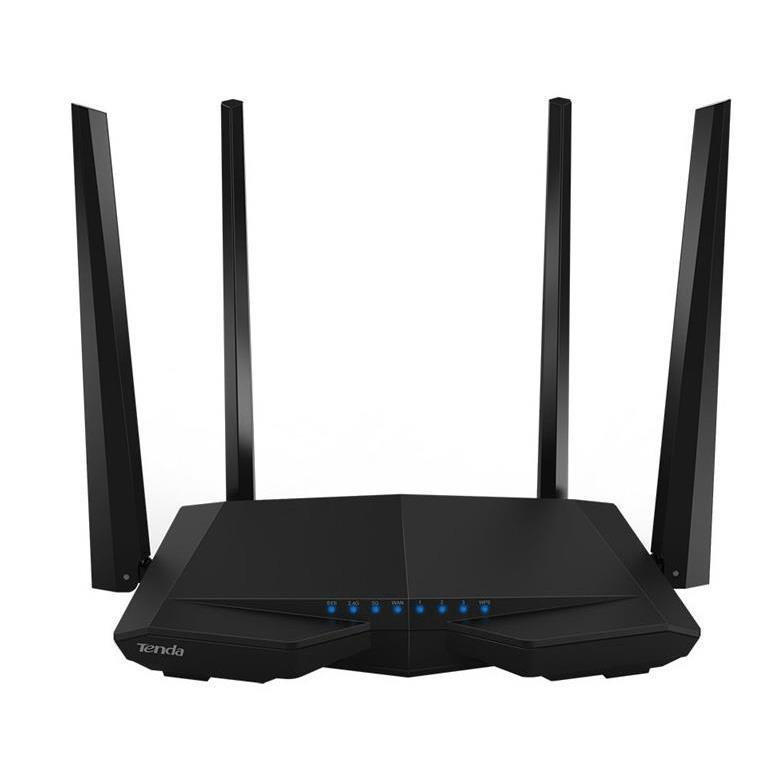

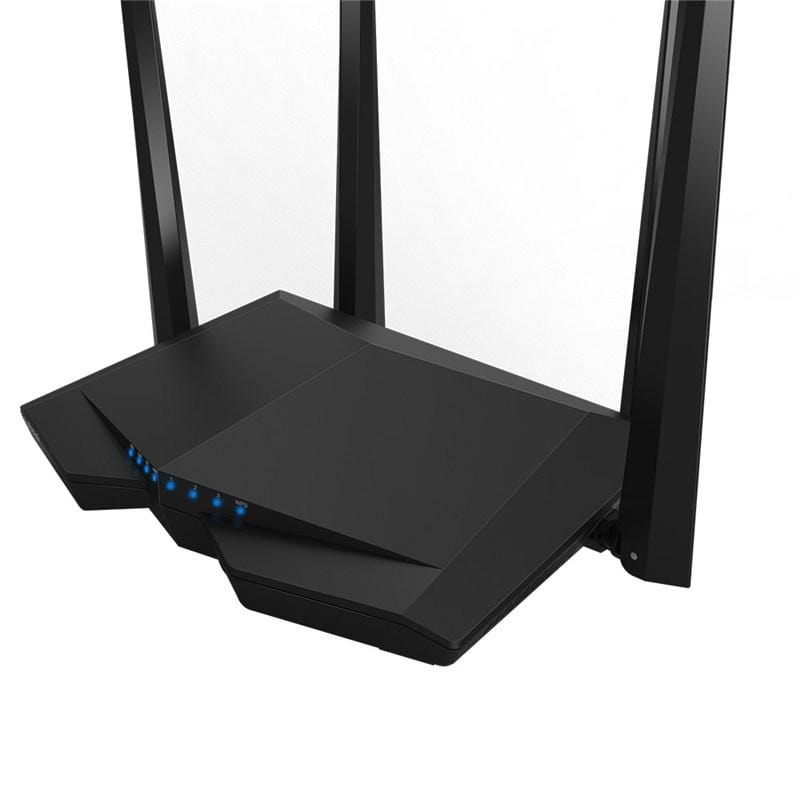

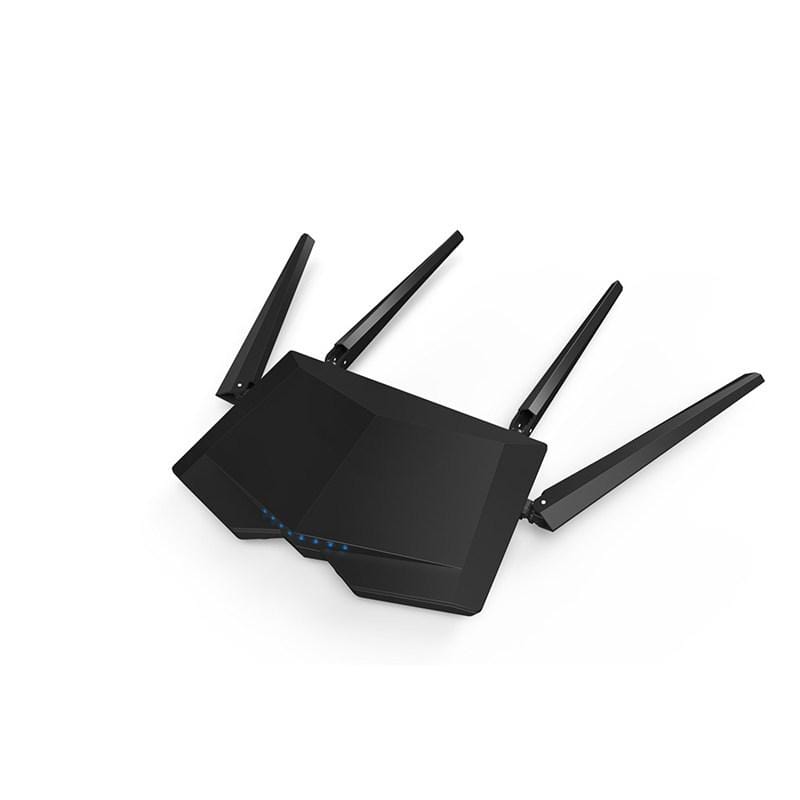

Tenda AC6 Wi-Fi 5 Wireless Router - Dual-band 2.4GHz and 5GHz Fast Ethernet Black

AC6 is a Smart Dual-band WiFi Router with strong signal and stable performance. It supports 5th generation Wi-Fi standard 802.11ac and the concurent dual-band speed is up to 1167Mbps. 900MHz CPU from Broadcom offers fast & stable performance. AC6 has 2x through-wall ability than normal routers with its independent power amplifiers, beamforming+ Intelligent technology and 4x 5dBi HG antennas. You can enjoy lag-free gaming and uninterrupted video streaming anytime anywhere. Additionally, AC6 supports smart power saving technology, App remote management, creates a low-power consumption and smart eco-friendly life for your whole family.

Specification

Standard&Protocol

IEEE802.3, IEEE802.3u

Interfaces

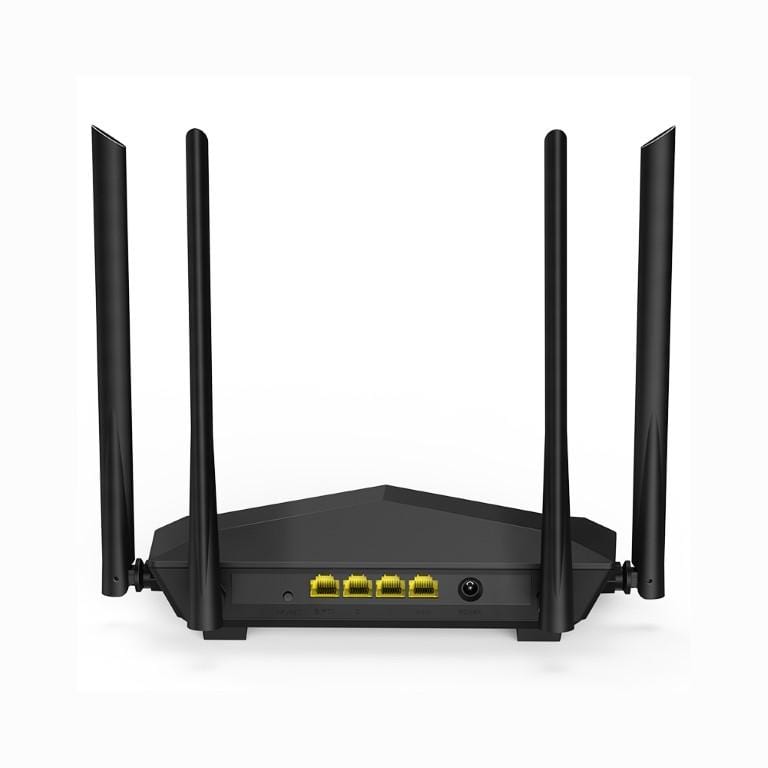

1*10/100Mbps WAN port
3*10/100Mbps LAN ports

Antenna

4*5dBi external antennas

Button

1*WiFi on/off, 1* Reset/WPS button

Power

Input：100-240V—50/60Hz, 0.2A
Output：DC 9V1A

Dimension

220mm*141.5mm*49mm(L*W*H)

LED Indicator

SYS*1,WAN*1, LAN*1, 2.4G*1, 5G*1,WPS*1

Wireless

Wireless Standard

IEEE 802.11ac/a/n @5GHz
IEEE 802.11b/g/n @2.4GHz

Data Rate

5GHz: 867Mbps
2.4GHz: 300Mbps

Frequency

Simultaneous dual band 2.4 & 5GHz

Transmission Power

CE:
<20dBm(2.4G)
<23dBm(5G)
FCC:
<30dBm

Basic Features

SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
MU-MIMO

Wireless Security

WPA-PSK/WPA2-PSK, WPA/WPA2
 Wireless Security: Enable/Disable
 WPS(WiFi Protected Set-up) fast encryption

Software

Internet Connection Type

PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)

Operating Mode

Wireless Router Mode
Universal Repeater Mode
WISP Mode

DHCP Server

Wireless Router Mode
Universal Repeater Mode
WISP Mode

Virtual Server

Port Forwarding
DMZ Host
UPnP

Security

Client Filter
Parental Control(support black list and white list)
Remote Web Management

Firewall

Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet

DDNS

Support DynDNS, Oray.com, 88ip

VPN

IPsec pass through
PPTP pass through
L2TP pass through
PPTP client
L2TP client

Special Features

PPPoE Username/password Clone
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda Cloud
Tenda App

Others

Bandwidth Control
Guest Network
IPTV
MAC Clone
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
