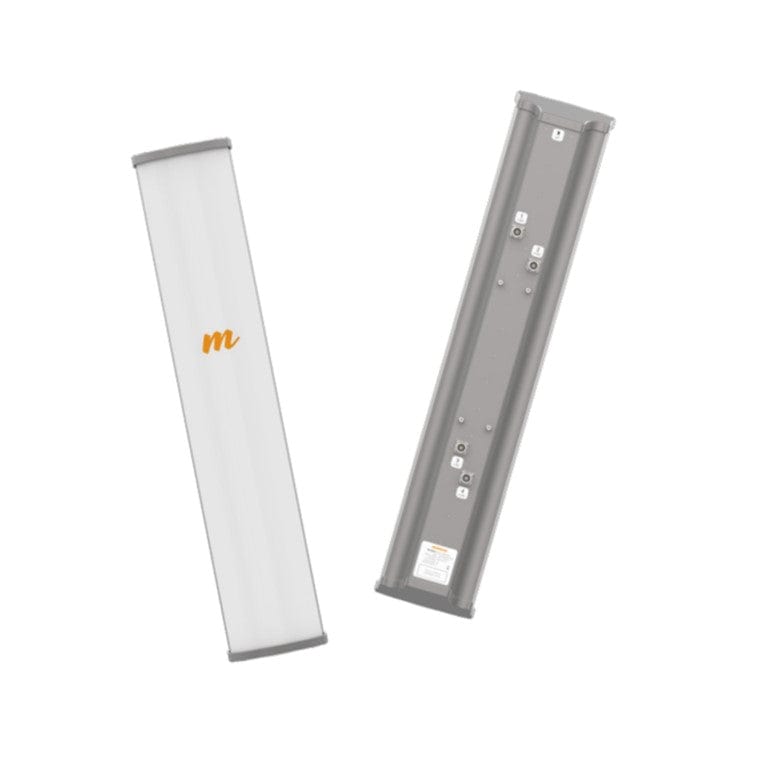

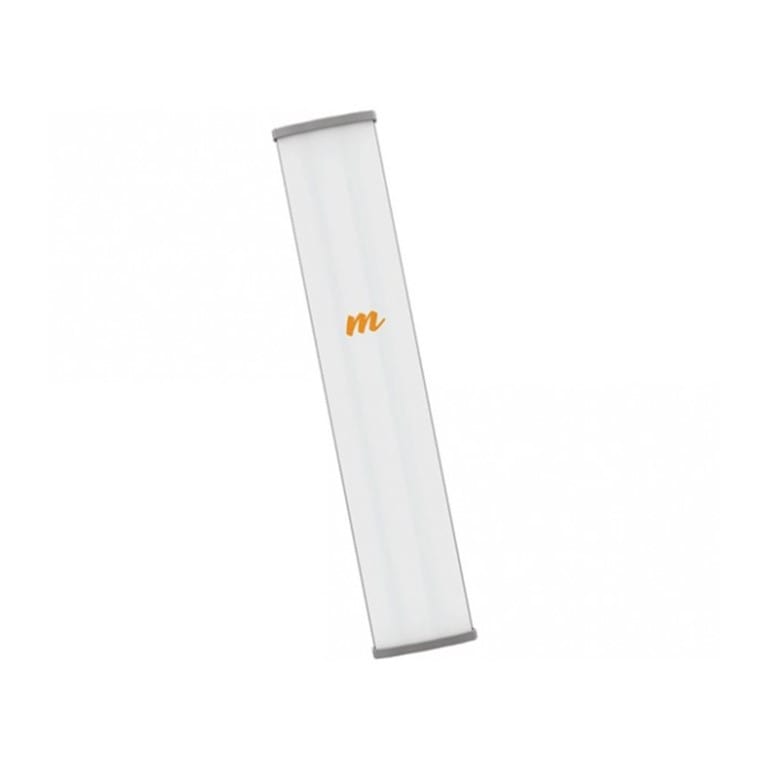

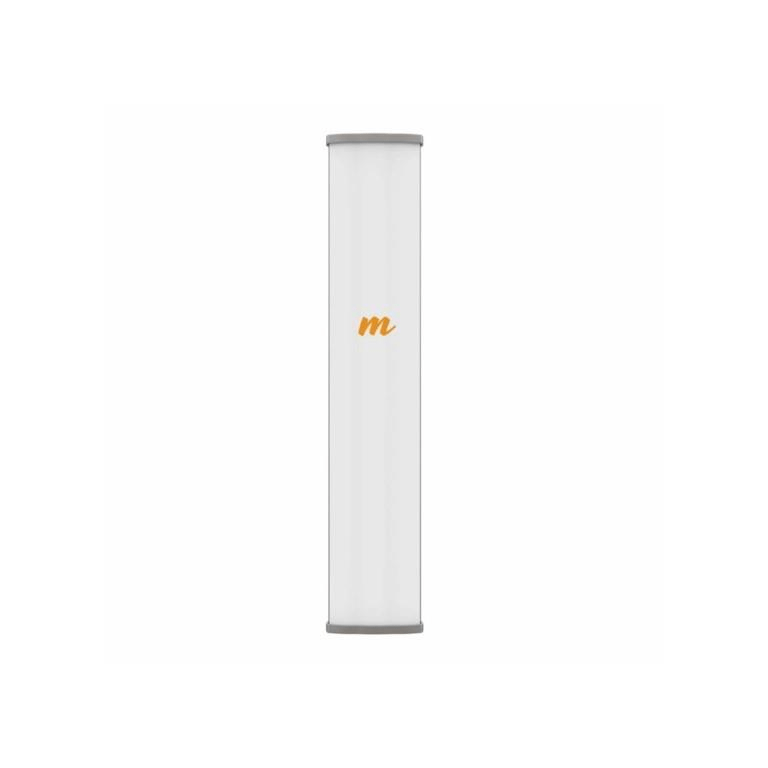

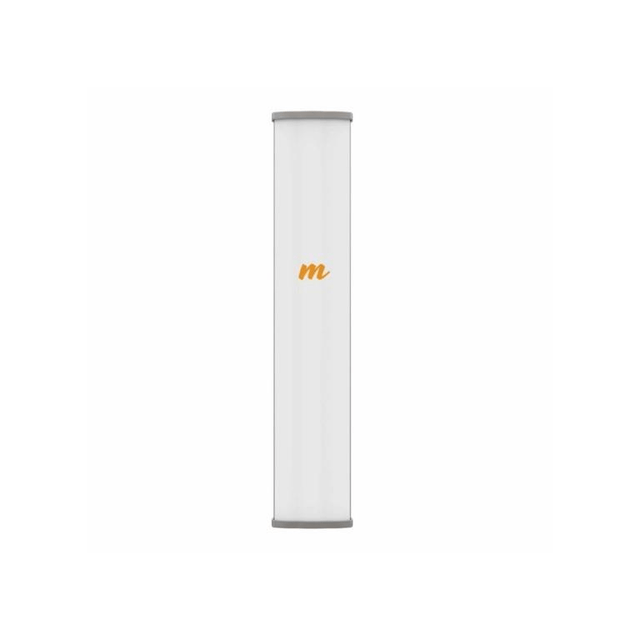

Mimosa N5 45X4 4.9-6.4GHz 45-degree 22dBi 4x N-type Female Ports Slant Horn Antenna

Mimosa N5 45X4 4.9-6.4GHz 45-degree 22dBi 4x N-type Female Ports Slant Horn Antenna

The Mimosa N5-45x4 is the industry’s first sector antenna to deliver the best of both worlds — incredible noise rejection and long-distance performance, with wideband 4.9–6.4 GHz operation for fixed wireless broadband. This 4-port, dual-slant polarization, 45º sector is designed for use with the Mimosa A5c 4x4 MIMO radio, delivering gain-enhancing beamforming for the best possible channel reuse, range and noise rejection at collocation and tower sites.

Features

• Industry-Leading Front-to-Back Ratio for 2x Spectrum Reuse

• World-Class Noise Rejection

• Beamformed High-Gain for Long Distances

• Wideband 4.9–6.4 GHz Sector

Technical Specification

Product: Mimosa Networks N5-45x4

Antenna gain level (max): 22 dBi

Frequency band: 4.9 - 6.4 GHz

Impedance: 50 Ω

Antenna type: Horn antenna

Antenna connector type: N-type

Connector gender: Female

Width: 143 mm

Depth: 76 mm

Height: 734 mm

Quantity per pack: 1 pc(s)

What's In The Box:

• N5-45x4
• Four LMR-240 Cables with Weatherized Boots
• Pivot Bracket
• Sliding Bracket
• - Warranty and Compliance Sheet
