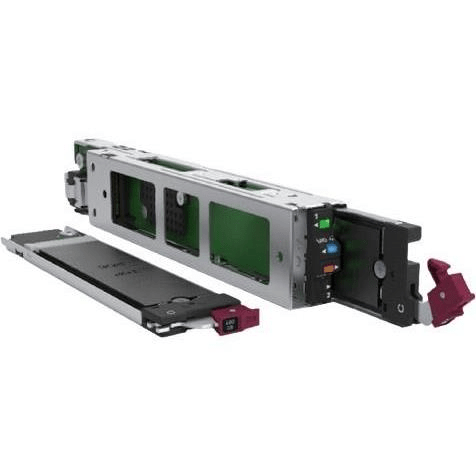

HPE NS204i-u Gen11 RAID Controller PCI Express P48183-B21

HPE NS204i-u Gen11 RAID Controller PCI Express P48183-B21

• Supports HPE Synergy Gen10 Plus Compute platforms.

• Dedicated Hardware RAID 1 OS Boot Device.

• Includes two HPE enterprise-class 480 GB NVMe M.2 SSDs on a single HPE Synergy add-in card.

• Utilizes native in-box OS NVMe drivers.

• Hot plug universal installation (No longer requires a PCIe slot) .

• No cables or backplanes required.

Simple and Secure OS Mirroring through Dedicated Hardware RAID 1

HPE NS204i-d NVMe OS Boot Device is a complete, turnkey optimized OS boot device that is easy to deploy—no need to configure or format, simply insert and it works, no GUI or user setup required.

Pre-configured RAID 1 OS boot utilizes a single HPE Synergy designed card that connect to PCIe connection under drive cages to safely isolate OS from user data on today’s popular virtualized environments.

Uses native in-box driver support for VMware, Linux, and Windows OS.

Supports secure firmware boot for simple and secure setup of HPE Synergy 480  Gen10 Plus Compute Modules.

Enables all drive bays are used for data, greatly reducing server complexity, while providing an economical way for booting in virtualized environments.

State-of-the-Art, Hardware Accelerated RAID 1 NVMe OS Boot Device

HPE NS204i-d NVMe OS Boot Device combines the latest generation NVMe technology and hardware RAID 1 redundancy in support of OS applications.

Self-contained HPE Synergy Gen3 boot device is integrated with two HPE enterprise-class 480GB  NVMe M.2 SSDs allowing you to customize configuration.

HPE enterprise-class NVMe M.2 SSDs delivers enhanced data protection with power loss protection and error correction.

Based on Synergy design with NVMe technology, the HPE NS204i-d NVMe OS Boot Device delivers up to 4x times faster read capability than legacy SATA-based boot solutions.

Increased Storage Density and Dedicated Hardware RAID 1 Resiliency for OS Boot

HPE NS204i-d NVMe OS Boot Device and HPE USB Flash drive with dual 32 GB microSD cards on-board RAID 1 free up internal server storage bays enabling greater platform storage density.

HPE OS Boot Devices provides separate, redundant disk solutions for the OS that enables a more robust, optimized compute platform.

Dedicated hardware RAID 1 OS boot mirroring helps eliminate downtime due to a failed OS drive—even if one drive fails the business continues running.

HPE OS Boot Devices are certified for VMware and Microsoft Azure Stack HCI for increased flexibility.

Full Hardware RAID 1 Boot Solution for VMware Environments

HPE USB Flash drive with dual 32 GB microSD cards and on-board RAID 1 boot devices deliver a redundant OS boot without consuming server storage drive bays.

Engineered with enterprise-class high endurance NAND for non-stop data center environments.

Integrated on-board RAID 1 for customers requiring dual boot solution.
