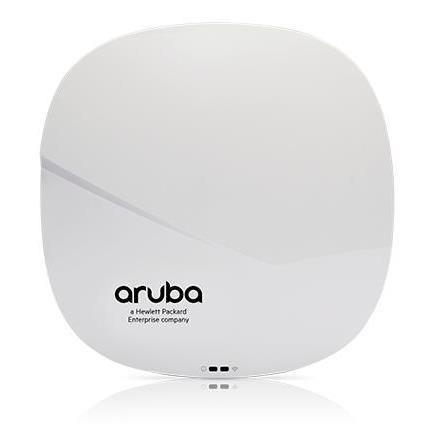

HPE Aruba IAP-335 RW 802.11n/ac Dual 4x4:4 MU-MIMO Radio Integrated Antenna 2.5+1 GbE Access Point JW823A

HPE Aruba IAP-335 RW 802.11n/ac Dual 4x4:4 MU-MIMO Radio Integrated Antenna 2.5+1 GbE Access Point JW823A

The Aruba 330 Series access points provide the fastest gigabit data speeds and superb user experience for mobile devices and applications in a digital workplace. Designed with an integrated HPE Smart Rate port to scale up to 2.5Gbps Ethernet, the 330 Series allows enterprises to leverage their multi-gigabit Ethernet wired network infrastructures to eliminate bottlenecks.

Thanks to ClientMatch technology, ArubaOS enables the 330 series to automatically detect and classify 802.11ac Wave 2 capable mobile devices. This allows ClientMatch to automatically collect Wave 2 capable devices under a single Wave 2 radio so that performance benefits of multi-user MIMO can be realized — without the adverse effects of slower 802.11ac and traditional 802.11n capable mobile devices. This means increased network capacity and a boost in network efficiency.

With a maximum concurrent data rate of 1,733 Mbps in the 5 GHz band and 600 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 2.3Gbps), the 330 Series APs deliver a best-in-class, next-generation 802.11ac Wi-Fi infrastructure that is ideal for lecture halls, auditoriums, public venues, and high-density office environments.

The high performance and high density 802.11ac 330 Series APs support 160 MHz channel bandwidth (VHT160), 4-stream multi-user MIMO (MU-MIMO) and 4 spatial streams (4SS).

They provide simultaneous multicast data transmission to multiple devices, maximizing data throughput and improving network efficiency.

Unique Benefits

Dual Radio 802.11ac access point with Multi-User MIMO

• Supports up to 1,733 Mbps in the 5 GHz band (with 4SS/VHT80 or 2SS/VHT160 clients) and up to 600 Mbps in the 2.4 GHz band (with 4SS/HT40 clients)

Antenna polarization diversity for optimized RF performance

• Each 5 GHz radio chain has a switch and two antennas  Software controlled; Horizontally and vertically polarized

HPE Smart Rate uplink port that scales up to 2.5Gbps

• Supports up to 2.5Gpbs with NBase-T 802.3bz Ethernet compatibility  Backwards compatible with 100/1000Base-T
• Adds support for hitless PoE failover between the HPE Smart Rate port and the secondary 1000Base-T port when both ports are powered

Support for additional 5 GHz bands

Supports software upgrade to enable additional 5 GHz spectrum when governments expand available  frequencies

Built-in Bluetooth Low-Energy (BLE) radio

• Enables location based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time

Advanced Cellular Coexistence (ACC)

• Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small cell/femtocell equipment

Quality of service for app visibility and control

• Supports priority handling and policy enforcement for unified communication apps, including Skype for Business with encrypted videoconferencing, voice, chat and desktop sharing
• Aruba AppRF technology leverages deep packet inspection to classify and block, prioritize, or limit bandwidth for thousands of applications in a range of categories

RF Management

• Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, highperformance WLANs
• The Aruba 330 Series APs can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available

Spectrum analysis

• Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4 GHz and 5 GHz radio bands to identify sources of RF interference from HT20 through VHT160 operation

Aruba Secure Infrastructure

• Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances
• IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats
• Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys
• SecureJack-capable for secure tunneling of wired Ethernet traffic

Intelligent Power Monitoring (IPM)

• Enables the AP to continuously monitor and report its actual power consumption and optionally make autonomous decisions to disable certain capabilities based on the amount of power available to the unit
• Software configurable to disable capabilities in certain orders. For the 330 Series APs, by default, the USB interface will be the first feature to turn off if the AP power consumption exceeds the available power budget

Technical Specifications:

Maximum data transfer rate: 1733 Mbit/s

Ethernet LAN data rates: 100,1000 Mbit/s

Power over Ethernet (PoE)

Product colour: White

Power consumption (max): 25.3 W
