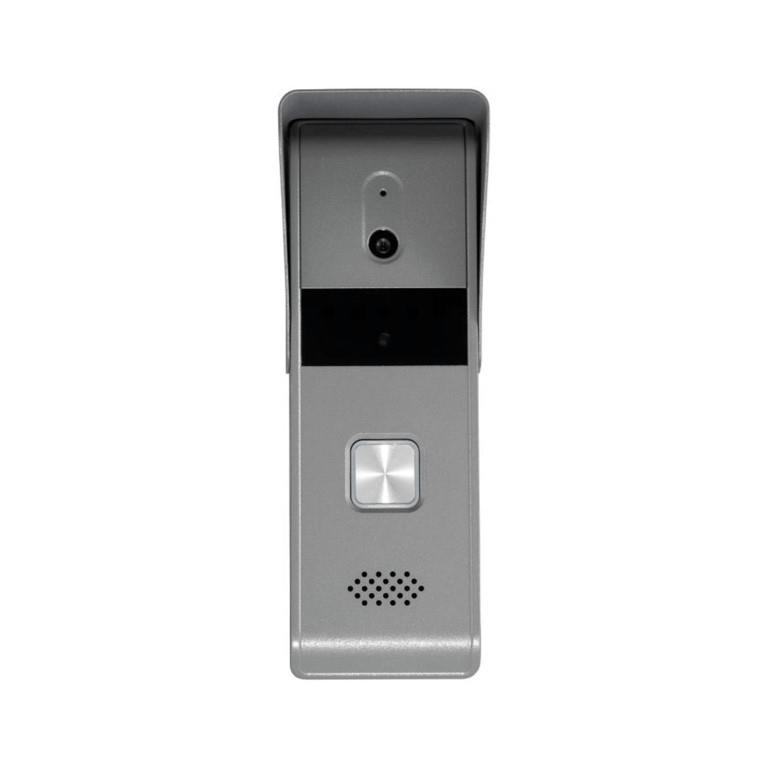

Hikvision Analog 4-Wire Door Station DS-KB2421T-IM

Hikvision Analog 4-Wire Door Station DS-KB2421T-IM

The Hikvision 4-wire villa door station, with mental design, simple appearance and great texture, supports starting video intercom and providing door permission by one-touch button, which is easy to use. Plug-and-Play is supported, which is easy for installation and deployment, which is suitable for the scenarios of villa, detached house, etc.

Features

• 4-wire plug & play analog door station
• 2MP Pinhole camera with self-adaptive IR supplement
• One-touch calling design for easier calls
• Supports two door stations simultaneously in the intercom system
• Convenient installation and easy operation
• Anti-oxidant aluminium alloy

Technical Specification

Audio Parameters
Audio Input: Built-in omnidirectional microphone
Audio Output: Built-in loudspeaker
Audio Quality: Noise suppression and echo cancellation

Device Interfaces
Four-Wire Interface: 1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding
I/O Output: 1x relay output

General
Protective Level: IP65
Power Supply: 12 VDC
Dimensions (L X W X H): 145.5 mm x 51.5 mm x 49 mm
Material: Zinc alloy
