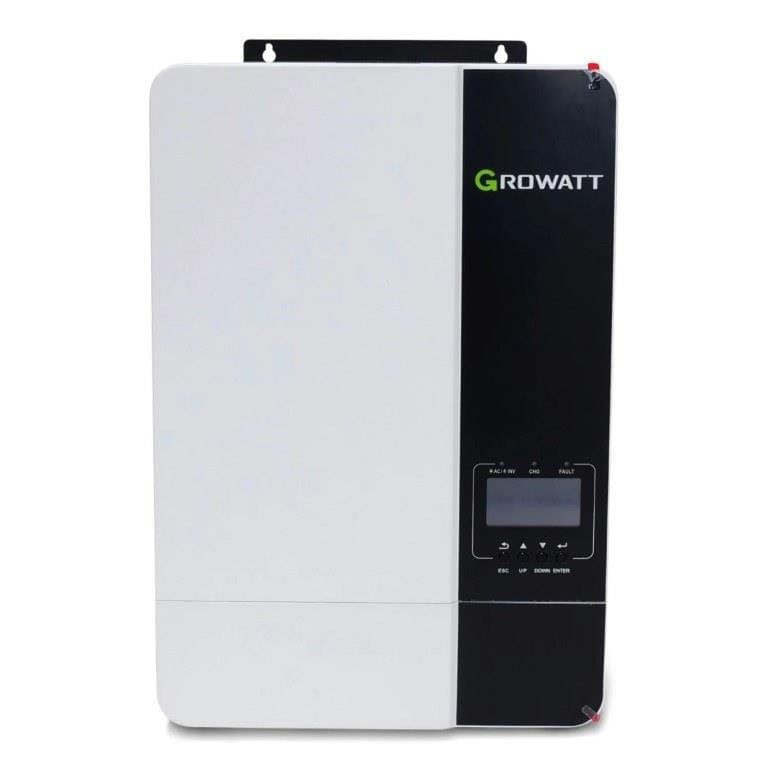

Growatt 5KW 5KVa 48V Hybrid Parallel Wi-Fi Inverter GWE-SPF5000-ES-WIFI

Growatt 5KW 5KVa 48V Hybrid Parallel Wi-Fi Inverter GWE-SPF5000-ES-WIFI

5Kw Growatt SPF 5000 ES off-grid is an off-grid inverter for backup power and self-consumption application, maximum power PV input voltage up to 450VDC. This is a multifunctional off-grid solar inverter, integrated with an MPPT solar charge controller, a high-frequency pure sine wave inverter, and a UPS function module in one machine, which is perfect for off-grid backup power and self-consumption applications. 5Kw Growatt SPF 5000 ES off-grid is an off-grid inverter that is perfect for Off-Grid and Backup applications. It is designed to operate at a low voltage range, with high efficiency and excellent performance.

Features:

• The integrated MPPT charge controller
• It can work with a battery or without a battery
• Maximum PV input voltage up to 450VDC
• Configurable grid or solar input priority
• Optional WIFI/ GPRS remote monitoring
• Parallel for scalability

Specifications:
Inverter Output
Rated Power: 5000VA/ 5000W
Parallel Capability: Yes, 6 units
AC Voltage Regulation (Battery Mode): 230VAC 5% at 50/60Hz
Surge Power: 10000VA
Efficiency (Peak): 93%
Waveform: Pure sine wave Pure sine wave
Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances)
SOLAR Charger
Maximum PV Array Power: 5500W
MPPT Range at Operating Voltage 120VDC ~ 430VDC
Maximum PV Array Open Circuit Voltage: 450VDC
Maximum Solar Charge Current: 100A
Maximum Efficiency: 97%
AC Charger
Charge Current: 80A
AC Input Voltage: 230 VAC
Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range 50Hz/60Hz (Auto-sensing)
Physical Dimension (D/W/H) in mm: 485mm/330mm/135mm
Net Weight (kgs): 12
OPERATING ENVIRONMENT
Humidity: 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature: 0C - 55C
Storage Temperature: -15C - 60C

What's in the box
1 x Hybrid Inverter
1 x User Manual
1 x Wifi logger
1 x Parallel Kit
1 x Software Installation CD
