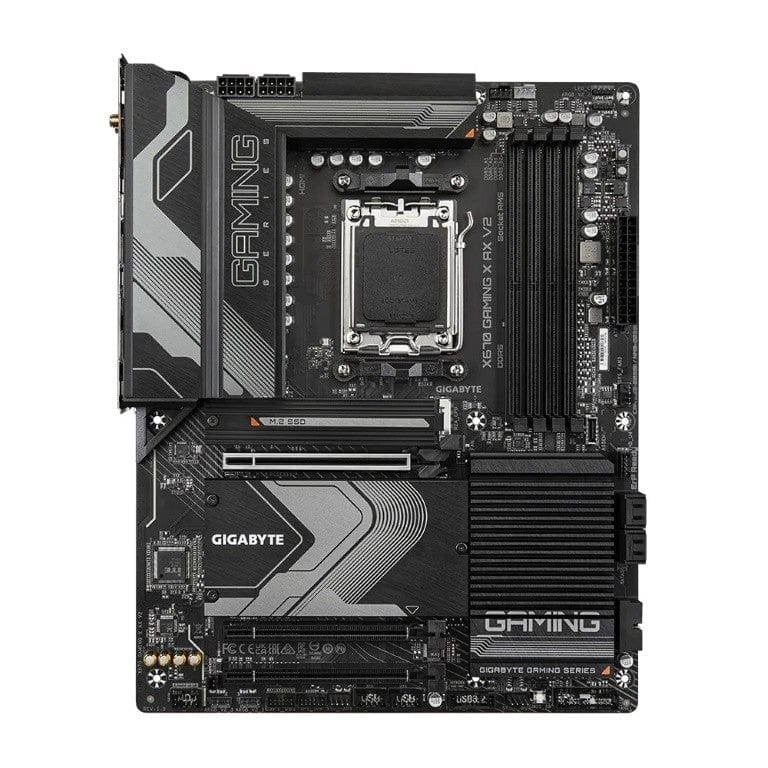

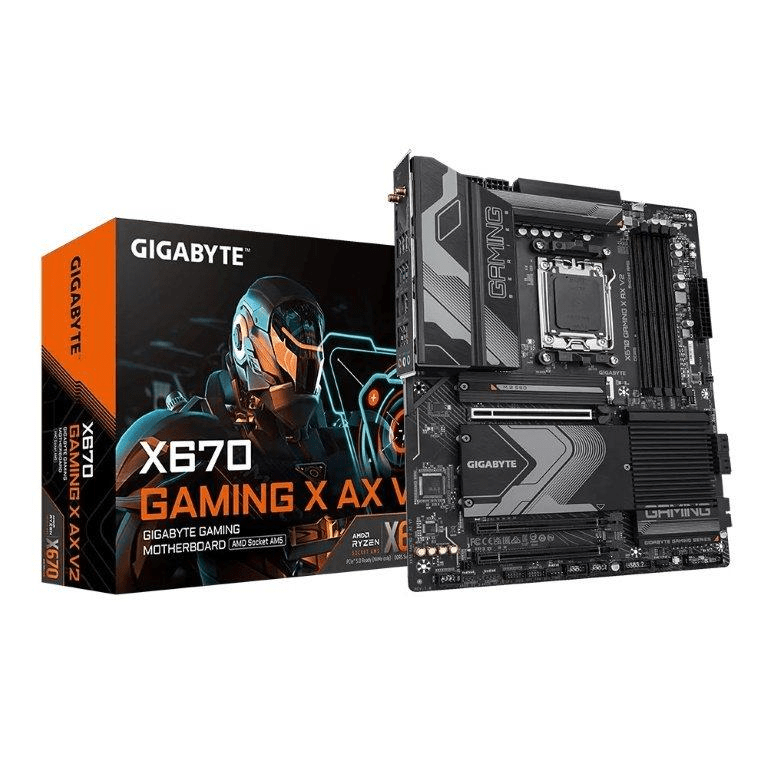

Gigabyte X670 Gaming X AX V2 AMD Socket AM5 ATX Motherboard GA-X670-GAMING-X-AX V2

Gigabyte X670 Gaming X AX V2 AMD Socket AM5 ATX Motherboard GA-X670-GAMING-X-AX V2

Features

• AMD Socket AM5: Supports AMD Ryzen 7000 Series / Ryzen 8000 / Ryzen 9000 Series Processors
• Unparalleled Performance: Twin 14*+2+2 Phases Digital VRM Solution (*7+7 phases parallel power design)
• Dual Channel DDR5: 4x SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
• Next Generation Storage: 1x PCIe 5.0 x4 and 3x PCIe 4.0 x4 M.2 Connectors
• Mega-Heatpipe & M.2 Thermal Guard: To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
• EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
• Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity: HDMI, Dual USB-C 20Gbps and Upcoming GIGABYTE USB4 AIC Support
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Durable Performance

Gigabyte Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design

14+2+2 Phases Digital VRM Solution

EXPO & XMP Support

• DDR5 Overclocking Up to 8000 and Beyond*
• Unlock DDR5 Voltage
• Gigabyte Exclusive DDR5 Circuit Design
• Shielded Memory Routing
• Dual Support
• DDR5 Auto Booster
• AMD EXPO and Intel XMP 3.0 User Profile

Thermal

• Fully Covered MOSFET Heatsink
• 2 Thermal Guard
• 6-Layer & 2x Copper PCB
• 8mm Mega-Heatpipe
• 7 W/mK Thermal Pad

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ax Wi-Fi 6E with GIGABYTE Ultra-high Gain Antenna

The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4x range over BT 4.2 and with faster transmission.

2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 5.0/ 4.0 Hardware Design

Gigabyte X670 Motherboards are ready to work with the PCIe 5.0/ 4.0 devices which are expected to experience 4 times bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, Gigabyte R&D uses the low impedance PCB to provide the maximum performance.

Hi-Fi Audio

High-End Audio Capacitors

Gigabyte motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

Gigabyte motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

PCIe EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

M.2 EZ-Latch

Attach and remove your M.2 module with ease.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card. With Gigabyte Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features

• High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
• Precision Control: Multiple temperature/fan speed control points for precise fan curve
• Dual Curve Mode: Slope/Stair dual mode for different user scenario
• Fan Stop: Fan can stop completely below users' specified temperature point

Technical Specification

• 1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280
• 1x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280
• 2x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
• 4x SATA 6Gb/s connectors

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 1x CPU fan header
• 1x CPU fan/water cooling pump header
• 3x system fan headers
• 3x addressable RGB Gen2 LED strip headers
• 1x RGB LED strip header
• 4x SATA 6Gb/s connectors
• 4x M.2 Socket 3 connectors
• 1x front panel header
• 1x front panel audio header
• 1x USB Type-C header, with USB 3.2 Gen 2x2 support
• 2x USB 3.2 Gen 1 headers
• 2x USB 2.0/1.1 headers
• 1x THB_U4 add-in card connector
• 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
• 1x power button
• 1x reset button
• 1x Clear CMOS button
• 1x reset jumper
• 1x Clear CMOS jumper

• 1x Q-Flash Plus button

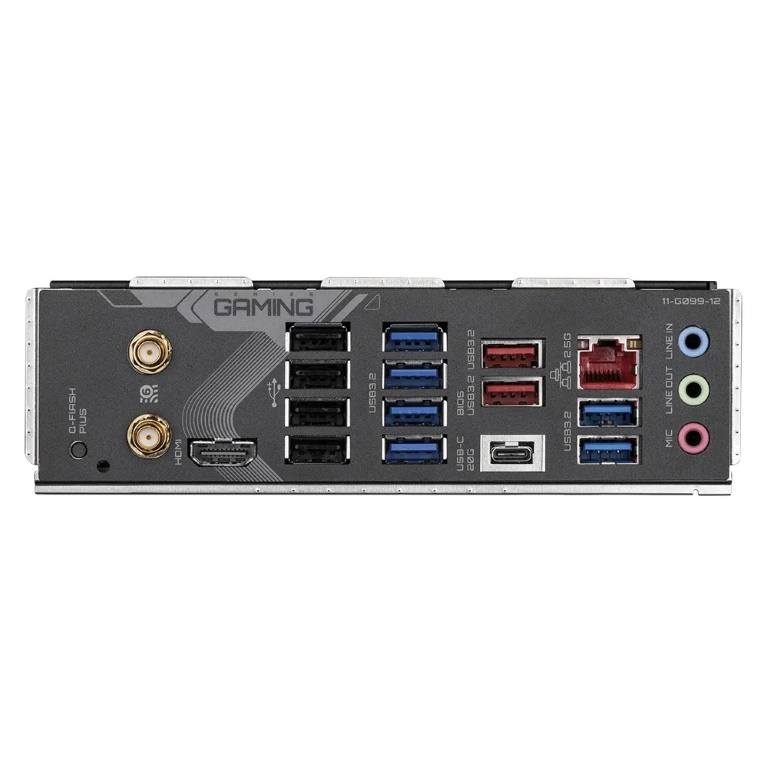

• 2x SMA antenna connectors (2T2R)
• 1x HDMI port
• 6x USB 3.2 Gen 1 ports
• 4x USB 2.0/1.1 ports
• 2x USB 3.2 Gen 2 Type-A ports (red)
• 1x USB Type-C port, with USB 3.2 Gen 2x2 support
• 1x RJ-45 port
• 3x audio jacks
