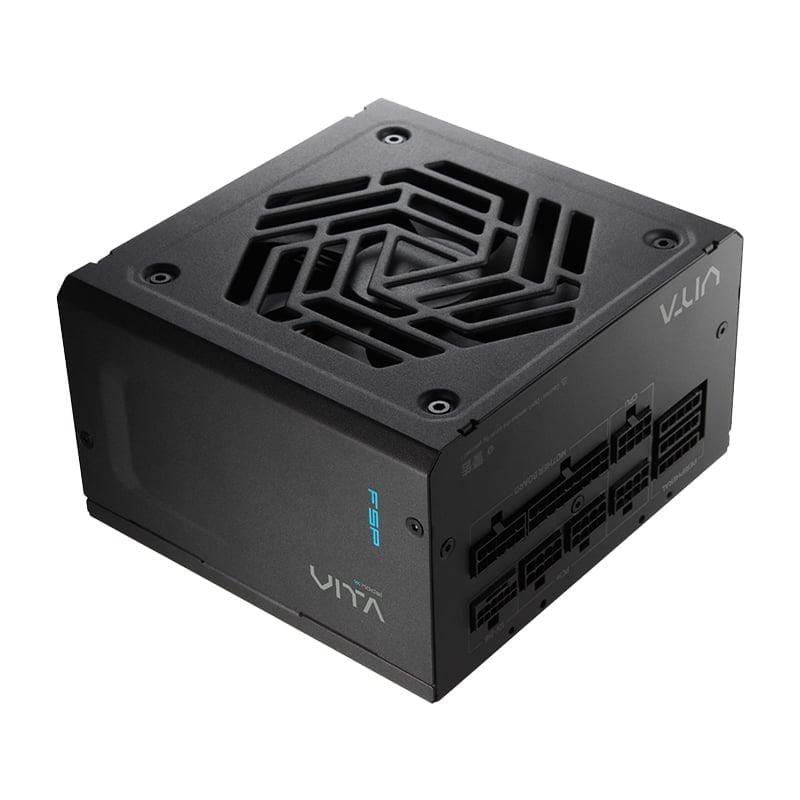

FSP VITA GM 750W Gold Fully Modular Power Supply PPA7507900

FSP VITA GM 750W Gold Fully Modular Power Supply PPA7507900

Please note: This power supply does not come with a power cable.

Built to handle the demanding power requirements of tomorrow, these PSUs support total power excursion as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring they deliver peak performance for future hardware upgrades. Certified with 80 PLUS® Gold efficiency and achieving platinum-level efficiency at typical loads, these power supplies minimise power loss, heat, and noise, offering a cooler and quieter operation.

The advanced LLC resonant-converter topology with synchronous rectification reduces switching losses and keeps the output voltage stable, even under heavy loads, maximising overall system efficiency. The +5V and 3.3V DC to DC circuit design ensures consistent voltage and system stability, while premium 105°C Japanese bulk capacitors provide top-tier reliability and longevity, making them the ideal choice for high-performance PCs. Whether you're a gamer or a power user, these PSUs deliver lasting power and performance you can count on.

Features:

• Complies with ATX 12V V3.1 & EPS 12V V2.92
• Efficiency ? 90% at typical load
• 80 PLUS ® gold certified
• 105°C Japanese bulk capacitor
• 120mm hydraulic bearing (HYB) fan
• Fully modular cabling design
• Complete protections: OCP, OVP, SCP, OPP, UVP, OTP

Specifications:

Model: VITA-750GM

Rated Output Power: 750W

Form Factor: ATX12V V3.1

80 PLUS Certification: Gold

Input Voltage: 100-240Vac

Input Current: 10-5A

Input Frequency: 50-60Hz

Efficiency: 90%

Fan Type: HYB fan, 120mm

Operation Temp: 40°C

Protection: OCP, OVP, SCP, OPP, UVP, OTP

DC Output/Max Output Current/Max Combined Power:

• +3.3V/20A/100W
• +5V/20A/100W
• +12V/62.5A/750W
• -12V/0.3A/3.6W
• +5Vsb/3.6A/15W

Connectors:

• MB 20+4 x1
• 4+4 PIN x2
• PCIe 12V-2x6 x1
• PCI-E 6+2 x4
• SATA x8
• Molex (PERIPHERAL) x4

In the Box:

• FSP VITA GM 750W 80 PLUS Gold Modular Power Supply - Black x1
• Modular Cables Set x1
