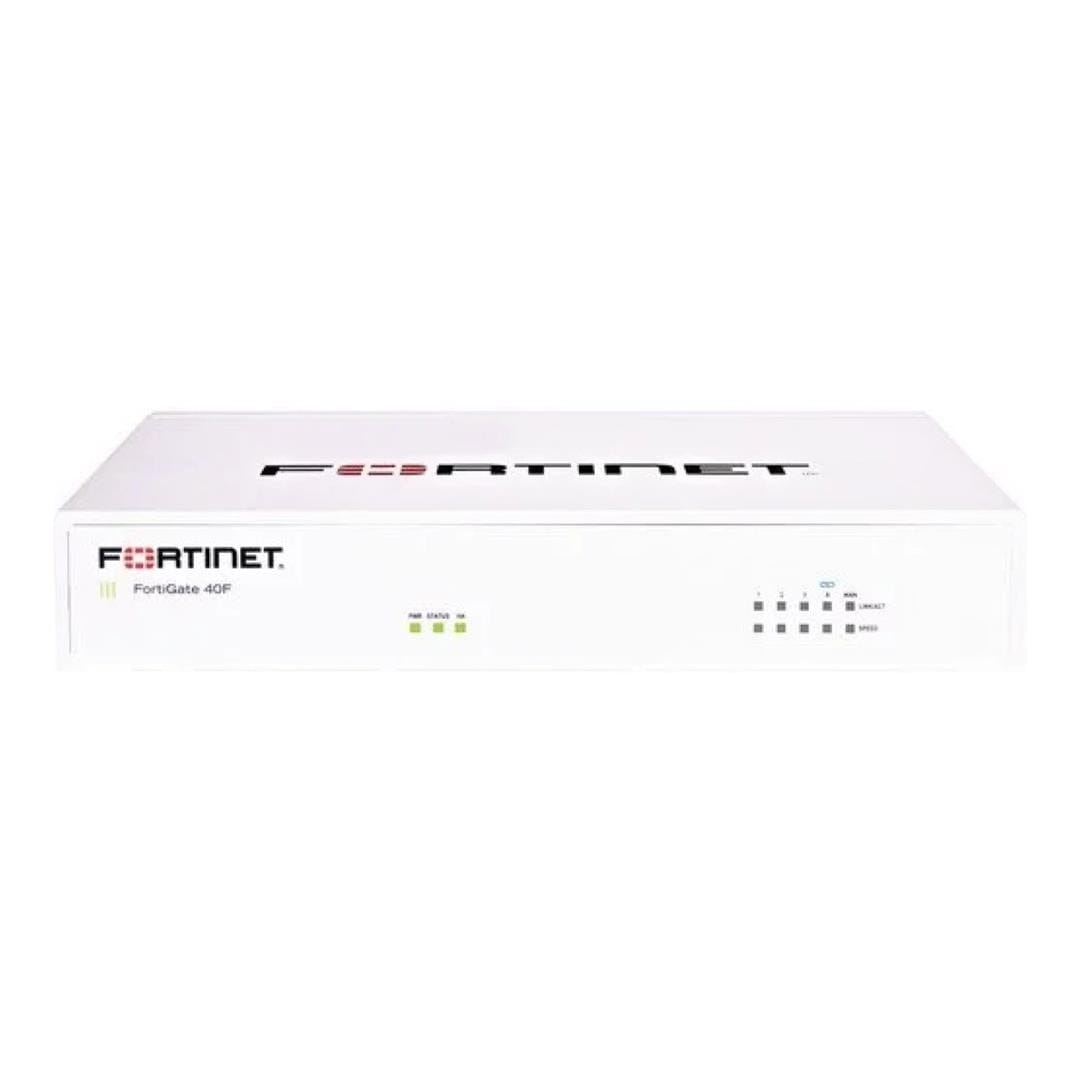

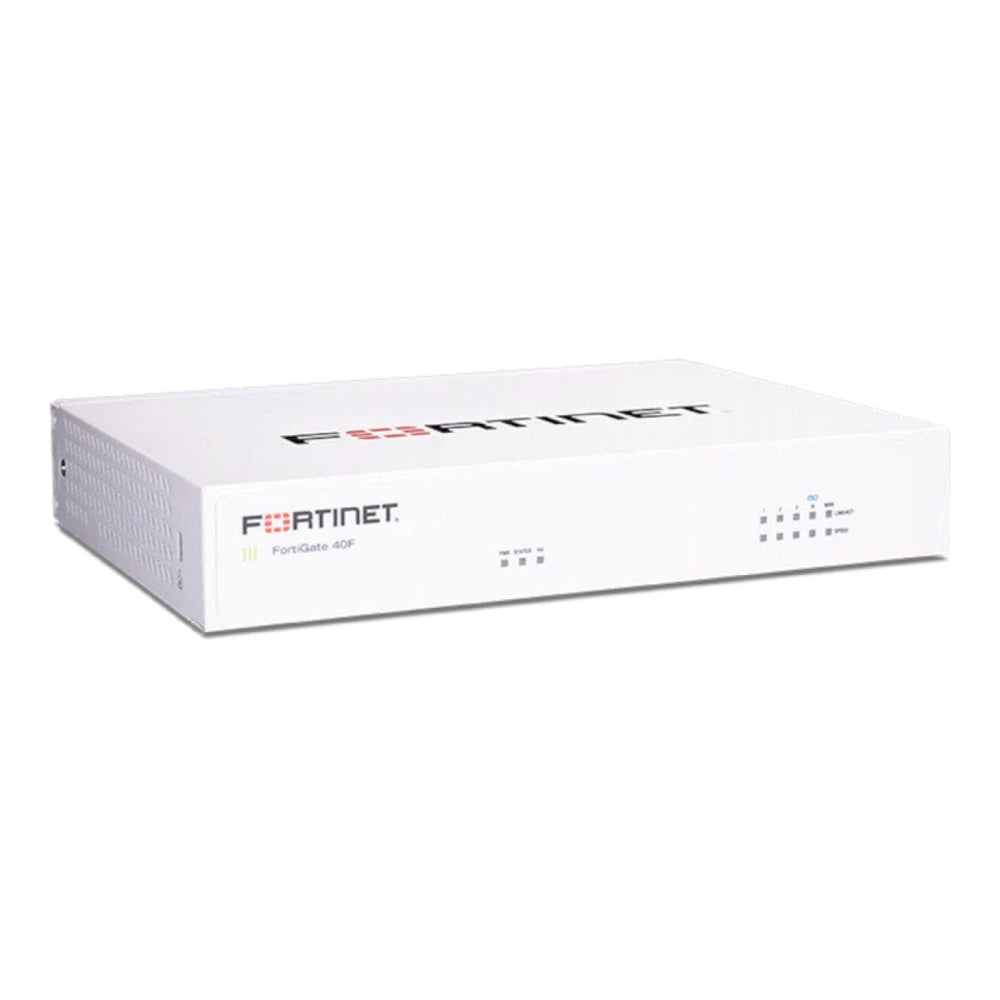

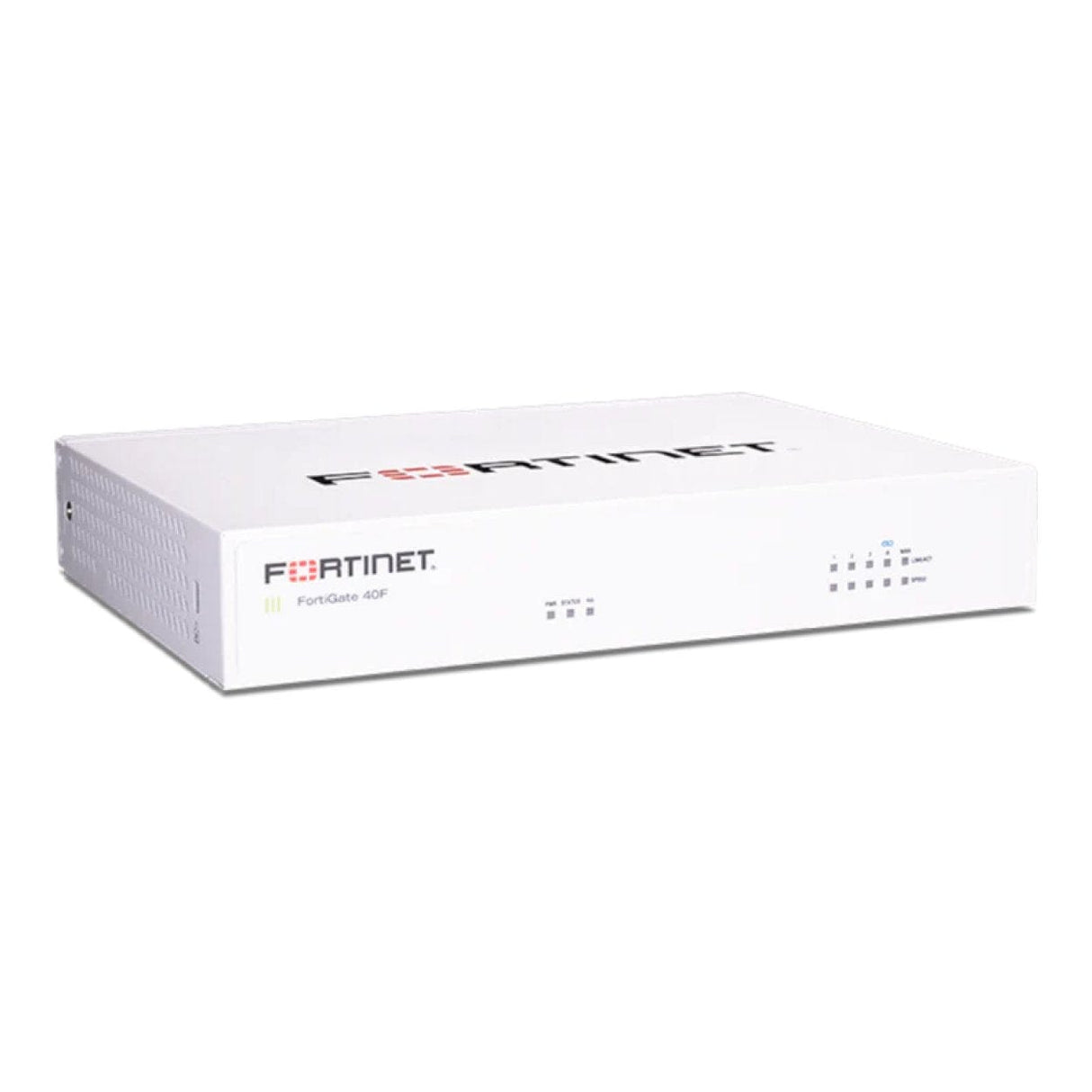

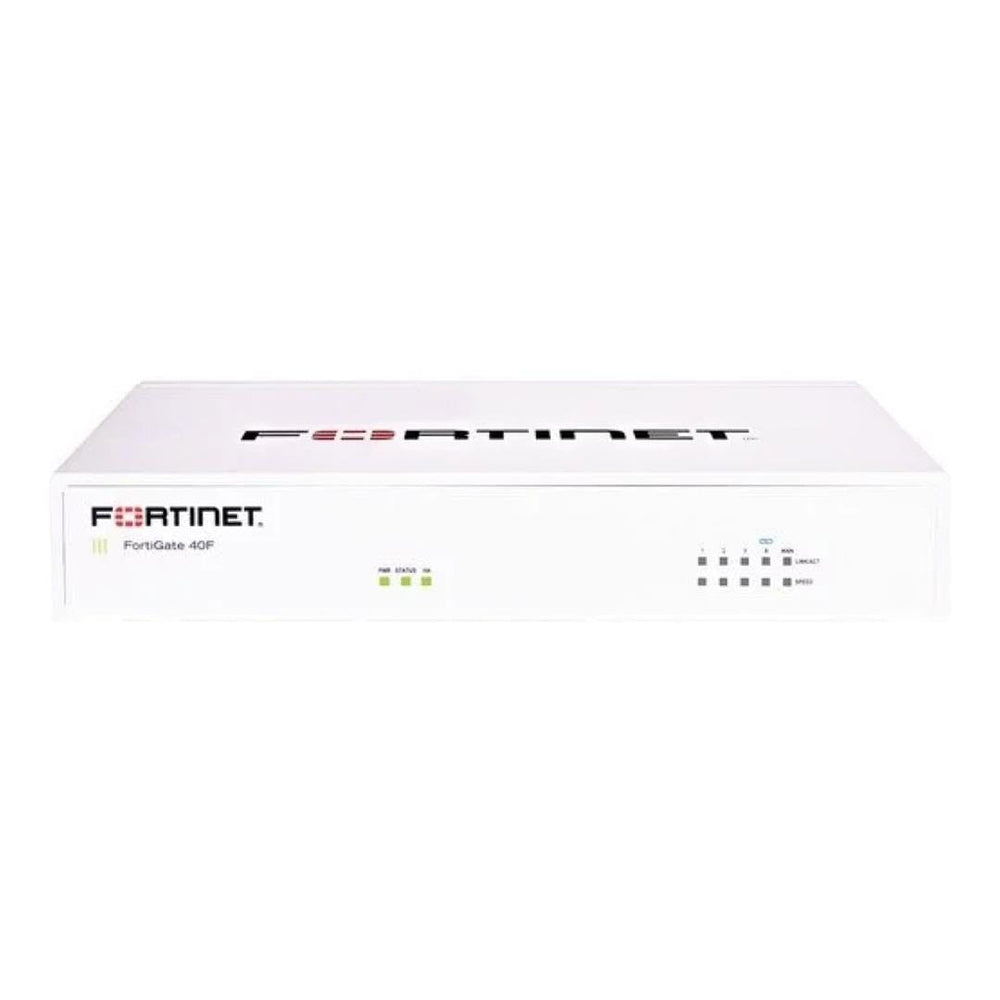

Fortinet FortiGate FG-40F 5-port Next-Generation Firewall

Fortinet FortiGate FG-40F 5-port Next-Generation Firewall

The FortiGate FortiWiFi 40F series integrates firewalling, SD-WAN, and security in one appliance, ideal for building security-driven networks at distributed enterprise sites and transforming WAN architecture at any scale.

The FortiGate FortiWiFi 40F series is powered by the FortiOS operating system with the industry's first converged networking and security. This convergence enables businesses to efficiently secure today's dynamic digital infrastructures.

As a cornerstone of the Fortinet Security Fabric platform, the FortiGate Next Generation Firewall (NGFW) works seamlessly with FortiGuard AI-powered Security Services to deliver coordinated, automated, end-to-end threat protection across all use cases in real time.

The 40F family is built on the patented SD-WAN-based ASIC, delivering unmatched performance over traditional CPU with lower cost and power consumption. This application-specific design and embedded multi-core processor further accelerates the convergence of networking and security functions in the 40F family to optimize secure connection and user experience at branch locations.

Specifications:

Category: Next-Generation Firewall (NGFW) / Unified Threat Management (UTM) appliance

Deployment: Branch offices, small businesses, remote sites

Form factor: Desktop firewall appliance

Ports:

• 1x GE RJ45 WAN / DMZ port
• 3x GE RJ45 internal switch ports
• 1x GE RJ45 FortiLink port
• 1x USB port
• 1x RJ45 console port

Firewall throughput: 5 Gbps

Firewall latency: ~2.97 µs

Firewall throughput (packets per second): 7.5 Mpps

Concurrent sessions: 700,000

New sessions per second: 35,000

Maximum firewall policies: 5,000

Security / NGFW Performance

• IPS throughput: 1 Gbps
• NGFW throughput: 800 Mbps
• Threat protection throughput: 600 Mbps
• Application control throughput: 990 Mbps
• SSL inspection throughput: 310 Mbps

VPN Performance

• IPsec VPN throughput: 4.4 Gbps
• Site-to-site IPsec tunnels: 200
• Client-to-site IPsec tunnels: 250
• SSL-VPN throughput: 490 Mbps
• Concurrent SSL-VPN users: 200

Dimensions: 216 × 160 × 38.5 mm

Weight: ~1 kg
