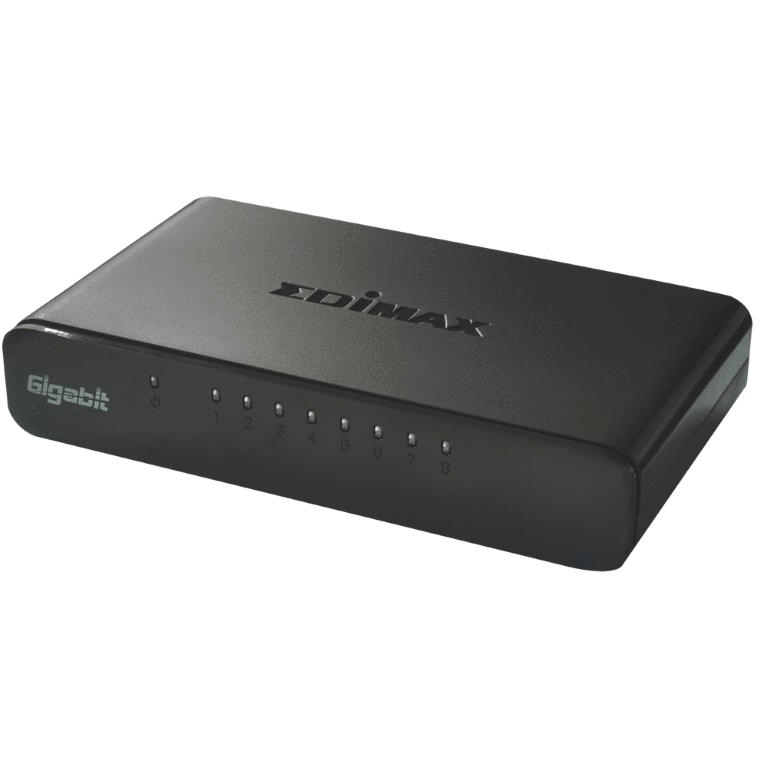

Edimax ES-5800G 8-Port Gigabit Desktop Switch

The ES-5800G V3 is a 10/100/1000 Mbps Gigabit Desktop unmanaged switch designed to enhance network performance in a compact form factor, and with outstanding performance and high efficiency. The switch uses store and forward packet-switching technology which offers reliable data transfer. This switch is ideal for network connectivity for the SOHO environment.

The ES-5800G V3 with plastic housing offers a cost-effective Gigabit Ethernet solution for users to easily extend home networks and to fulfill their online gaming, multimedia transferring and streaming needs. The plug-and-play design allows users to easily connect network devices such as PCs, network storages and print servers to the home network without manual configuration involved.

IEEE Energy Efficient Ethernet (EEE) Compliance

The Switch ES-5800G V3 offers environmental efficiency with Fast Ethernet speeds critical for next-generation network applications. To comply with the IEEE802.3az standard, the Switch ES-5800G V3 provides power saving functions to reduce energy consumption to help business save cost.

Inactive Link Detection

When a network device is shut down and/or an inactive link is detected, the power usage adjustment feature automatically reduces power usage. The switch’s power consumption will be dynamically adjusted according to the link status and the number of active network devices.

Cable Length Detection

Devices equipped with this feature automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes.

Supports High-Speed Networking and Jumbo Frames

The ES-5800G V3 is an excellent solution to expand your Gigabit network. With Gigabit speed, the ES-5800G V3 gives high flexibility and high bandwidth connectivity to servers, workstations and other attached devices. It enables you to save time when transferring large files. In addition, it also supports Jumbo Frames 9K to improve network utilization in large files transfer.

Supports Auto-Negotiation

Every port of the ES-5800G V3 can automatically distinguish the connected network devices are running at 10Mbps, 100Mbps and 1000Mbps for Half/Full-Duplex mode . The ES-5800G V3 can adjust the speed and mode accordingly.

Features

• Complies with IEEE802.3, IEEE802.3u and IEEE802.3ab standards

• Supports auto MDI/MDI-X crossover detecting and auto correction

• Supports full and half duplex for 10/100Mbps, and full duplex for 1000Mbps

• Wire-speed packet filtering and forwarding rate

• Store-and-forward architecture filters fragment & CRC error packets

• Supports jumbo frames up to 9K bytes

• Supports IEEE802.3az energy efficient Ethernet function

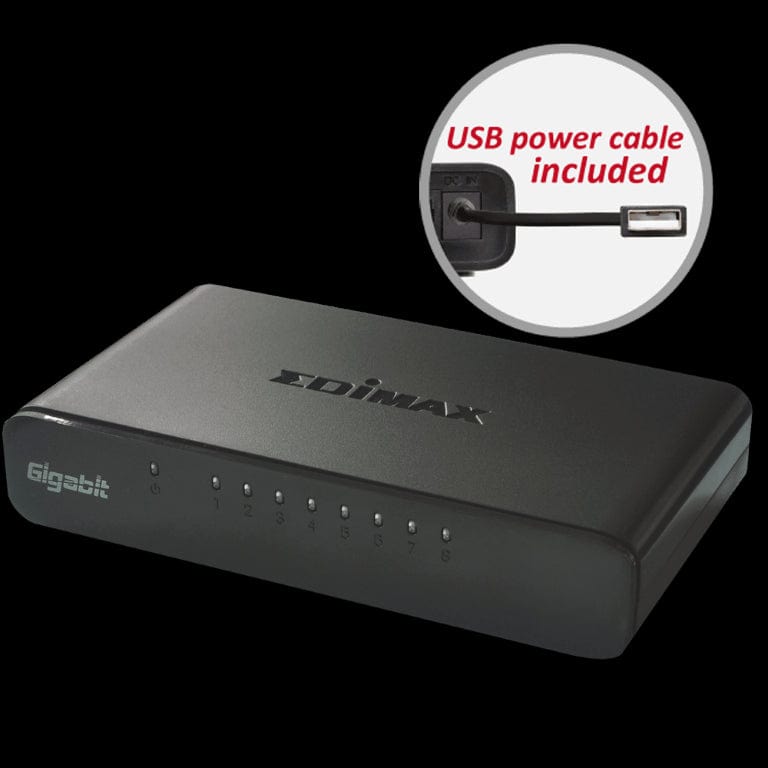

• Supports optional power supply either through a USB port or the AC power supply. (*USB power cable included. Requires 1A current-USB adapter not included.)
