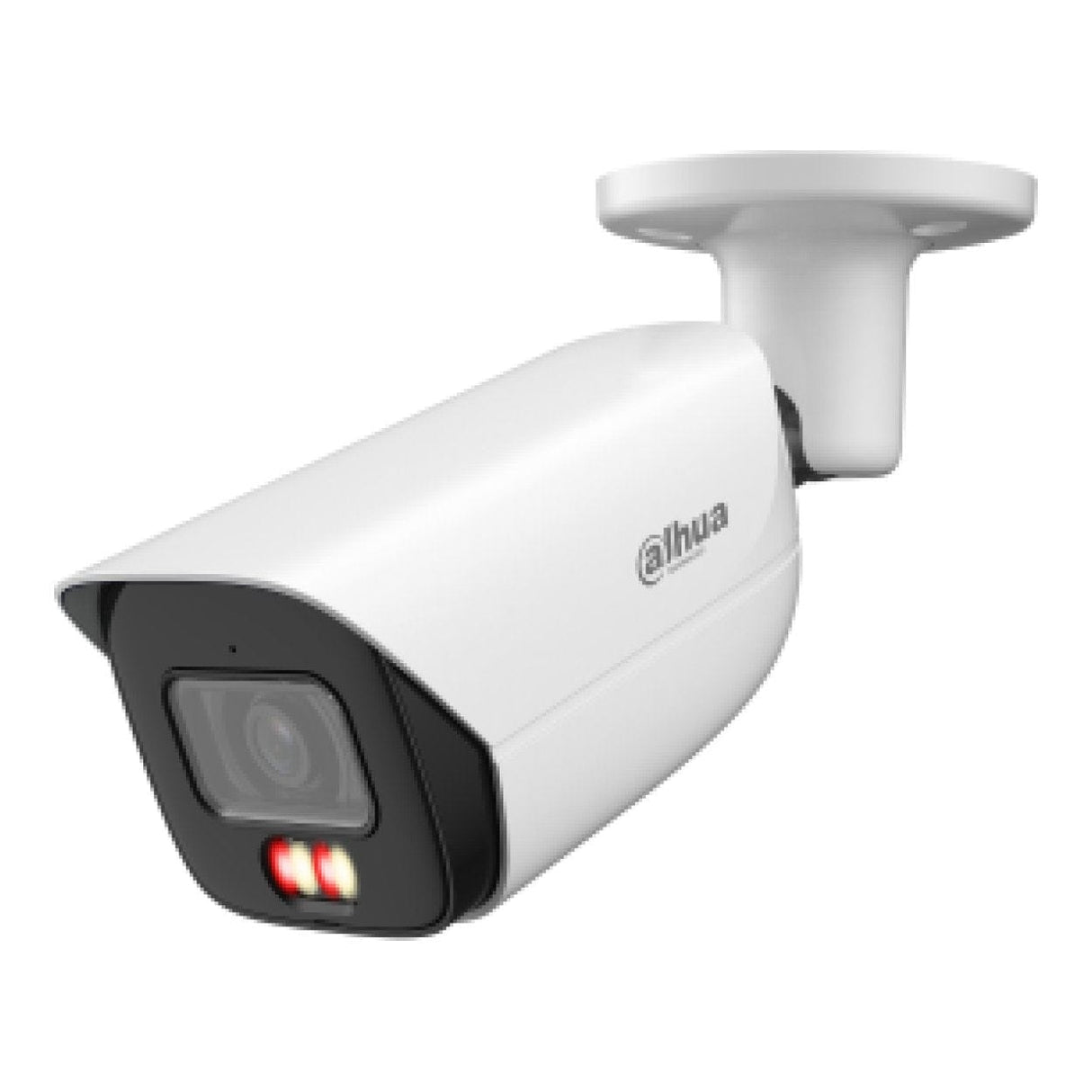

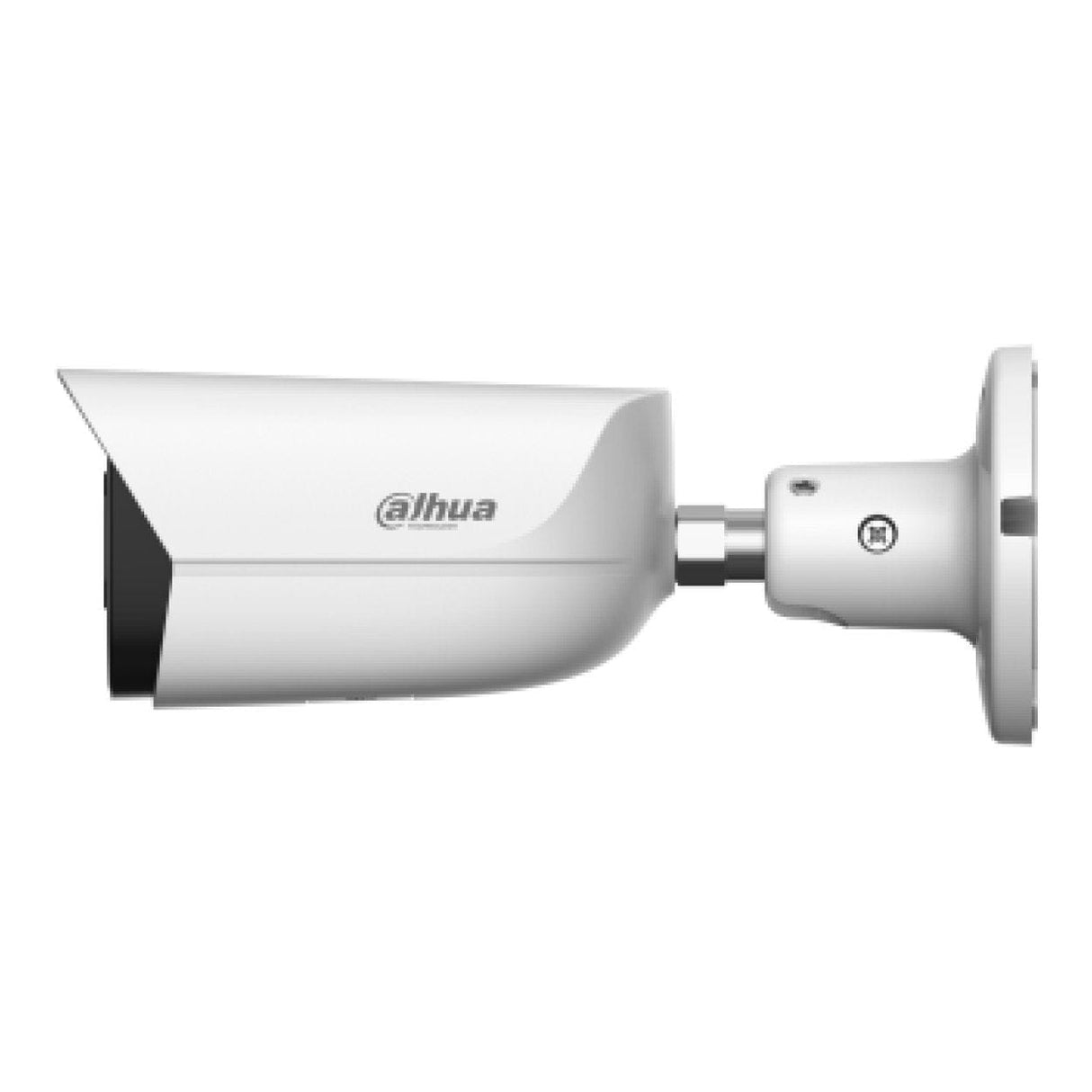

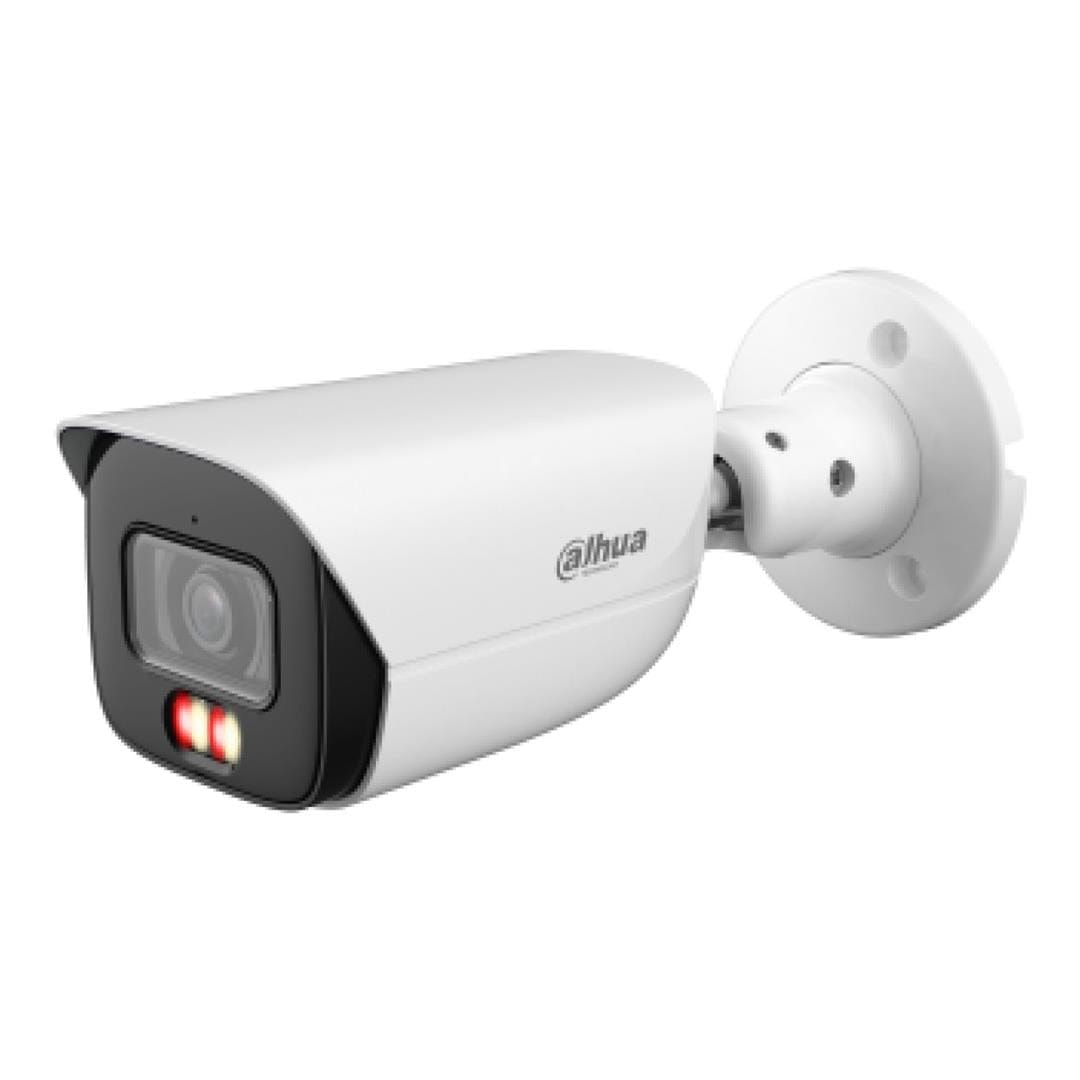

Dahua IPC-HFW3449E-AS-IL WizSense 4MP 3.6mm Smart Dual Light Fixed-focal Bullet Network Camera

Dahua IPC-HFW3449E-AS-IL WizSense 4MP 3.6mm Smart Dual Light Fixed-focal Bullet Network Camera

4MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera

• 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
• Outputs max. 4 MP (2688 × 1520)@25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 50 m.
• ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image).
• Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic.
• 12 VDC/PoE power supply.
• IP67 protection.
• SMD 4.0.
• Supports AI SSA.
• SMD area can be set in warm light areas that support triggering alarms.

Specifications:

Image Sensor: 1/2.9" CMOS

Max. Resolution: 2688 (H) × 1520 (V)

ROM: 256 MB

RAM: 1 GB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

• 0.005 lux@F1.4 (Color, 30 IRE)
• 0.0005 lux@F1.4 (B/W,30 IRE)
• 0 lux (Illuminator on)

S/N Ratio＞56 dB

Illumination Distance

• Up to 60 m (196.85 ft) (IR)
• Up to 50 m (164.04 ft) (Warm light)

Illuminator On/Off Control: Auto;Manual

Illuminator Number: 2 (Multi-core (IR + warm) light)

Angle Adjustment:

• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°

Lens Type: Fixed-focal

Lens Mount: M12

Focal Length: 2.8 mm; 3.6 mm; 6 mm

Max. Aperture: F1.4

Field of View: 3.6 mm: H: 83°; V: 44°; D: 98°

Iris Control: Fixed

Close Focus Distance: 3.6 mm: 1.5 m (4.92 ft)

IVS (Perimeter Protection): Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection

SMD: SMD 4.0

AcuPick: Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

AI SSA: Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Face Detection (Full Image): Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Network Port: RJ-45 (10/100 Base-T)

SDK and API: Yes

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability: ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

User/Host: 20 (Total bandwidth: 64 M)

Storage: FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser:

• IE: IE11
• Chrome
• Firefox

Management Software: Smart PSS Lite; DSS; DMSS; DoLynk Care

Mobile Client: iOS;Android

Security: Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
