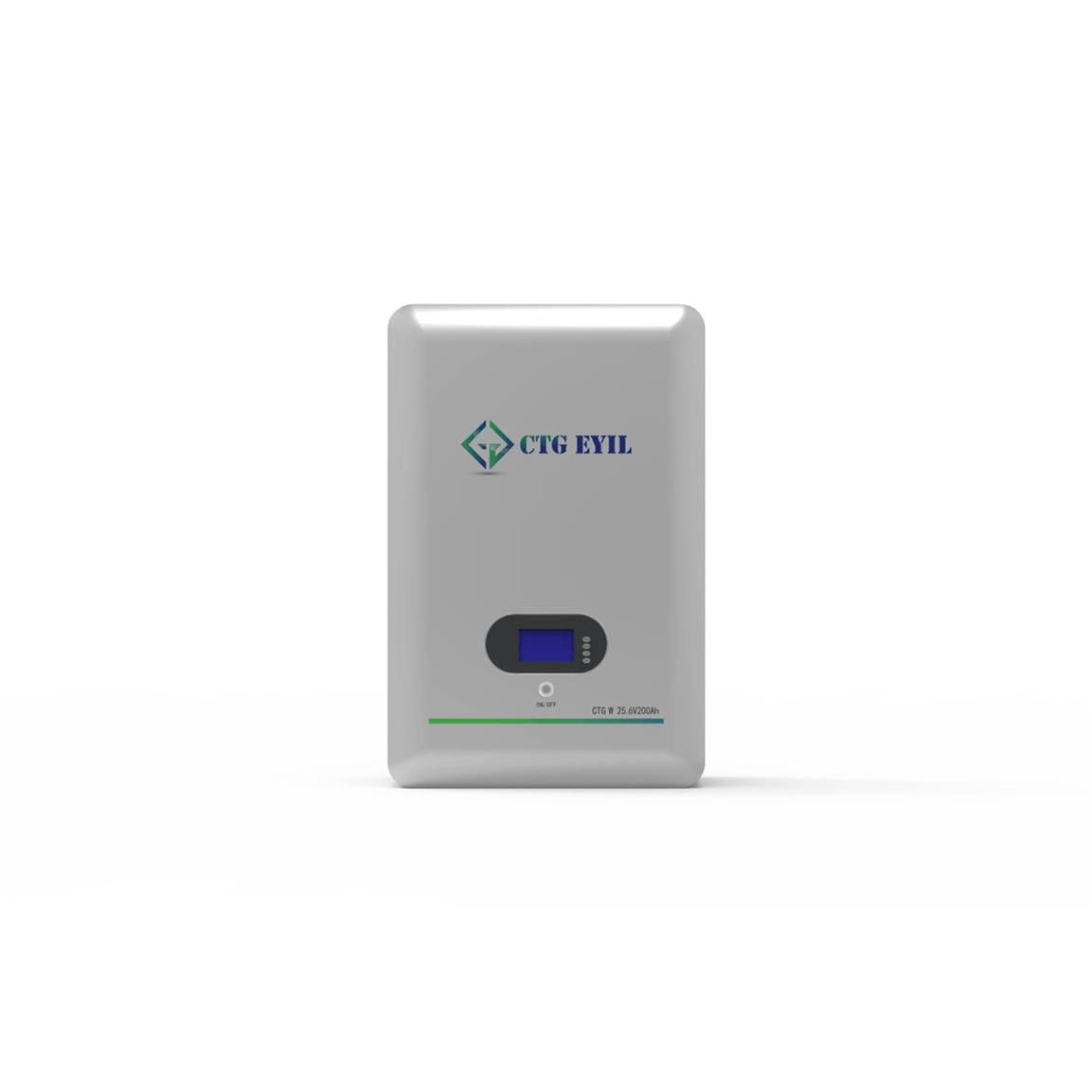

CTG EYIL 24V 5.12Kwh 200Ah Wallmount Lithium Battery CTGW256V200AH

CTG EYIL 24V 5.12Kwh 200Ah Wallmount Lithium Battery

The CTG EYIL 24V 5.12KWh 200Ah Wallmount Lithium Battery is an advanced energy storage solution designed to provide reliable power for various applications.

Voltage and Capacity

Operating at 24 volts, this battery boasts a high capacity of 5.12 kilowatt-hours (KWh) and 200 ampere-hours (Ah). This ample capacity ensures a stable and consistent power supply for extended periods, making it suitable for both residential and commercial use.

Lithium-ion Technology

Utilizing lithium-ion chemistry, this battery offers high energy density and long cycle life. Lithium-ion batteries are known for their superior performance compared to traditional lead-acid batteries, providing more power in a smaller and lighter package.

Wallmount Design

The battery is designed for easy wall-mounting, offering flexibility in installation and saving valuable floor space. This makes it suitable for installations where space is limited or where aesthetics are important.

Smart BMS Features

• Over Temperature Protection
• Short Circuit Protection
• Overvoltage Protection
• Cut-off Protection
• Over Discharge Protection
• Over Current Protection
• RS485 / CAN Communication
• 4 Temperature Sensors

Specifications:

Battery Nominal Voltage (V): 25.60

Energy Capacity (Ah): 200.00

Power (KW): 5.12

Operating Voltage: 21.6V-29.2V

Standard Charge Method: 0.5C

Continuous Discharge Current: 1C

Max Continuous Discharge Current: 1.5C

Dimensions: Lx580mm Wx380mm Hx188mm

Weight (approx): 48Kgs
