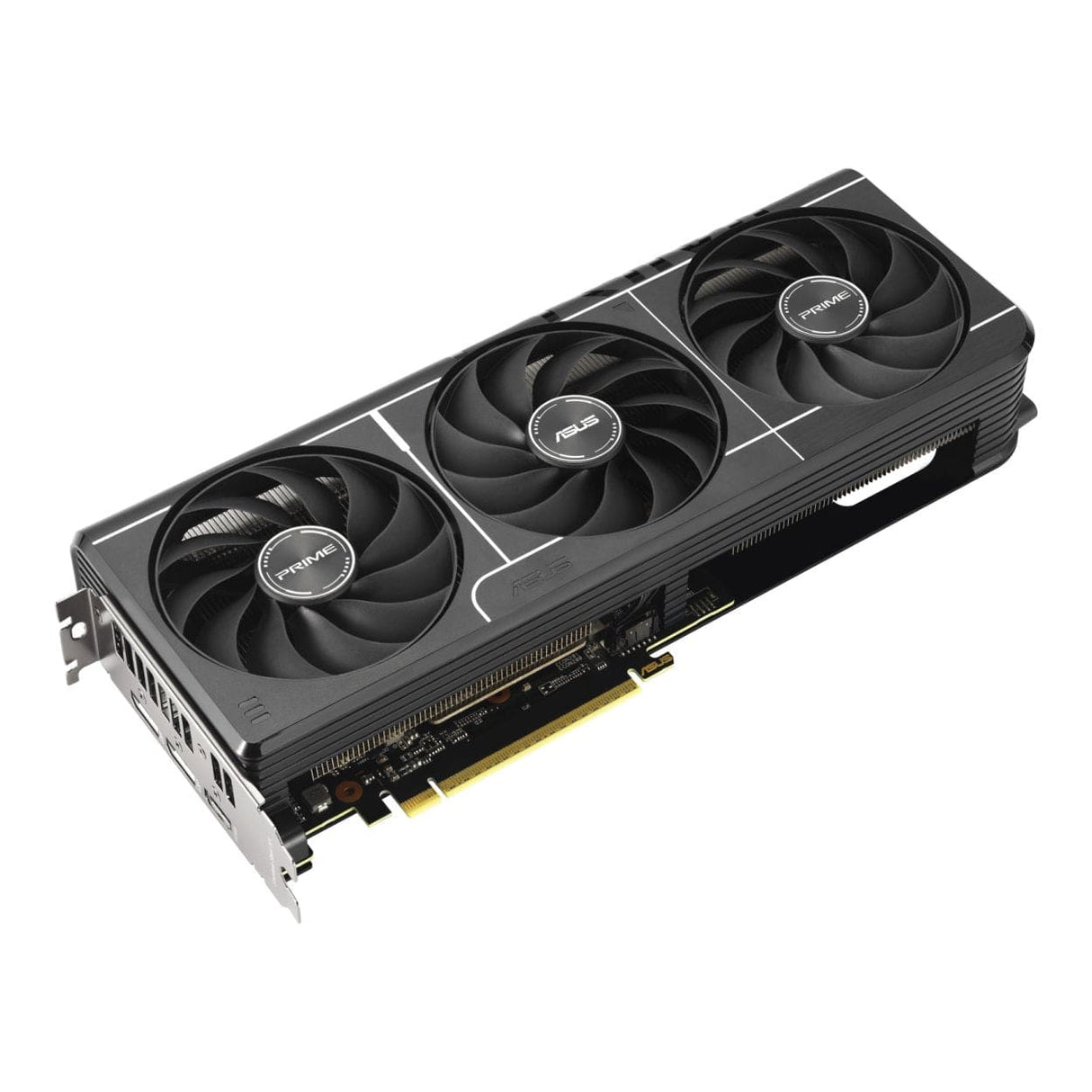

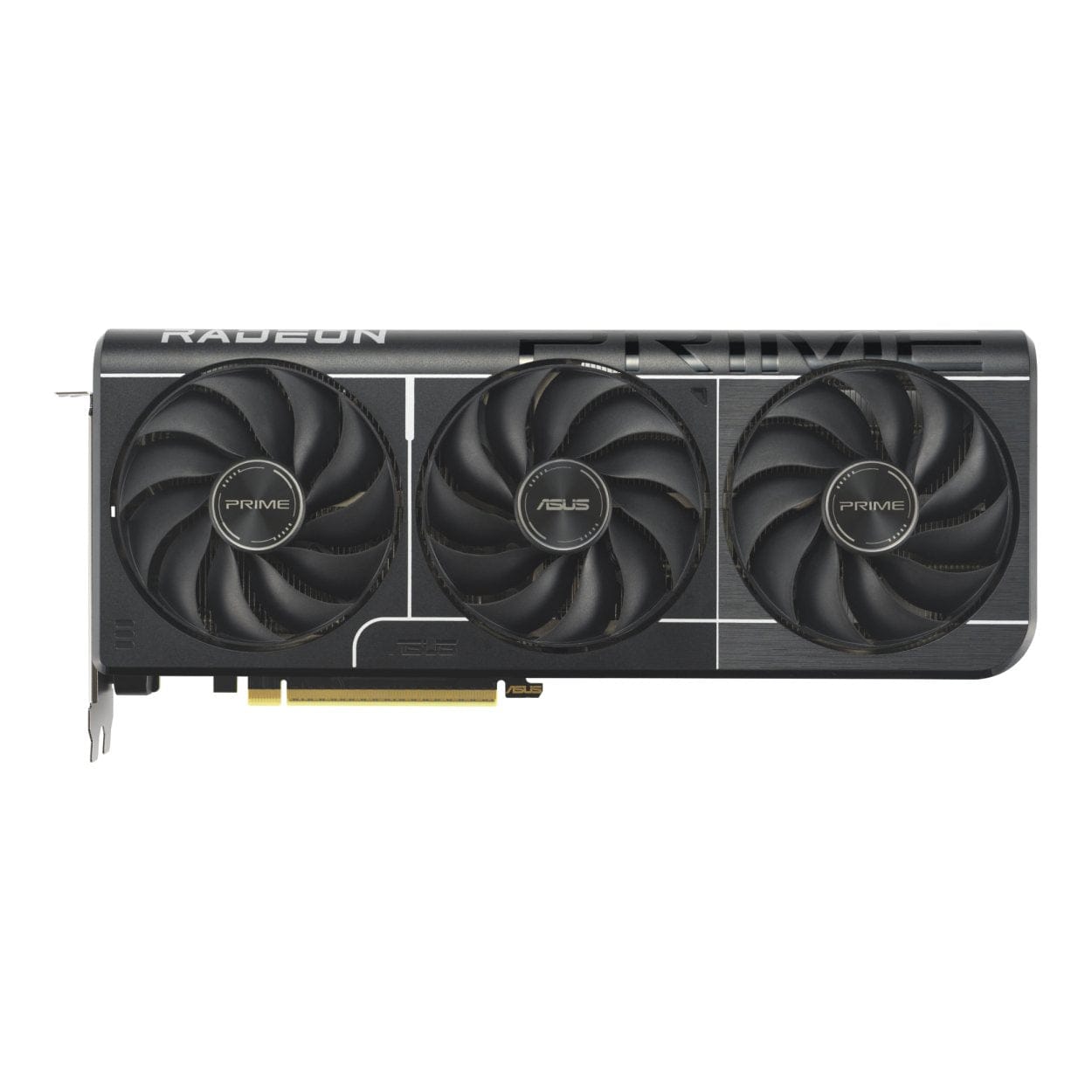

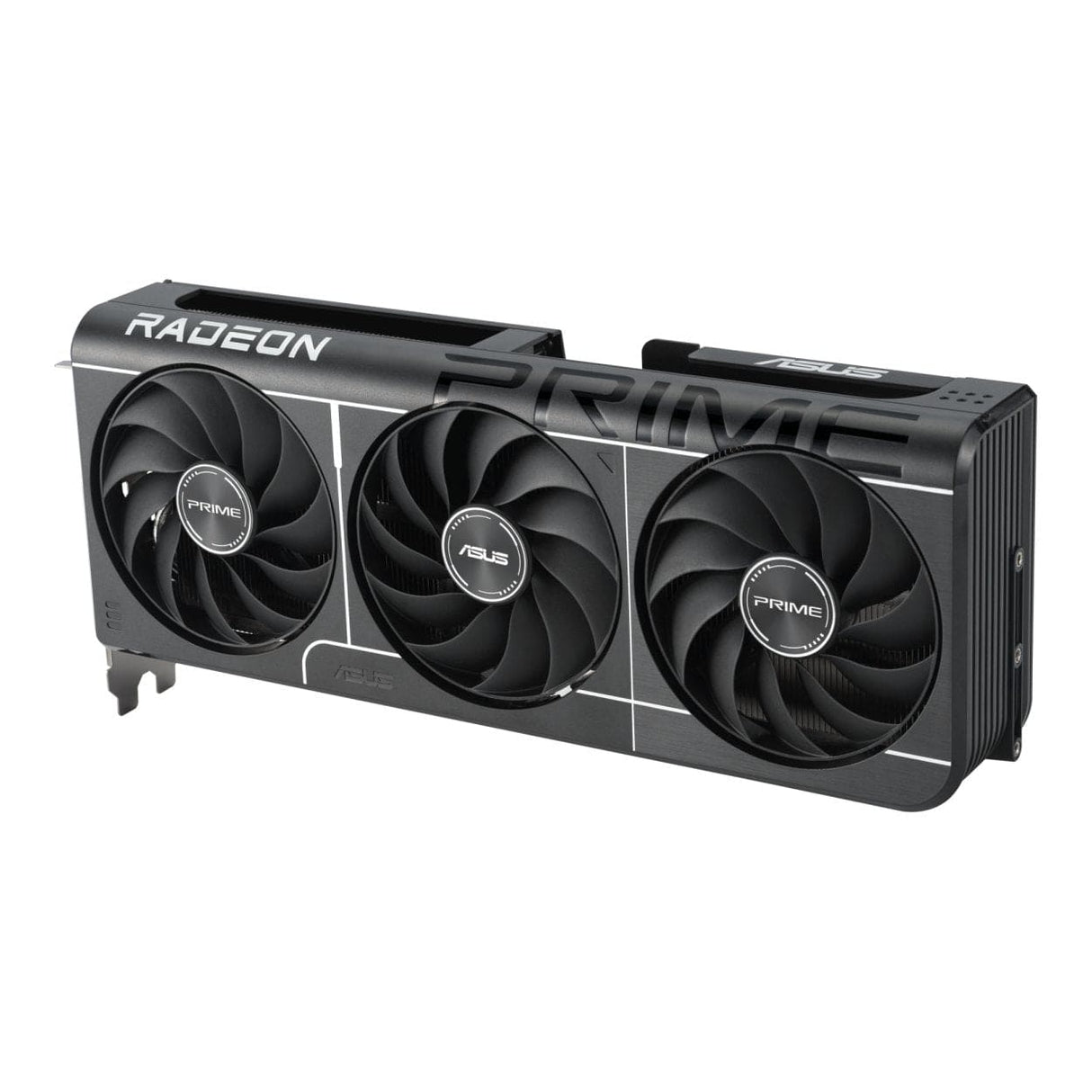

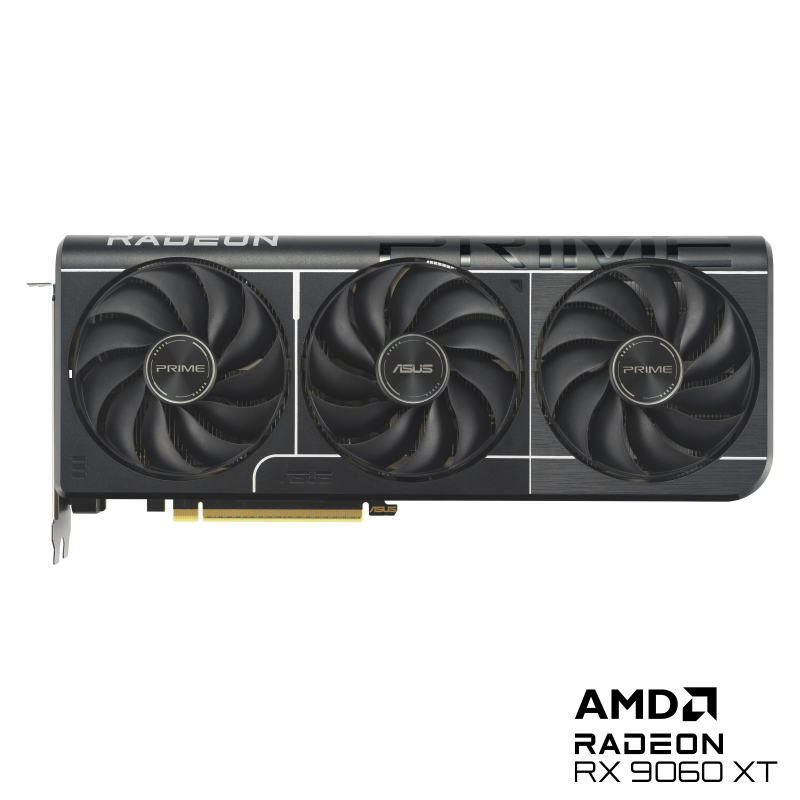

ASUS PRIME Radeon RX 9060 XT 8GB GDDR6 OC Edition Graphics Card 90YV0MI0-M0NA00

ASUS PRIME Radeon RX 9060 XT 8GB GDDR6 OC Edition Graphics Card 90YV0MI0-M0NA00

Experience Primal performance with the Prime Radeon™ RX 9060 XT graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme cooling.

Features

2.5-slot Design

The Prime Radeon™ RX 9060 XT features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.

Axial-tech Upgrades

Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.

0dB Technology

All three fans come to a standstill when GPU temperatures are below 55°C, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 60°C, establishing a speed curve that balances performance and acoustics for work or play.

Dual Ball Fan Bearings

Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

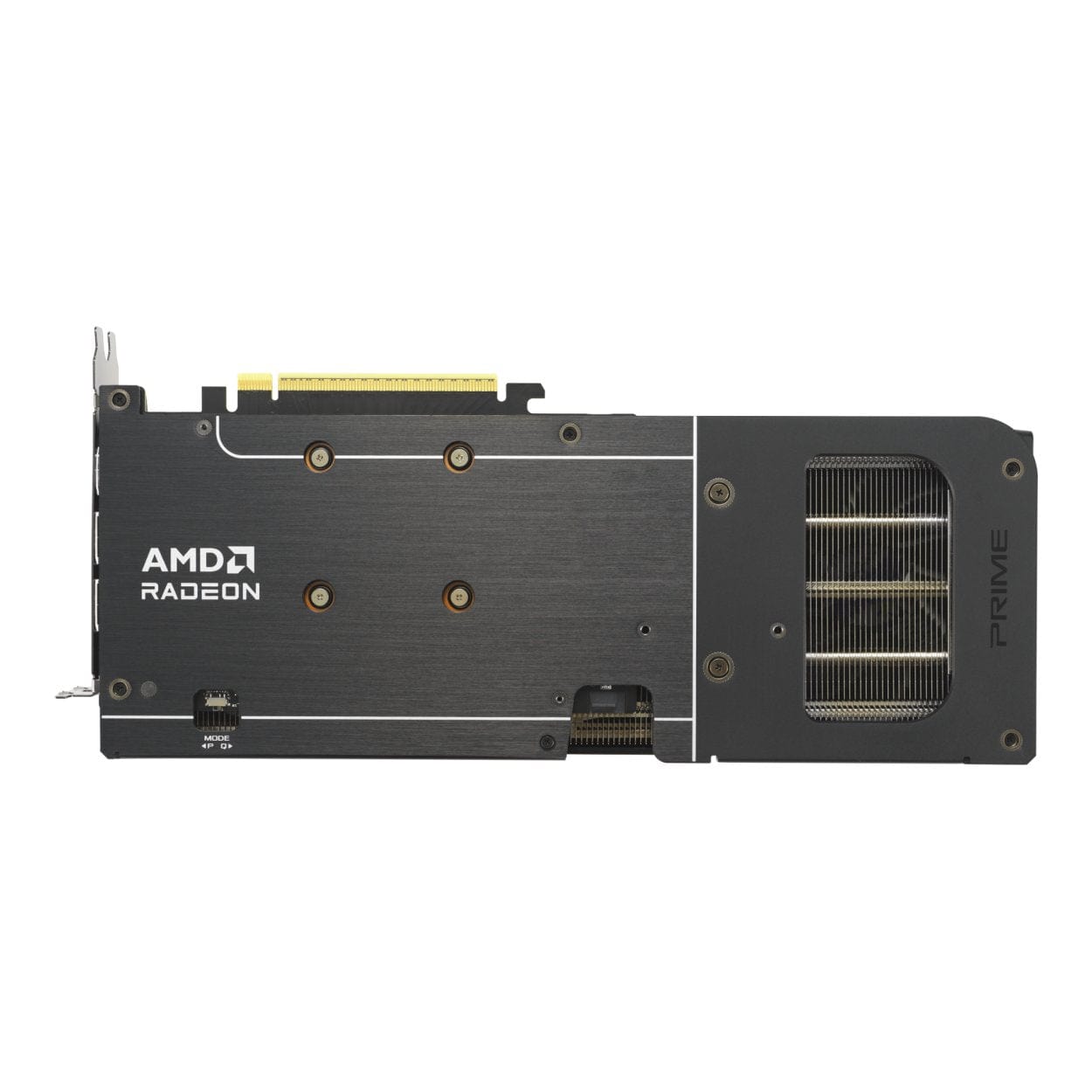

Vented Backplate

Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

MaxContact Design

MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.

Dual BIOS

Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time, and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at moderate temperatures.

Auto−Extreme Technology

An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

Designed for Lightning-Fast Gaming, Powered by AMD RDNA™ 4

Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and Al accelerators, support for AMD FidelityFX™ Super Resolution 4 technology and AMD HYPR-RX² for ultra-smooth, ultra-responsive gameplay that makes every play count.

Technical Specification

Product: ASUS PRIME Radeon RX 9060 XT 8GB GDDR6 OC Edition Graphics Card

Model: PRIME-RX9060XT-O8G

Graphic Engine: AMD Radeon RX 9060 XT

Bus Standard: PCI Express 5.0

OpenGL: OpenGL 4.6

Video Memory: 8 GB GDDR6

Engine Clock

• OC mode (GPU Tweak III): up to 3330 MHz (Boost Clock)/up to 2760 MHz (Game Clock)
• Default mode: up to 3310 MHz (Boost Clock)/up to 2740 MHz (Game Clock)

Stream Processors: 2048

Memory Speed: 20 Gbps

Memory Interface: 128-bit

Digital Max Resolution: 7680 x 4320

Interface

• 1x Native HDMI 2.1b
• 2x Native DisplayPort 2.1a
• HDCP Support Yes (2.3)

Maximum Display Support: 3

NVlink/ Crossfire Support: No

Dimensions: 304 x 126 x 50mm

Recommended PSU: 550W

Power Connectors: 1 x 8-pin

Slot: 2.5 Slot
