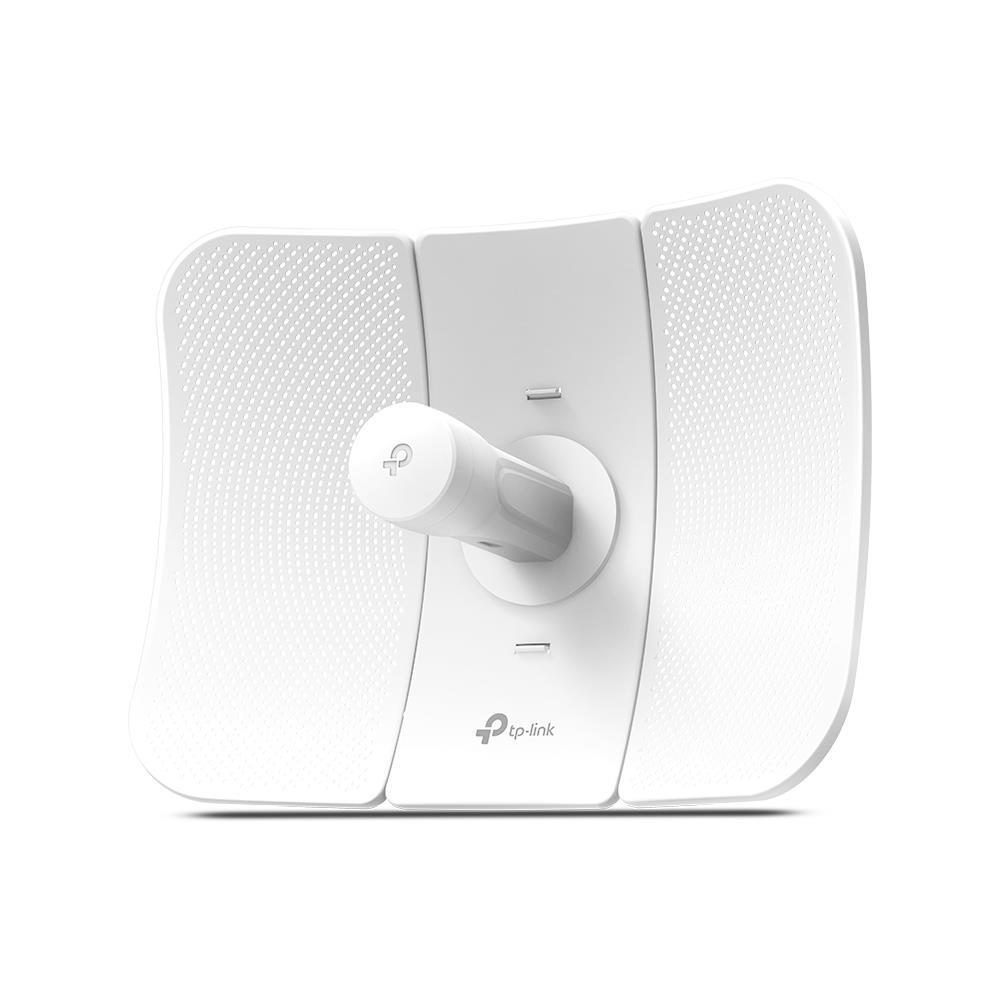

TP-Link Pharos CPE710 5GHz AC 867Mbps 23dBi Wi-Fi Outdoor CPE Antenna

TP-Link Pharos CPE710 5GHz AC 867Mbps 23dBi Wi-Fi Outdoor CPE Antenna

Stable Outdoor Wi-Fi
for Long-Distance Transmission

Features:

•  802.11ac for up to 867Mbps on 5GHz wireless data rate
• 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
• Excellent beam directivity, improved latency and noise cancellation

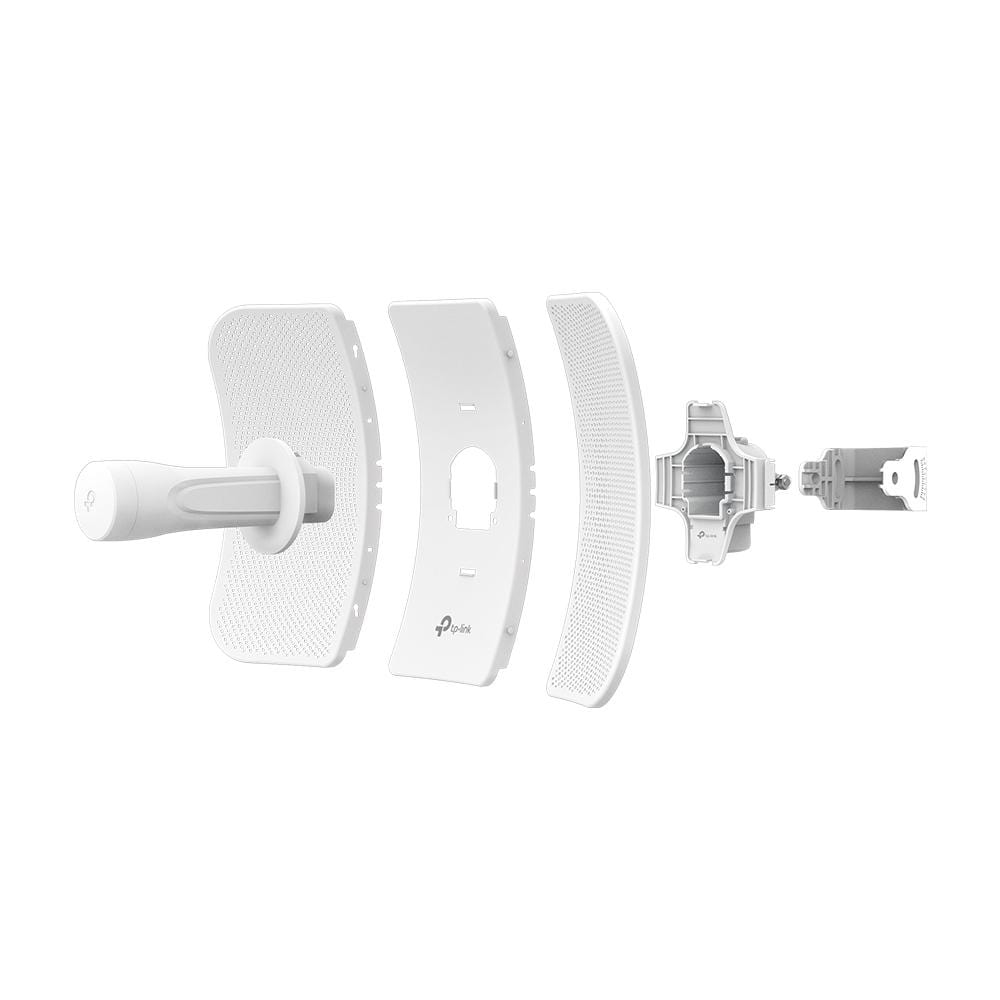

• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
• Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
• Pharos Control gives administrators a free, centralized management system
• Passive PoE supports to allow flexible deployment and convenient installation

Blazing Speed without Wait

256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.

Professional-Standard 23 dBi Directional

Antenna for Long-range Wireless Transmission

With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

Compact and Lightweight Packaging

Small and lightweight boxes benefit shipping, logistics, and retail.

Pharos Control – Centralized Management System

CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.

Technical Specifications:

Hardware Features
Processor: Qualcomm 750 MHz CPU, MIPS 74Kc
Memory: 128 MB DDR2 RAM, 16 MB Flash
Interface: 1 × 10/100/1000 Mbps shielded Ethernet port (LAN/PoE); 1 × reset button
Power Supply: Passive Power over Ethernet via LAN (+4,5 pins; −7,8 pins); voltage range 16–27 V DC
Dimensions (W × D × H): 366 × 280 × 207 mm (14.4 × 11.0 × 8.1 in.)
Antenna Gain: 23 dBi
Antenna Beamwidth: 9° (azimuth) / 7° (elevation)
Protection: 15 kV ESD protection; 6 kV lightning protection
Enclosure: Outdoor PC stabilized plastic; IP65 water and dust proof design

Wireless Features
Wireless Standards: IEEE 802.11a/n/ac
Wireless Speeds: Up to 867 Mbps (80 MHz, dynamic); up to 400 Mbps (40 MHz, dynamic); up to 173.4 Mbps (20 MHz, dynamic)
Frequency: 5.15–5.85 GHz
Transmission Power: Maximum 27 dBm (adjustable in 1 dBm steps)

Software Features
Network Configuration: WAN static/dynamic/PPPoE; LAN static/dynamic/DHCP; forwarding ALG/UPnP/virtual server/port trigger; security SPI firewall/ping forbidden/DoS protection; access control; static routing; bandwidth control; IP and MAC binding
Wireless Configurations: Selectable channel width 20/40/80 MHz; auto channel selection; transmit power control; DFS; WDS enable/disable; security WPA/WPA2 and WPA-PSK/WPA2-PSK (AES/TKIP); SSID broadcast enable/disable; multi-SSID with VLAN tagging (AP mode only); distance/ACK timeout setting; wireless MAC address filter; advanced settings beacon interval/RTS threshold/fragmentation threshold/DTIM interval/AP isolation/short GI/Wi-Fi multimedia; long-range PtP
Management Features: Discovery and remote management via Pharos Control application; HTTP/HTTPS web-based management; system log; SNMP agent (v2c); ping watchdog; dynamic DDNS; SSH server
System Tools: Indicators for signal strength, noise, transmit CCQ, CPU, memory; monitors for throughput, stations, interfaces, ARP, routes, WAN, DHCP; spectrum analyzer; speed test; ping; traceroute; antenna alignment
System-Level Optimizations: Optimized IGMP snooping and proxy for multicast applications

Poe Adapter Features
Dimensions (W × D × H): 85.8 × 43.9 × 29.7 mm
Interfaces: 1 × AC jack with earth ground; 1 × 10/100/1000 Mbps shielded Ethernet port (power + data); 1 × 10/100/1000 Mbps shielded Ethernet port (data)
Button: Remote reset button
Power Status LEDs: Green
Input: 100–240 VAC, 50/60 Hz
Output: 24 V DC, 0.5 A max (+4,5 pins; −7,8 pins; supports up to 60 m PoE)
Efficiency: >84.29%
Certifications: CE, FCC, UL, IC, GS, PSB, C-tick, SAA, S-Mark, KC-mark

Others
Certifications: CE, FCC, RoHS, IP65, IC
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, Windows 8, Windows 10; macOS; NetWare; UNIX or Linux
Note: Recommended web browsers are Google Chrome, Safari, and Firefox; Internet Explorer is not recommended

What’s in the Box:

• Outdoor Wireless CPE
• 24 V 0.5 A passive PoE adapter
• Pole mounting kits
• AC power cord
• Installation guide
