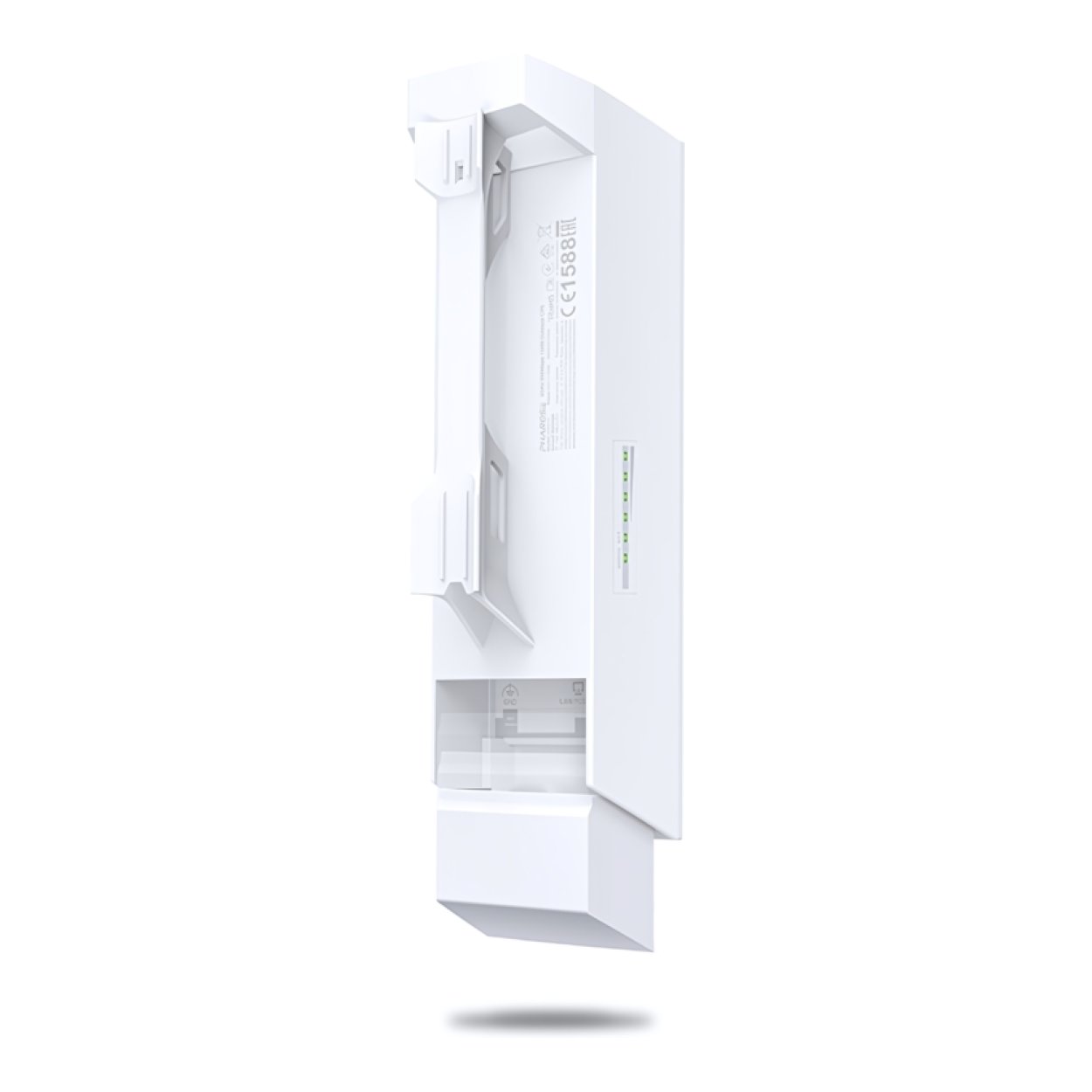

TP-Link Pharos CPE210 2.4GHz 300Mbps 9dBi Wi-Fi Outdoor CPE Access Point

TP-Link Pharos CPE210 2.4GHz 300Mbps 9dBi Wi-Fi Outdoor CPE Access Point

TP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.

Features:

• Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
• Adjustable transmission power from 0 to 25dBm/500mw
• System-level optimizations for more than 5km long-range wireless transmission
• TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
• Centralized Management System – Pharos Control
• AP / Client / AP Router / AP Client Router (WISP) operation modes
• Passive PoE Adapter supports up to 60 meters (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

Enterprise Hardware

With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).

Advanced Antenna System

Built-in High Gain Dual-Polarized Antenna

Dedicated metal reflector ensures higher gain

and lower noise interference

5km+ Wireless Data Transmission

Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.

TP-LINK MAXtream TDMA Technology

As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System

CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS

User-friendly web-based management system allows professionals to do more specific configurations.

Technical Specifications:

Hardware Features
Processor: Qualcomm Atheros 560 MHz CPU, MIPS 74Kc
Memory: 64 MB DDR2 RAM, 8 MB Flash
Interface: 1 × 10/100 Mbps shielded Ethernet port (LAN0, passive PoE in), 1 grounding terminal, 1 reset button
Power Supply: Passive Power over Ethernet via LAN0 (+4,5 pins; −7,8 pins), voltage range 16–27 VDC
Max. Power Consumption: 5 W max (note: when deployed using passive PoE, power drawn from the source may increase depending on cable length)
Dimensions (W × D × H): 224 × 79 × 60 mm
Antenna: Built-in 9 dBi 2×2 dual-polarized directional antenna, beam width 65° (H-plane) / 40° (E-plane)
Protection: 15 kV ESD protection, 6 kV lightning protection
Enclosure: Outdoor ASA stabilized plastic material, IPX5 waterproof certification

Wireless Features
Wireless Standards: IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol: TDMA mode (with Pharos MAXtream enabled)
Wireless Speeds: Up to 300 Mbps (40 MHz, dynamic), up to 144.4 Mbps (20 MHz, dynamic), up to 72.2 Mbps (10 MHz, dynamic), up to 36.1 Mbps (5 MHz, dynamic)
Frequency: 2.4–2.483 GHz (note: available operating frequency may vary by country or region)
Transmission Power: 25 dBm / 316 mW, adjustable in 1 dBm steps (note: maximum transmission power may vary by channel and regional regulations)

Software Features
Wireless Configurations: Pharos MAXtream TDMA technology, 802.11b/g/n modes, selectable channel width 5/10/20/40 MHz, automatic channel selection, transmission power control, dynamic frequency selection (DFS), WDS enable/disable, security with WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP), 64/128/152-bit WEP, SSID broadcast enable/disable, multi-SSID with VLAN tagging (AP mode only), distance/ACK timeout setting, wireless MAC address filtering, advanced wireless parameters including beacon interval, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, short GI, and Wi-Fi Multimedia
Management Features: Discovery and remote management via Pharos Control application, HTTP/HTTPS web-based management, system log, SNMP agent (v2c), ping watchdog, dynamic DDNS, SSH server
System Tools: Wireless signal quality indicators (signal strength, noise, transmit CCQ, CPU, memory), monitoring of throughput, stations, interfaces, ARP, routes, WAN, DHCP, spectrum analyzer, speed test, ping, traceroute
System-Level Optimizations: Optimized IGMP snooping/proxy for multicast applications, hardware watchdog

PoE Adapter Features
Dimensions (W × D × H): 110 × 57 × 33.5 mm
Interfaces: 1 AC jack with earth ground, 1 × 10/100 Mbps shielded Ethernet port (power + data), 1 × 10/100 Mbps shielded Ethernet port (data)
Button: Remote reset button
Power Status LEDs: Green
Input: 100–240 VAC, 50/60 Hz
Output: 24 VDC, 0.6 A max, +4,5 pins; −7,8 pins, supporting up to 60 m Power over Ethernet
Efficiency: >80%
Certifications: CE, FCC, UL, IC, GS, PSB, C-tick, SAA, S-Mark, KC-mark

Others
Certification: CE, FCC, RoHS, IPX5
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, Windows 8, Windows 10, macOS, NetWare, UNIX, or Linux (recommended browsers: Google Chrome, Safari, Firefox; Internet Explorer not recommended)

What’s in the Box:

• Outdoor Wireless CPE
• 24 V 0.6 A Passive PoE Adapter
• Pole Mounting Straps
• AC Power Cord
• Installation Guide
