Description

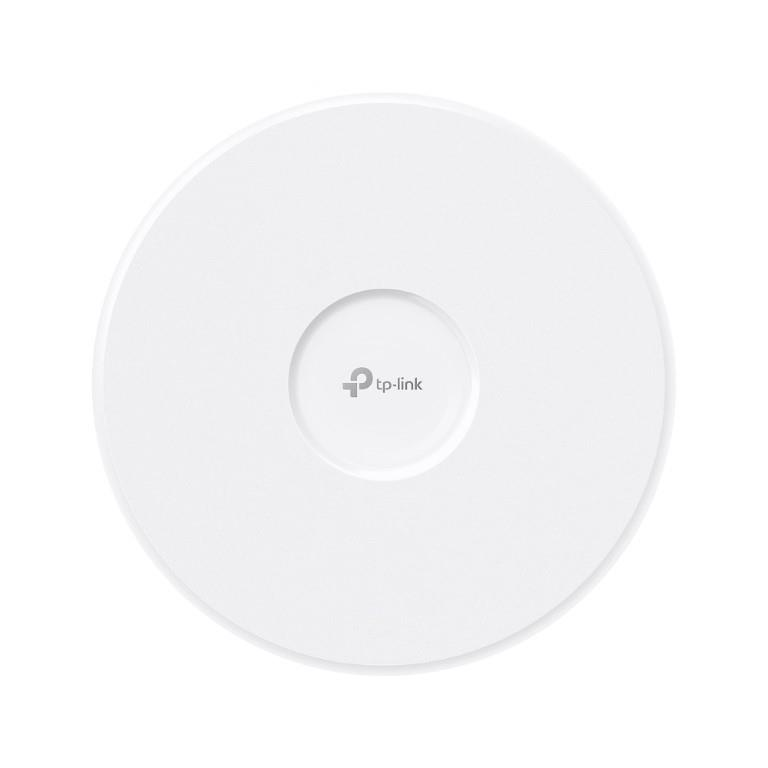

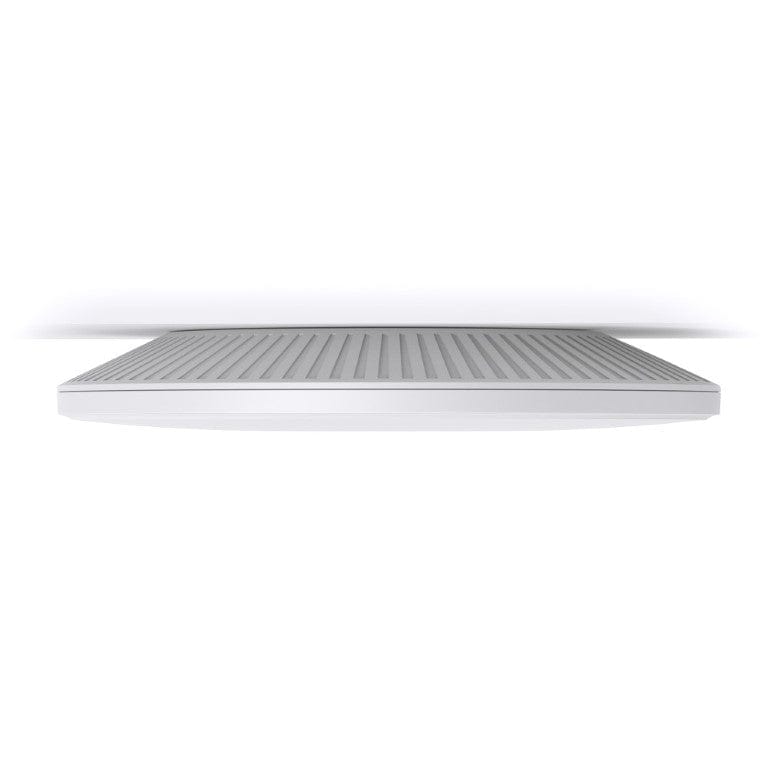

TP-Link Omada EAP773 BE9300 Tri-Band Wi-Fi 7 Ceiling Mount Access Point
With the brand-new 6 GHz band open to applications, WiFi 7 supports extending channel width to 320 MHz. Compared to WiFi 6/6E, the doubled channel bandwidth of 6 GHz offers many more simultaneous transmissions at the fastest possible speeds.
Making full use of these new resources, the throughout of EAP773 reaches up to 9213 Mbps.
Features
BE9300 Tri-Band Wi-Fi 7
- 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
1x 10G Port
- Unlock the full potential of Wi-Fi 7.
Clear 6 GHz Band
- Brings cleaner and wider band resources to your Wi-Fi.
320 MHz Bandwidth
- Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
Low Latency and Interference
- Multi-Link Operation, and Multi-RUs ensure high performance of your network.
Advanced Functions
- Supports centralized management, mesh, and AI roaming.
Technical Specification
Interface: 1x 10G Ethernet Port
Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
Frequency: 6 GHz, 5 GHz, and 2.4 GHz
Signal Rate: 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)
Antenna Type
-
2.4 GHz: 2x 3.0 dBi
-
5 GHz: 2x 3.0 dBi
-
6 GHz: 2x 3.0 dBi
Bluetooth: 1x 4.0 dBi, Bluetooth 5.2 (*Firmware update may be required.)

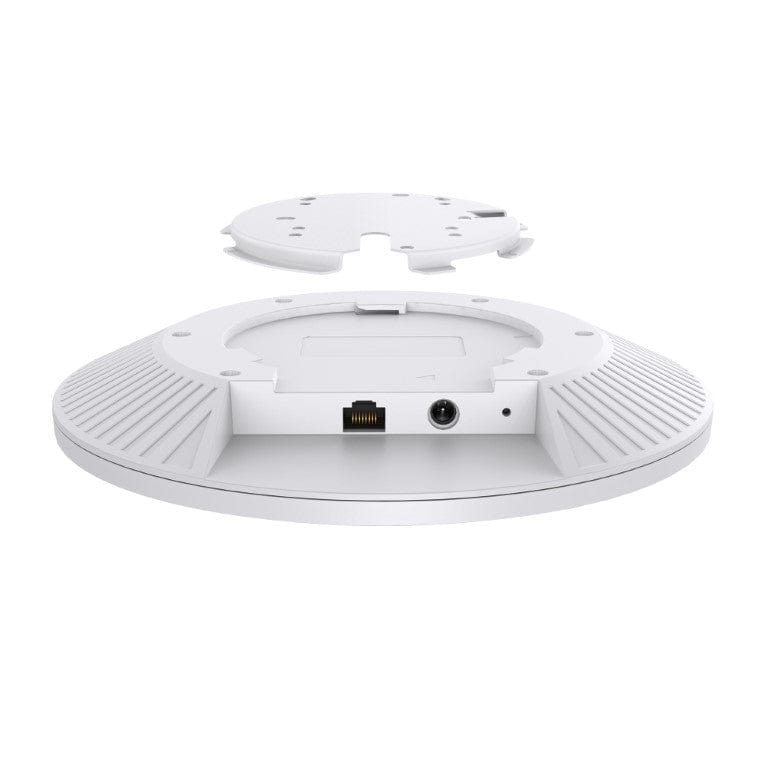

Mounting: Ceiling / Wall Mounting (Kits Included)
Power Supply: 802.3bt PoE or 12V/2.5A DC
Cloud Access: Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Package Contents
- EAP773
- Installation Guide
- Ceiling/Wall Mounting Kits
- Note: Power Adapter is NOT included.
