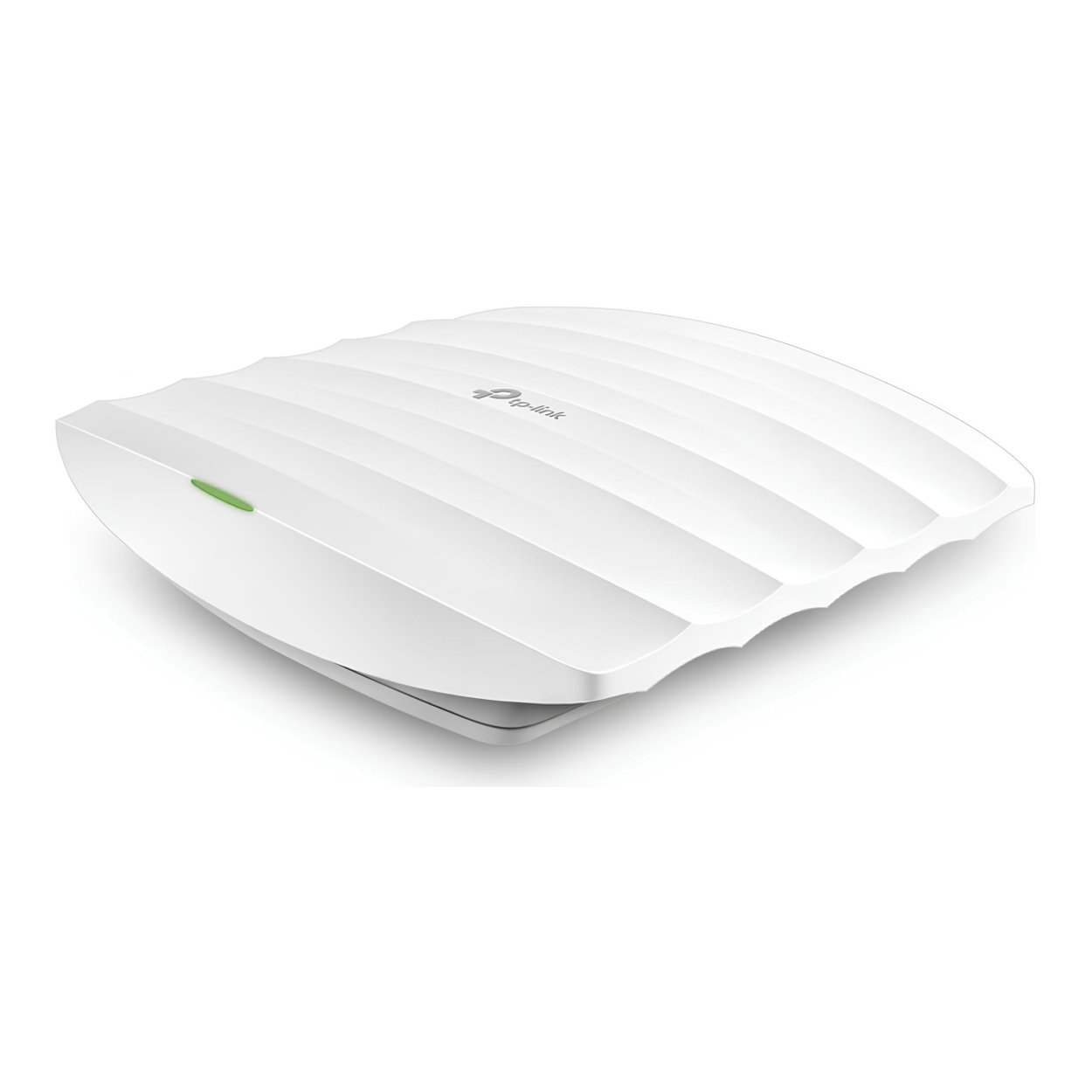

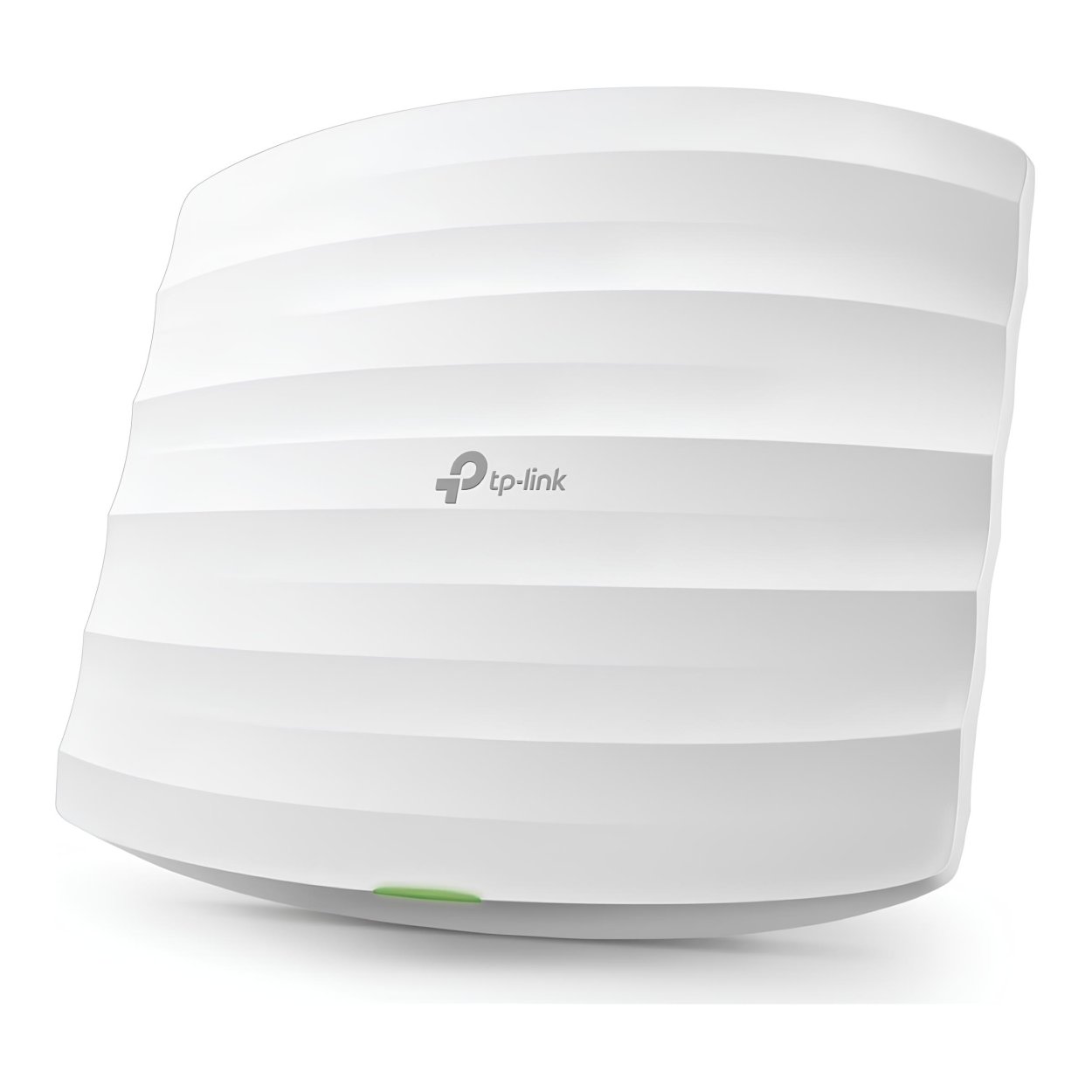

TP-Link EAP245 AC1750 Dual-band Wi-Fi 5 MU-MIMO Gigabit Ceiling Mount Access Point

TP-Link EAP245 AC1750 Dual-band Wi-Fi 5 MU-MIMO Gigabit Ceiling Mount Access Point

Superior Wi-Fi Speeds and Performance

QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands.

Features:

• Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
• Free EAP Controller Software lets administrators easily manage hundreds of EAPs
• Support Power over Ethernet(802.3at) for convenient and affordable installation
• Captive portal provides a convenient method for guest authentication
• Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
• Load balance ensures large numbers of users have smooth network experiences in high density business networks
• Supports management VLAN for an enhanced network management

Seamless Roaming

802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Secure Guest Network with Facebook Wi-Fi and SMS Login

Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation

EAP245 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.

Cloud Centralized Management - Anytime, Anywhere

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

Meet Our New Hero Product!

The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.

Technical Specifications:

Hardware Features
Interface: Gigabit Ethernet (RJ-45) Port ×1 (Supports IEEE 802.3at PoE)
Physical Security Lock: Kensington Lock Slot
Button: Reset
Power Supply: PoE or external 12VDC / 1.5A power supply
Power Consumption: 12.7 W
Dimensions (W × D × H): 7.1 × 7.1 × 1.9 in (180 × 180 × 47.5 mm)
Antenna Type: Internal omni, 2.4 GHz: 3 × 4 dBi, 5 GHz: 3 × 4 dBi
Mounting: Ceiling / Wall mounting (kits included)
Hardware Watch Dog: Yes

Wireless Features
Wireless Standards: IEEE 802.11ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate: 5 GHz up to 1300 Mbps, 2.4 GHz up to 450 Mbps
Wireless Functions: Multiple SSIDs (up to 16 SSIDs, 8 per band), enable/disable wireless radio, automatic channel assignment, transmit power control (adjustable in dBm), QoS (WMM), band steering, load balance, rate limit, reboot schedule, wireless schedule, wireless statistics based on SSID/AP/client
Wireless Security: Captive portal authentication, access control, wireless MAC address filtering, wireless isolation between clients, SSID to VLAN mapping, rogue AP detection, 802.1X support, 64/128/152-bit WEP, WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power: CE ≤19 dBm (2.4 GHz), ≤23 dBm (5 GHz); FCC ≤25 dBm (2.4 GHz), ≤27 dBm (5 GHz)

Management
EAP Controller Software: Yes
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c
System Logging Local/Remote Syslog: Local/Remote Syslog
Telnet: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes

Others
Certification: CE, FCC, RoHS
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10

What’s in the Box:

• AC1750 Wireless Dual Band Gigabit Access Point EAP245
• Power Adapter
• Mounting Kits
• Installation Guide
