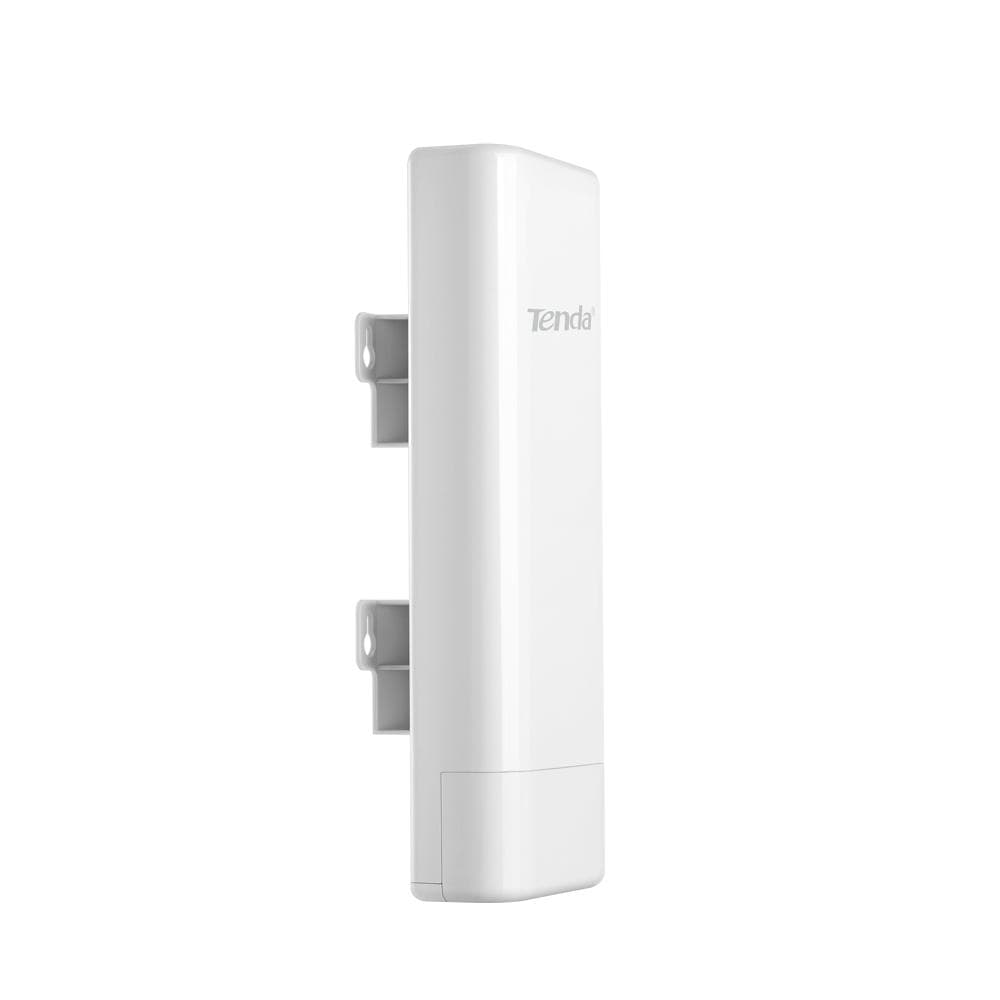

Tenda O3 2.4GHz 150Mbps Outdoor Point To CPE

Tenda O3 2.4GHz 150Mbps Outdoor Point To CPE

Tenda O3 2.4G outdoor long range access point is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features up to 800mW wireless transmission power and has a built-in 12dBi directional dual-polarized antenna which provides an efficient way to pick up and maintains a stable signal for a wireless network connection ranging multiple kilometers. - 2.4G 150Mbps - IP64 waterproof enclosure - 12dBi directional dual polarized antenna - AP, Station, WISP etc operating mode supported - Up to 60 meters of flexible deployment with included PoE Injector

5km+ Data Transmission

O3 is designed for outdoor long distance wireless data transmission. Adopting of 800mW external power amplifier and 12dBi directional antenna to achieve 5km+ transmission range.

Professional Outdoor Design

Equipped with IP64 waterproof enclouse and 6kV lightning protection capability, O3 can work in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment.

Dimension

270*94.86*67.5mm

Deployment

Pole Mount/Wall Mount

Application Scenarios

PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance

Specification

Frequency Range

2.4GHz

Compliant Standards

IEEE 802.11b/g/n

Maximum Wireless Rate

150Mbps

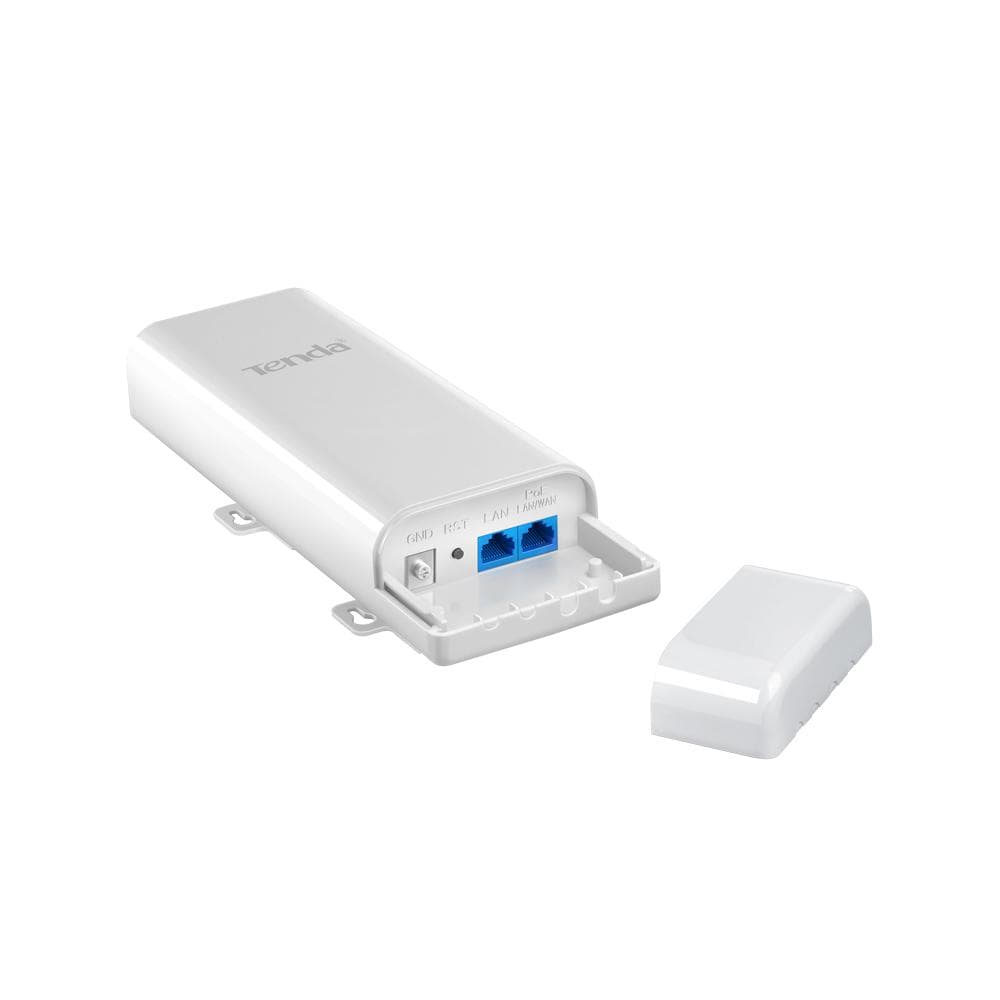

Interfaces

2*10/100Mbps Ethernet Port

Antenna Polarization

Horizational Polarization

Antennas Gain

12dbi

Antenna Beamwidth

Horizontal: 60° Vertical: 30°

GND

1*GND

Reset Button

1*Reset Button

Power Consumption

4.3W

Waterproof Level

IP65

LED Indicator

PoE/LAN,LED1,LED2,LED3

Power Method

12V1A Passive PoE

Lightning Protection

6000V

Passive PoE

Passive power over ethenet via PoE/LAN (+4,5pins
-7,8pins)
Voltage range: 9-13.8V DC

Reception Sensitivity

11b 1Mbps -92dBm±1.5dBm
11n MCS0: -92±1.5dBm
11n MCS7: -72±1.5dBm

Software

Operating mode

AP/Station/WISP/P2MP/WDS Repeater/Router

Enable/Disable Wireless Radio

Support

SSID Hidden

Support

Wireless Client isolation

Support

SSID Isolation

Support

Channel Bandwidth

20/40MHz

Wireless Access Control

Support

Weak Signal Client Limitation

Support

Transmission Power

Adjustable power by 1dBm

WMM Capable

Support

APSD Capable

Support

Wireless Security

64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2

Transparent Bridge

Support

VLAN Tagging for SSID

Support

DHCP Server

Support

VPN Pass-Through

PPTP,L2TP

Remote Web access

Support

Schedule Reboot

Support

Page Timeout

Support

Ping Watchdog

Support

Dyndns

noip, dyndns.org

Network Diagnoses

Ping, Traceroute, Signal Scan

Time

Support

Firmware upgrade

Support

Backup/Restore Configuration

Support

Username Managerment

Support

System Logs

Support

Managed By Controller

PC Software CPE Assistant

Others

Package Contents

1*2.4GHz 11n 12dBi 150Mbps outdoor CPE O3
1*Power Adapter
1*PoE Injector
1*Quick Installation Guide

Operation Temperature

-30℃ ~ 60℃

Storage Temperature

-40℃ ~ 70℃

Operating Humidity

10%~90% non-condensing

Storage Humidity

10%~90% non-condensing

Default login IP

192.168.2.1

Default Login Username

admin

Default Login Password

admin

Certification

FCC/CE/RoHS
