Cudy AX3000 Dual-Band Wi-Fi 6 Mesh Kit White M3000W(3-Pack)

Cudy AX3000 Dual-Band Wi-Fi 6 Mesh Kit White M3000W(3-Pack)

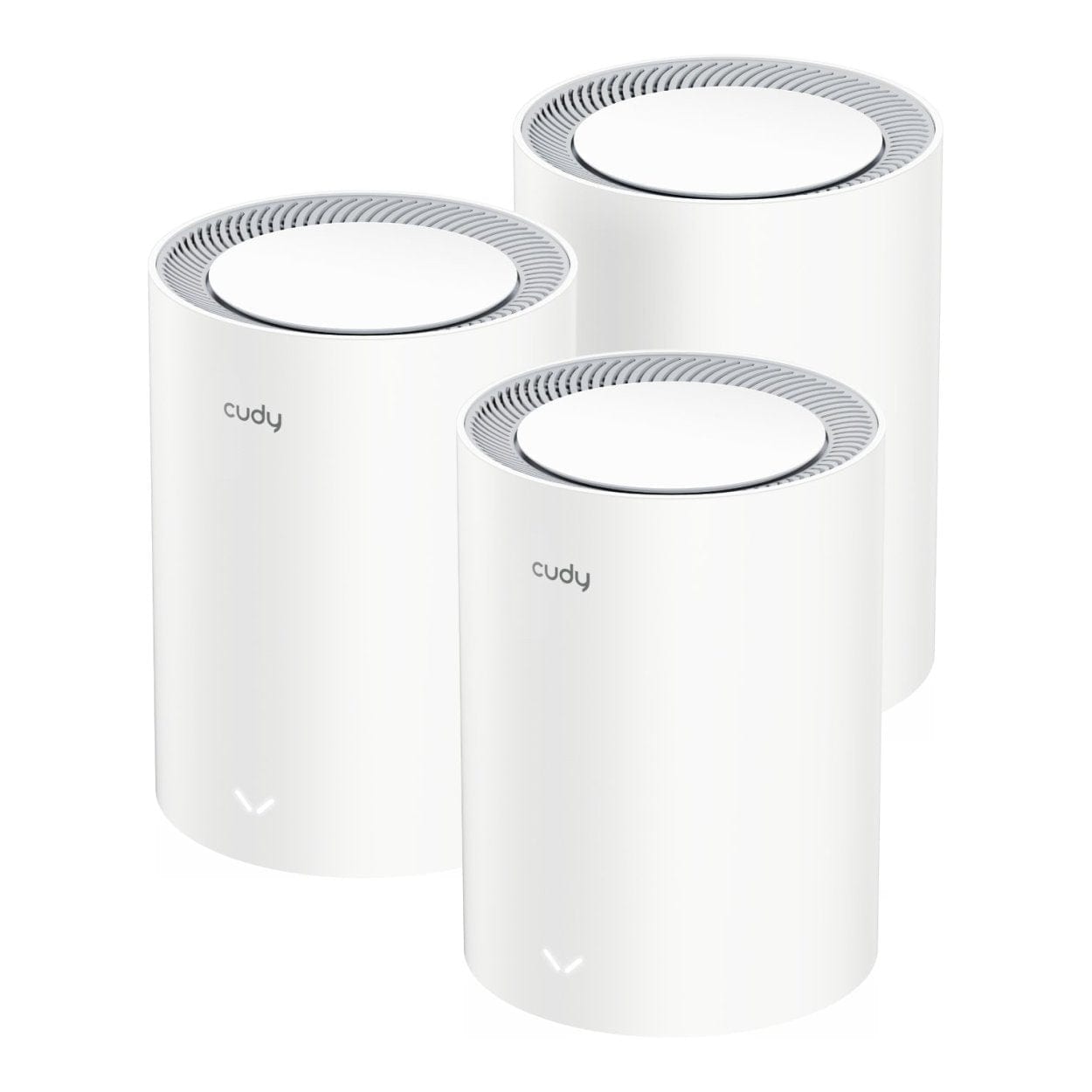

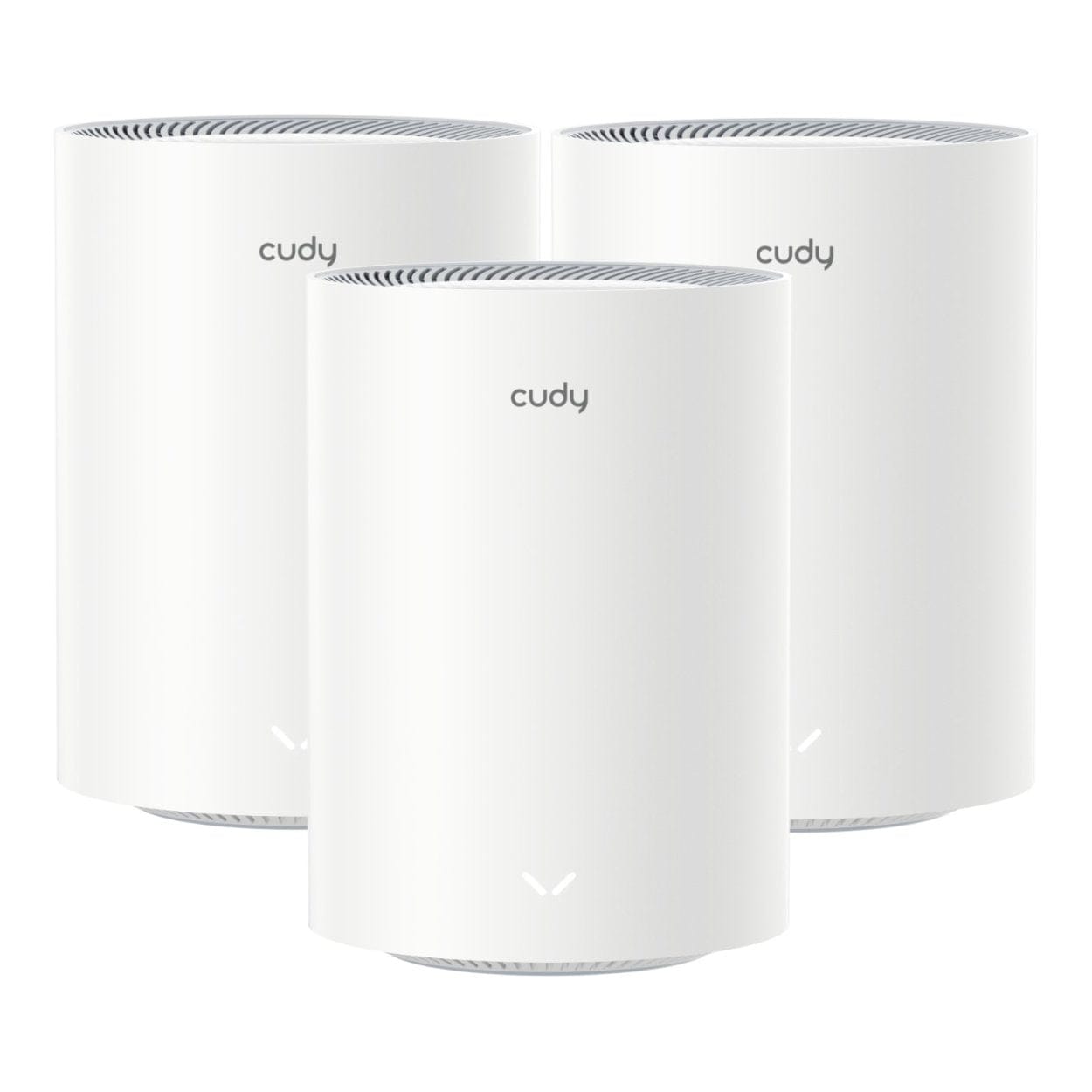

The Cudy AX3000 Mesh Wi-Fi 6 System is a powerful networking solution designed to meet the demands of modern homes with high-bandwidth activities like 4K streaming, online gaming, and smart home integration. Featuring five advanced antennas and Wi-Fi 6 technology, it delivers blazing speeds of up to 2402Mbps on 5GHz and 574Mbps on 2.4GHz, ensuring seamless connectivity across your home. With coverage options for spaces up to 6500 sq ft using a three-pack system, it’s the perfect choice for large households or multi-level homes with demanding internet needs.

Advanced parental controls allow you to manage online activity by setting time limits and blocking inappropriate websites, ensuring a safe browsing environment for kids. Security is enhanced with WPA3 encryption, protecting your network from brute-force attacks, while a Guest Network feature keeps your personal devices separated from visitors’ devices for an added layer of privacy. Additionally, the system supports six built-in VPN protocols, offering compatibility with over 50 VPN providers and enabling you to host your own VPN server for secure remote access.

With a 1.3 GHz dual-core CPU and efficient system tools, the Cudy AX3000 ensures reliable performance and easy network management. The intuitive system panel provides clear insights into network status, while the built-in diagnostic tool simplifies troubleshooting. Whether you’re managing over 200 connected devices, running simultaneous streams, or maintaining a secure and private network, the Cudy AX3000 Mesh Wi-Fi 6 System offers a dependable and versatile solution tailored for today’s connected lifestyle.

Features

• 1.3 GHz Dual-Core CPU
• 4-Stream Dual-Band Wi-Fi 6
• 2402Mbps + 574Mbps Wi-Fi
• Over 200 Connected Devices
• Fast Roaming
• Cudy Mesh, VPN Server and Client
• Multi-Band Simultaneous Backhaul
• Cudy App, Cloud Control
• Contains 3x Mesh Units

Technical Specification

Product: Cudy AX3000 Dual-Band Wi-Fi 6 Mesh Kit

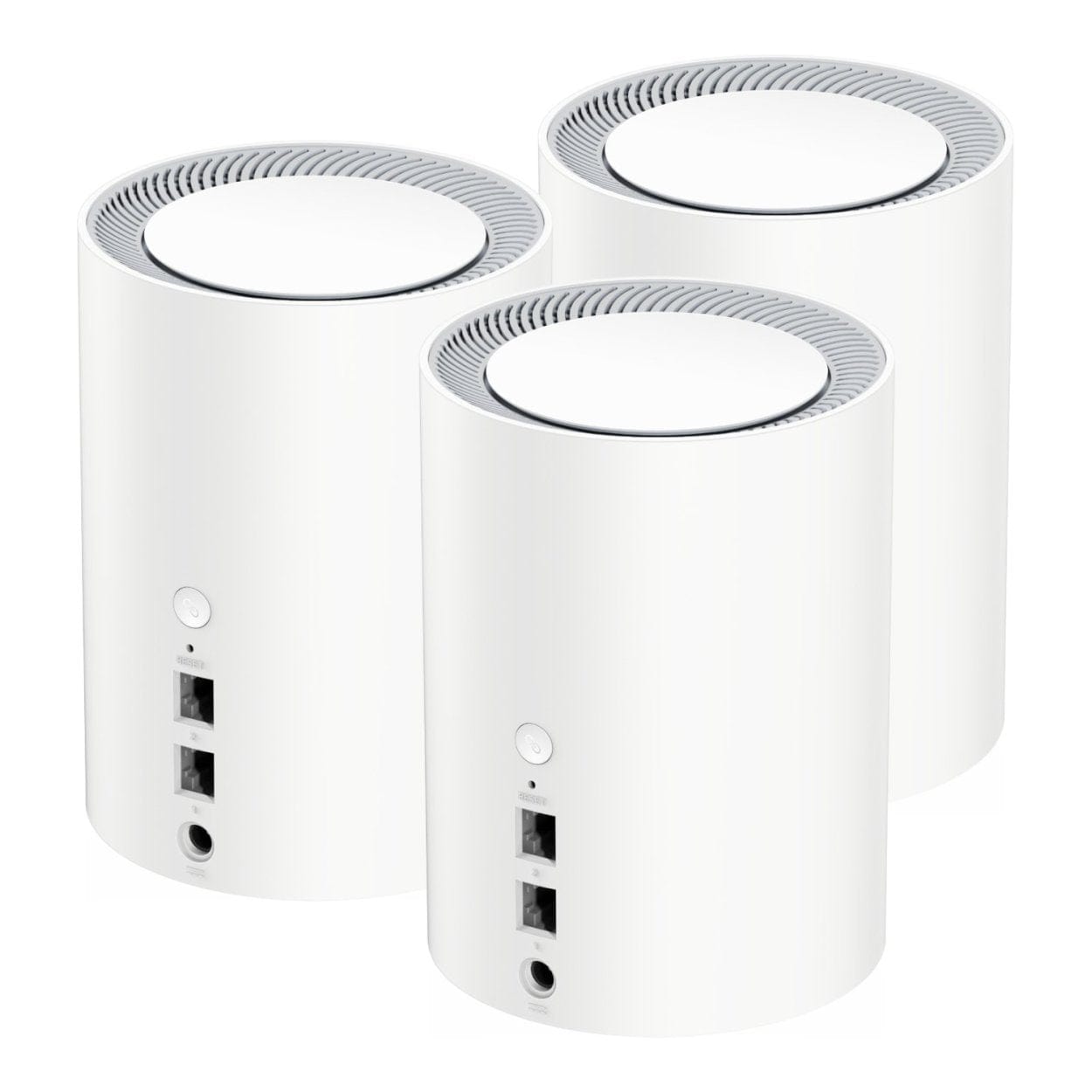

Interfaces: 1x 2.5G RJ45 Ports, 1x Gigabit RJ45 Ports

Ethernet Notes: The 2.5G port is WAN port, the Gigabit port is LAN port

Chipset: MT7981

CPU Details: 1.3 GHz Dual-Core, ARM Cortex-A53

Flash/ROM: 128 MB (1Gbit) NAND

DDR/RAM: 256 MB (2Gbit) DDR3

5.0GHz Wi-Fi Speed: 2402Mbps

2.4GHz Wi-Fi Speed: 574Mbps

5.0GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

2.4GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

Wi-Fi Antennas: 5× Internal

5.0GHz Antenna Gain Max: 5.1dBi

2.4GHz Antenna Gain Max: 4.2dBi

FEM or PA/LNA: 5 GHz: 3× Internal | 2.4 GHz: 2× Internal

Beamforming: True

Range Performance: Max: 220 m (722 ft) Indoor Wi-Fi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.

Wall Performance: Two wooden walls with thickness < 10 cm (4”) | One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”)

Multi-Pack Indoor Coverage

• 600 m² (6500 sq ft) (3-pack)
• Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.

Power Input: DC Jack

Power Methods: DC

DC: 12V 1A

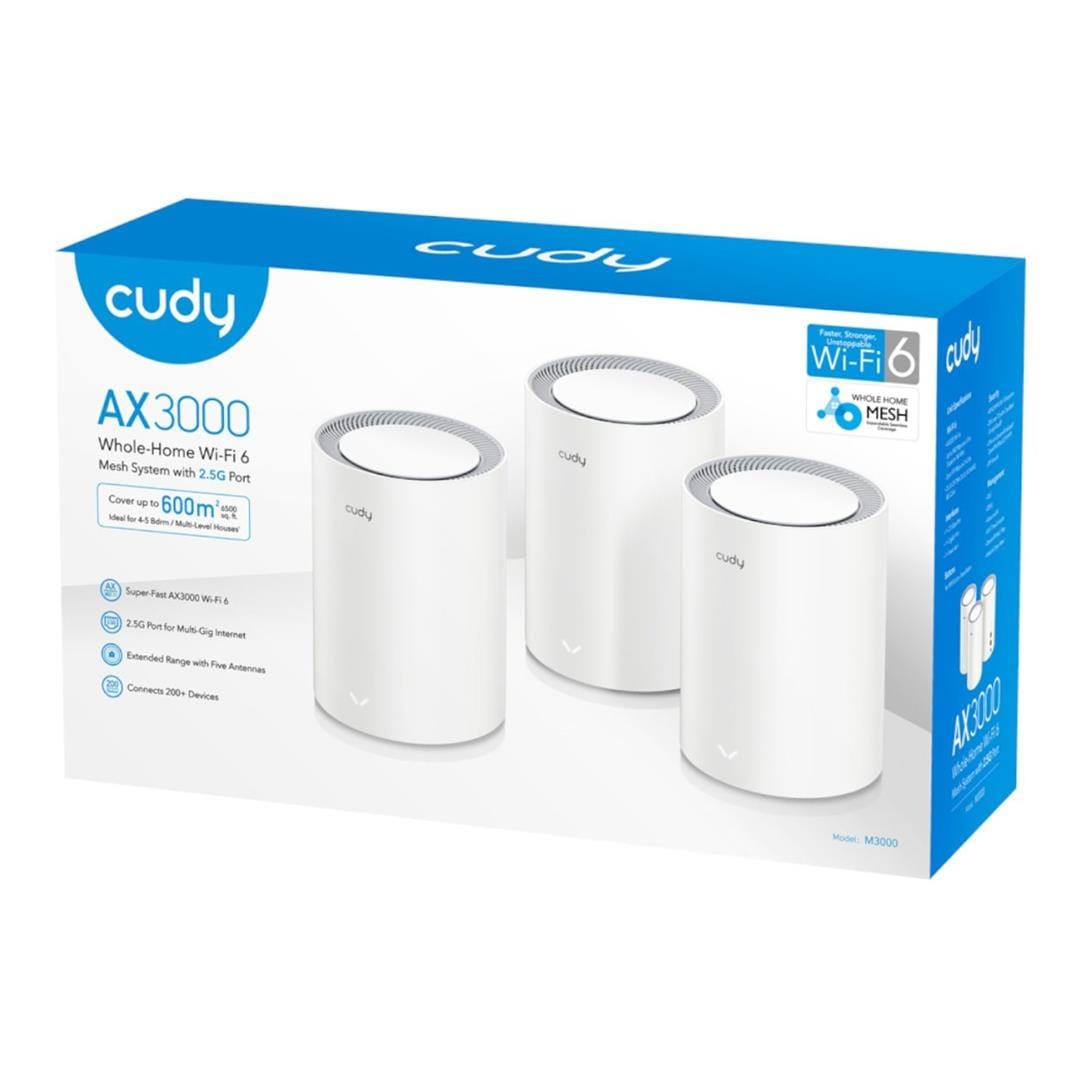

What's in the Box

• 3x Cudy AX3000 Mesh Wi-Fi 6 System – White
• 3x Power Adapter
• 1x Ethernet Cable
• Installation Guide
