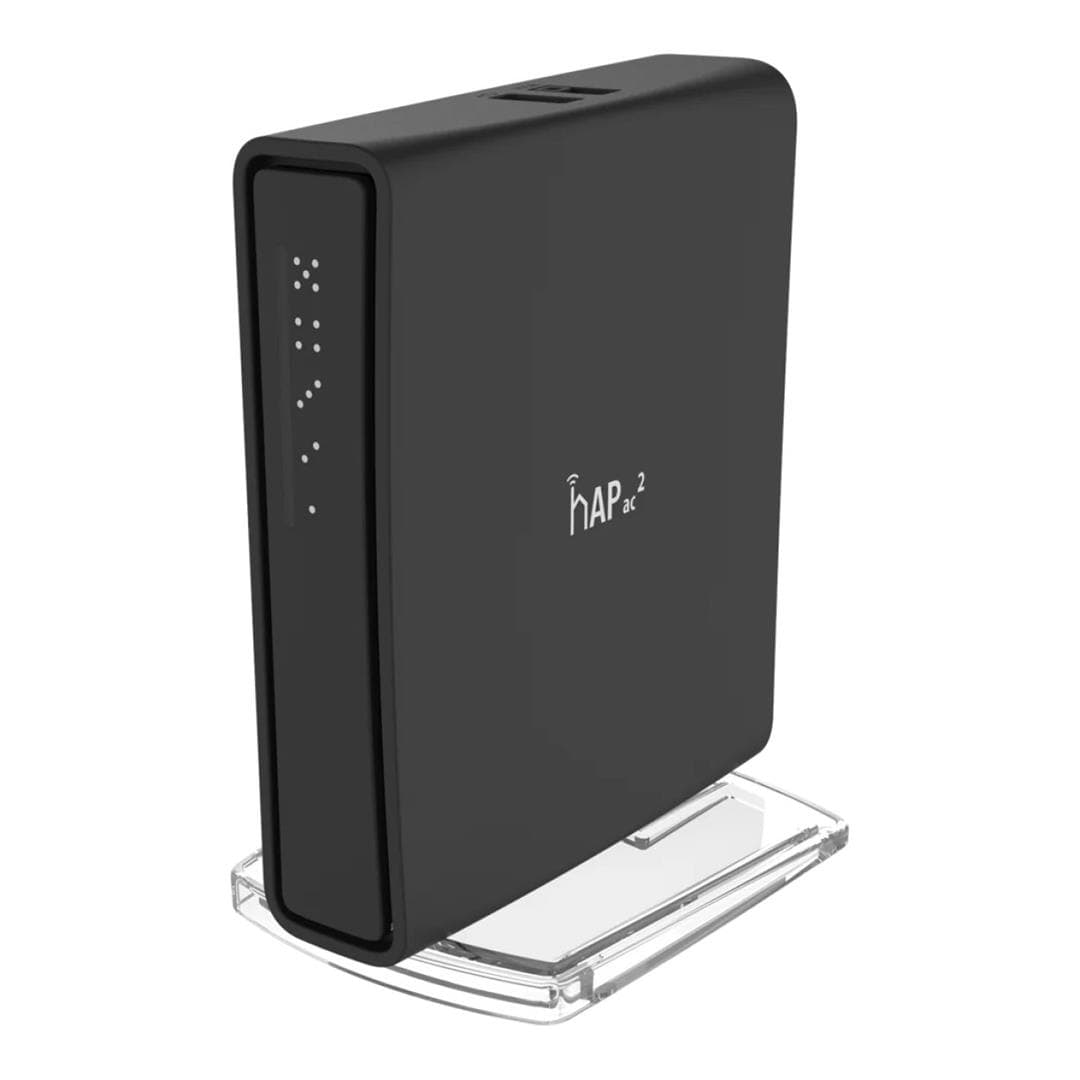

MikroTik hAP ac2 5-port Gigabit 1200Mbps Wi-Fi 5 Router

MikroTik hAP ac2 5-port Gigabit 1200Mbps Wi-Fi 5 Router

The hAP ac² is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, USB can be used for external storage or 4G/LTE modem, and device supports IPsec hardware acceleration.

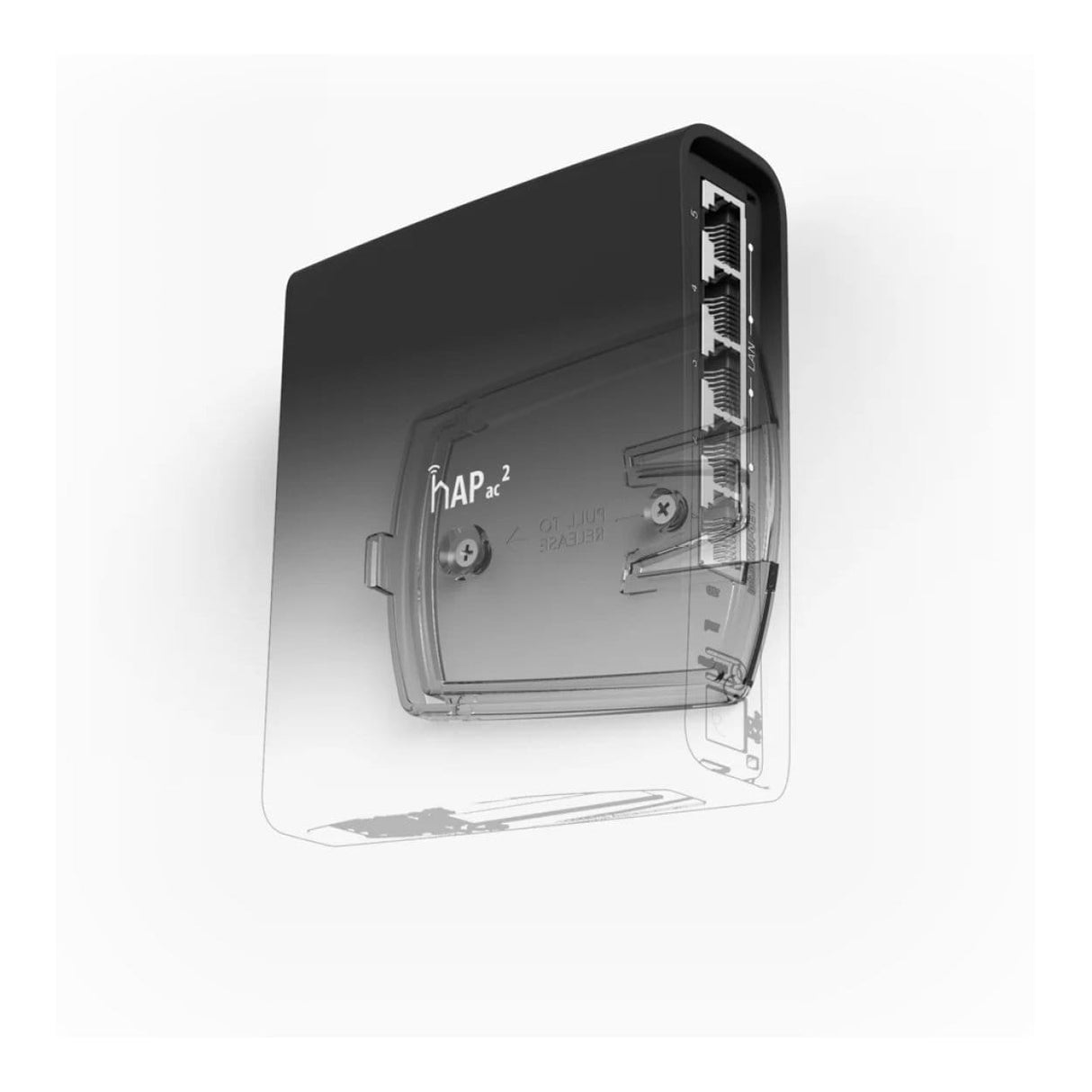

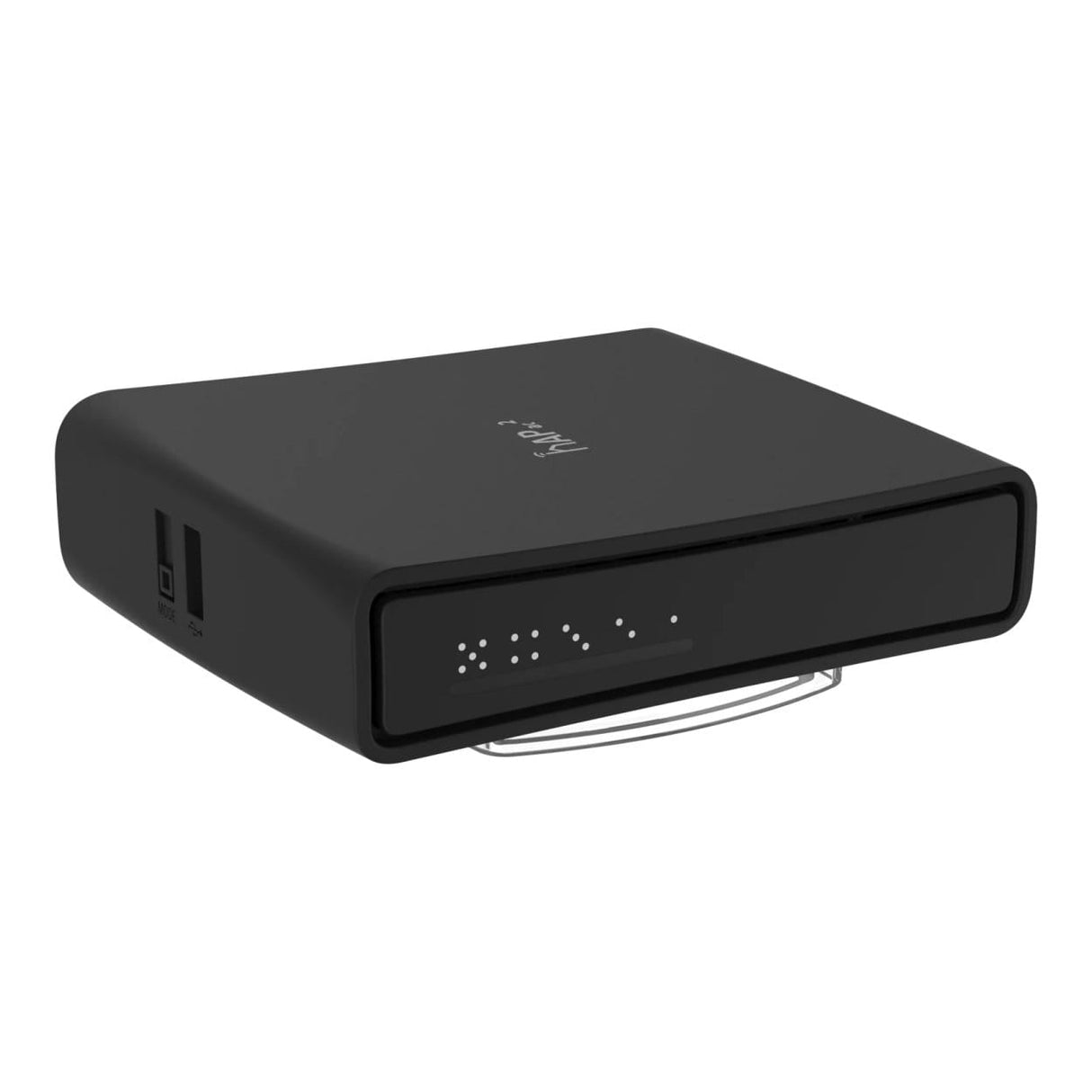

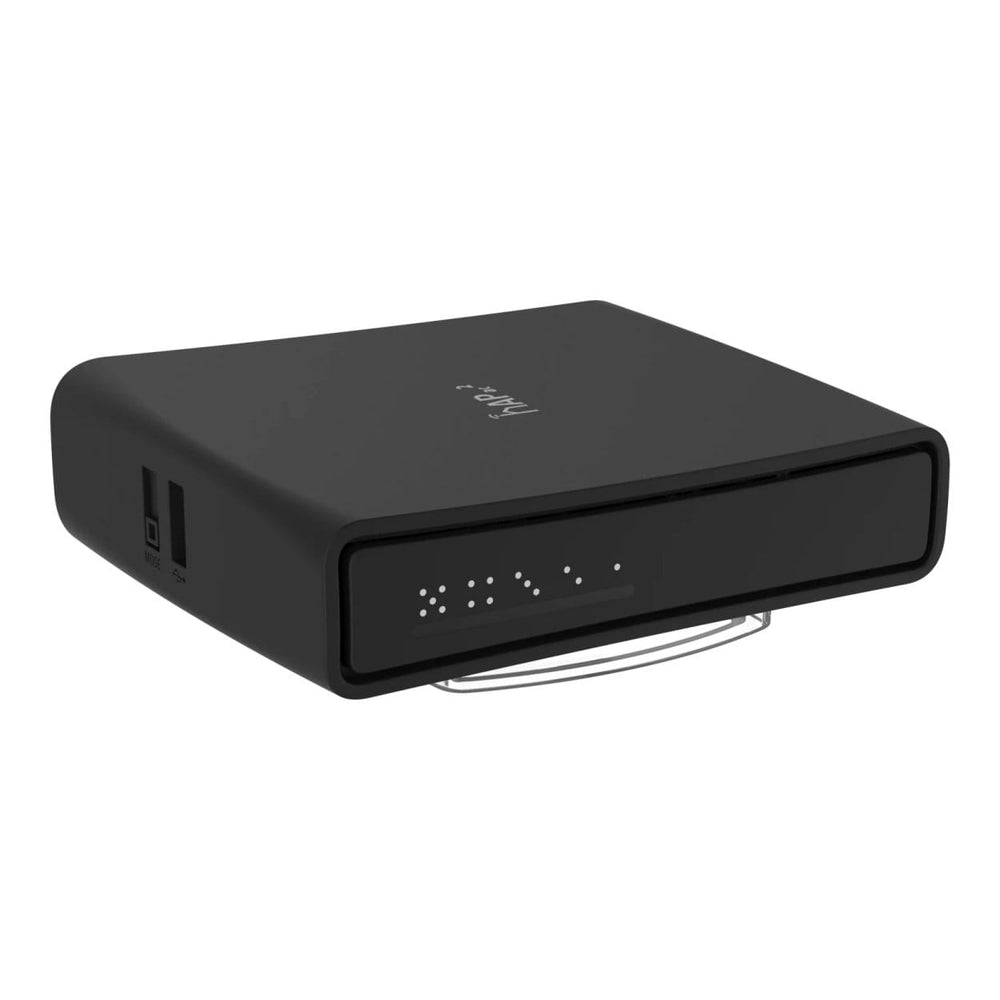

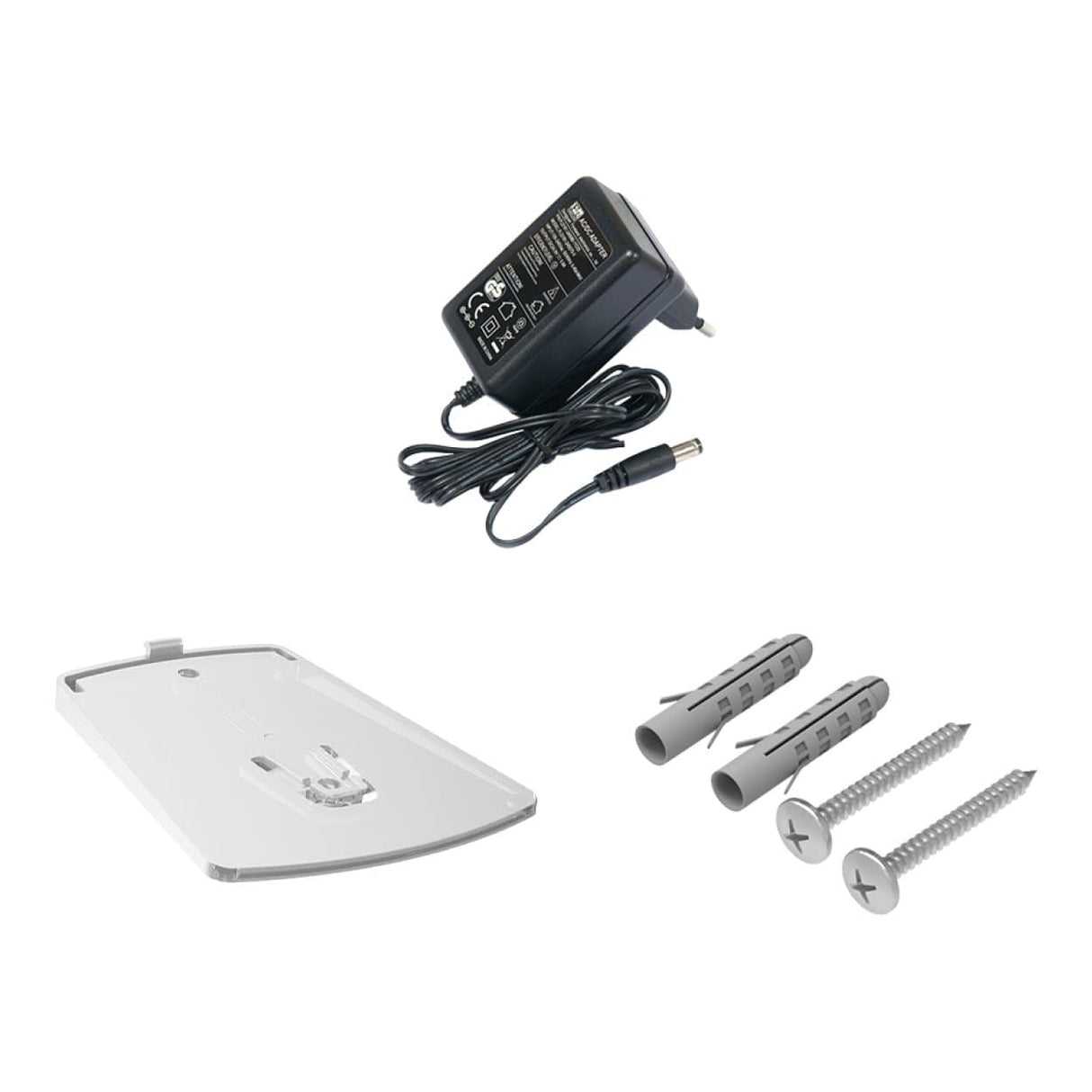

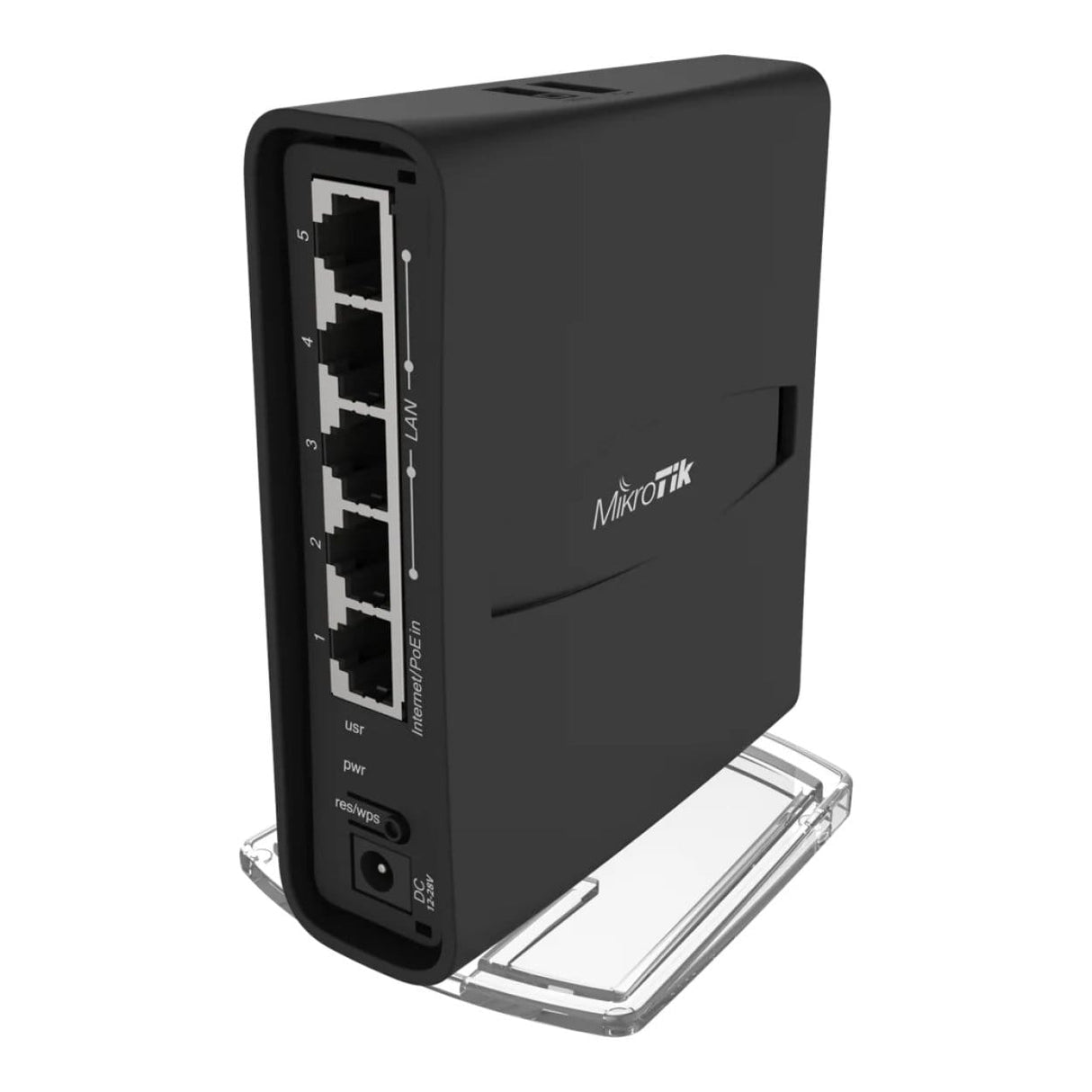

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.

Technical Specification

Product: MikroTik hAP ac2 5-port Gigabit 1200Mbps Wi-Fi 5 Router

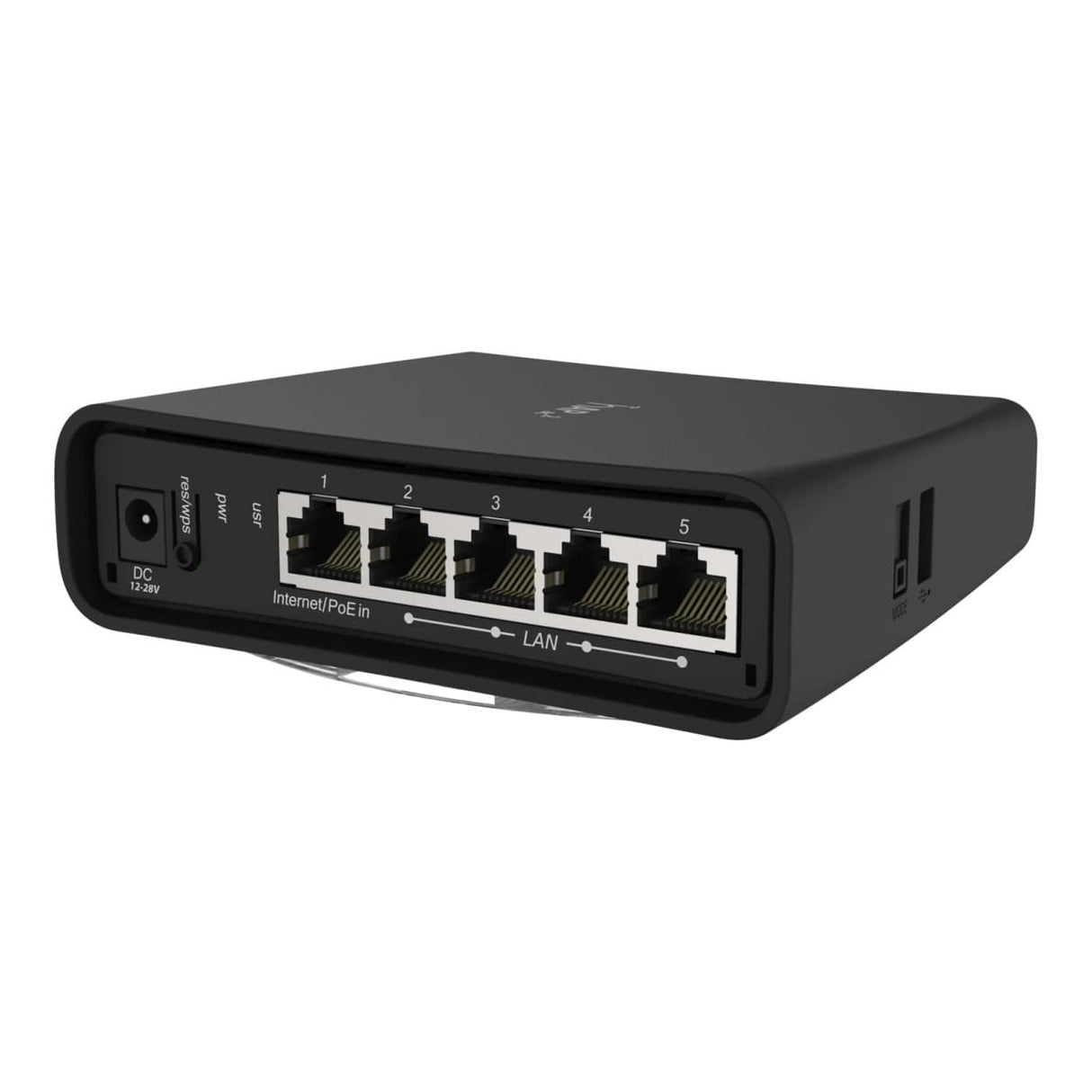

Ethernet ports: 5x 10/100/1000

Architecture: ARM 32bit

CPU: IPQ-4018

CPU core count: 4

CPU nominal frequency: 488-896 (auto) MHz

CPU Threads count: 4

Switch chip model: IPQ-4018

Dimensions: 34 x 119 x 98mm

RouterOS license: 4

Operating System: RouterOS

Size of RAM: 128 MB

Storage size: 16 MB

Storage type: FLASH

MTBF: Approximately 100'000 hours at 25C

IP rating: IP20

Wireless capabilities

• Wireless 2.4 GHz Max data rate: 300 Mbit/s
• Wireless 2.4 GHz Number of chains: 2
• Wireless 2.4 GHz standards: 802.11b/g/n
• Antenna gain dBi for 2.4 GHz: 2.5
• Wireless 2.4 GHz chip model: IPQ-4018
• Wireless 2.4 GHz generation: Wi-Fi 4
• Wireless 5 GHz Max data rate: 867 Mbit/s
• Wireless 5 GHz Number of chains: 2
• Wireless 5 GHz standards: 802.11a/n/ac
• Antenna gain dBi for 5 GHz: 2.5
• Wireless 5 GHz chip model: IPQ-4018
• Wireless 5 GHz generation: Wi-Fi 5
• WiFi speed: AC1200

Peripherals

• Number of USB ports: 1
• USB Power Reset: Yes
• USB slot type: USB type A
• Max USB current (A): 1

Power

• Number of DC inputs: 2 (DC jack, PoE-IN)
• DC jack input Voltage: 12-30 V
• Max power consumption: 21 W
• Max power consumption without attachments: 16 W
• PoE in: Passive PoE
• Cooling type: Passive
• PoE in input Voltage: 18-28 V
