Grandstream Networks GWN7062E AX3000 Dual-band Wi-Fi 6 Mesh Router

Grandstream Networks GWN7062E AX3000 Dual-band Wi-Fi 6 Mesh Router

The GWN7062E is a secure dual-band AX3000 router powered by the latest Wi-Fi 6 (802.11ax) technology. Ideal for small offices, home offices and remote workers, the GWN7062E provides 2.4G 2×2:2 and 5G 3x3:2 MU-MIMO with XTRA Range technology with beamforming for maximum network throughput and expanded Wi-Fi coverage range, as well as support for wireless Mesh networks. It features a powerful 1.3GHz dual-core processor to provide Wi-Fi speeds up to 3Gbps with up to 128 wireless devices, allowing the GWN7062E to power smart office and home automation, smooth 4K Ultra HD streaming, web meetings, video conferences, online gaming and more. It offers high-performance routing and switching power along with built-in VPN support for secure in-office and inter-office connectivity. The GWN7062E provides parental controls by managing online time control, blocking inappropriate content, and offering daily and weekly statistics to keep families safe while online. This router also provides enterprise-grade security features to ensure secure Wi-Fi and VPN access, including unique security certificates and random default passwords. To ensure easy installation and management, the GWN7062E includes a built-in controller embedded within the product’s web user interface. It is also supported by GDMS Networking and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platforms. By combining accelerated Wi-Fi speeds, with advanced features including VPN and intelligent QoS, the GWN7062E is the ideal router for a growing home, small offices, business network and more.

Features

• Powered by Wi-Fi 6 (802.11ax) with up to 3Gbps wireless throughput
• GWN7062E: 3x Gigabit ports
• Dual-band (2.4G 2x2:2 and 5G 3x3:2) MU-MIMO with DL/ UL OFDMA technology
• Built-in VPN support allows easy access to corporate networks for remote employees
• Supports up to 128 concurrent wireless client devices
• Secure cloud provisioning through GDMS Networking
• Powerful security features include guest network, network blocklist, anti-hacking secure boot & critical data/control, lockdown via digital signatures, and more
• Rich firewall features including DoS, blocklist, and URL content filtering
• Supports Mesh networking with Grandstream Wi-FI points and routers to provide easy network expansion

Technical Specification

Networking Interfaces: 3x autosensing 10/100/1000Mbps Ethernet ports

Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax

Antennas

• 1x 5GHz: maximum gain 3.4dBi
• 2x 2.4GHz & 5GHz: maximum gain 4.7dBi for 2.4GHz, 4.3dBi for 5GHz

Wi-Fi Data Rates

• 5G: IEEE 802.11ax: 7.3 Mbps to 2402 Mbps, IEEE 802.11ac: 6.5 Mbps to 1732 Mbps, IEEE 802.11n: 6.5Mbps to 300Mbps, IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 2.4G: IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps, IEEE 802.11n: 6.5Mbps to 300Mbps, IEEE 802.11b: 1, 2, 5.5, 11 Mbps, IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Frequency Bands

• 2.4GHz radio: 2400-2483.5MHz
• 5GHz radio: 5150-5895MHz

MU-MIMO: 2×2:2 2.4GHz, 3×3:2 5GHz

Mesh: One router with up to 3x GWN7062E/ET as mesh node

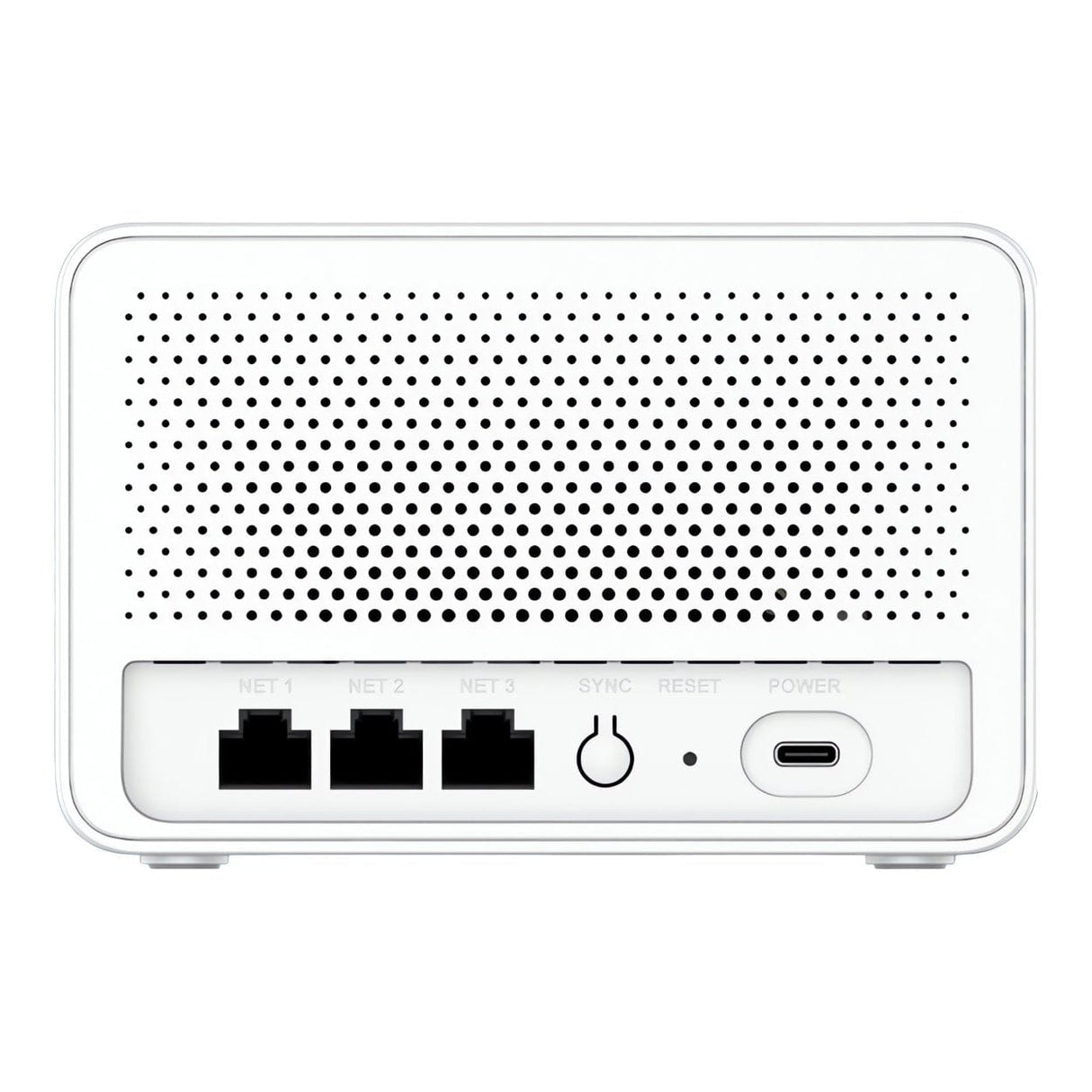

Auxiliary Ports: 1x SYNC, 1x POWER, 1x RESET Pinhole

Mounting: Desktop or wall-mounting

Power and Green Energy Efficiency: USB Type-C power adapter included: Input: 100~240V 50/60Hz Output: 5V/3A(15W)
