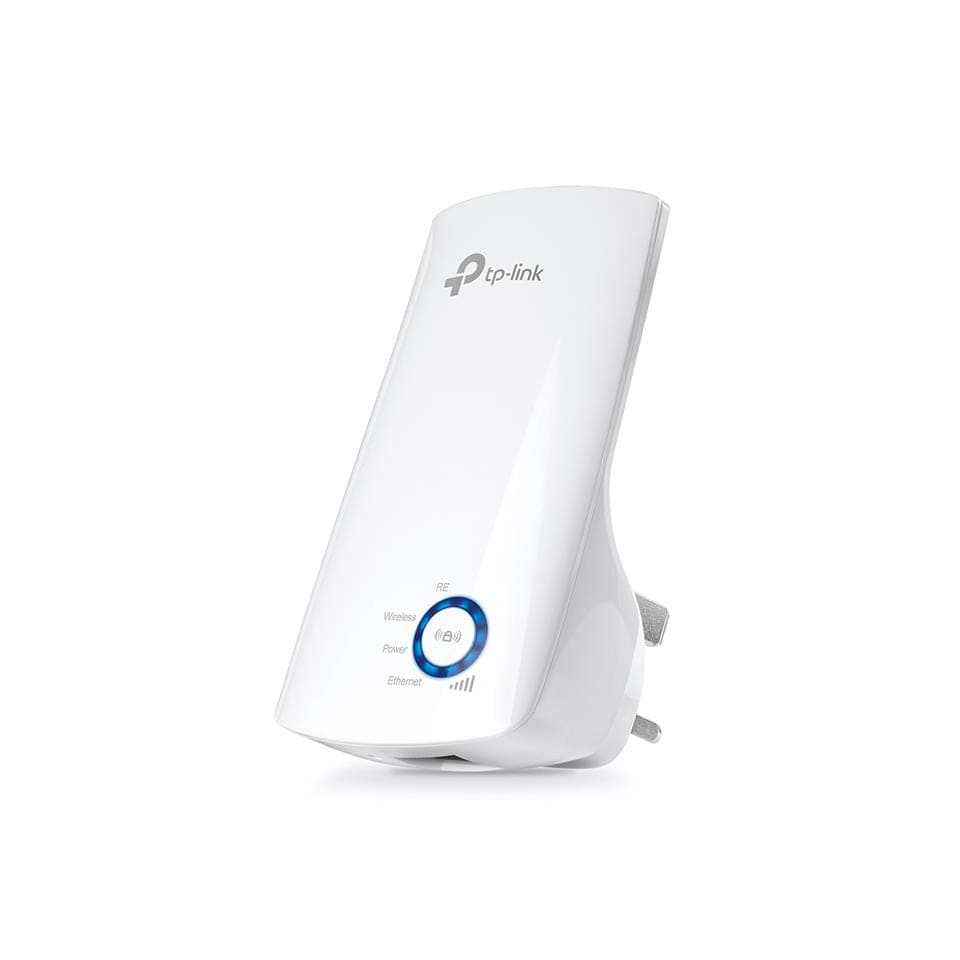

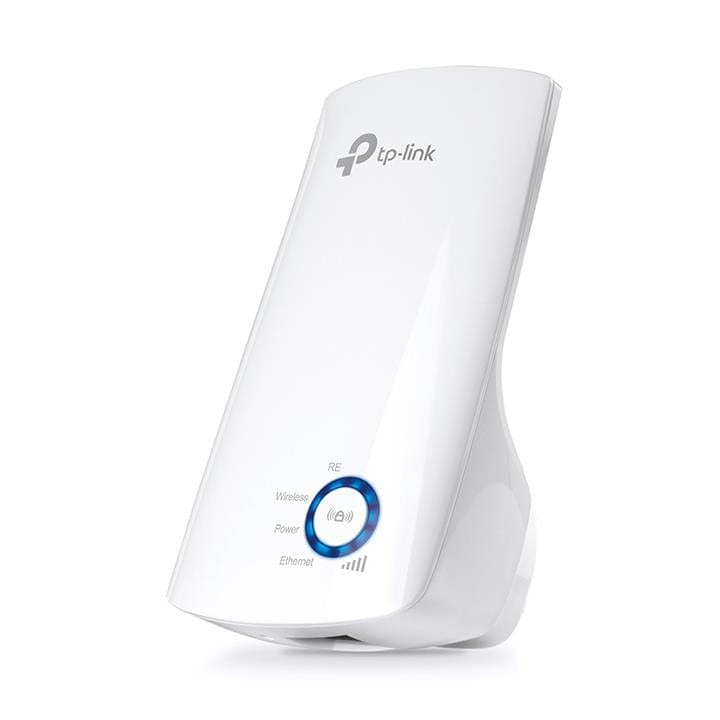

TP-Link TL-WA850RE 300Mbps Wi-Fi Range Extender

TP-Link 300Mbps Wi-Fi Range Extender

Boost Your Wireless Network

Tired of Wi-Fi ’’dead zone’’? TP-Link’s range extender connects to your router wirelessly, strengthening and expanding its signal into areas it can’t on its own. The device also reduces signal interference to ensure reliable Wi-Fi coverage throughout your home or office.

Features:

• Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly

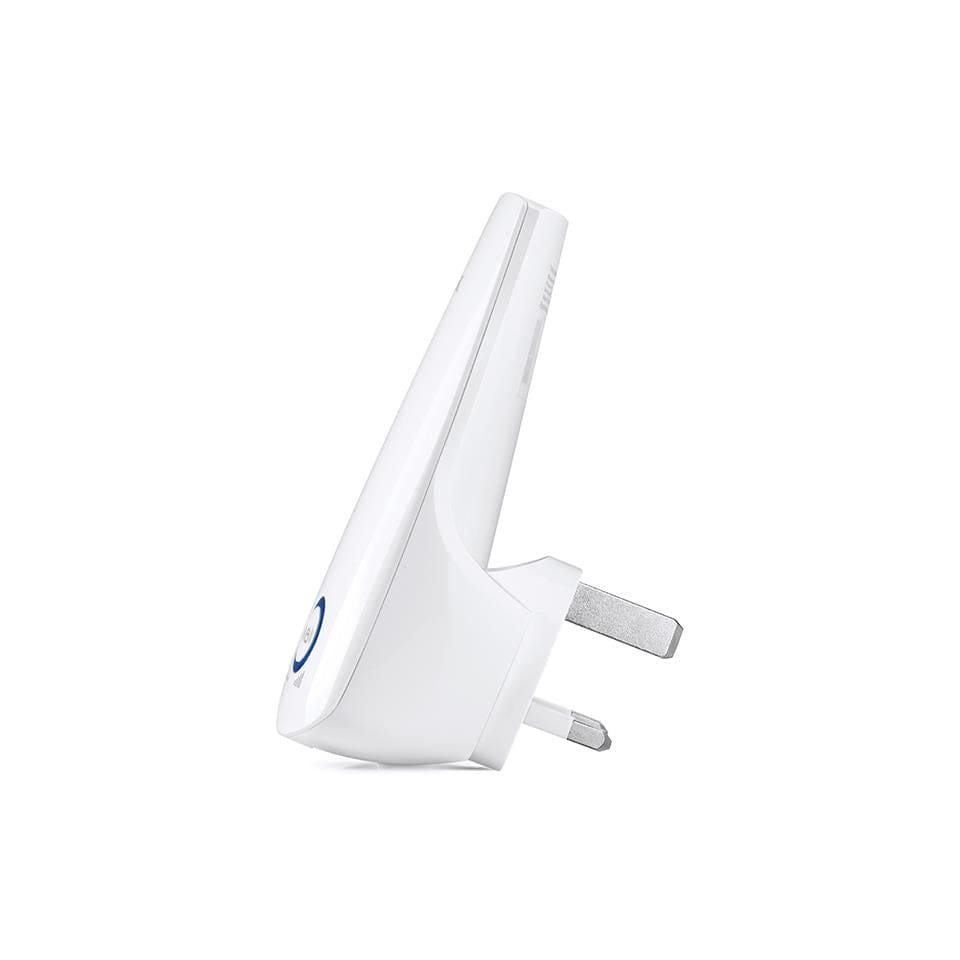

• Miniature size and wall-mounted design make it easy to deploy and move flexibly
• Easily expand wireless coverage at a push of Range Extender button
• Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
• Tether App allows easy access and management using any mobile device
• LED Control function includes a Night Mode for peaceful sleep

Easy Setup and
Flexible Placement

Press the WPS button on your router and the Range Extender button on your 850RE within 2 minutes to easily connect to the network. Once connected with an existing router, you can simply unplug and plug the TL-WA850RE back in a location for the best signal quality and coverage in your house, without needing to configure the extender again.

Ethernet Bridge

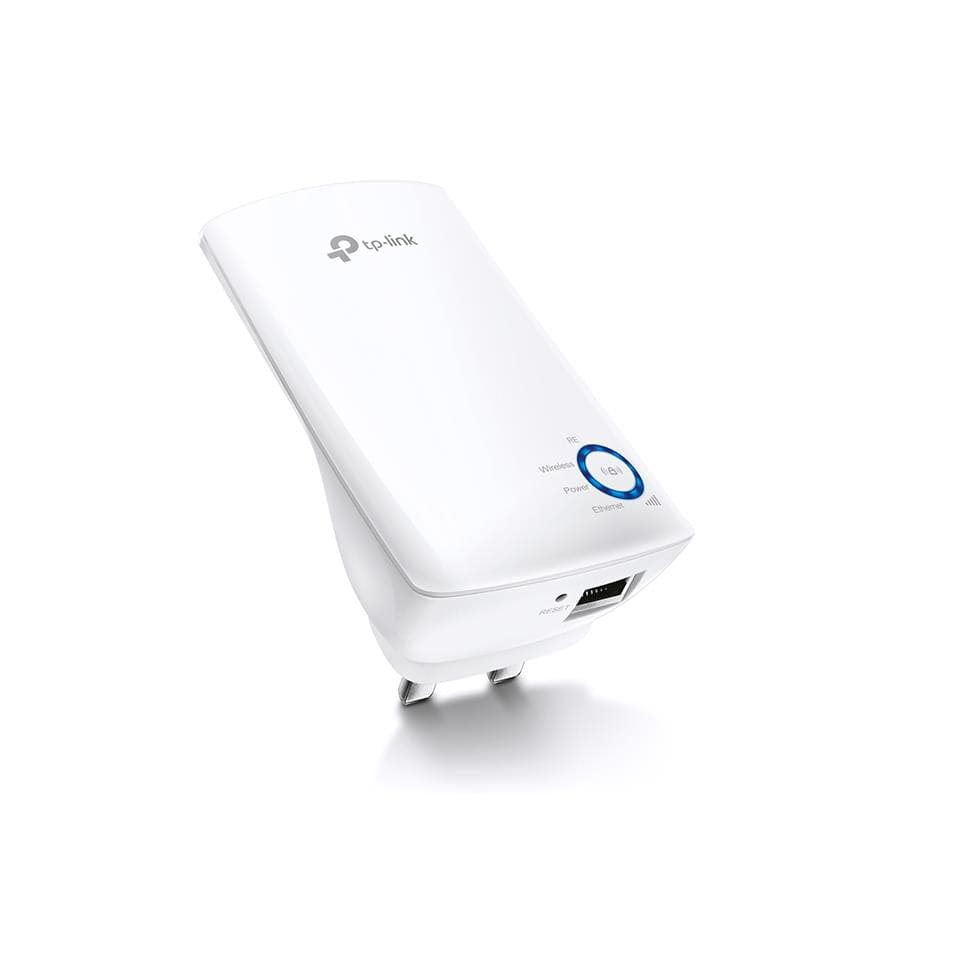

The TL-WA850RE’s single Ethernet port allows the Extender to function as a wireless adapter to connect wired devices like Blu-ray® players, gaming consoles, DVRs and Internet TVs. At the same time, the device can share the wireless network as well.

Smart Signal Indicator Light

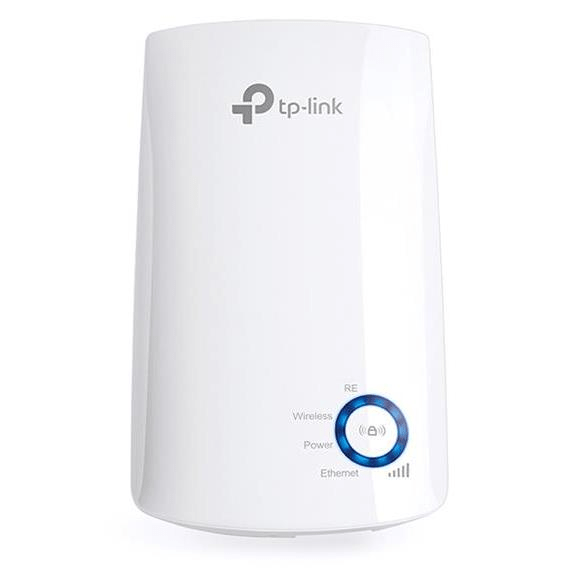

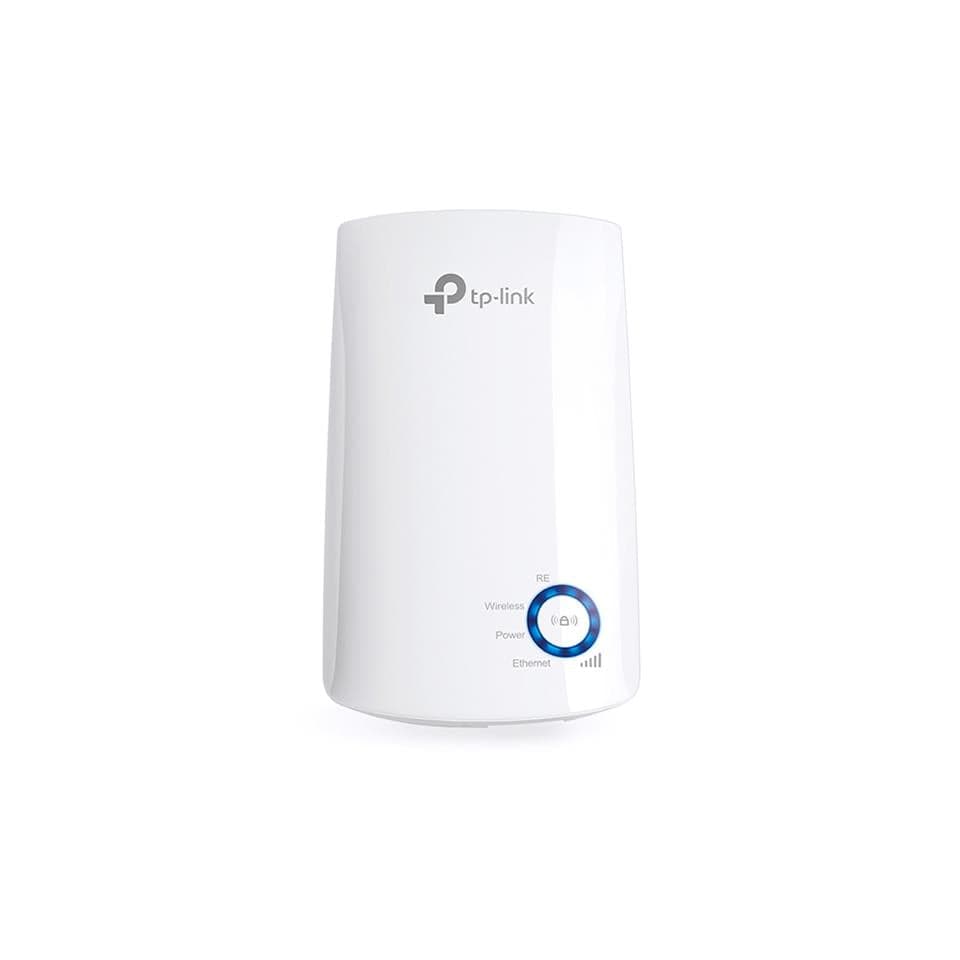

5 signal lights show the strength of signal that TL-WA850RE receives from the existing router, which can help to find the right location to place the range extender. It’s recommended that you choose a location where at least 3 signal light blue in order to guarantee a good performance.

Technical Specifications:

Wireless
Working Modes: Range Extender, Access Point

Hardware Features

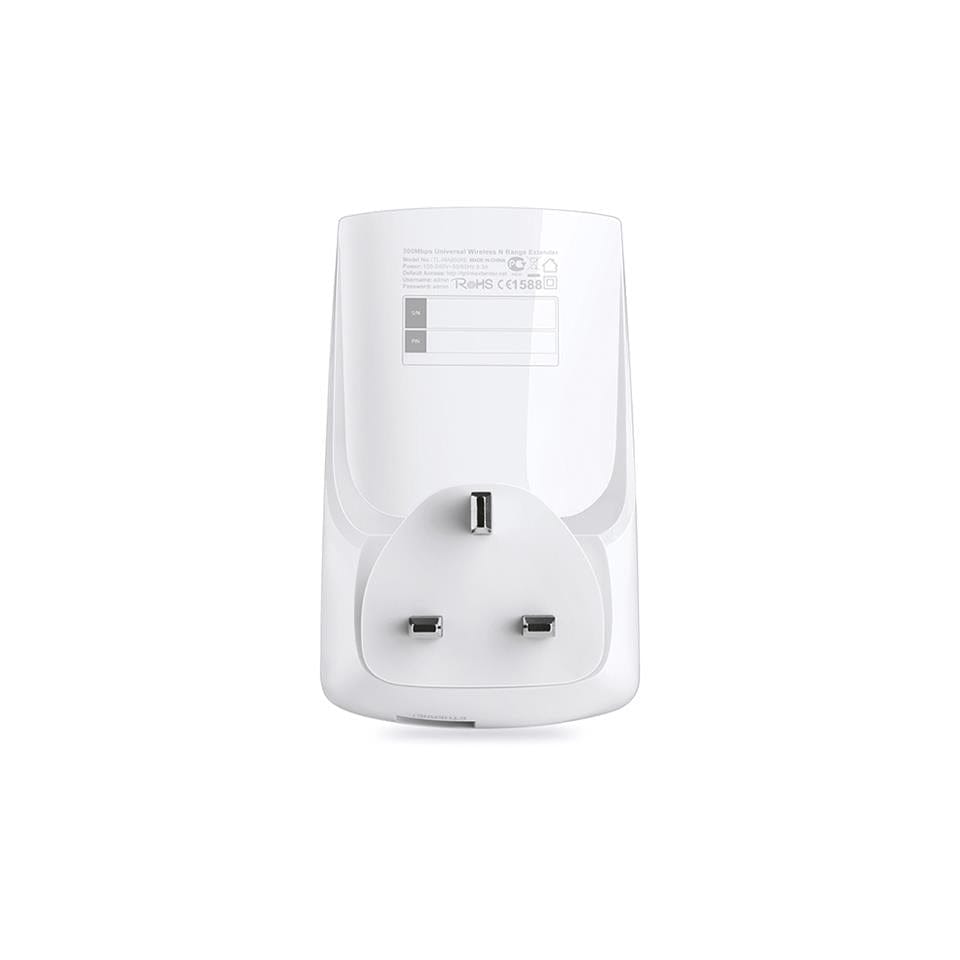

Plug Type: EU, UK, US

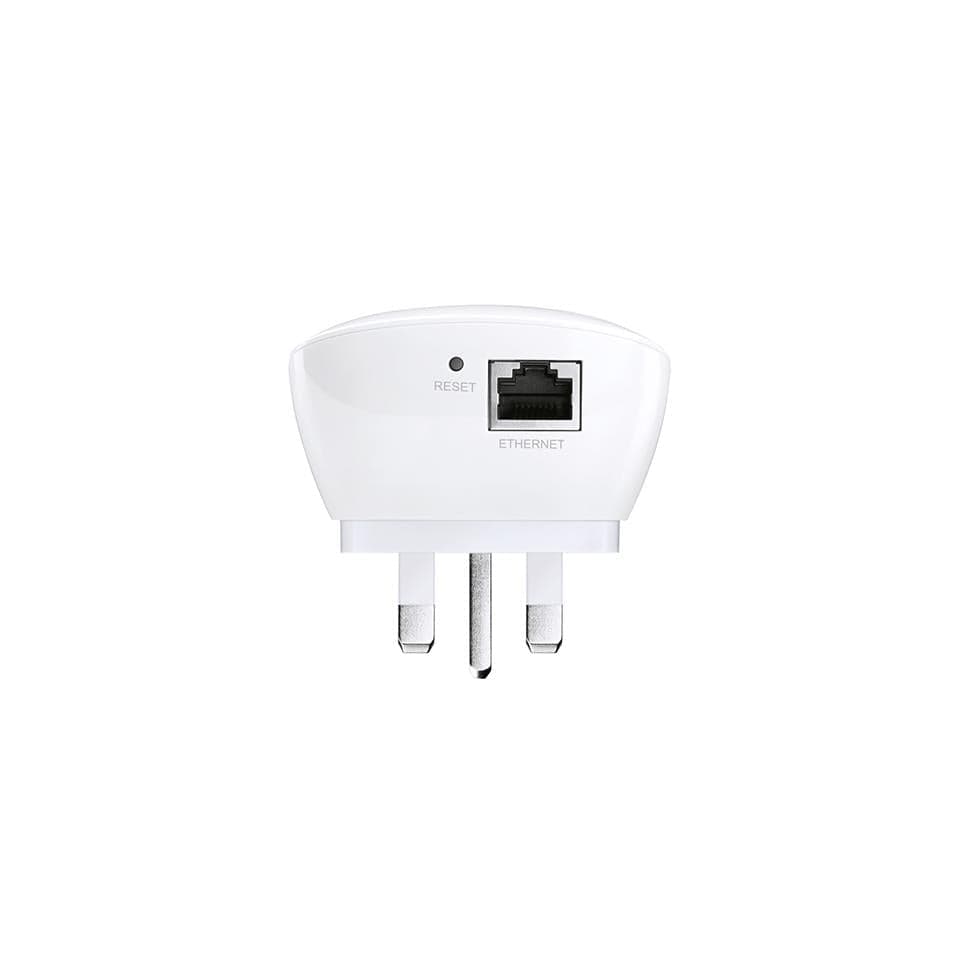

Interface: 1 × 10/100 Mbps Ethernet Port (RJ45)
Button: RE (Range Extender) Button, Reset Button
Input Power: 100–240 V ~ 50/60 Hz
Max. Power Consumption: About 3 W
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions (W × D × H): 4.3 × 2.6 × 3.0 in (110.0 × 65.8 × 75.2 mm)
Antenna: 2 × Internal

Wireless Features
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency: 2.4–2.4835 GHz
Signal Rate:
11n: Up to 300 Mbps (dynamic)
11g: Up to 54 Mbps (dynamic)
11b: Up to 11 Mbps (dynamic)
Working Modes: Range Extender, Access Point
Reception Sensitivity:
270M: -68 dBm @ 10% PER
130M: -68 dBm @ 10% PER
108M: -68 dBm @ 10% PER
54M: -68 dBm @ 10% PER
11M: -85 dBm @ 8% PER
6M: -88 dBm @ 10% PER
1M: -90 dBm @ 8% PER
Wireless Modes: Range Extender, Access Point
Wireless Functions:
WMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login Function
Wireless Security:
64/128/152-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power: < 20 dBm (EIRP)

Other
Network Services Enabled By Default:
Web Server – Manage and configure device through web (HTTP/HTTPS)
Port: 80/443, Protocol: TCP
DHCP Server – IP address assignment (DHCP)
Port: 67, Protocol: UDP
App Management – Manage and configure device through app
Port: 20001, Protocol: TCP
Port: 20002, Protocol: UDP

Others
Certification: CE, RoHS
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista, Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux

What’s in the Box:

• 300 Mbps Universal Wi-Fi Range Extender TL-WA850RE
• Quick Installation Guide
