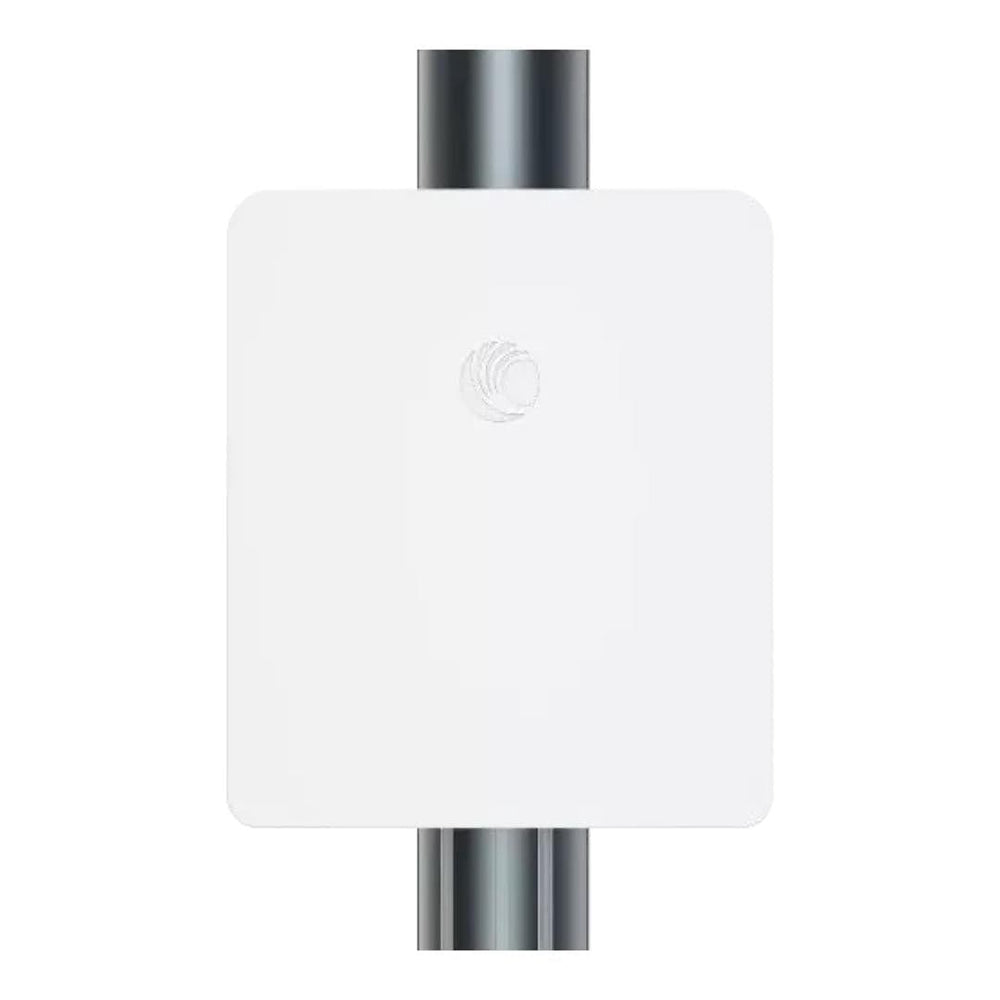

Cambium Networks ePMP Force 4518 5GHz Subscriber Module Network Bridge C050940C931A

Cambium Networks ePMP Force 4518 5GHz Subscriber Module Network Bridge C050940C931A

Service providers face ever-increasing demand for capacity in a limited amount of spectrum. The ePMP Force 4518 Subscriber Modules (SM) meet this demand by offering high performance and low latency across both point-to-multipoint (PMP) and point-topoint (PTP) deployments.

Features:

• Small form factor popular for dense areas and where aesthetic is critical, with an integrated 18 dBi panel antenna.
• High performance with up to 80 MHz channels, 1024QAM and low-latency performance when using ePTP technology
• nteroperability with the ePMP 4500, which uses MUMIMO to achieve up to multiple Gbps per sector by transmitting to 3 ePMP 4500 SMs simultaneously
• Multiple levels of QoS (Quality of Service) for voice, video, and data applications, supporting a wide variety of service packages for both residential and enterprise users
• Security features meeting the requirements of enterprise, industry, government, and service provider users
• Management by Cambium Networks cnMaestro™ network management system for easy provisioning, monitoring, and upgrades
• Network planning with LINKPlanner and cnHeat
• Cambium Networks’ 3-year hardware warranty and support

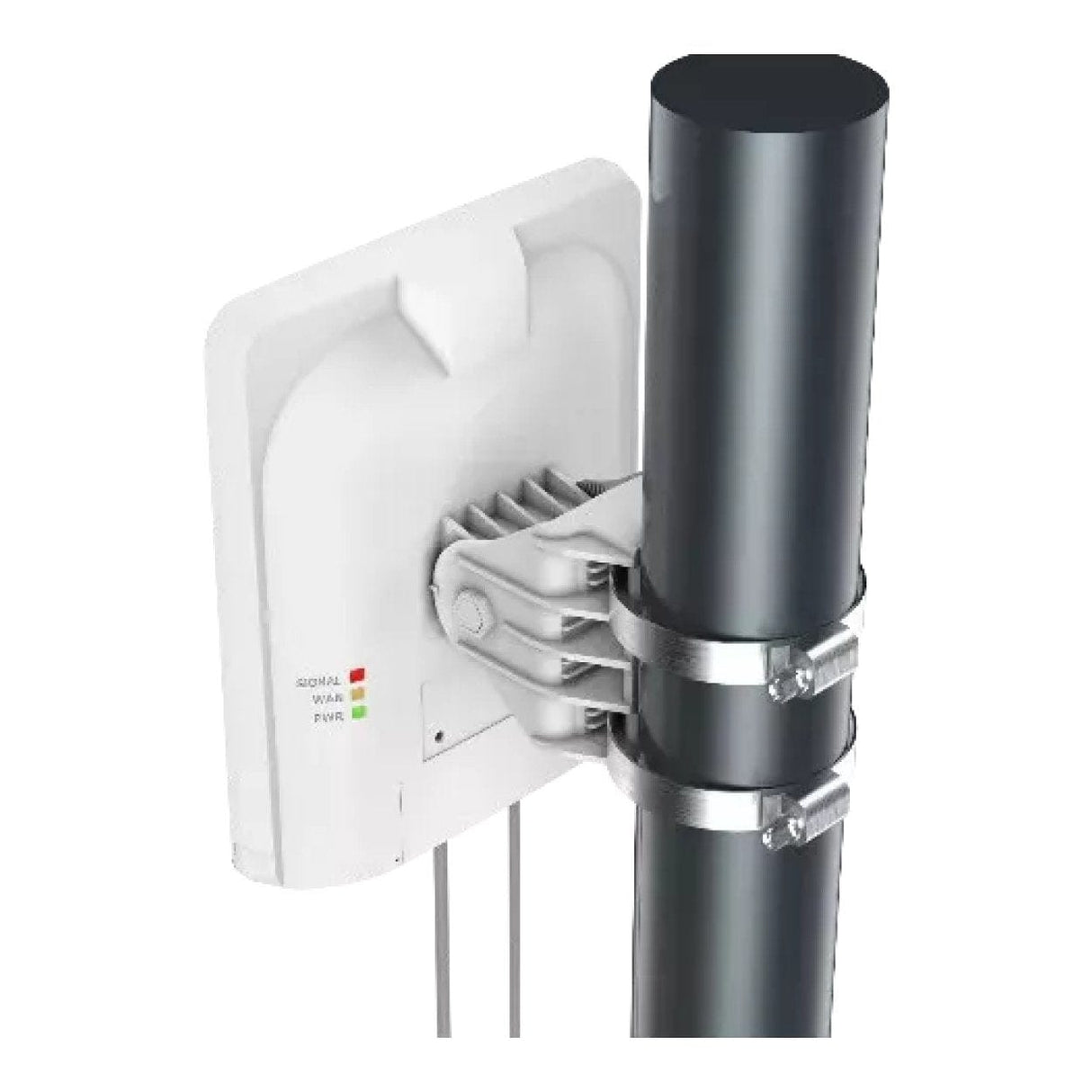

• Includes Power over Ethernet (PoE) injector and pole mount hardware

Technical Specifications:

Spectrum Performance

Channel Width 20 | 40 | 80 MHz
ARQ Yes
Proprietary Physical Layer 2x2 MIMO/OFDMA
Channel Spacing Configurable in 5 MHz increments
Frequency Range Wide band operation 5150–5920 MHz
Modulation Levels (Adaptive) MCS 1 (QPSK) to MCS 11 (1024 QAM5/6)
Transmit Power Range +3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval)

Nominal Receive Sensitivity (w/FEC)
@20 MHz Channel MCS 1 = -84 dBm to MCS 11 (1024 QAM-5/6) = -53 dBm (per chain)
@40 MHz Channel MCS 1 = -82 dBm to MCS 11 (1024 QAM-5/6) = -52 dBm (per chain)
@80 MHz Channel MCS 1 = -80 dBm to MCS 11 (1024 QAM-5/6) = -50 dBm (per chain)

MAC Layer (Media Access Control)
MAC Technology Cambium proprietary

Ethernet Interface
LAN Interface 100/1000 BaseT, compatible with Cambium PoE & standard PoE pinouts

Protocols
Supported Protocols IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH

Network Management
Management Methods IPv4/IPv6, HTTPs, SNMPv2c, SSH, cnMaestro

VLAN
VLAN Support 802.1Q with 802.1p priority

QoS (Quality of Service)
QoS Features Three level priority (voice, high, low)
Packet classification by DSCP, COS, VLAN ID, IP & MAC address
Broadcast, multicast and station priority
MIR/CIR support

Physical Certifications

Surge Suppression 1 joule integrated
FCC ID Z8H89FT0088
Industry Canada Certification 109W-0088
Environmental Rating IP55
CE Compliance See Cambium website for Declaration

Environmental

Operating Temperature -30°C to 55°C (-22°F to 131°F)
Wind Survival 200 km/hr (124 mi/hr)

Physical Specifications

Dimensions (Dia x Depth) 180 x 210 x 39 mm (7.08 x 8.27 x 1.54 in)
Weight 0.66 kg (1.45 lb)
Pole Diameter Range Center: 3.1 to 7.6 cm (1.25 to 3.0 in)

Power

Power Consumption 13W
Input Voltage Passive PoE 27–59V

Security

Encryption 128-bit AES (CCMP mode), 256-bit AES optional, where allowed
