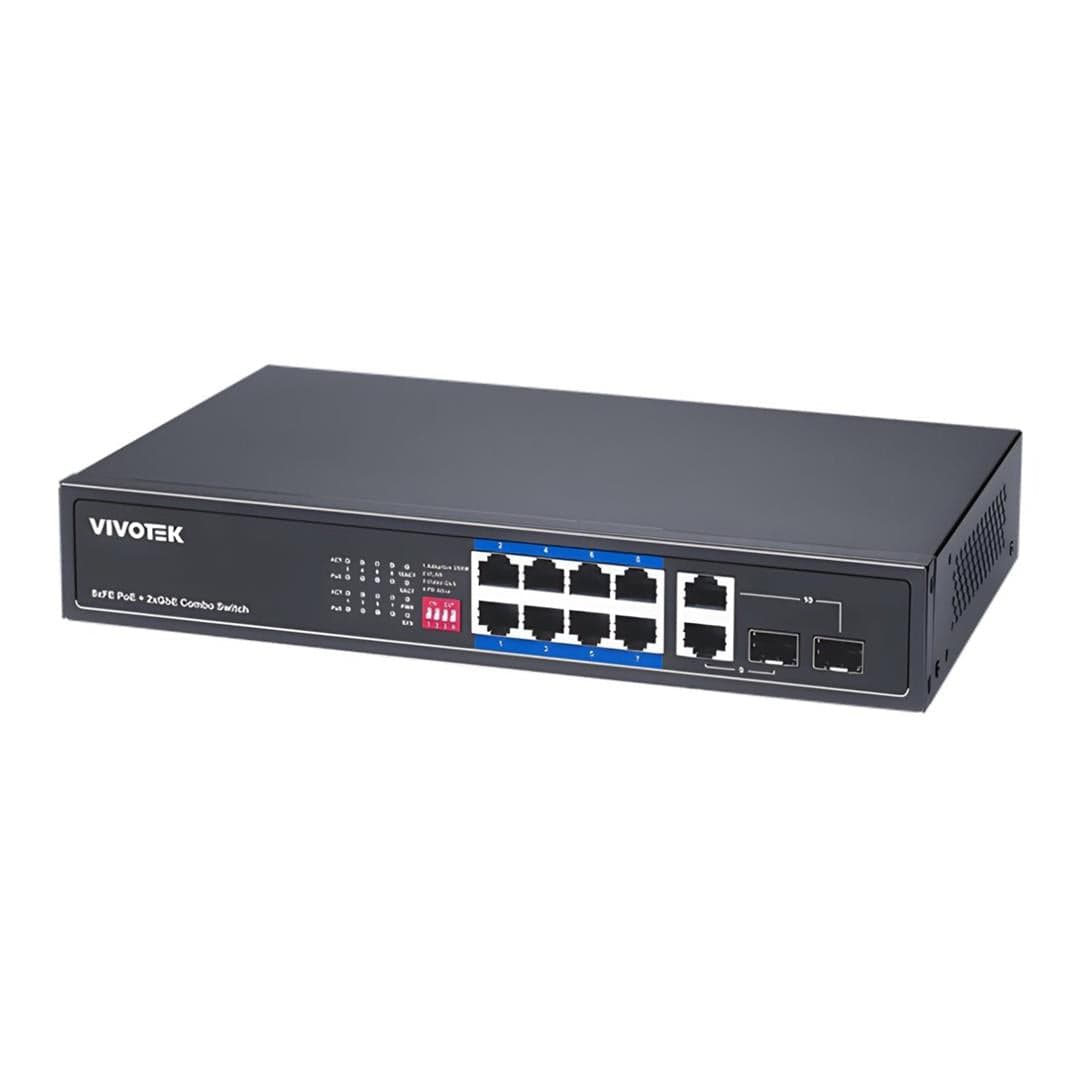

Vivotek 10-port 100Mb PoE+ Unmanaged Network Switch AW-FGT-100P-110

Vivotek 10-port 100Mb PoE+ Unmanaged Network Switch AW-FGT-100P-110

Optimized Video Performance

Video QoS ensures reliable video transmission, prioritizing data flow and quality for seamless monitoring with network cameras. Whether for real-time viewing or recording, this feature guarantees uninterrupted performance even in high-traffic networks.

Features:

• Adaptive Extended PoE Up to 250m
• VLAN Segmentation
• Video QoS
• PD Alive
• 6KV Surge Protection

Smart Device Recovery

Powered Device Alive (PD Alive) detects idle devices and reboots power automatically. This proactive recovery minimizes downtime, enhances system reliability, and ensures your critical surveillance infrastructure remains operational without manual intervention.

Flexible Deployment for Long Distances

VIVOTEK Unmanaged PoE Switches are built to adapt to diverse deployment needs. With Adaptive Extended Mode, these switches automatically detect cable length and adjust transmission speeds to 100Mbps or 10Mbps. This makes them ideal for large-scale environments such as campuses, warehouses, outdoor facilities, and other expansive surveillance deployments.

Fiber-Ready Networking

With compatibility for fiber optic environments via SFP uplink ports and SFP transceivers, these switches offer seamless integration with long-distance, high-speed backbone connections. This flexibility allows network architects to scale systems effortlessly while maintaining robust connectivity across expansive areas.

Technical Specifications:

Segment
Unmanaged PoE Switch

Product Description
8 × FE PoE + 2 × GbE Combo

Total Ports
10

Port Configuration

PoE Port Ethernet

• 8 × FE PoE

Uplink Port Ethernet

• 2 × GbE Combo

PoE Function

PoE Ports

• 8 × PoE Ports

Max. PoE Output Power
30 W

PoE Power Budget
110 W

PoE Standard
802.3af/at

PoE Pin Assignment
1/2 (+), 3/6 (-)

Surge Protection
6 kV

Hardware Performance

Switching Bandwidth
5.6 Gbps

Forwarding Rate
1.488 Mpps

MAC Address Table
4K

Jumbo Frames
1,536 Bytes

Max. Power Consumption
120 W

Surveillance Features

Extended Mode
Up to 250 m / 10 Mbps

Adaptive Transmission

• 100 m With 10 Mbps

• <100 m With 100 Mbps

VLAN
Video QoS Supported

PD Alive
Supported

Environmental Specifications

Operating Temperature
0°C to 45°C (32°F to 113°F)

Storage Temperature
-20°C to 70°C (-4°F to 158°F)

Operating Humidity
10% to 90% RH

Mechanical Specifications

Dimensions
270 (L) × 181 (W) × 44 (H) mm

Weight
1.2 kg

Power Source

Power Input
100V to 240V

Frequency
50 to 60 Hz

Certifications

Certification Types
CE, FCC, UKCA, LVD, VCCI, BSMI

What's in the Box:

• Power Cord
• Quick Installation Guide (QIG)
• Rack Mount Kit
