V-SOL XGS-PON 4-port Wi-Fi 6 Optical Network Unit V2904AX-XGS

V-SOL XGS-PON 4-port Wi-Fi 6 Optical Network Unit V2904AX-XGS

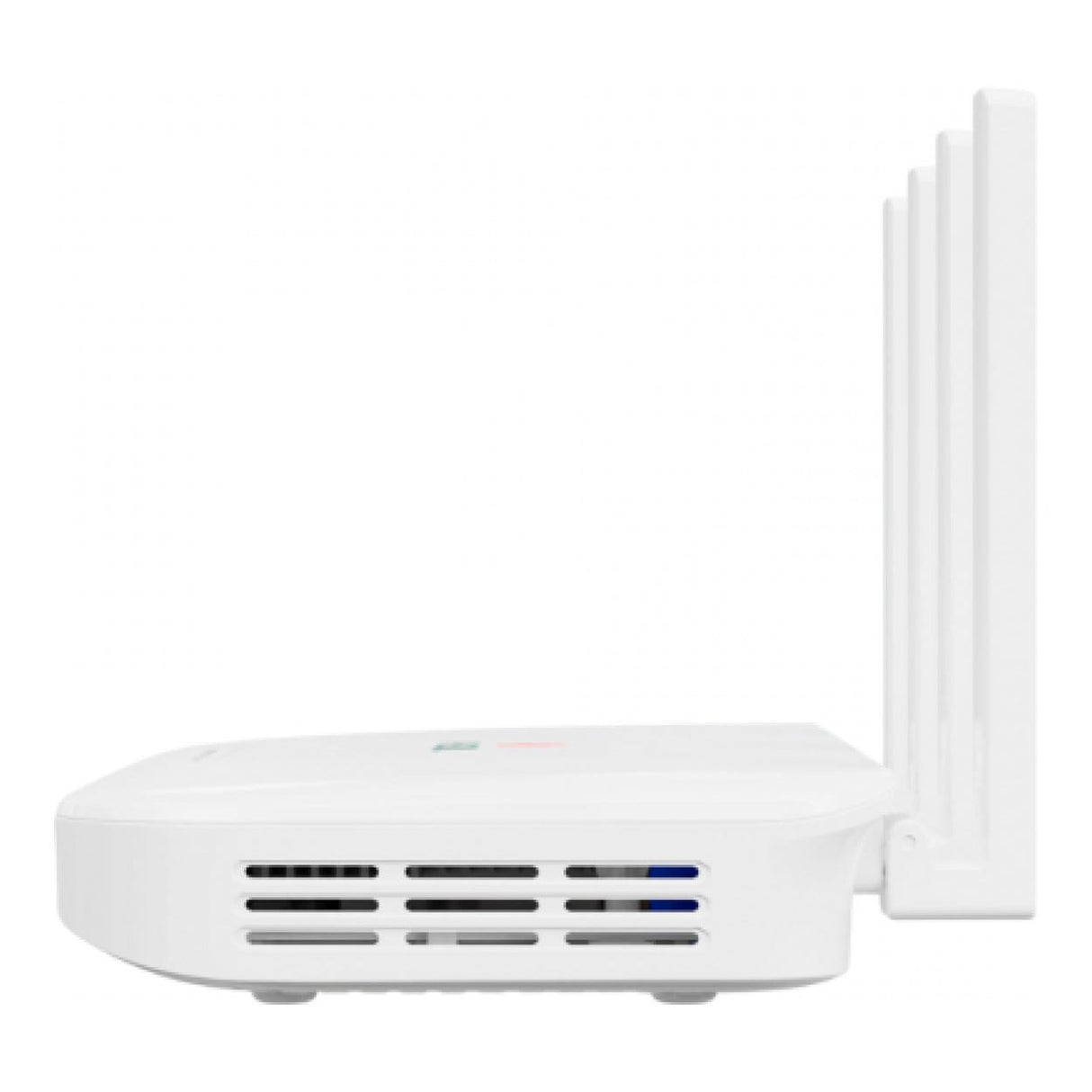

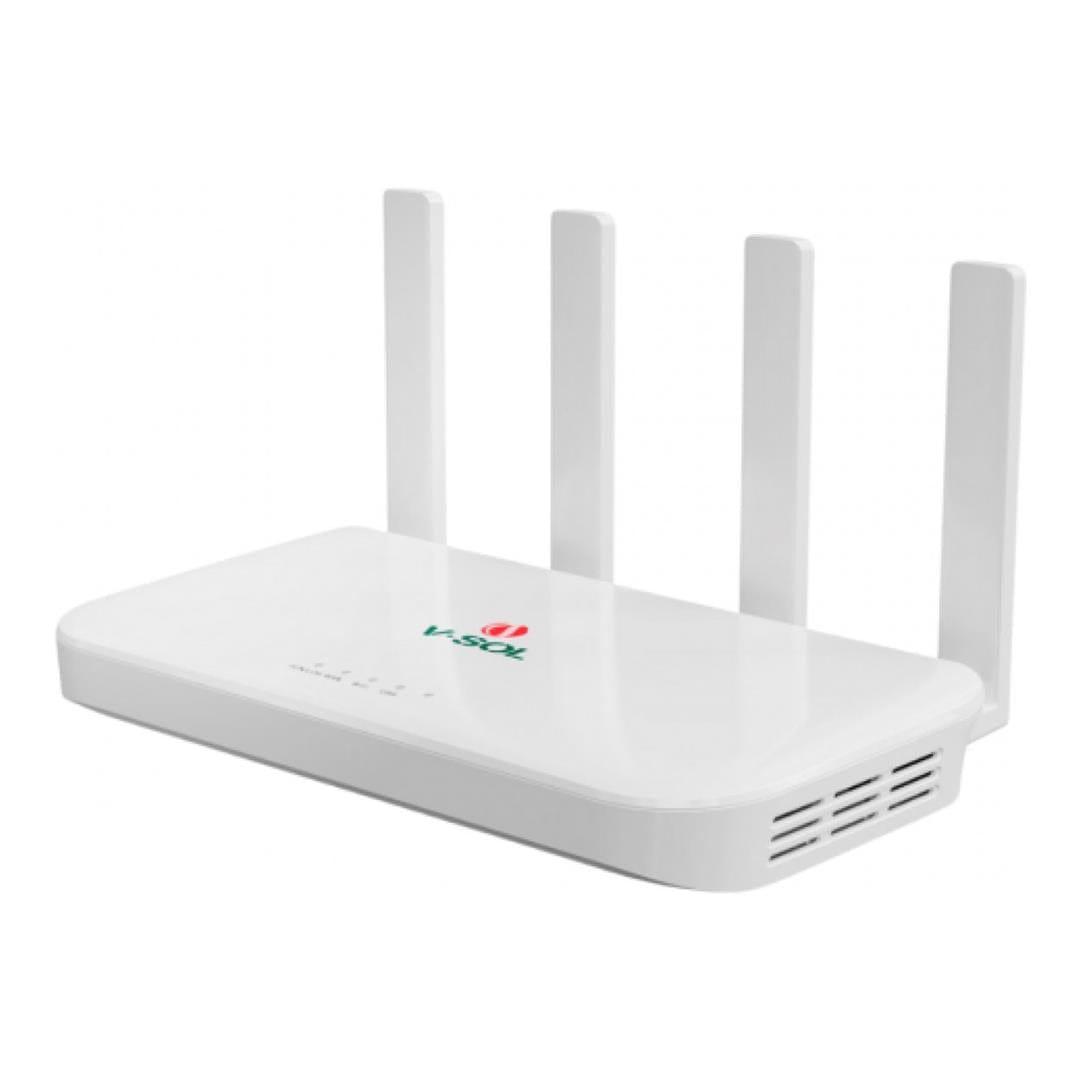

The VSOL V2904AX-XGS is a high-performance XGS-PON Optical Network Terminal (ONT) designed for modern fibre-to-the-home (FTTH) networks. It supports symmetrical 10Gbps data rates, providing exceptional bandwidth for demanding applications. Featuring dual-band WiFi 6 (802.11ax) technology, this device delivers faster wireless speeds, increased network efficiency, and improved performance in multi-device environments. A 2.5 Gigabit Ethernet port allows for high-speed wired connections to PCs, gaming consoles, or network-attached storage. The V2904AX-XGS is an ideal solution for internet service providers and users requiring superior network performance for 8K video streaming, competitive online gaming, and efficient large file transfers. This ONT is fully compliant with ITU-T G.9807.1 standards, ensuring broad compatibility with XGS-PON network infrastructure.

Specifications

PON Interface

• 10G PON port: Class B+
• SC single mode, SC/UPC connector
• TX optical power: 6dBm(XGS-PON), 5dBm(XG-PON), 4dBm(10G EPON)
• RX sensitivity: -28dBm
• Overload optical power: -8dBm
• Transmission distance: 20km
• Wavelength: 10G EPON: DS 1577nm/US 1310nm
• XG(S)-PON:DS 1577nm/US 1270nm 10G PON layer
• IEEE 802.3av(10G-EPON)
• ITU-T G.987(XG-PON)
• ITU-T G.9807.1 (XGS-PON)

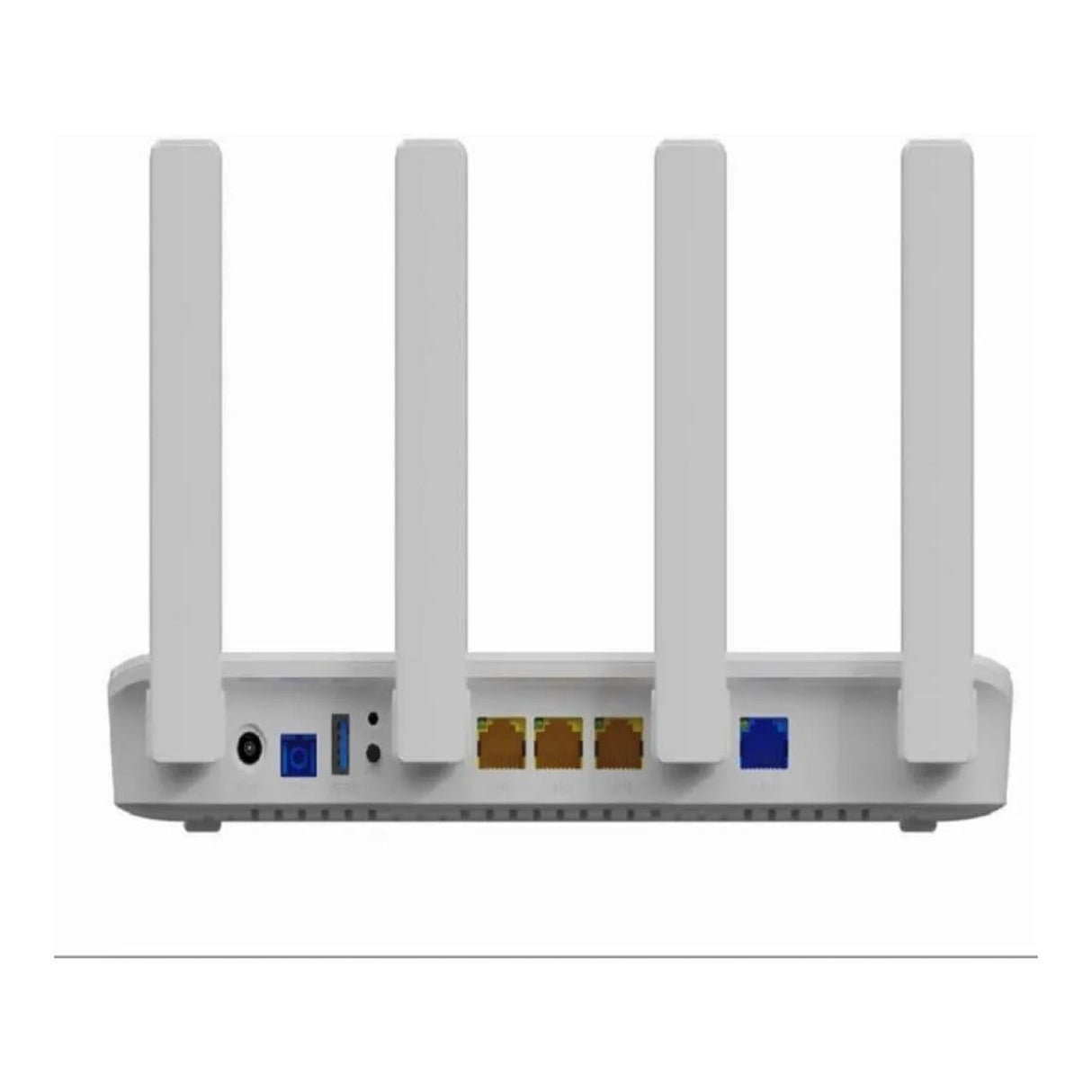

User interface

• 1x 2.5GE, Auto-negotiation,RJ45 ports
• 3x GE, Auto-negotiation,RJ45 ports
• 1x USB3.0

Antenna

• 2.4GHz 2x2, 5GHz 2x2
• external antennas USB 1×USB 3.0 (Can connect to USB disk and support FTP service)

O&M

• WEB/TELNET/OAM/OMCI/TR069
• Support private OAM/OMCI protocol andUnified network management of VSOLOLT
• Internet connection Support Bridge/Router mode Multicast
• IGMP v1/v2/v3, IGMP snooping
• MLD v1/v2 snooping

Wi-Fi

• Wi-Fi 6: 802.11a/n/ac/ax 5GHz&802.11g/b/n/ax 2.4GHz
• WiFi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3
• Support OFDMA, MU-MIMO, DynamicQoS,1024-QAM
• Smart Connect for one Wi-Fi name- OneSSID for 2.4GHz and 5GHz dual band

L2: 802.1D&802.1ad bridge, 802.1pCos,802.1QVLAN

L3: IPv4/IPv6, DHCP Client/Server,PPPoE, NAT,DMZ, DDNS
