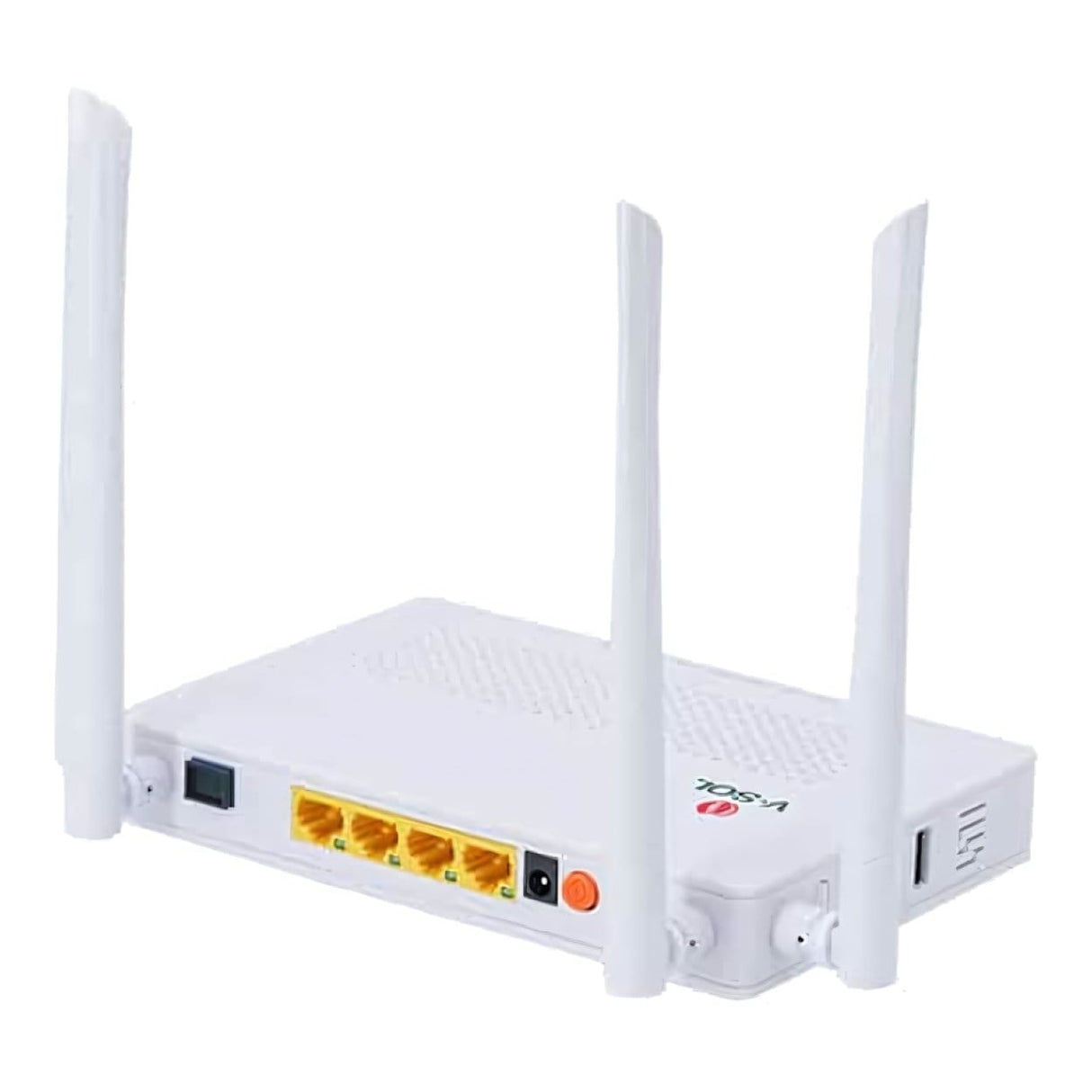

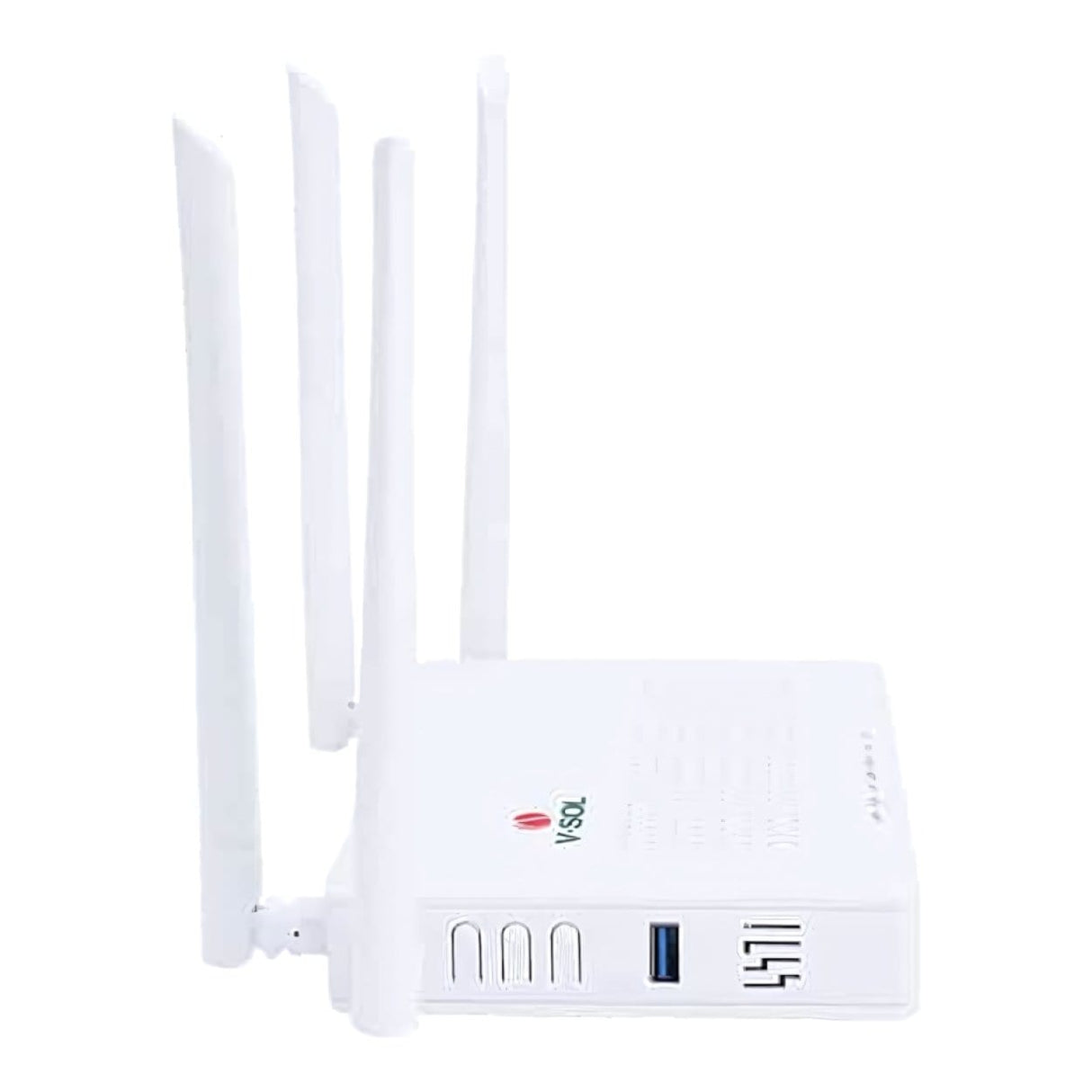

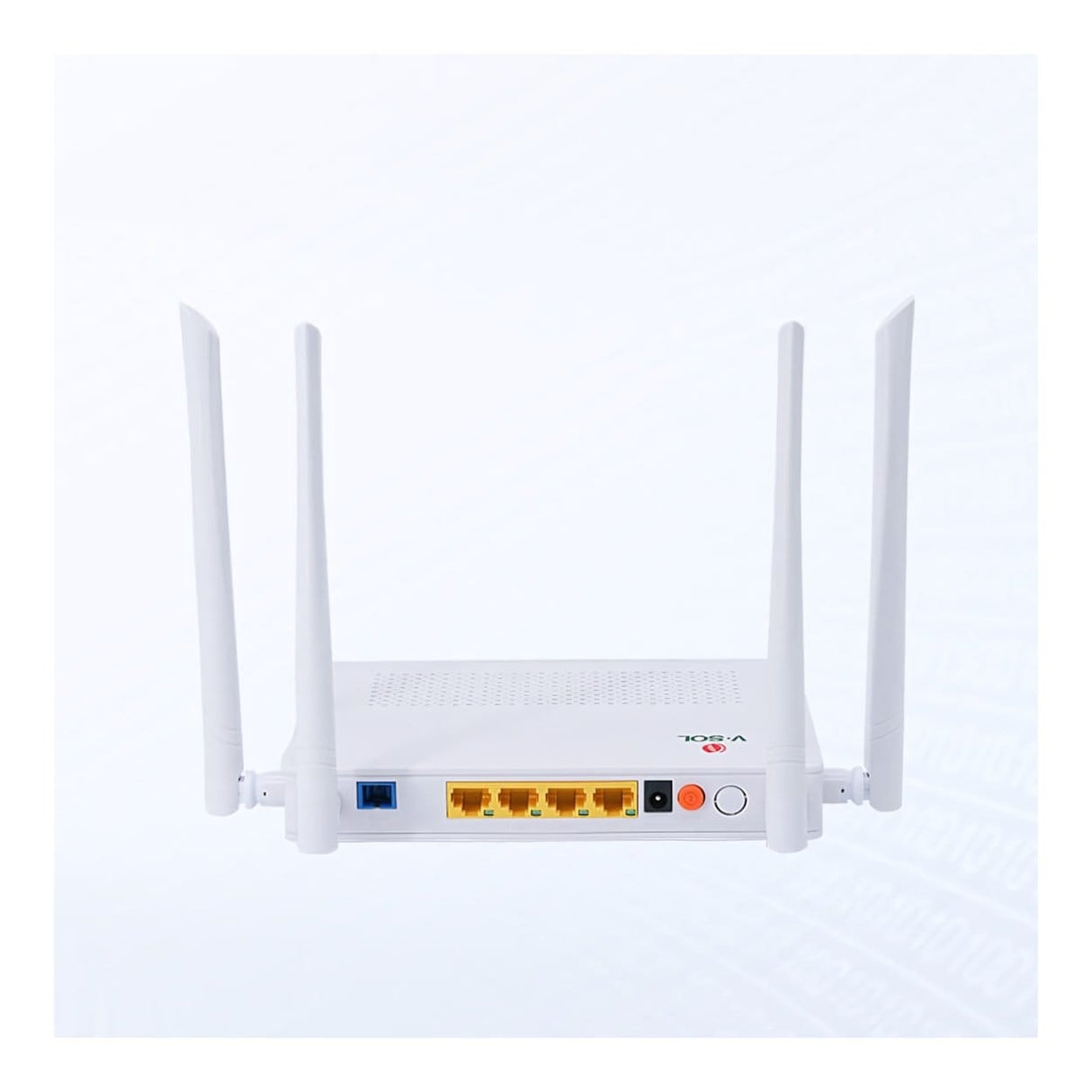

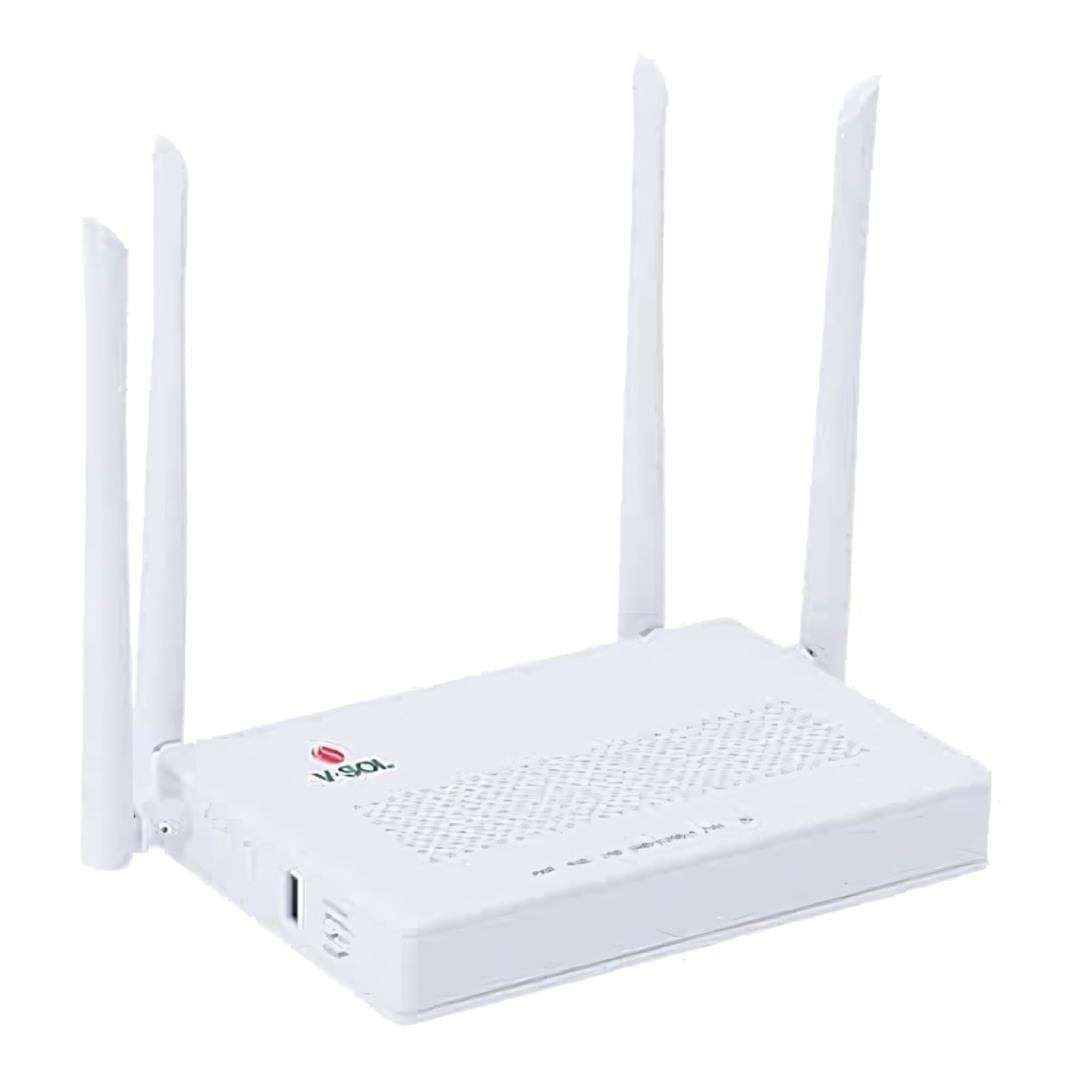

V-Sol Wi-Fi 5 xPON ONU/ONT with 4GE Wireless Router V2804AC-Z

V-Sol Wi-Fi 5 xPON ONU/ONT with 4GE Wireless Router V2804AC-Z

Rich Interface, Enjoy Full Gigabit Experience

1*XPON+4GE+Wi-Fi 5+USB 3.0

AC1200 Dual-band Wireless Connection

Up to Combo wireless speed of 1200Mbps in both the 2.4GHz and 5GHz bands

4×5dBi Gain External Antennas

Larger isolation is obtained between the antennas through scientific and professional layout, effectively reducing signal overlap and facilitating signal transmission to bring out wider coverage!

Technical Specifications:

Hardware Parameters

Dimension: 205mm × 140mm × 37mm (L × W × H)

Net Weight: 0.34 kg

Operating Condition: Operating temperature: -10°C ~ +55°C; Operating humidity: 5% ~ 95% (non-condensing)

Storing Condition: Storing temperature: -40°C ~ +70°C; Storing humidity: 5% ~ 95% (non-condensing)

Power Adapter: DC 12V, 1/1.5A, external AC-DC power adaptor

Power Supply: ≤10W

Interfaces: 4 GE + Wi-Fi 5 + USB 3.0

Indicators: PWR, PON, LOS, WAN, ETH1~ETH4, 2.4GHz Wi-Fi, 5GHz Wi-Fi, WPS, USB

Interface Parameters

PON Interface:

1 × PON port (EPON PX20+ and GPON Class B+)

SC single mode, SC/UPC connector

TX optical power: 0 ~ +4 dBm

RX sensitivity: -27 dBm

Overload optical power: -3 dBm (EPON) or -8 dBm (GPON)

Transmission distance: 20 km

Wavelength: TX 1310 nm, RX 1490 nm

Wi-Fi Interface:

Compliant with IEEE802.11b/g/n/ac

2.4 GHz operating frequency: 2.4000–2.4835 GHz

5.0 GHz operating frequency: 5.150–5.825 GHz

Support MIMO, rate up to 1.167 Gbps

Wi-Fi: 2.4 GHz (2T2R), 5.8 GHz (2T2R), 5 dBi antenna, support multiple SSID

TX power: 11n – 22 dBm / 11ac – 24 dBm

LAN Interface:

4 × GE, Auto-negotiation, RJ45 ports

USB Interface:

USB 3.0 for shared storage/printer

Function Data

XPON Mode: Dual mode, can access EPON/GPON OLTs (Huawei, ZTE, FiberHome, etc.)

Connect Mode: Routing mode

Wi-Fi:

IEEE802.11b/g/n/ac (TX power: 17 dBm / 16 dBm / 15 dBm)

Wi-Fi Authentication: WEP / WAP-PSK (TKIP) / WAP2-PSK (AES)

Firewall: DDOS, filtering based on ACL / MAC / URL

Layer 2: 802.1D & 802.1ad bridge, 802.1p CoS, 802.1Q VLAN

Layer 3: IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS

Multicast: IGMP v1/v2/v3, IGMP Snooping

Security: Flow & storm control, loop detection

O&M: WEB / Telnet / OAM / OMCI, support private OAM/OMCI protocol and unified network management of VSOL OLT
