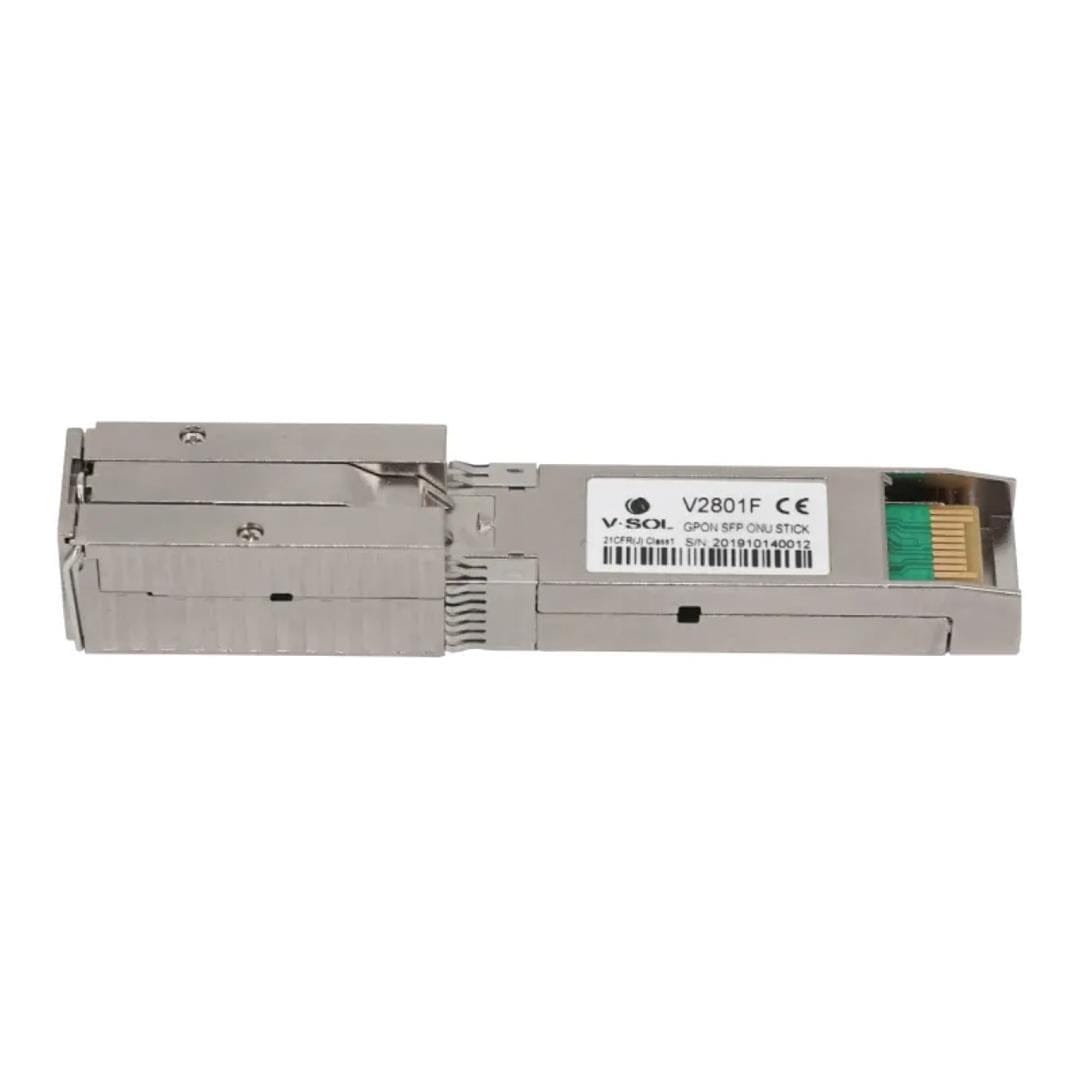

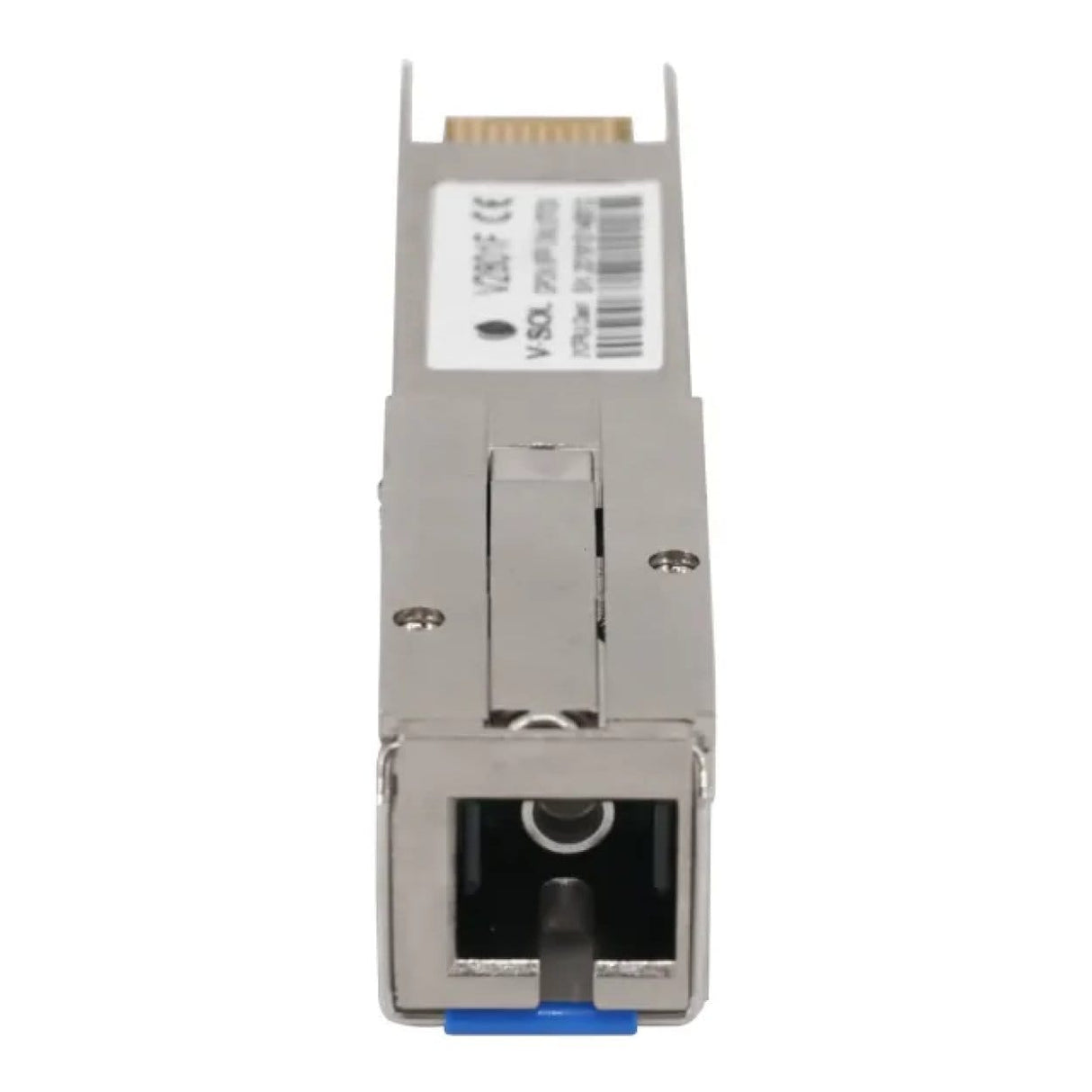

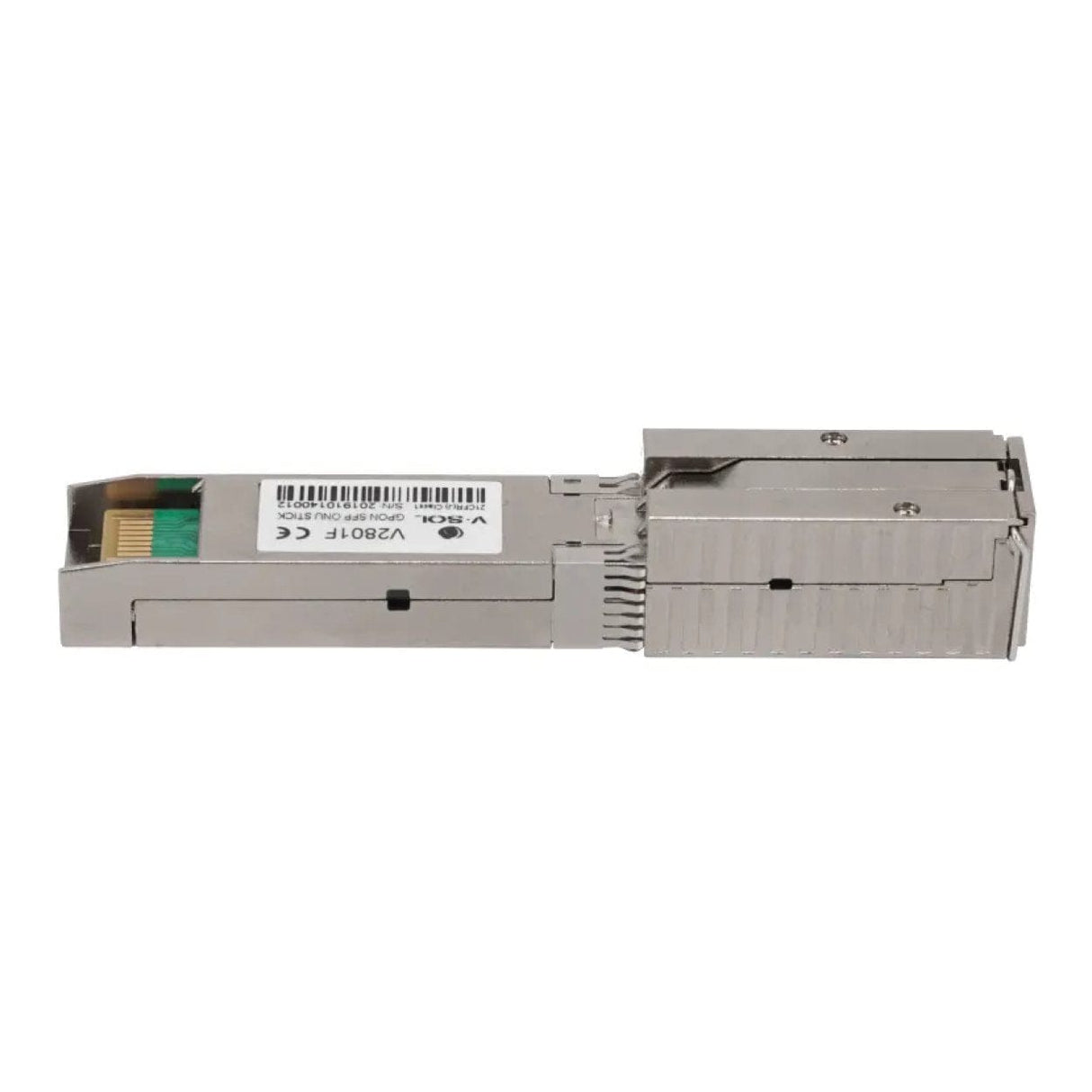

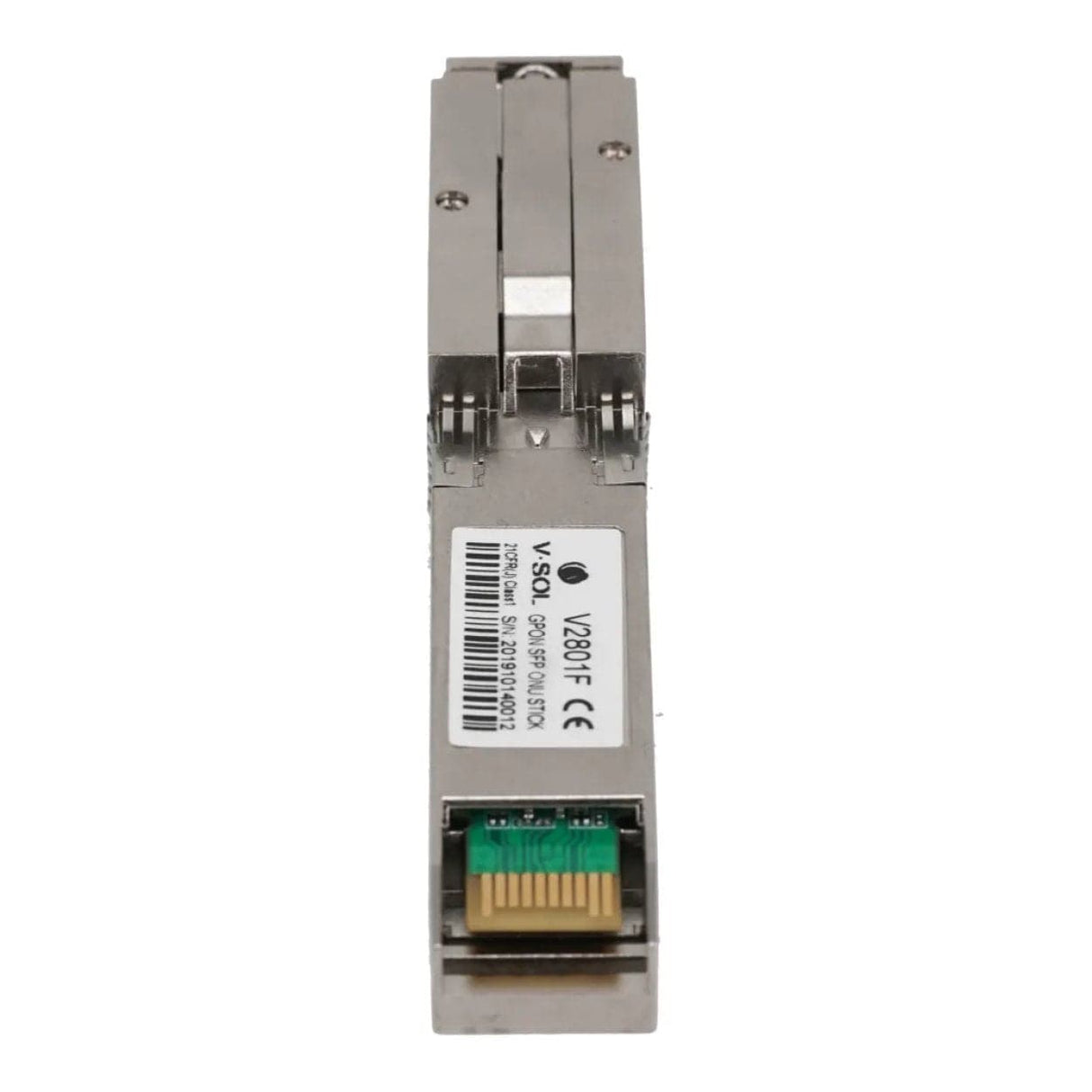

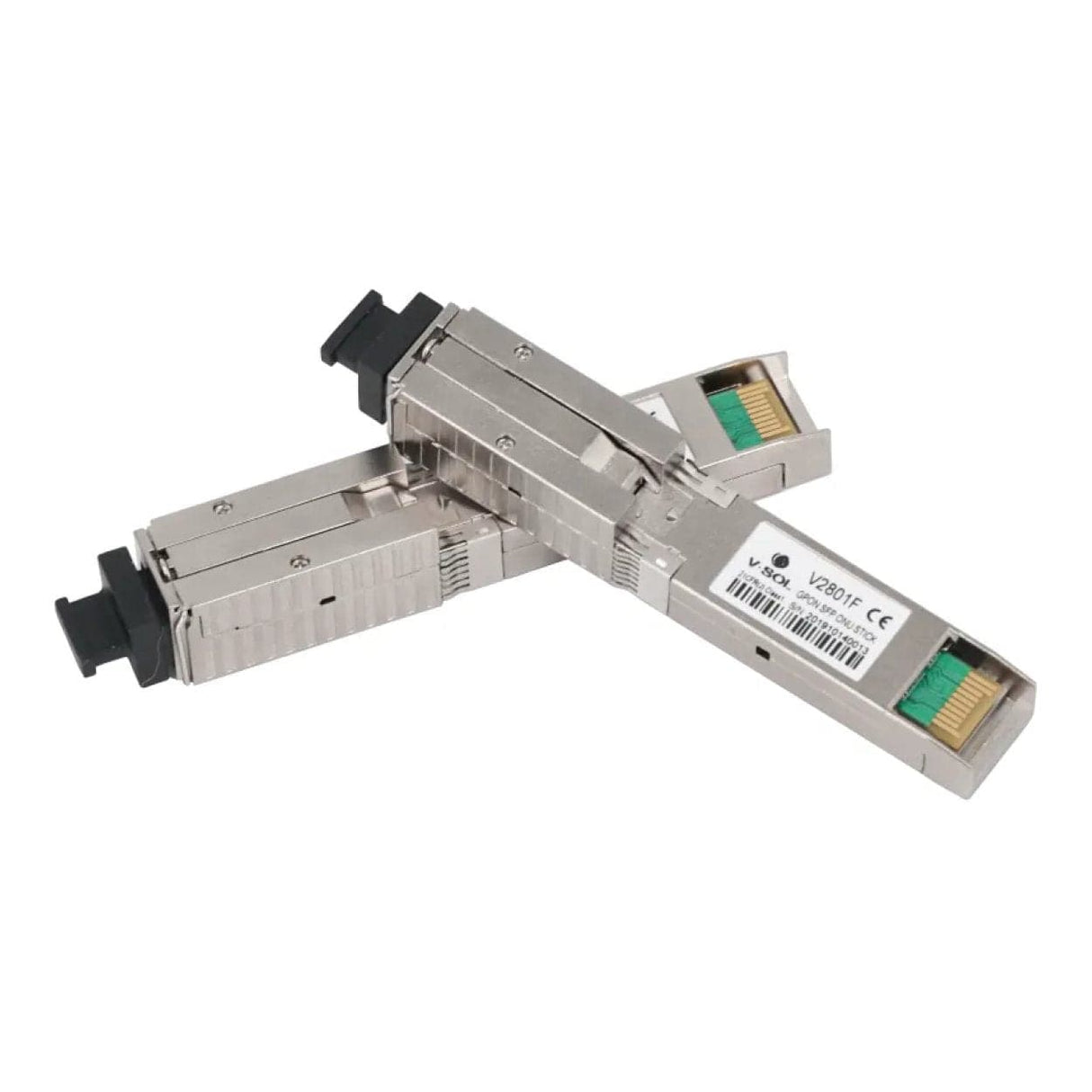

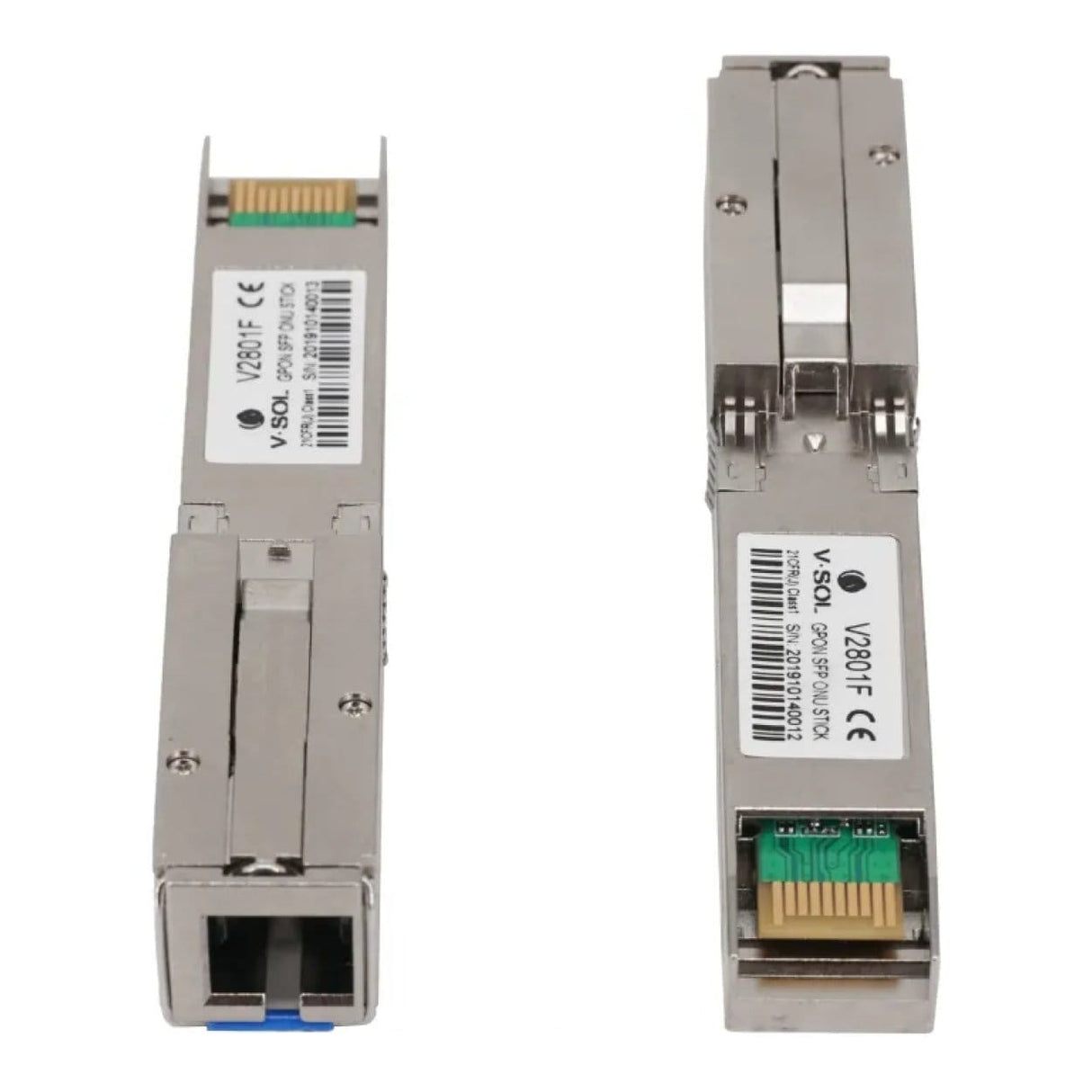

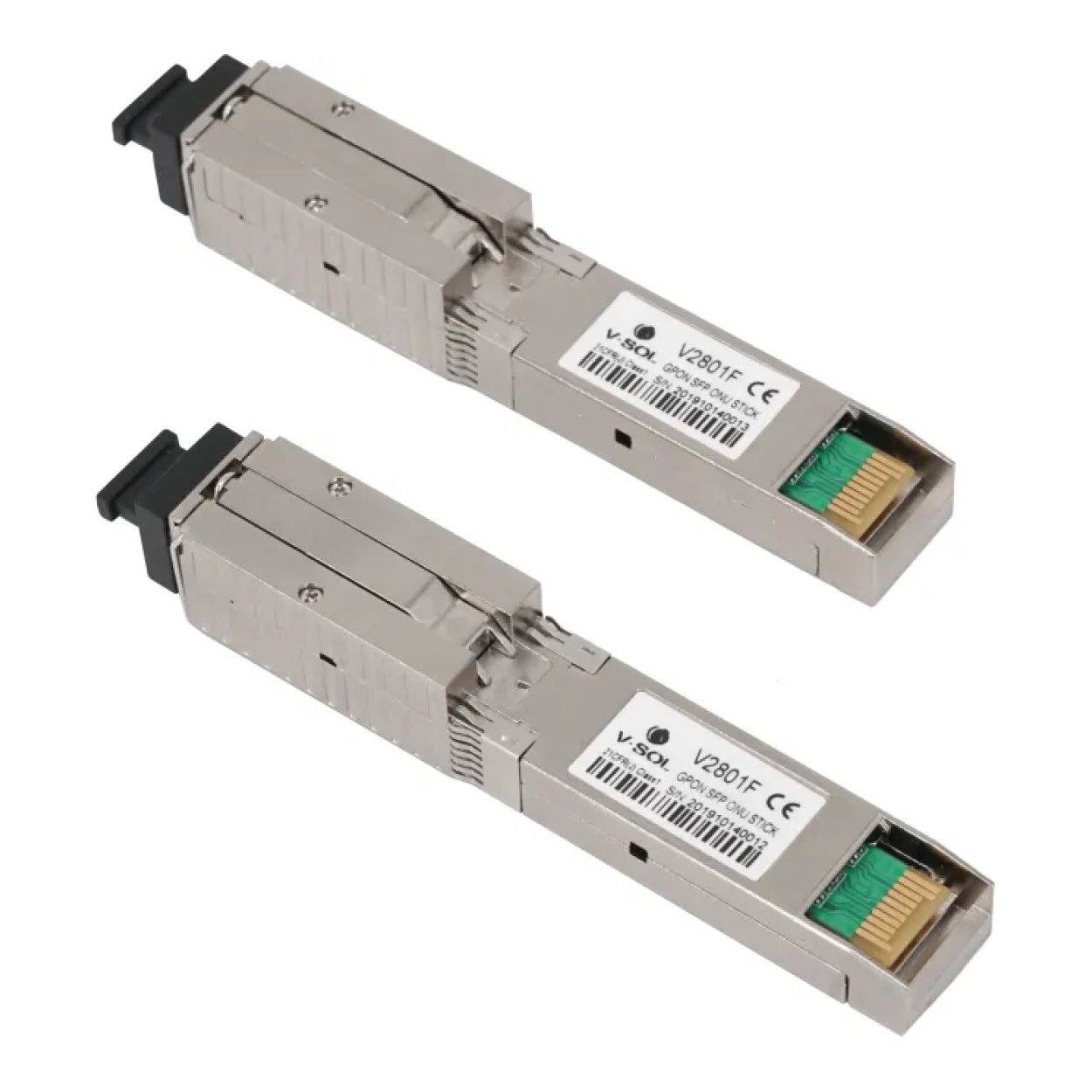

V-SOL V2801F xPON ONU SFP Tranceiver Module

V-SOL V2801F xPON ONU SFP Tranceiver Module

Ultra-compact | XPON Dual Mode | Plug-and-Play | Bridge Mode

The VSOL V2801F is a high-performance xPON Optical Network Unit (ONU) housed in a Small Form-factor Pluggable (SFP) module. This device is designed to provide a direct fibre optic connection to networking equipment such as routers, switches, or firewalls, eliminating the need for a separate, standalone ONT. Its dual-mode capability ensures compatibility with both GPON and EPON networks, automatically detecting the OLT type for flexible deployment. In GPON mode, it adheres to ITU-T G.984 standards, supporting data rates of 2.5 Gbps downstream and 1.25 Gbps upstream. In EPON mode, it complies with IEEE 802.3ah standards for symmetrical 1.25 Gbps connectivity. The V2801F features a single SC/UPC connector and is an ideal solution for Internet Service Providers and network administrators looking to simplify FTTH and FTTB installations.

Features

• 1G SFP
• EPON/GPON Hybrid
• SC/UPC

Technical Specifications:

Hardware Parameters
Dimension: 14.1 mm × 79 mm × 13.6 mm (H × W × D)
Net Weight: 35 g
Operating Condition: Temperature 0℃–50℃, Humidity 10%–90% (non-condensing)
Storing Condition: Temperature -30℃–60℃, Humidity 10%–90% (non-condensing)
Power Supply: DC 3.3V
Power Consumption: ≤ 4W

Interface Parameters
PON Interface: 1 SC/UPC connector, PX20+ and Class B+; Receiving Sensitivity ≤ -28 dBm; Transmitting Optical Power 0–+4 dBm; Transmission Distance 20 km
Wavelength: Tx 1310 nm, Rx 1490 nm
Optical Interface: SC/UPC connector
LAN Interface: 1 × GE Ethernet interface, SFP connector

Function Data
Satisfactory Standard: Meets IEEE 802.3ah, ITU-T G.984.x, China’s CTC 3.0 standards
SFU ONU: Bridging mode; compatible with mainstream OLT
L2: 802.1D & 802.1ad bridging; 802.1p CoS
L3: IPv4; Forwarding PPPoE package
Multicast: Forwarding IGMP v2/v3 package
