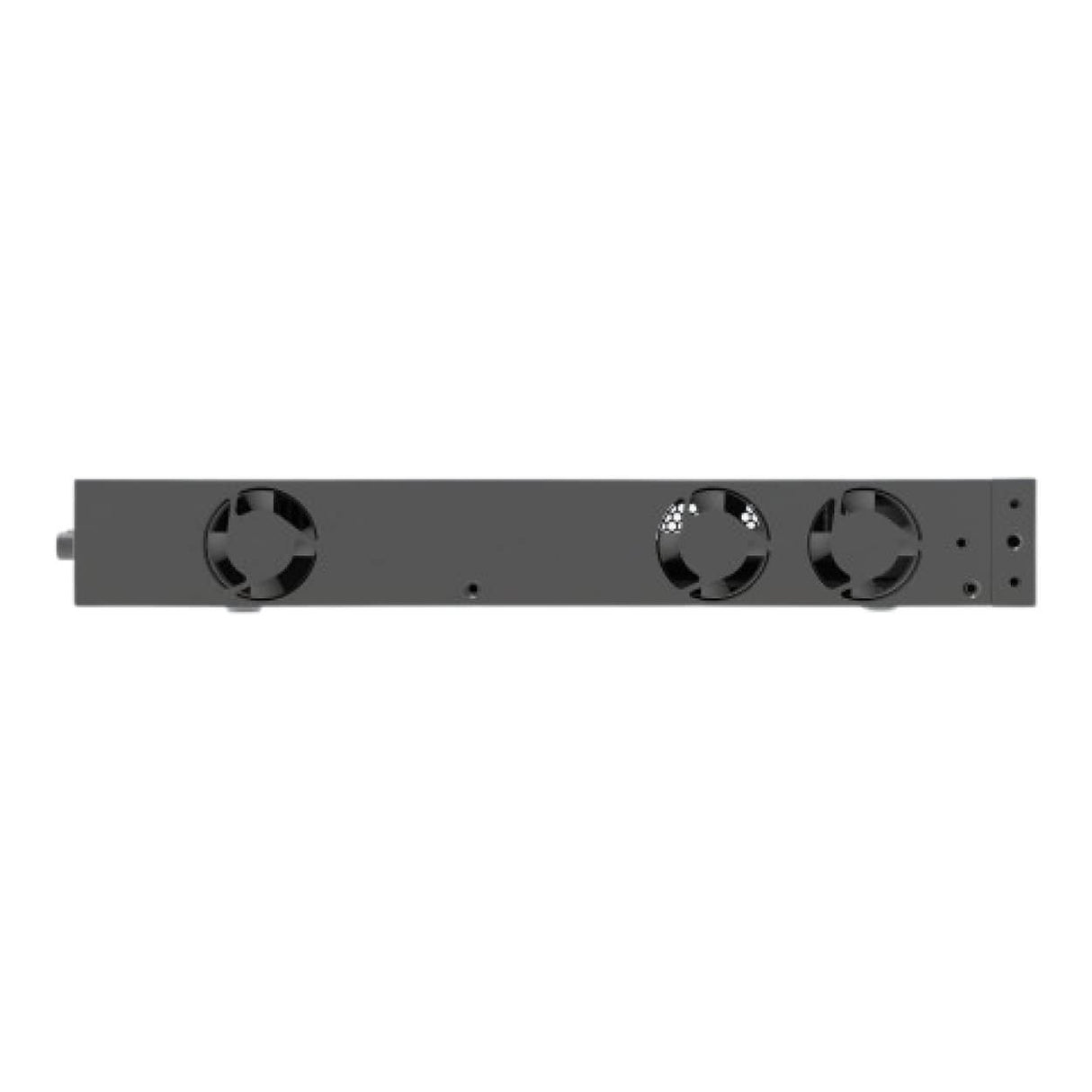

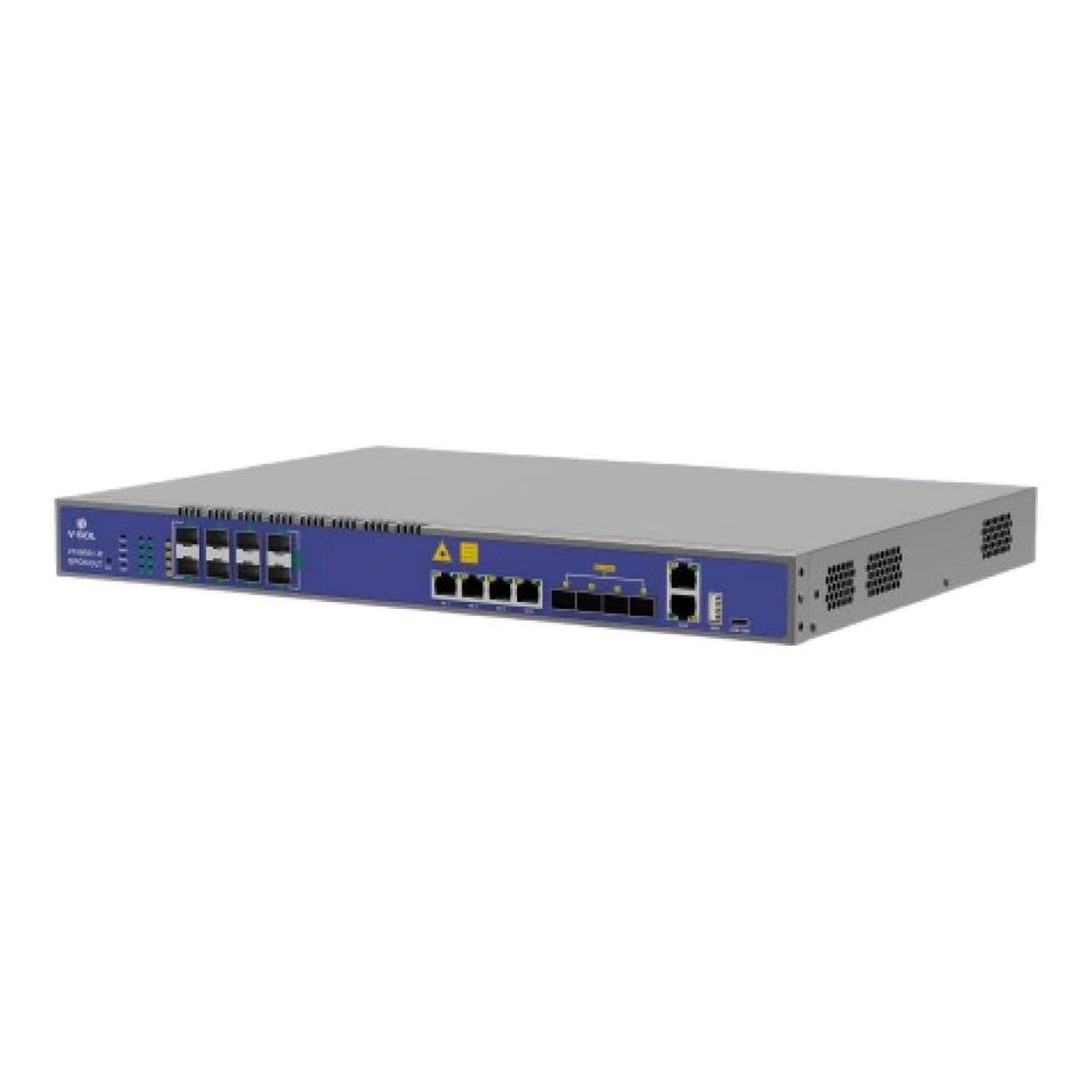

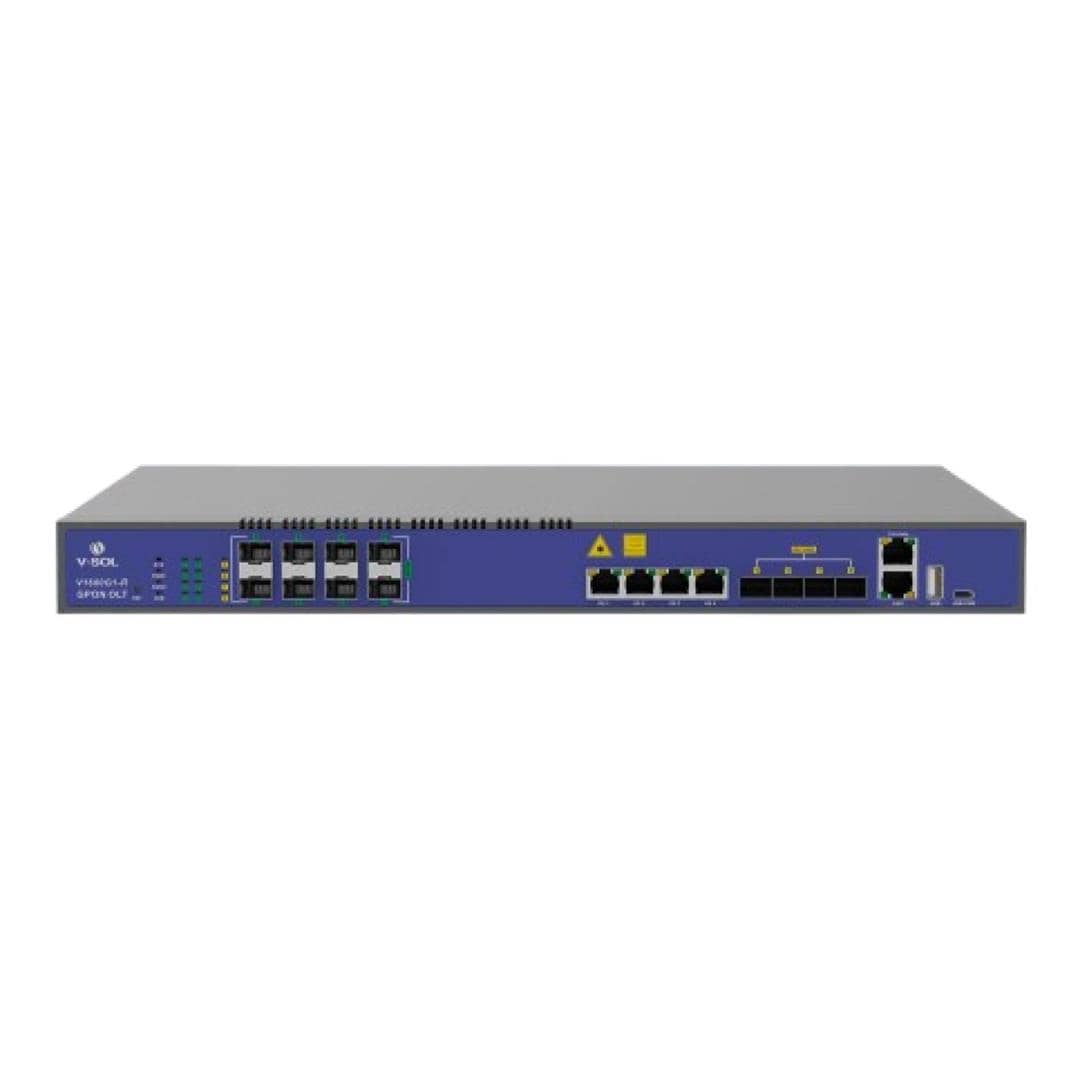

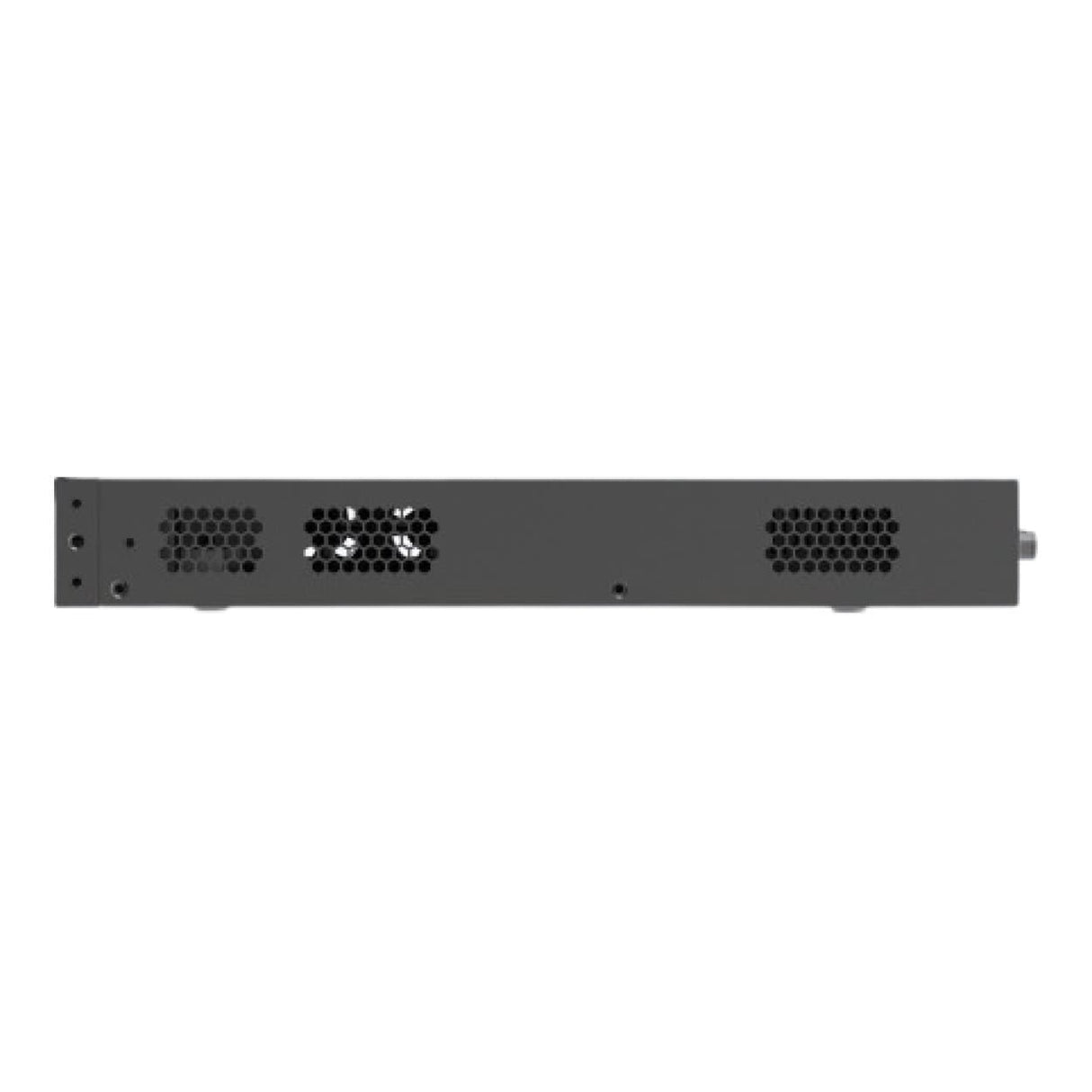

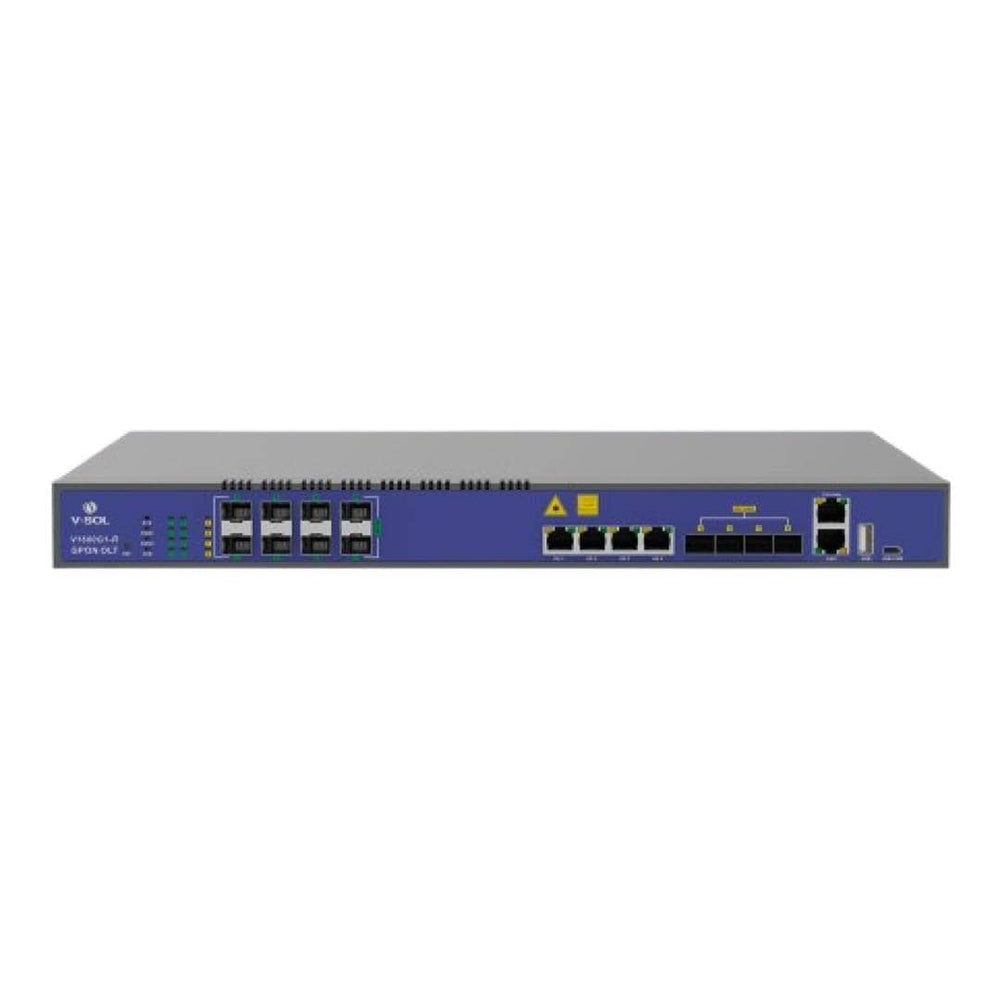

V-SOL V1600G1-R 8-port GPON L3 FTTM OLT

V-SOL V1600G1-R 8-port GPON L3 FTTM OLT

More Reliable, More Cost-effective, Lighter, Simpler

Easy Access, Ready for Massive Users

Flexible Power Options with Hot-Swap Support

Carrier-Grade Protection with Intelligent Routing

Compact Design for Flexible, Efficient Deployment

Small and lightweight — saves space and speeds up transport and installation!

Versatile for Diverse Deployment Scenarios

Supports FTTM deployment and rack sharing with wireless base stations.

Specifications:

Chassis

Rack: 1U 19Inch Standard Box

Uplink Port

• QTY: 8
• RJ45(GE): 4
• SFP(GE)/SFP+(10GE): 4

GPON Port

• QTY: 8
• Physical Interface: SFP Slots
• Max splitting ratio: 1:128

Management Ports: 1x 10/100/1000BASE-T out-band port, 1x CONSOLE port, 1x USB2.0, 1x Type-C USB (for console)

Backplane Bandwidth (Gbps): 240

Port Forwarding Rate (Mpps): 124.992

PON Port Specification

Transmission Distance: 20KM

GPON port speed: Upstream 1.244Gbps, Downstream 2.488Gbps

Wavelength: TX 1490nm, RX 1310nm

Connector: SC/UPC

Fiber Type: 9/125μm SMF

Supported PON module level: Class B+, C, C+, C++, C+++, C++++
