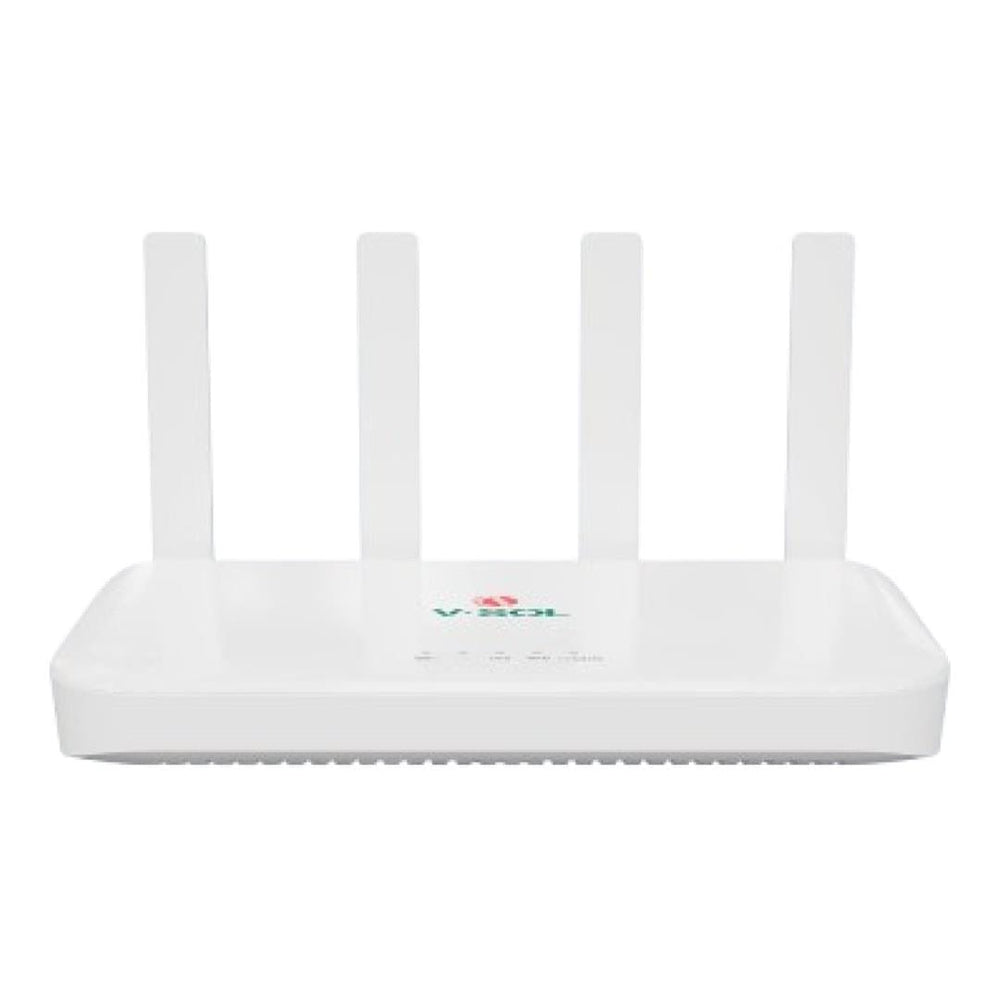

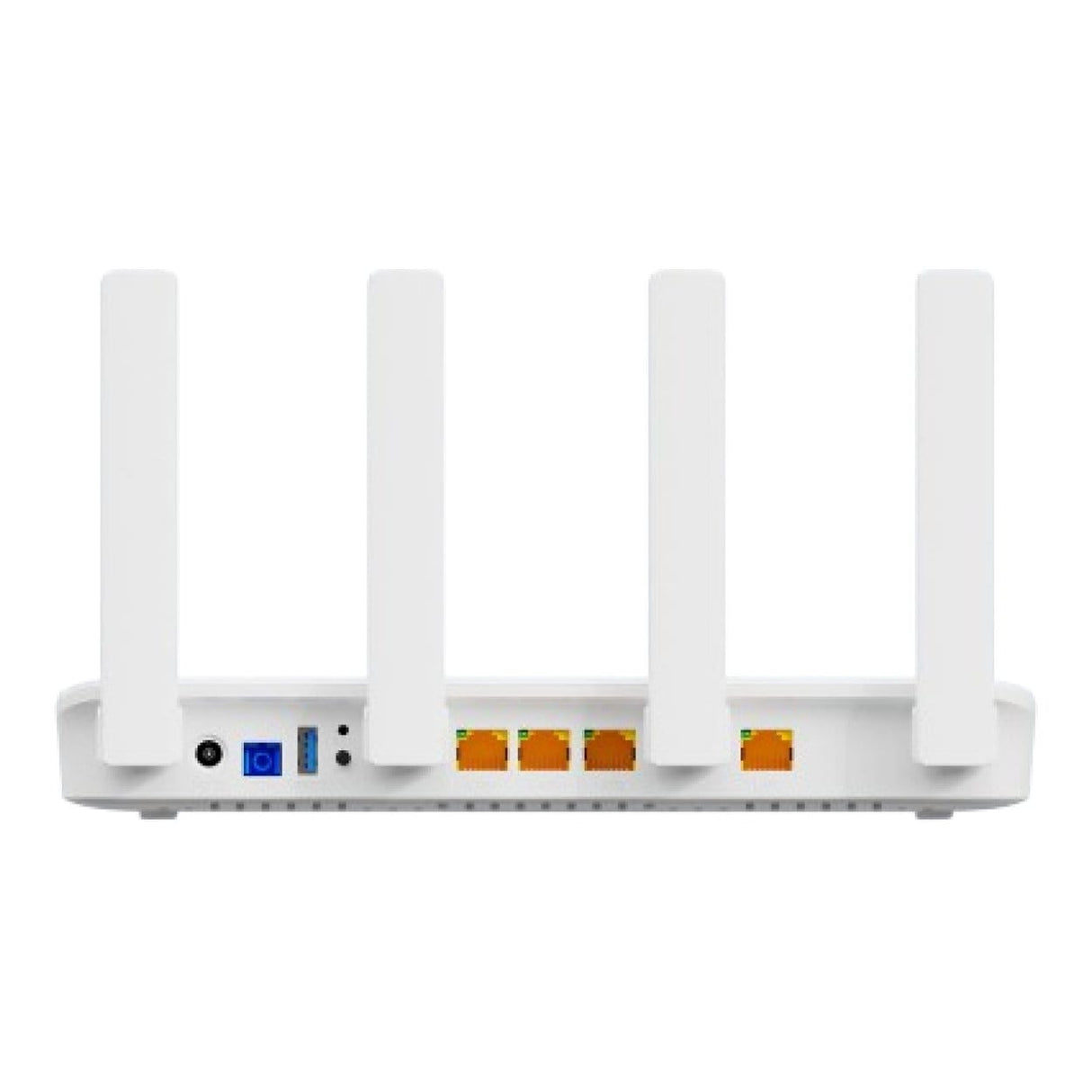

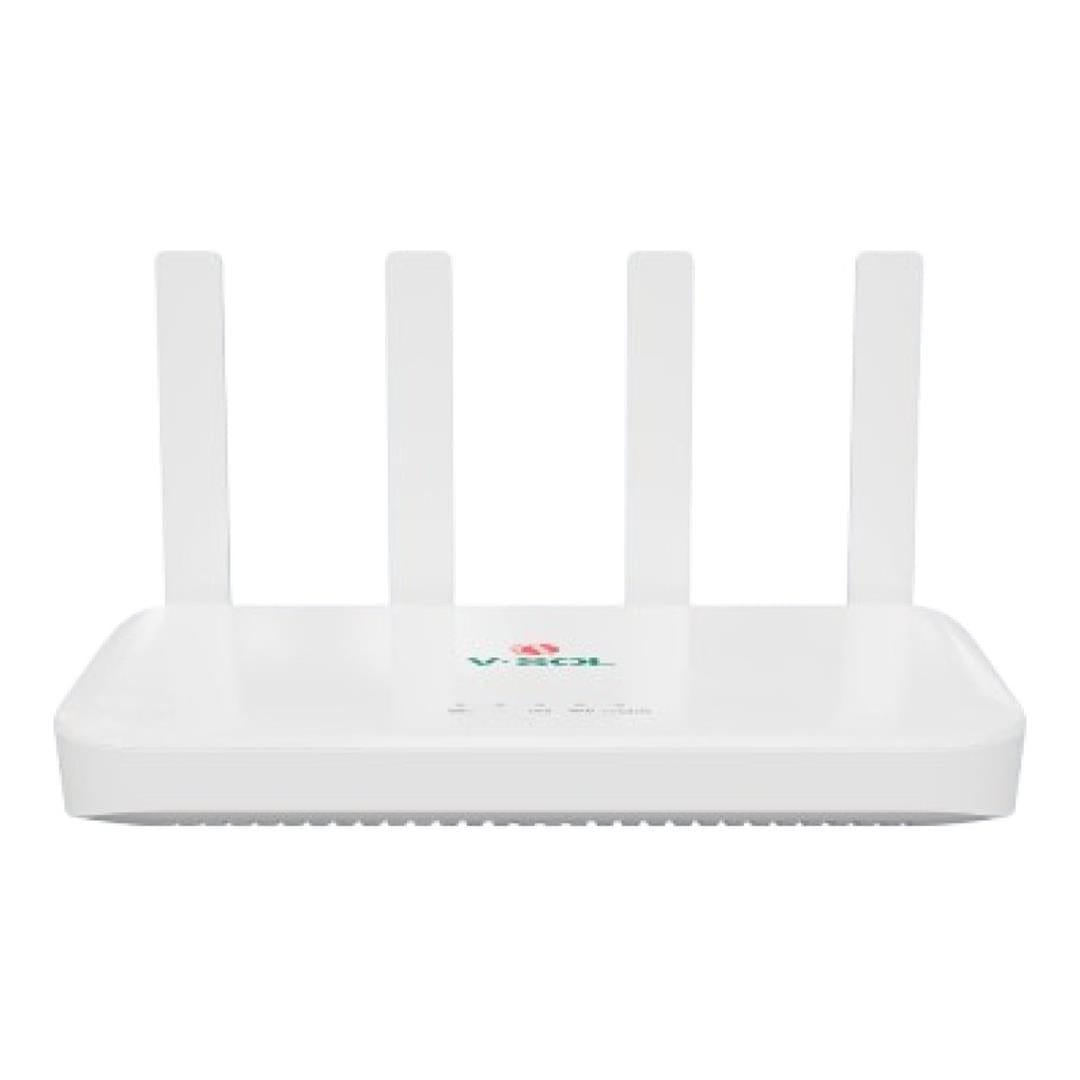

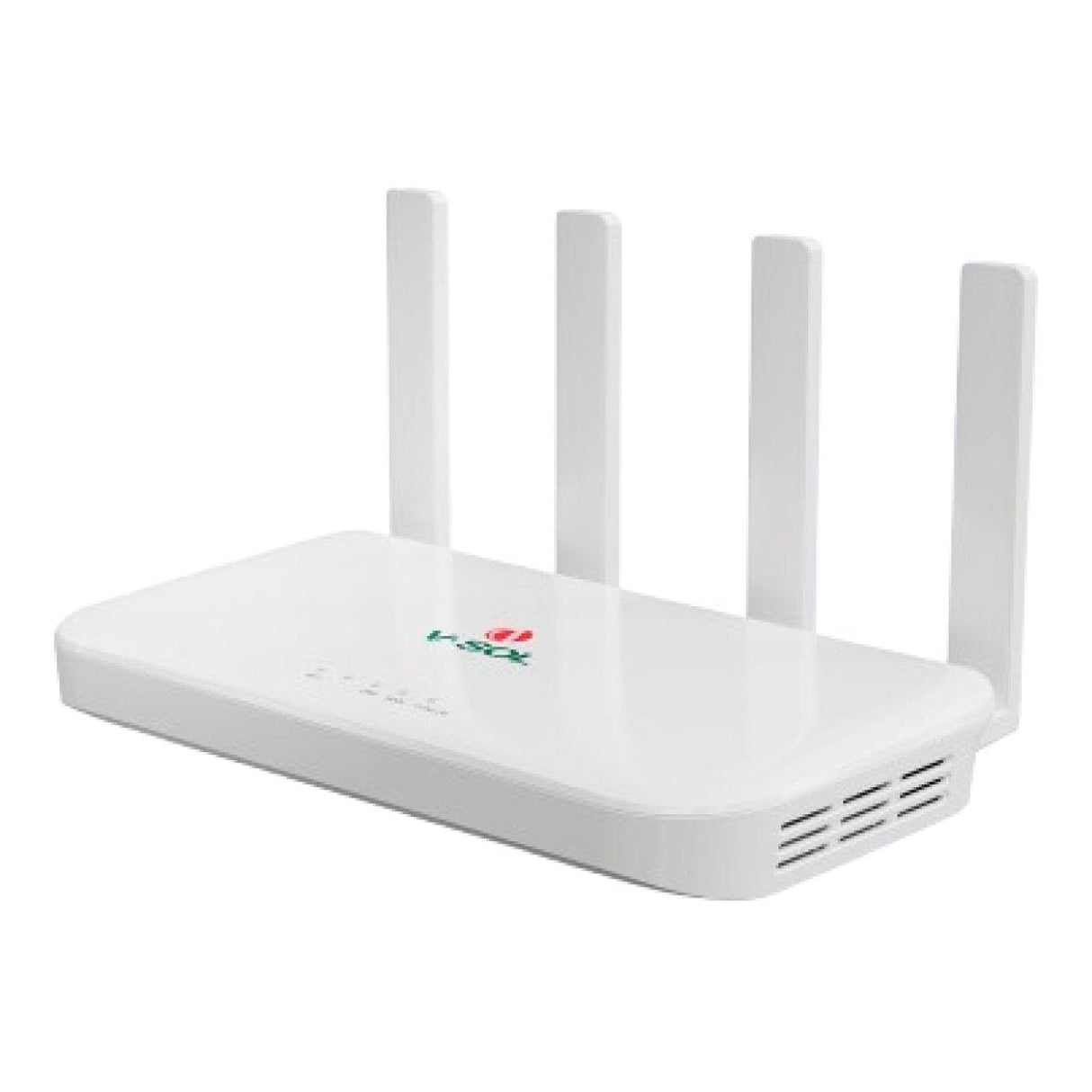

V-SOL 1XPON 4-port Wi-Fi 6 Router V2804AX30-A

V-SOL 1XPON 4-port Wi-Fi 6 Router V2804AX30-A

The V-SOL V2804AX30-A is an xPON Optical Network Unit (ONU) designed for Fibre-to-the-Home (FTTH) applications. It features dual-mode functionality, automatically adapting to both GPON and EPON networks for broad compatibility with various service providers. This device provides high-speed connectivity through four Gigabit Ethernet (GE) LAN ports and dual-band Wi-Fi 6 (802.11ax). The inclusion of Wi-Fi 6 technology delivers improved data rates, greater network capacity, and reliable performance, even with multiple connected devices. The V2804AX30-A is a suitable solution for delivering dependable fibre internet access to homes and small offices.

Specifications

PON Interface: 1XPON port(EPON PX20+ and GPON Class B+) ;SC single mode, SC/UPC connector

TX optical power: 0～+4dBm

RX sensitivity: -27dBm

Overload optical power: -3dBm(EPON) or -8dBm(GPON)

Transmission distance: 20KM

Wavelength: TX 1310nm, RX1490nm

O&M

• WEB/TELNET/OAM/OMCI/TR069
• Support private OAM/OMCI protocol andUnified network management of V-SOL OLT

Internet connection Support: Routing Mode

Wi-Fi

• Wi-Fi 6: AX1500: 802.11a/n/ac/ax 5GHz&802.11g/b/n 2.4GHz , AX1800,AX3000: 802.11a/n/ac/ax5GHz&802.11g/b/n/ax 2.4GHz
• Wi-Fi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3
• Support OFDMA, MU-MIMO, DynamicQoS,1024-QAM
• Smart Connect for one Wi-Fi name- OneSSID for 2.4GHz and 5GHz dual band
