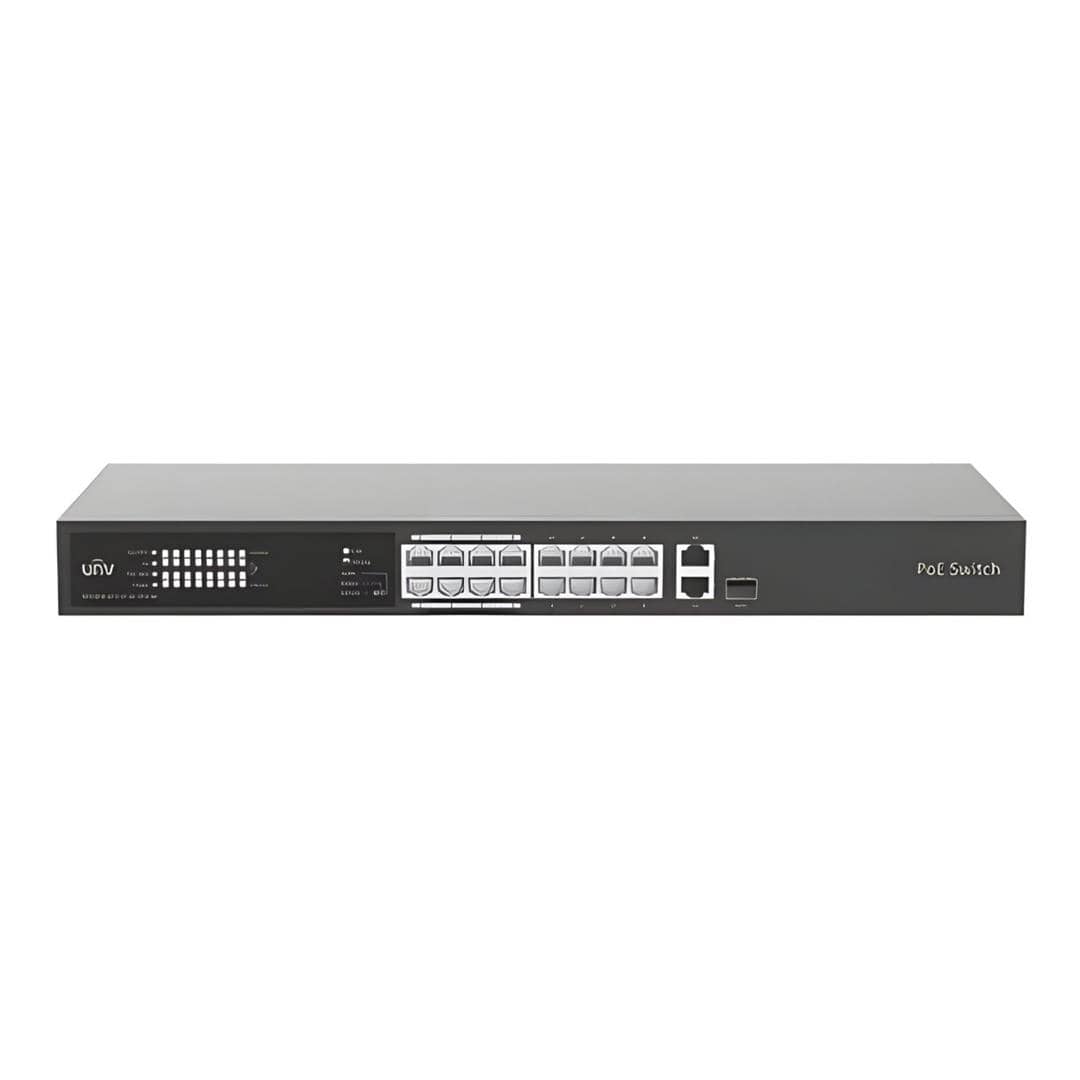

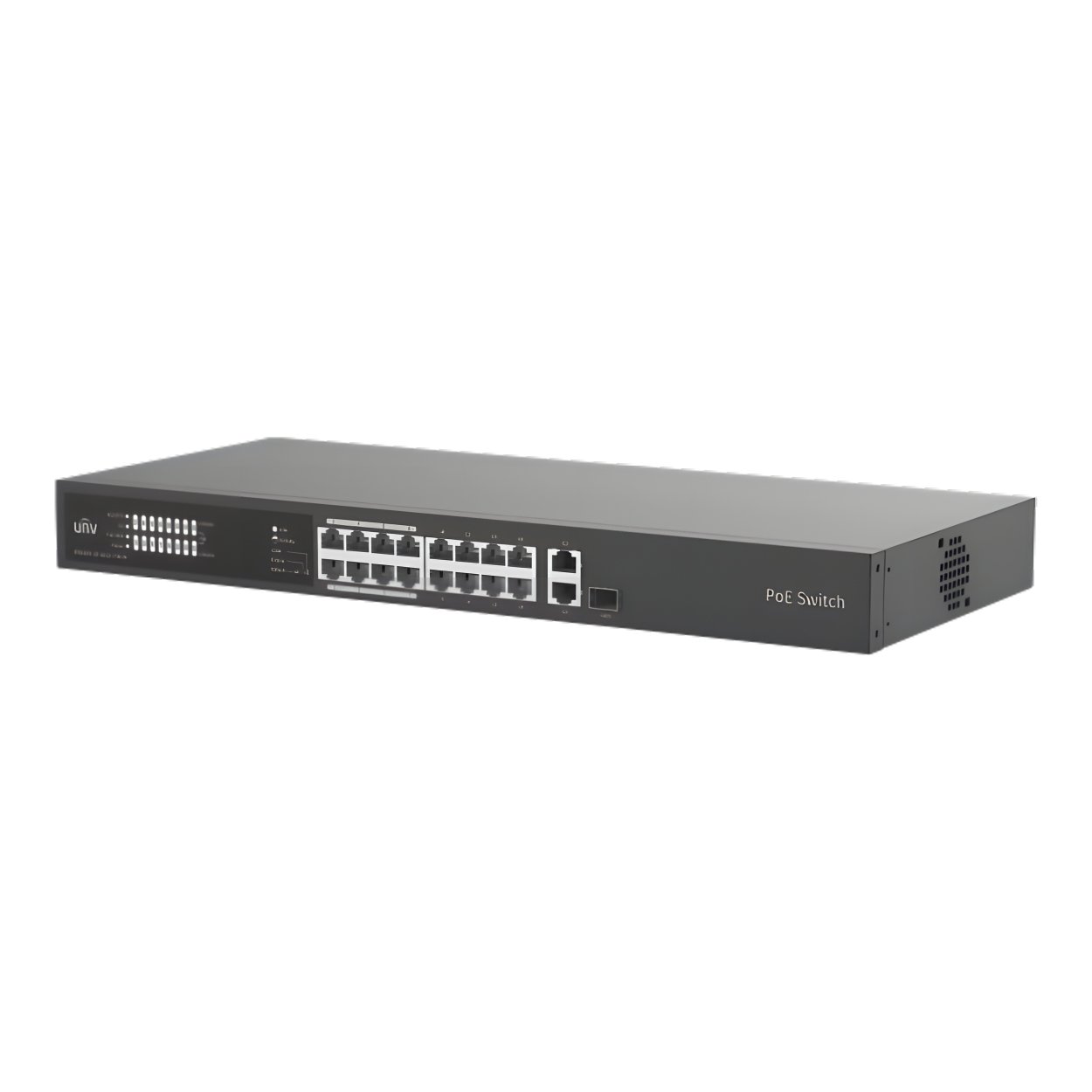

Uniview 16-port 100 Mb/s PoE+ Compliant Unmanaged Switch NSW2020-16T1GT1GC-POE-IN

Uniview 16-port 100 Mb/s PoE+ Compliant Unmanaged Switch NSW2020-16T1GT1GC-POE-IN

Expanding your business's network with the NSW2020-16T1GT1GC-POE-IN 16-Port 100 Mb/s PoE+ Compliant Unmanaged Switch from Uniview allows you to securely operate long-range surveillance cameras without the hassle of a complicated configuration. This entry-level switch includes sixteen 10/100 Mb/s ports, each of which can provide up to 30W of power to compatible devices with a total budget of 225W.

Features:

• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable

Enabling extend mode can increase transmission distances to up to 820.2 feet. An RJ45 Ethernet port is available alongside an RJ45 / SFP combo port for Gigabit speed uplinks. Enjoy smooth data transfers with a 7.2 Gb/s switching capacity and 5.36 Mpps forwarding rate. Activating VLAN (aka Secure) mode isolates the downlink ports so that they can only communicate with uplink ports.

PD Keepalive

Enabling this function will automatically restart cameras if no data is received for a period of time.

Quiet Cooling

With a single cooling fan, this switch maintains optimal performance while producing minimal noise.

Technical Specifications:

Ports and Interfaces
Ports:

• 16 × 100 Mbps PoE RJ45 Ports
• 1 × 1000 Mbps Gigabit Ethernet Port
• 1 × 1000 Mbps Combo Port

Performance
Switching Capacity: 7.2 Gbps
Packet Buffer: 4 Mbit
Forwarding Performance: 5.36 Mpps
MAC Address Table: 16K

PoE
PoE Standards: IEEE 802.3af, IEEE 802.3at
PoE Mode: Mode B (Pins 4, 5, 7, 8)
Maximum PoE Power Budget: 250 W
Maximum PoE Power per Port: 30 W
Priority Ports: 1 to 8

Standards and Protocols
Supported Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3az

Power
Power Supply: AC 100 V to 240 V, 50/60 Hz
Maximum Power Consumption: 265 W

Cooling
Cooling Fans: 1

LED Indicators
Power LED:

• Steady On: AC Input Normal
• Off: No AC Input

PoE LED:

• Off: No PoE Power Supply
• Steady On: PoE Power Supply Normal

PoE-Max LED:

• Off: Total PoE Power Consumption Below 80% of Capacity
• Steady On: Total PoE Power Consumption Above 85% of Capacity

Link/Act LED:

• Off: No Link
• Steady On: Link Established
• Flashing: Data Transmission in Progress

Operating Conditions
Operating Temperature: 0°C to 45°C
Operating Humidity: 10% to 90% RH (Non-Condensing)

Working Modes
Default Mode (Normal Mode): All Ports Can Communicate with Each Other

VLAN Mode (Secure Mode):

• Downlink Ports Can Communicate Only with Uplink Ports
• PD Keepalive Function Supported
• Automatically Restarts IPC via PoE if No Message Is Received Within a Defined Period

Extend Mode (Surveillance Mode):

• Transmission Distance Up to 250 m
• Downlink Ports Can Communicate Only with Uplink Ports

Physical Specifications
Dimensions: 440 × 195 × 44 mm
Weight: 2.12 kg
