Ubiquiti UX7 UniFi Express Wi-Fi 7 Tri-Band 10Gbps Cloud Gateway

Ubiquiti UX7 UniFi Express Wi-Fi 7 Tri-Band 10Gbps Cloud Gateway

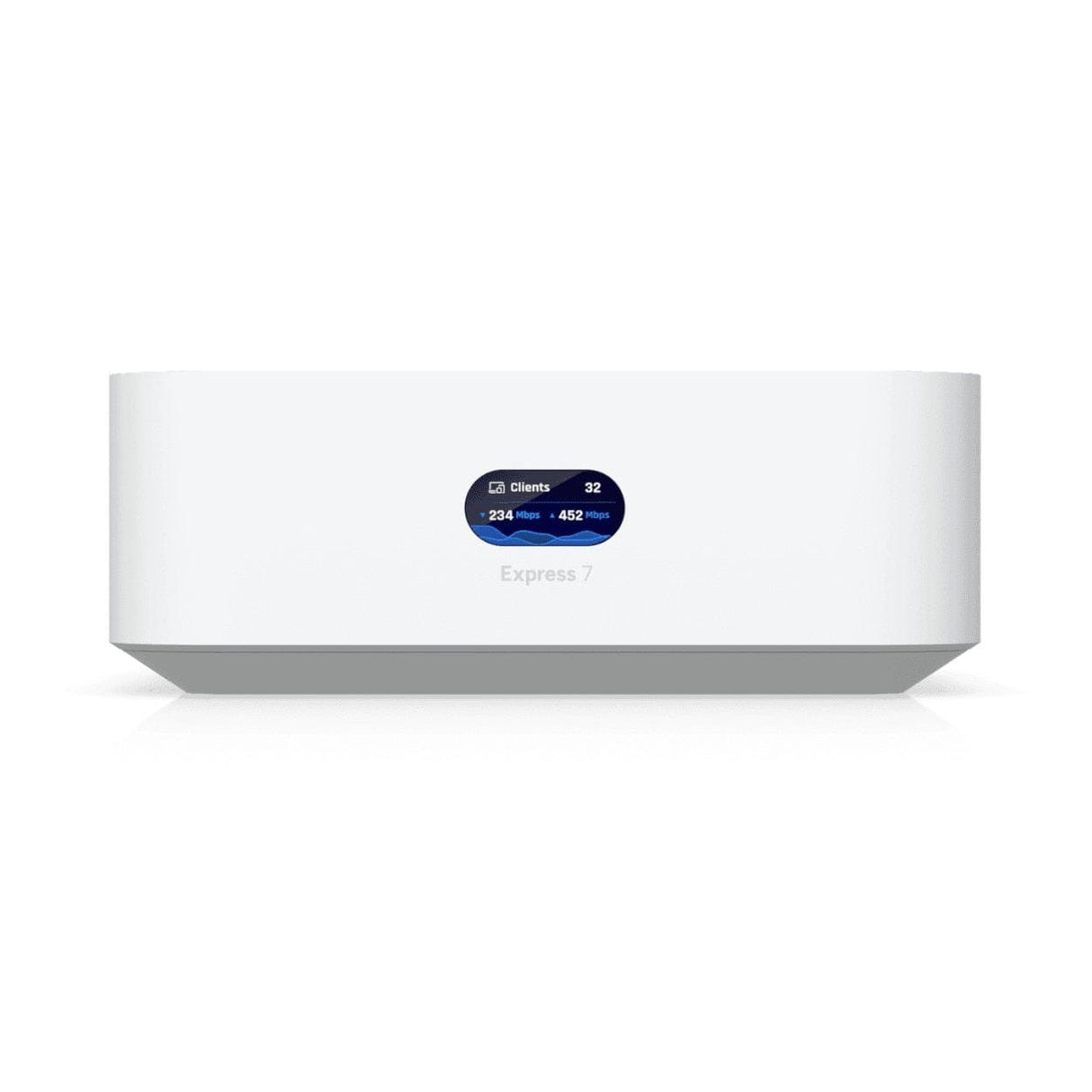

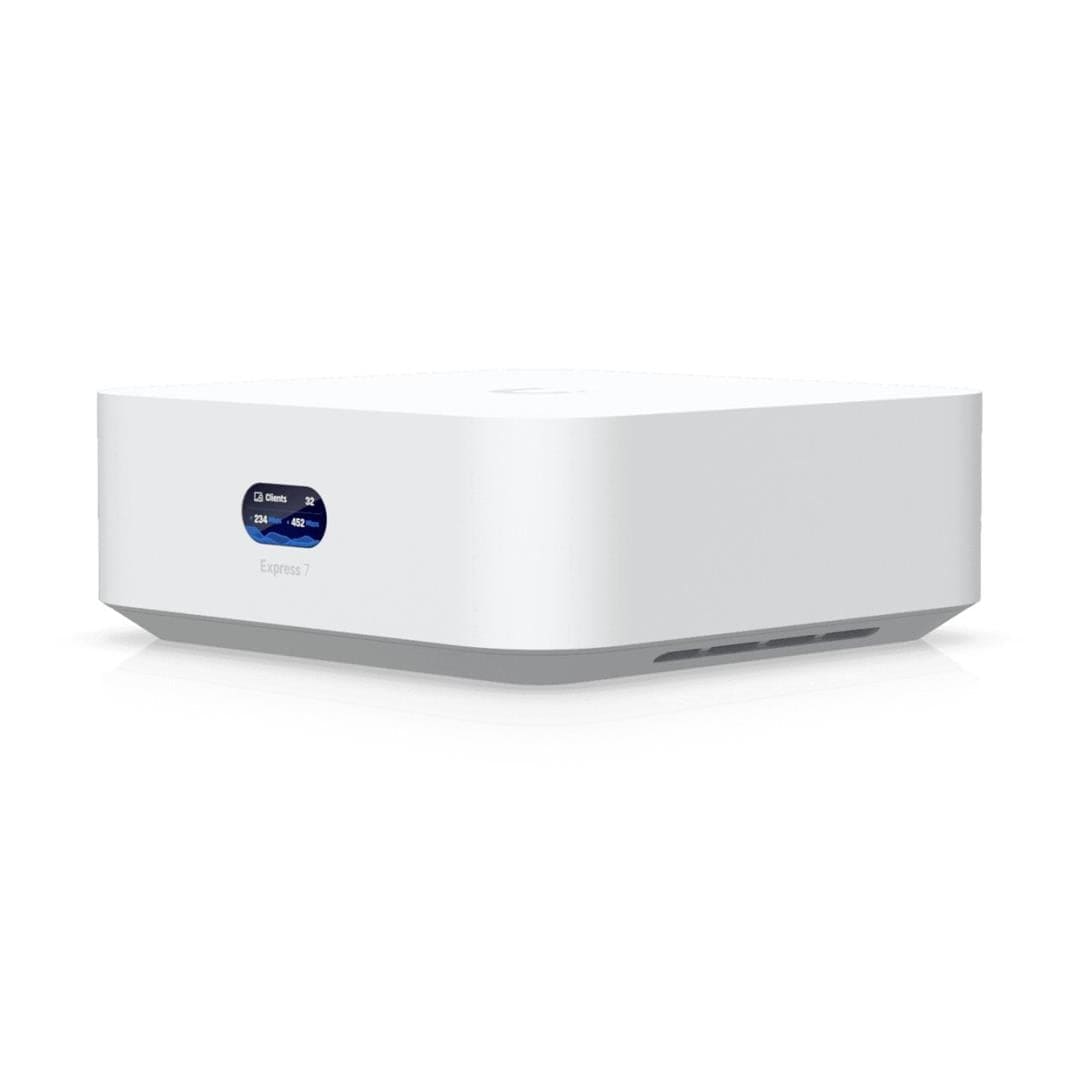

Ubiquiti's UX7 is a compact UniFi Cloud Gateway with an integrated WiFi 7 tri-band access point that runs UniFi Network. The integrated WiFi 7 access point delivers an aggregate data rate of 10Gbps over its 6GHz (2x2 MU-MIMO), 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands. It features an LCM (Liquid Crystal Monitor) colour screen to display key system and connection information.

The UX is configured and managed with the pre-installed UniFi Network Application.

Technical Specification

Managed UniFi Devices: 30

Simultaneous Users Connected: 300

Max. WAN Port Count: 1

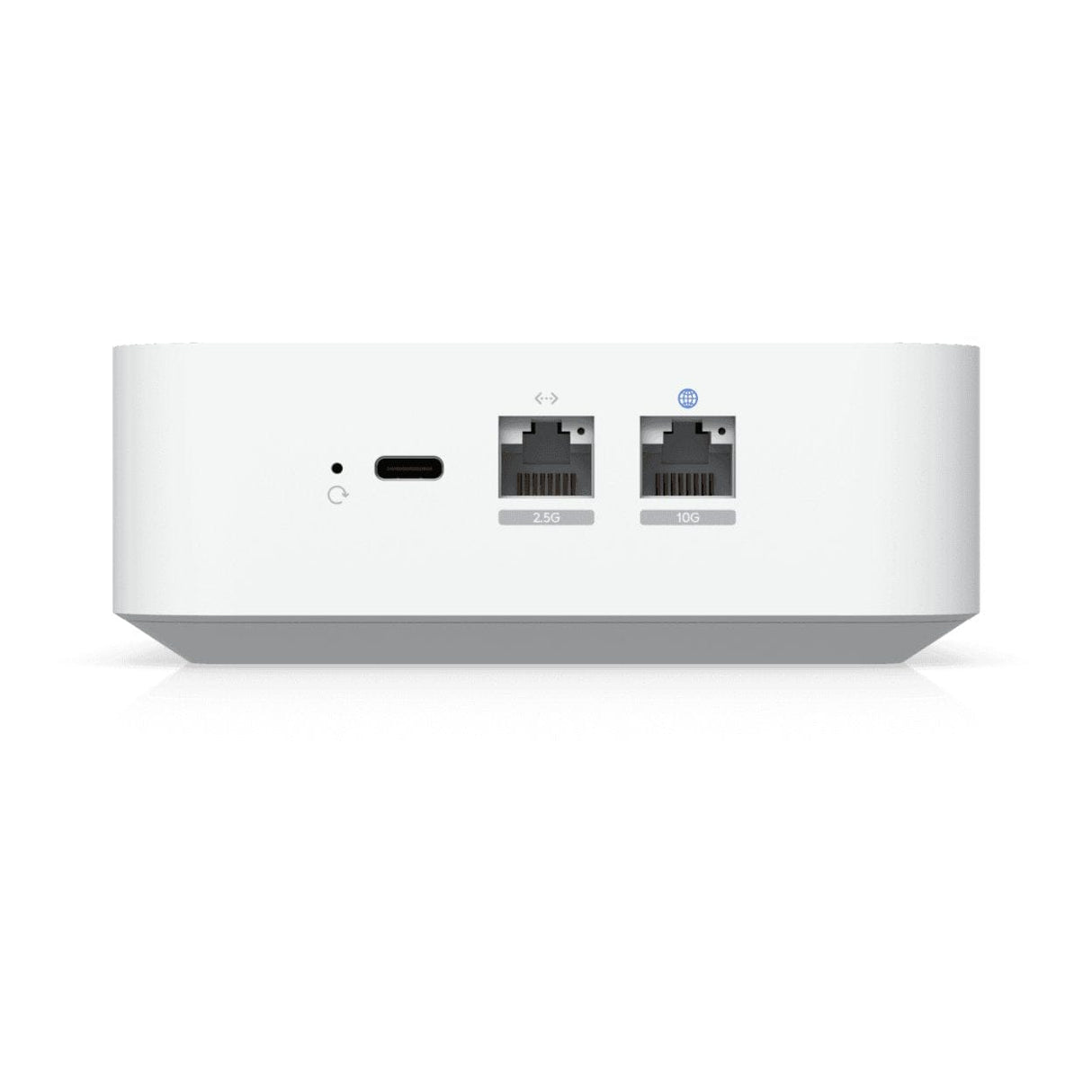

Default WAN Ports: 1x 10 GbE RJ45

IDS/IPS Throughput: 2.3 Gbps

Form Factor: Compact desktop

Coverage Area: 160 m² (1,750 ft²)

WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput

• 6 GHz: 5.7 Gbps
• 5 GHz: 4.3 Gbps
• 2.4 GHz: 688 Mbps

MIMO

• 6 GHz: 2 x 2 (DL/UL MU-MIMO)
• 5 GHz: 2 x 2 (DL/UL MU-MIMO)
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Antenna Gain

• 6 GHz: 6 dBi
• 5 GHz: 7 dBi
• 2.4 GHz: 4 dBi

Max. TX Power

• 6 GHz: 24 dBm
• 5 GHz: 26 dBm
• 2.4 GHz: 23 dBm

Power Method: USB type C (5V DC/5A)

Power Supply: USB type C (5V DC/5A) (Adapter included)

Supported Voltage Range: 100—240V AC

Processor: Quad-core ARM Cortex-A53 at 1.5 GHz

System Memory: 3 GB

Weight: 422 g

Enclosure Material: Polycarbonate

LCM Display: 0.96" status display

Management: Ethernet, Bluetooth

ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
