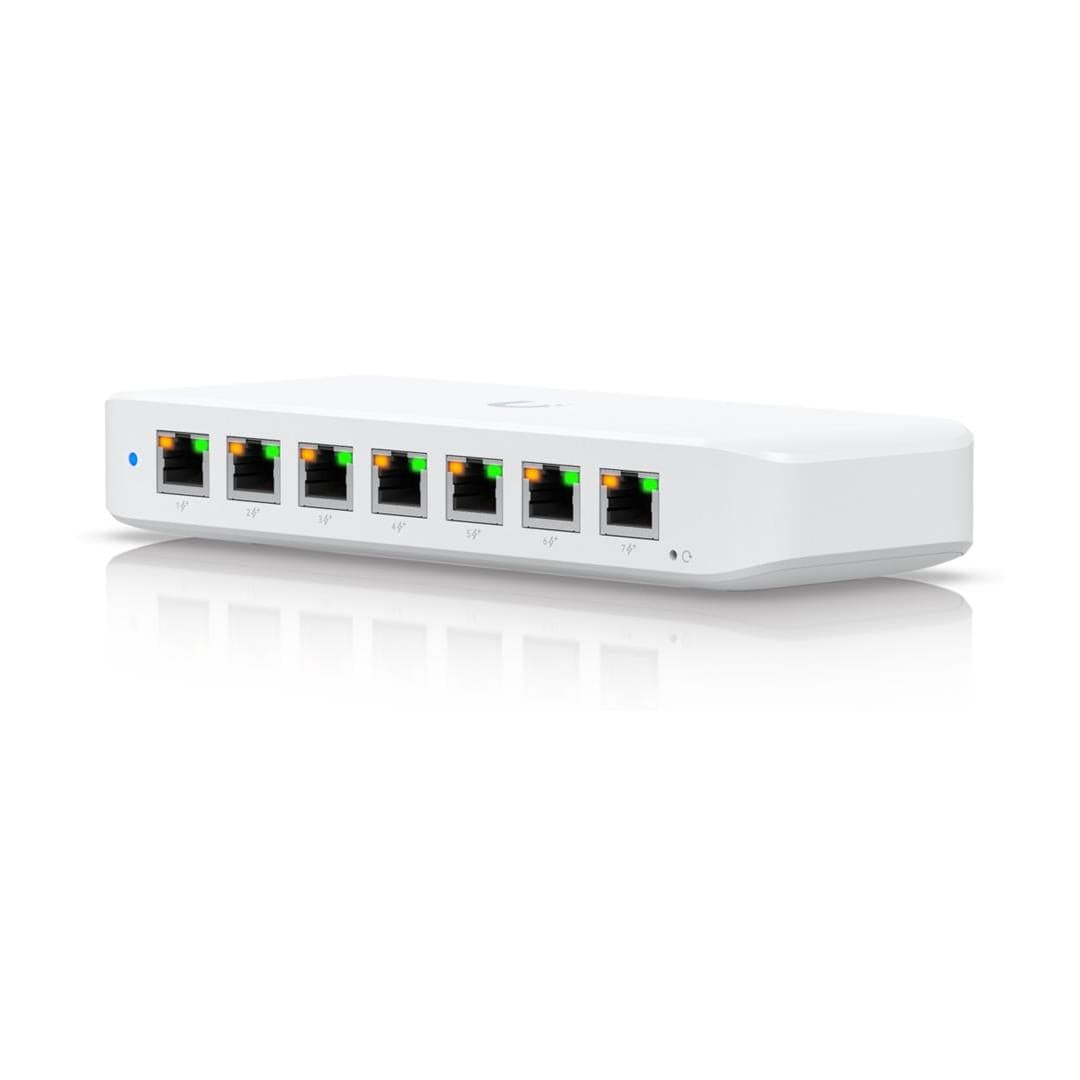

Ubiquiti UniFi Ultra 8-port GbE Managed Switch with 1x PoE Input and 7x PoE Out USW-ULTRA-60W

Ubiquiti UniFi Ultra 8-port GbE Managed Switch with 1x PoE Input and 7x PoE Out USW-ULTRA-60W

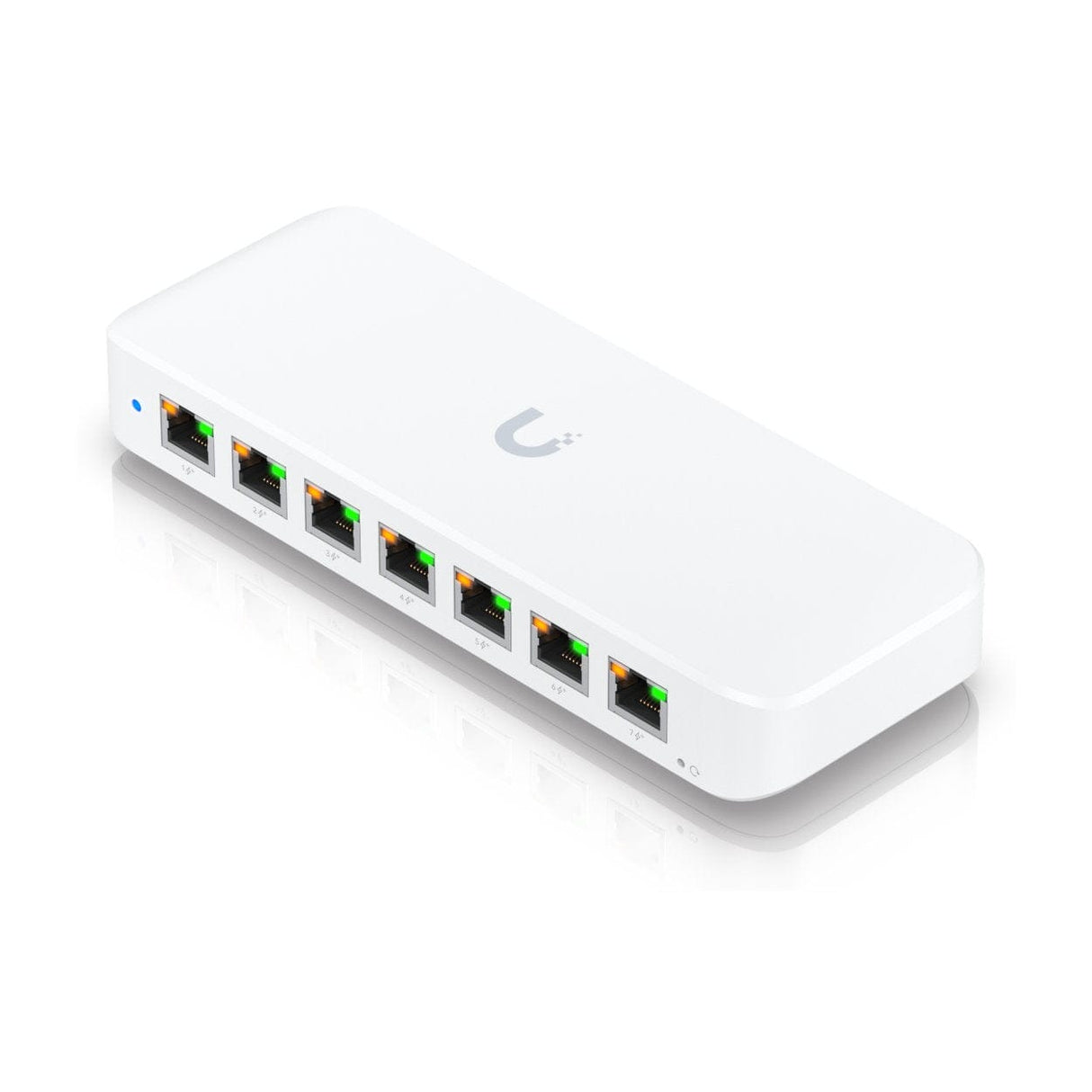

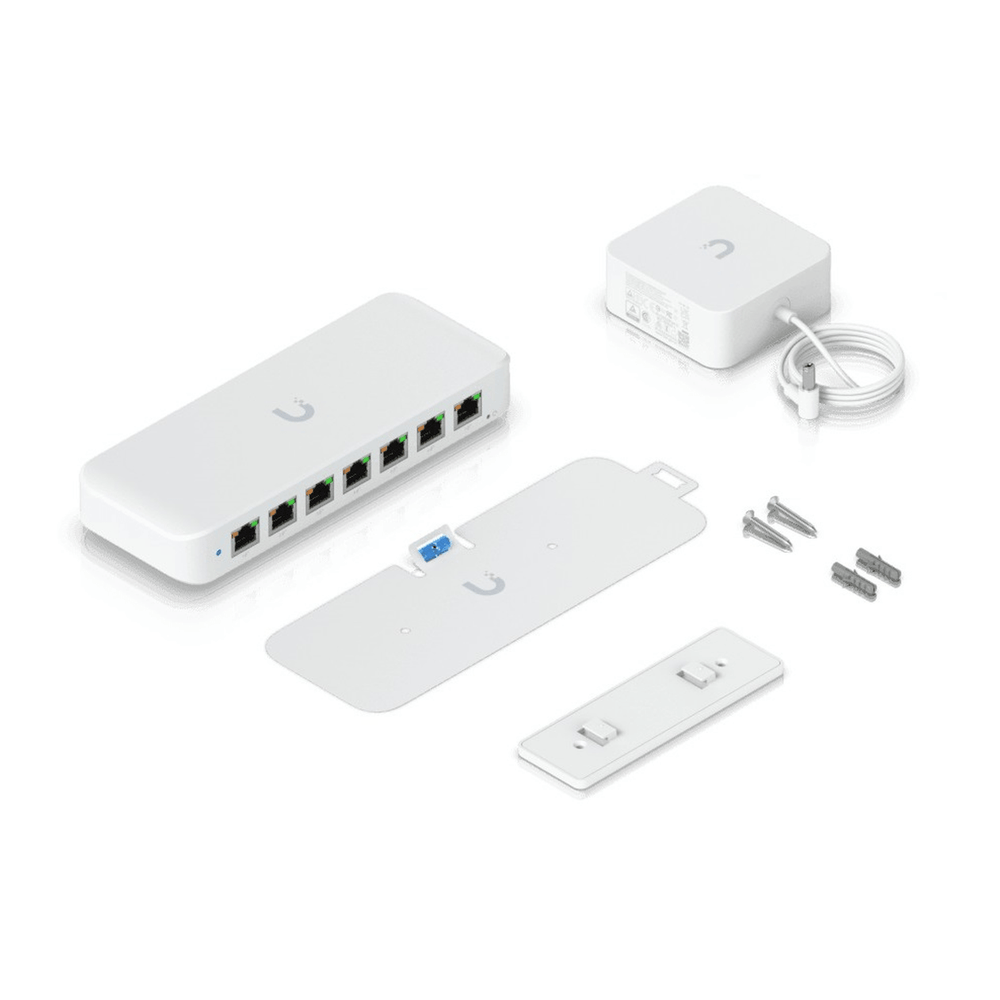

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.

Features

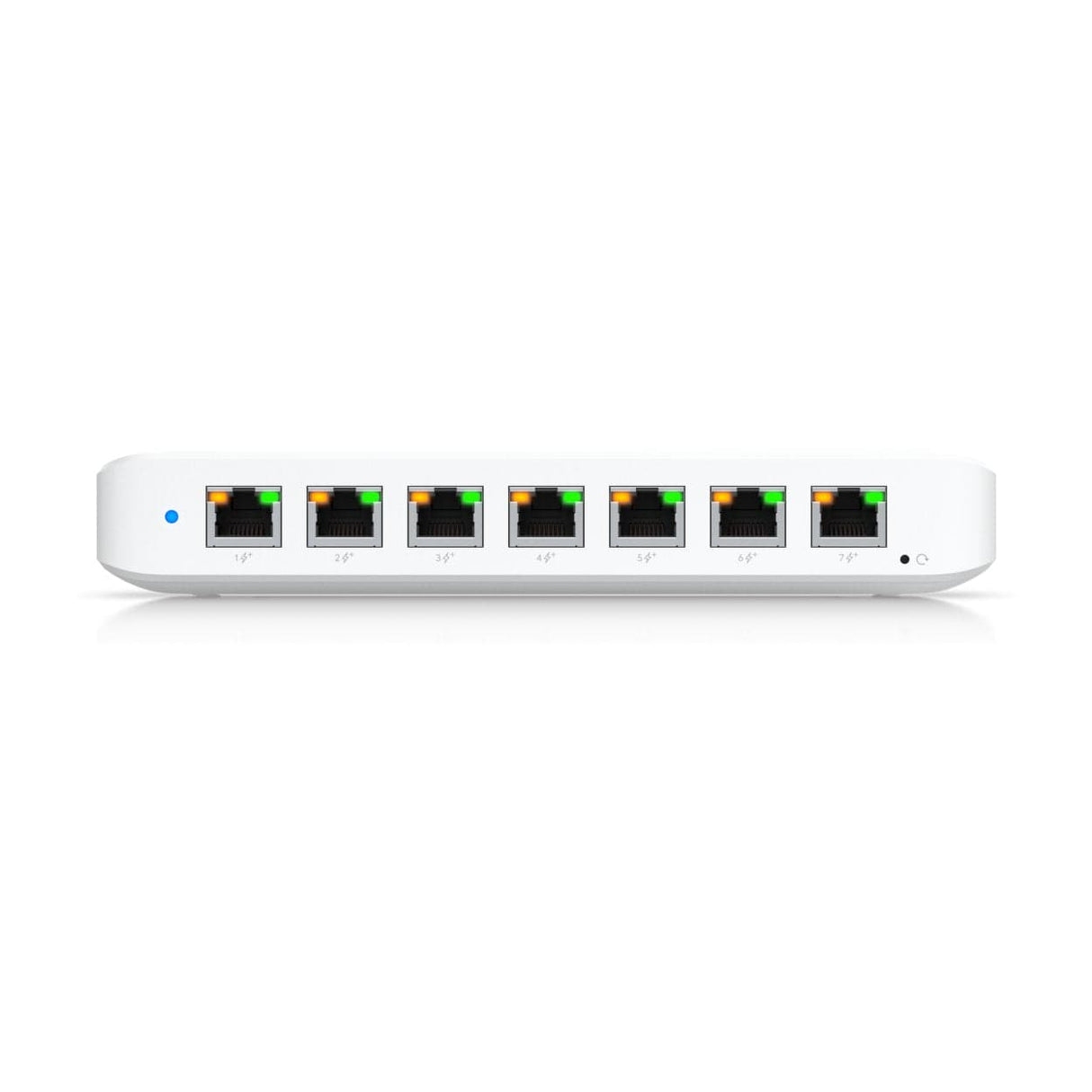

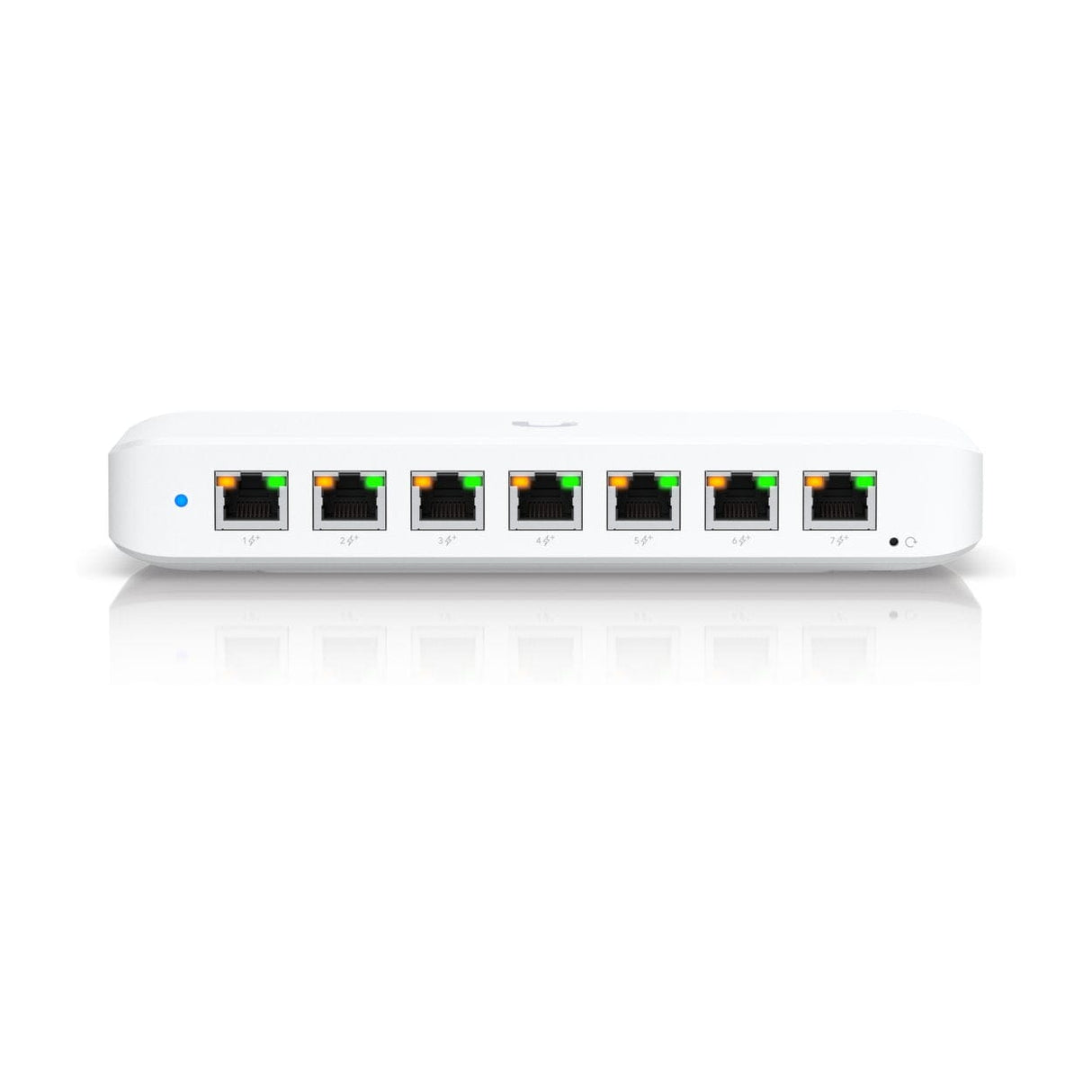

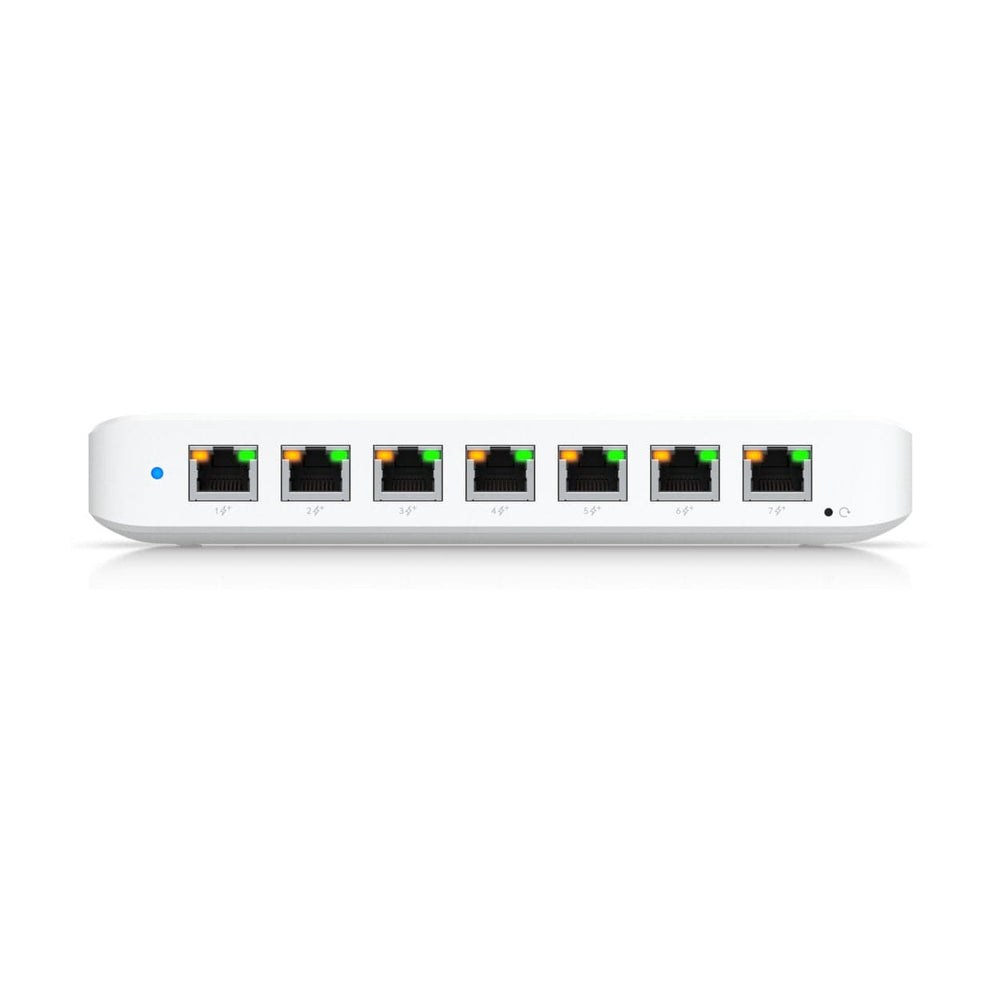

• 7x GbE PoE+ output ports

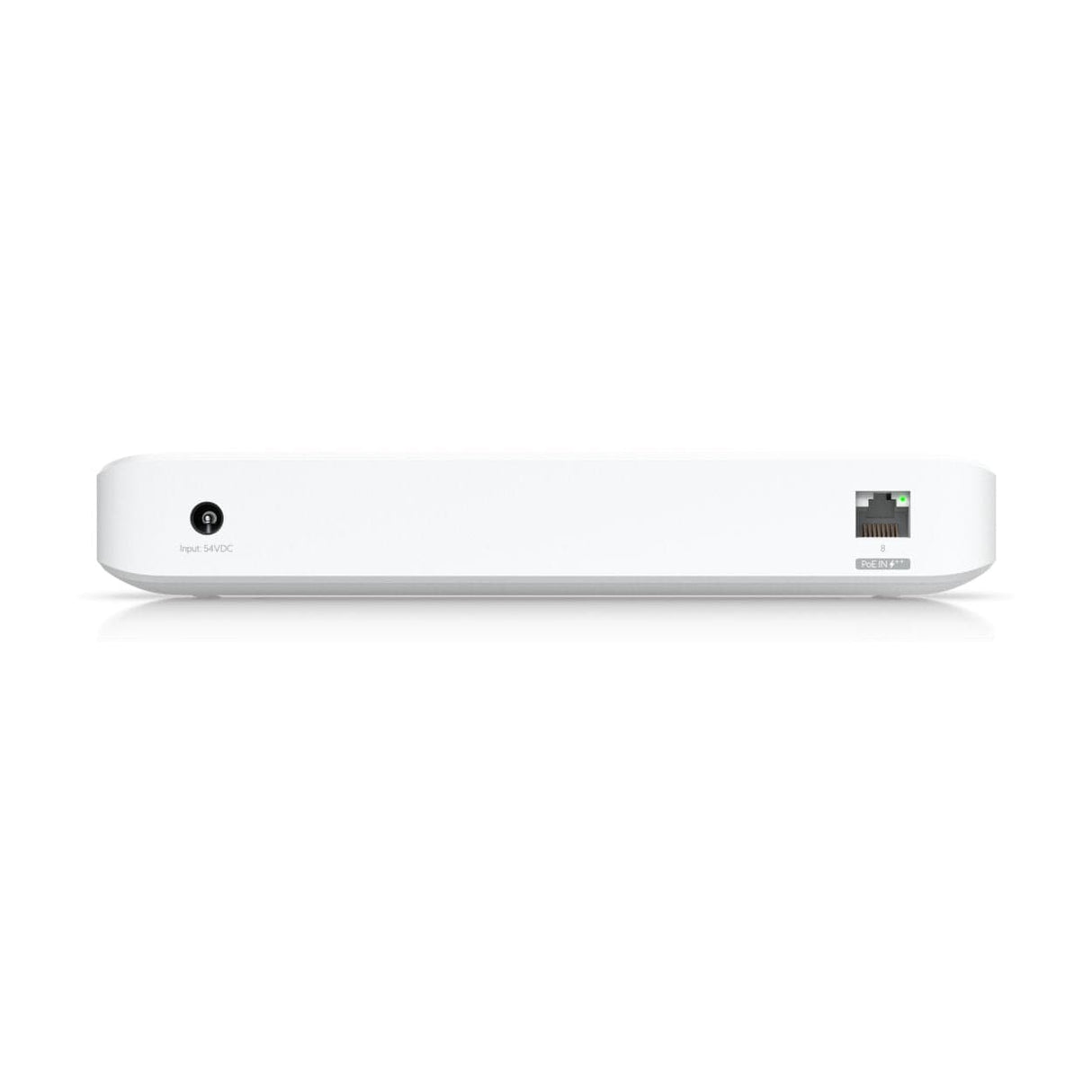

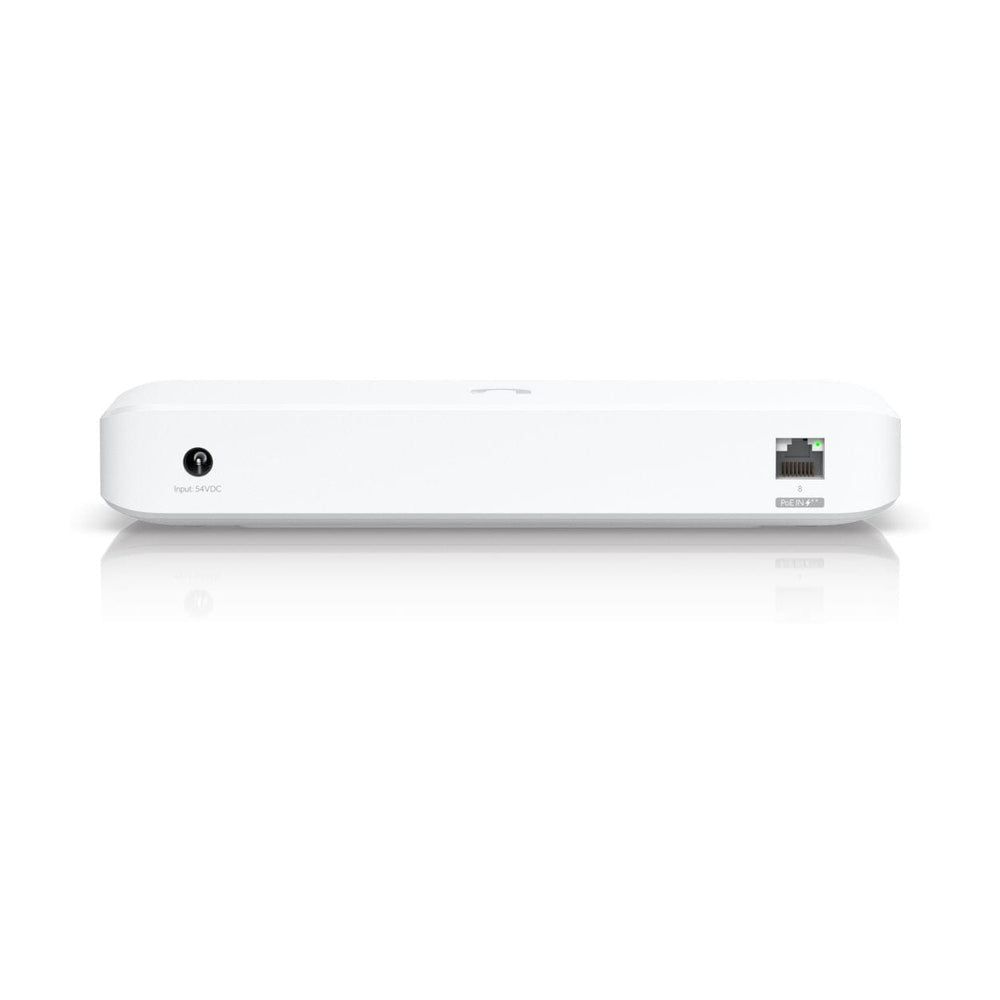

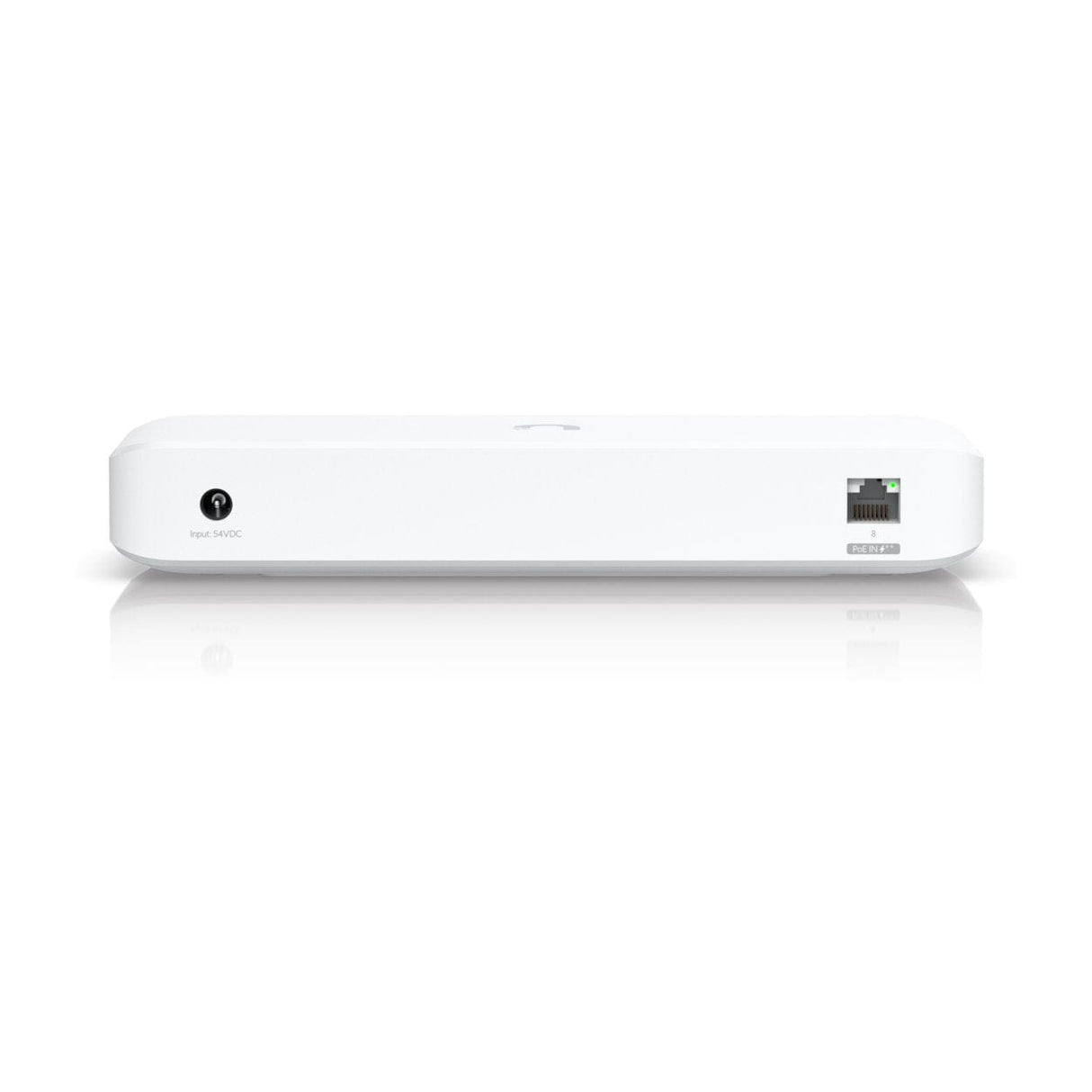

• 1x GbE port with optional PoE++ input*
• 52W PoE availability with the included AC power adapter
• ‎Please note: *PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.

Technical Specification

Management interface: Ethernet In-Band

Networking interface: 8x GbE RJ45 ports

PoE interface: 7x PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total non-blocking throughput: 8 Gbps

Switching capacity: 16 Gbps

Forwarding rate: 11.904 Mpps

Power method

• 1x 54V, 1.1A power adapter (Included)
• PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)

Power supply: 54V, external, 1.1A/60W

Supported voltage range: 44—57V DC

Max. power consumption

• 9W with PoE input (Excluding PoE output)
• 8W with AC adapter input (Excluding PoE output)

Total available PoE

• PoE++ input: 42W
• PoE+ input: 16W
• 60W PoE adapter input: 42W
• 60W AC adapter input: 52W
• 210W AC adapter input: 202W

Max. PoE+ wattage per port by PSE: 30W

UniFi Network: Version 8.0.28 and later
