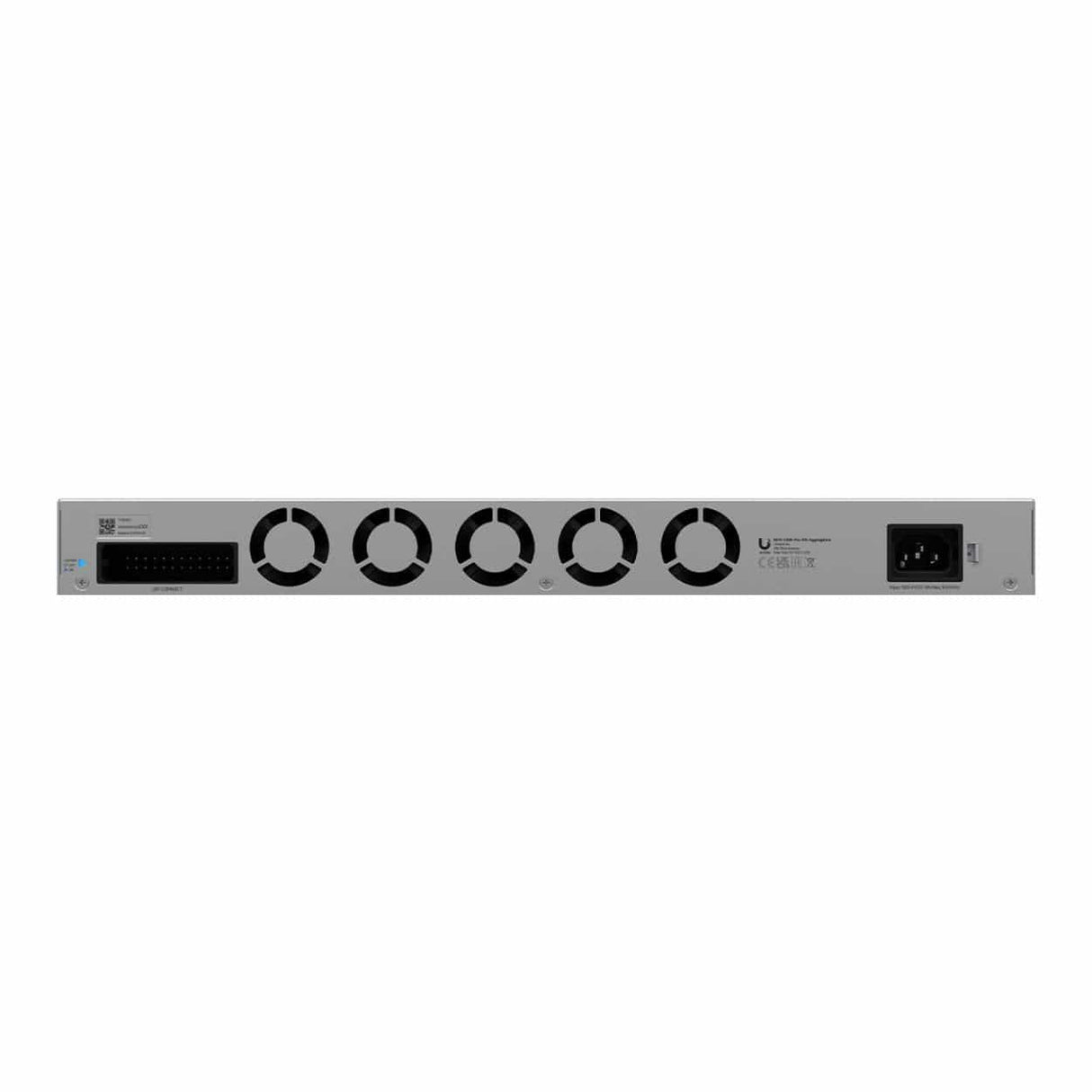

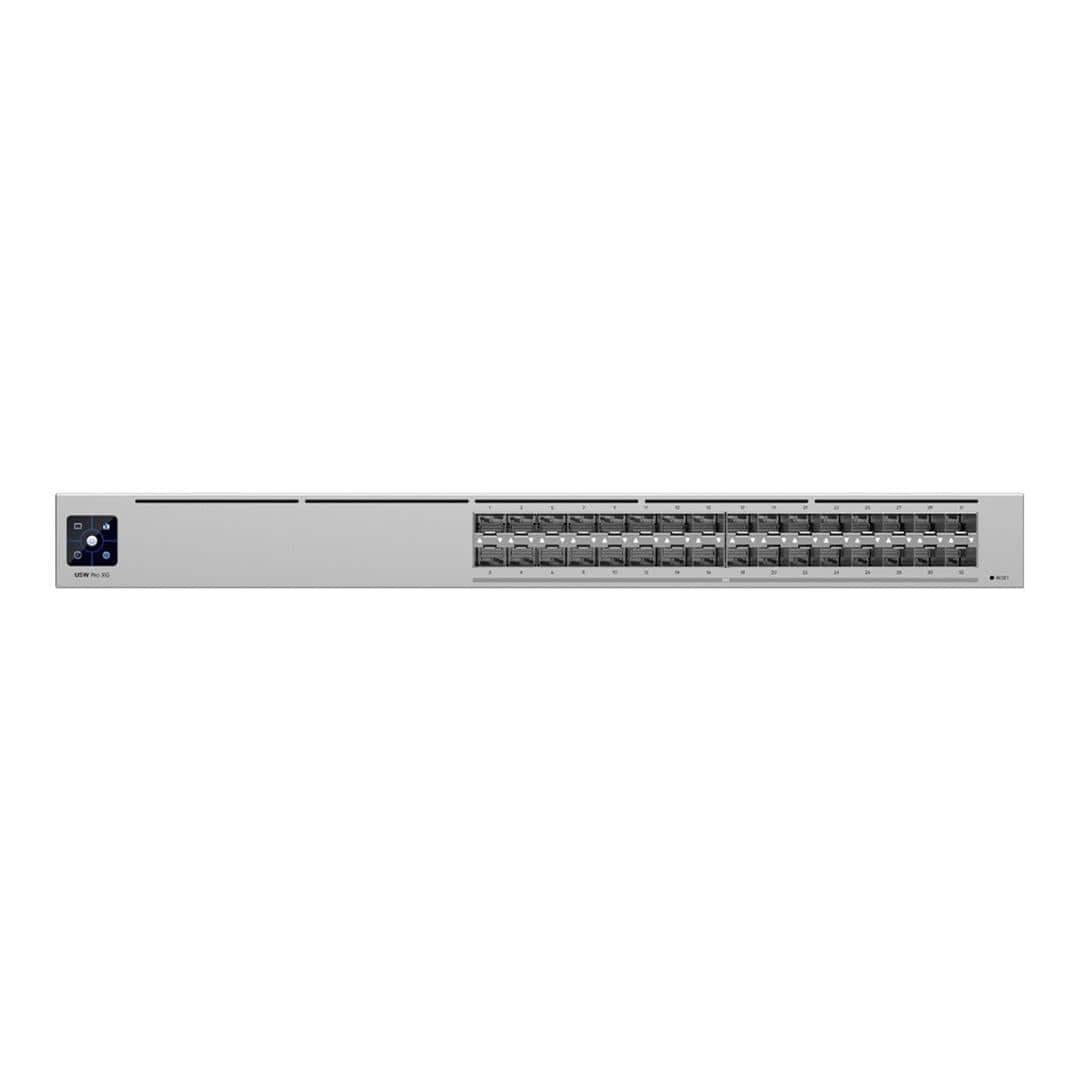

Ubiquiti UniFi Pro XG Aggregation 32-port SFP28 Managed Switch

Ubiquiti UniFi Pro XG Aggregation 32-port SFP28 Managed Switch

Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.

Technical Specifications:

Dimensions
442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9")

Port Layout
25G SFP28: 32 (25G/10G/1G)

Redundancy
DC Power Backup: Yes
Layer 3: Yes
Form Factor: Rack Mount (1U)
Etherlighting™: Yes

Performance
Switching Capacity: 1.6 Tbps
Total Non-Blocking Throughput: 800 Gbps
Forwarding Rate: 1.2 Bpps
Supported VLANs: 1,000
MAC Address Table Size: 32,000
L3 Table Size:

• ARP Entries: 128,000
• IPv4 Routes: 256,000
• Packet Buffer Size: 8 MB

Access Lists:

• IPv4: 256
• MAC: 256

Layer 3 Features
DHCP Server (Local Networks): Yes
DHCP Relay: Yes
Inter-VLAN Routing (Local Networks): Yes
Static Routing (Local Networks): Yes

Layer 2 Features
LACP Port Aggregation: Yes
STP & RSTP: Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
IGMP Snooping: Yes
802.1X Control: Yes
MAC-Based ACLs & Device Isolation: Yes
DHCP Snooping & Guarding: Yes
Egress Rate Limit: Yes
Flow Control: Yes
Storm Control: Yes
Multicast & Broadcast Rate Limiting: Yes
MAC Address Blocking: Yes
IP-Based ACLs & Network Isolation: Yes
MAC-Based Port Restriction: Yes
Port Isolation: Yes
Port Mirroring: Yes
Jumbo Frames: Yes
LLDP-MED: Yes
Voice VLAN: Yes
Loop Protection: Yes
Virtual Network Override: Yes

Hardware
Max. Power Consumption: 200W

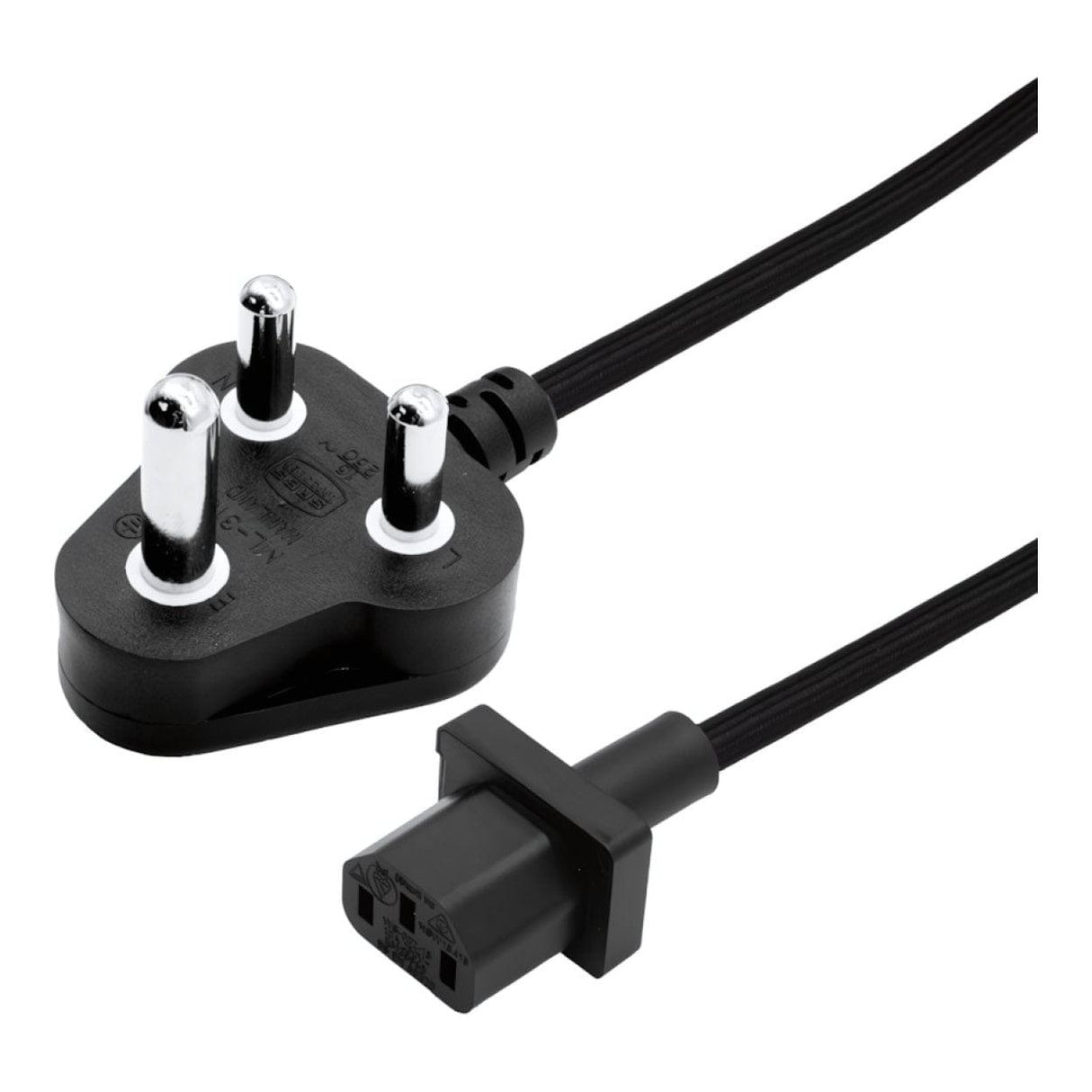

Power Method: (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input
Power Input Method: AC input
Power Supply: AC/DC, internal, 200W
Supported Voltage Range: 100–240V AC
Heat Dissipation: 457 BTU/hr
Weight: Without mounting bracket: 7.1 kg (15.7 lbs), With mounting bracket: 7.2 kg (15.9 lbs)
Enclosure Material: SGCC steel
Mount Material: SGCC steel

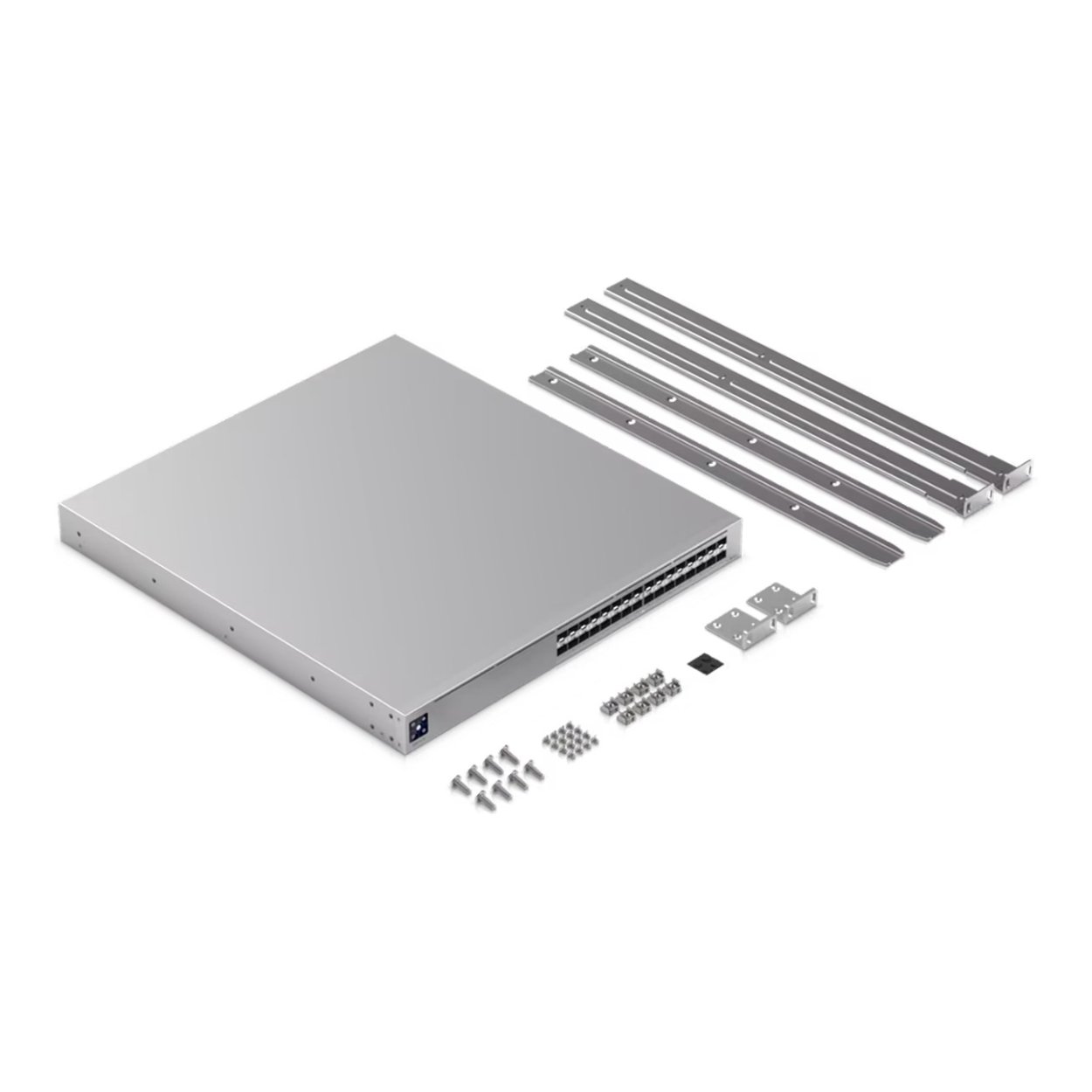

Supported Rack Depth: 482.6 mm (19") four-post racks, posts depths ranging from 600 to 1,066 mm (23.6–42”)
LCM Display: 1.3" touchscreen
ESD Protection: Air: ± 12kV, Contact: ± 8kV
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing

Etherlighting
SFP28: Yes

LEDs
RPS: Yes

Compliance
NDAA Compliant: Yes
Certifications: CE, FCC, IC, Anatel: 05977-25-08356
