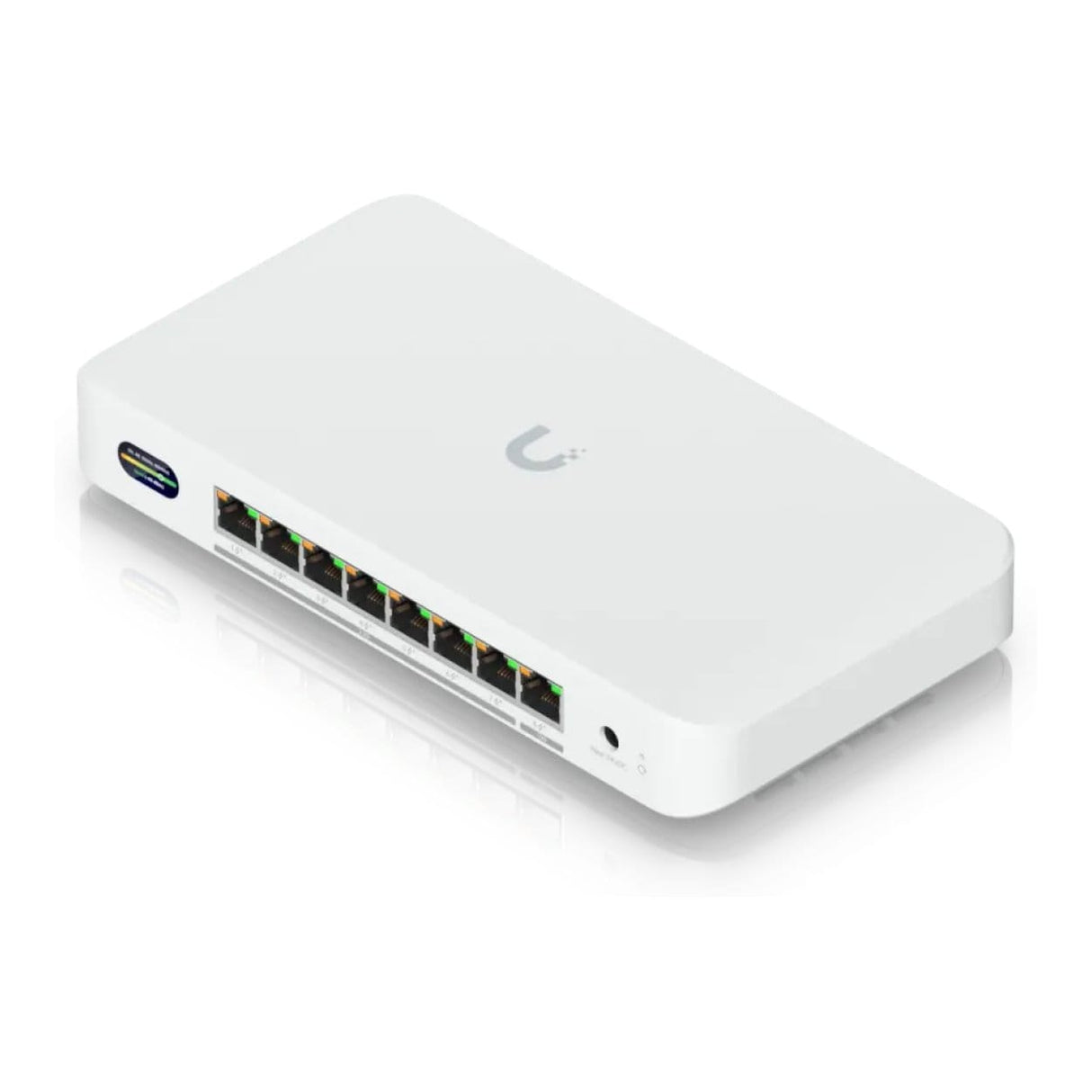

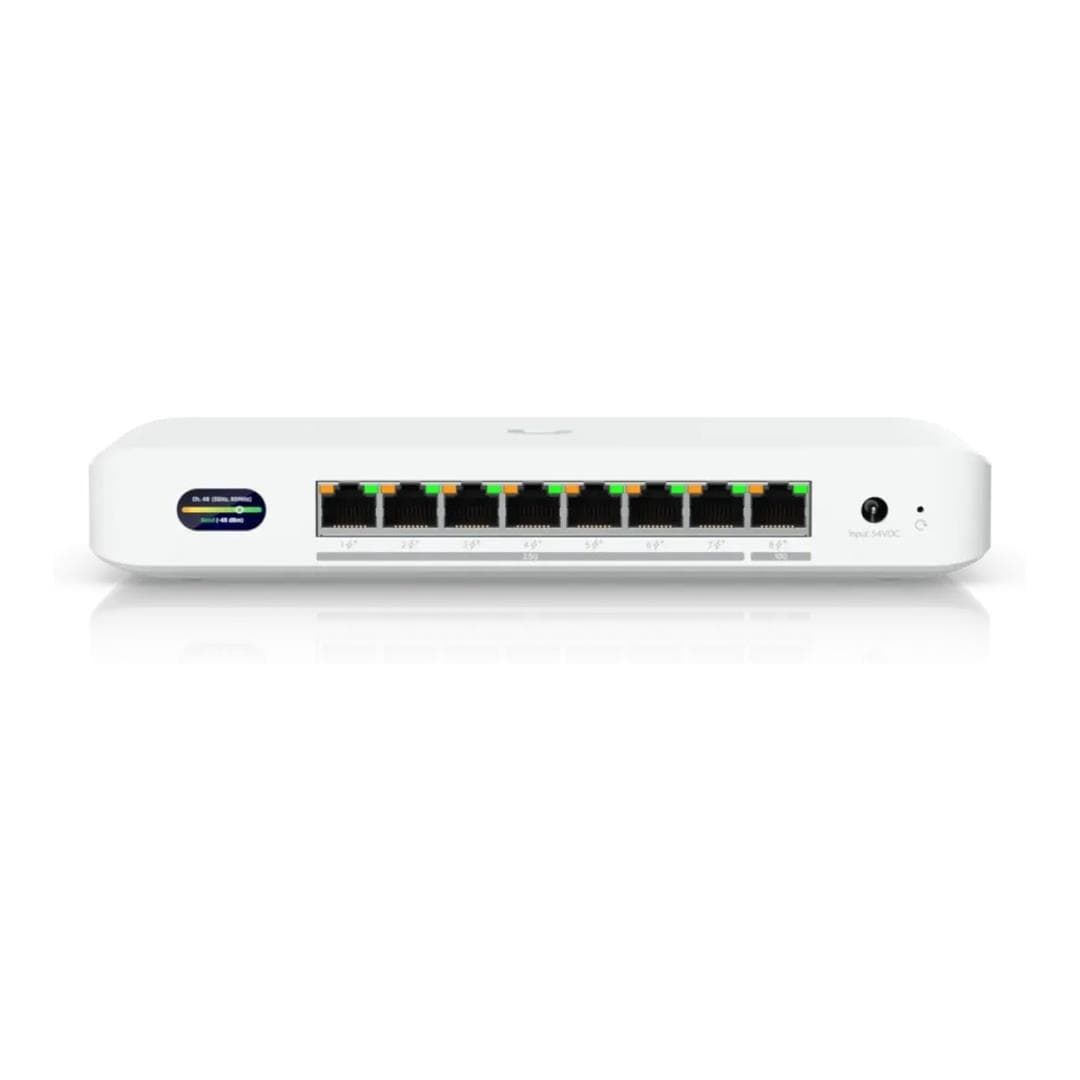

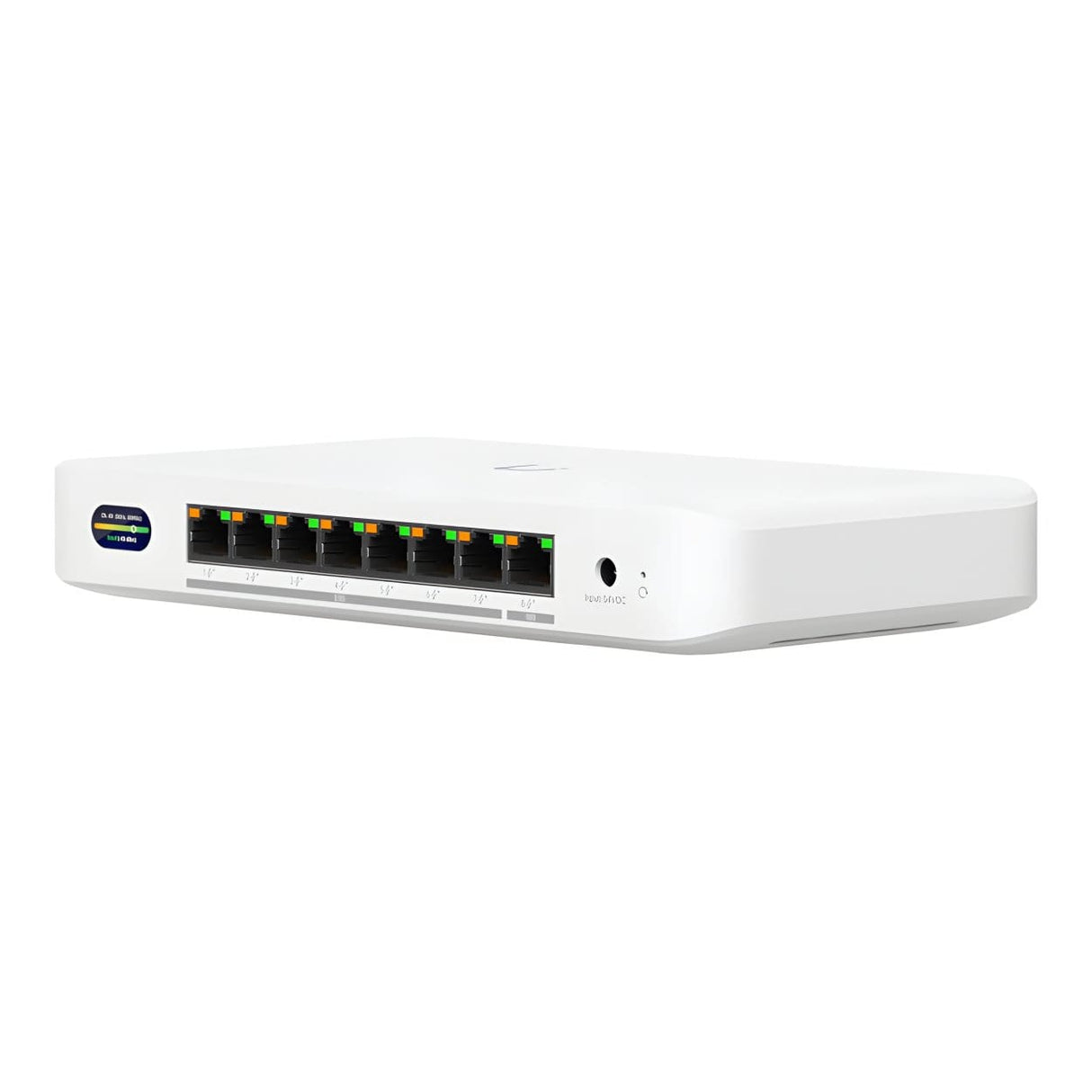

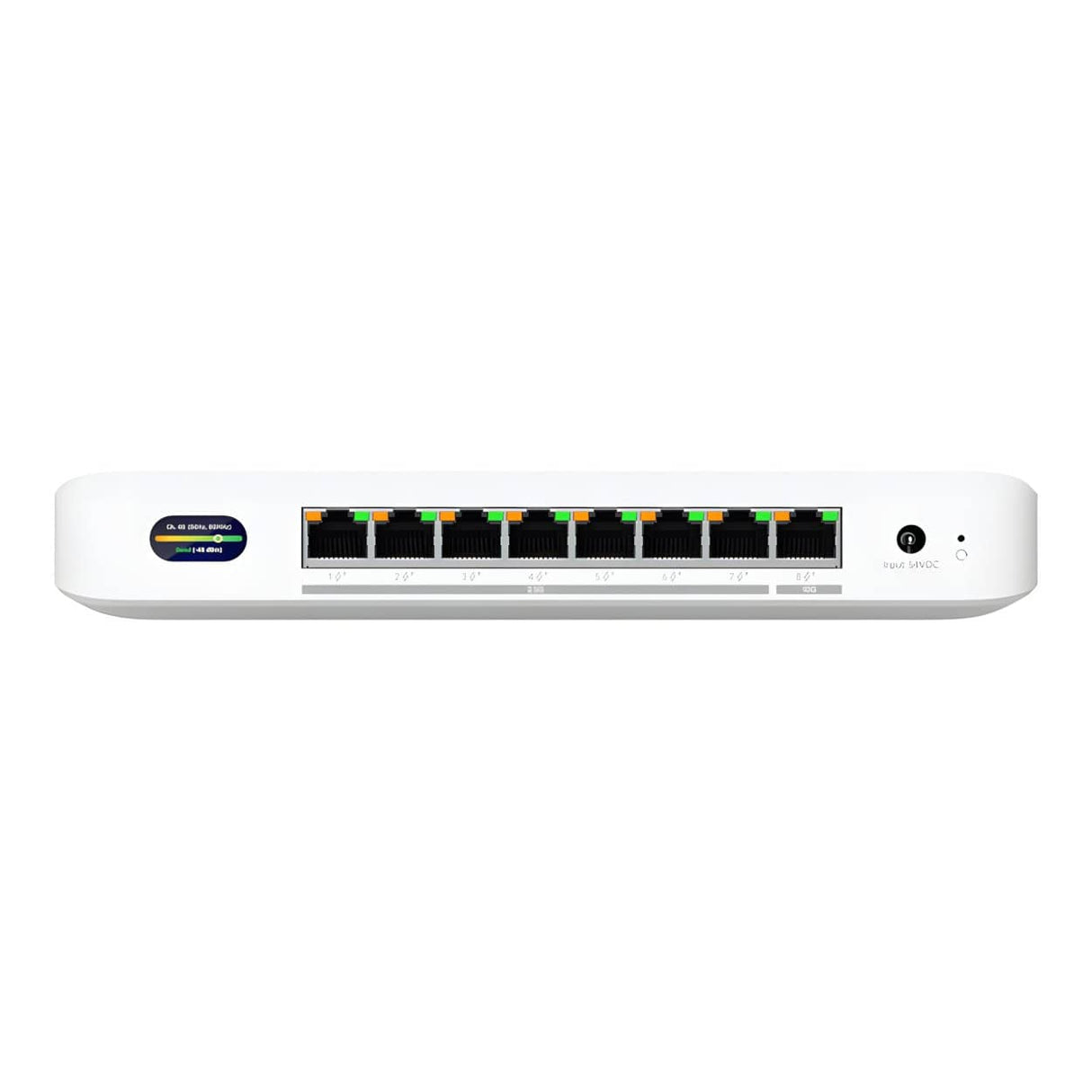

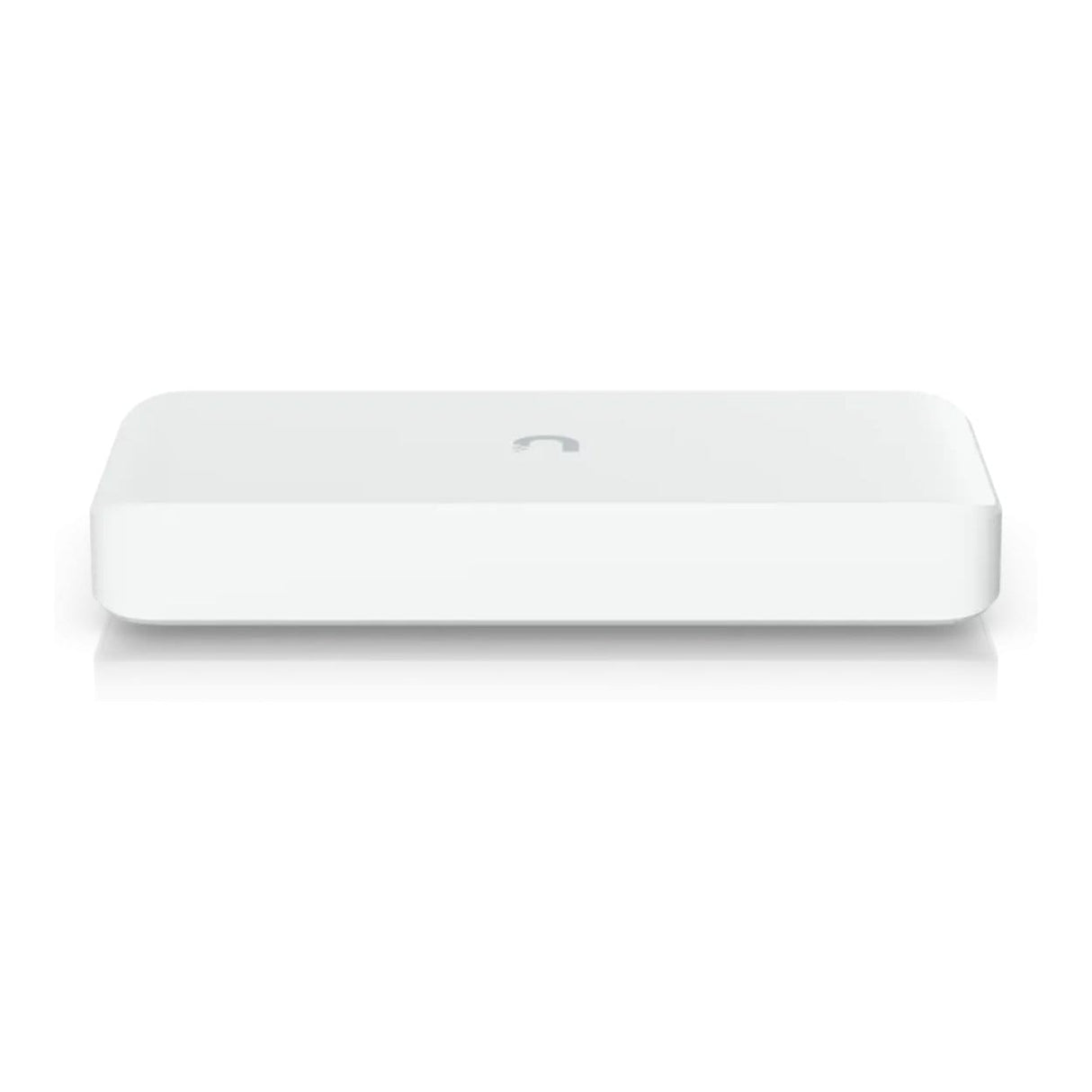

Ubiquiti UniFi Device Bridge Switch UDB-SWITCH

Ubiquiti UniFi Device Bridge Switch UDB-SWITCH

Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi.

Technical Specifications:

General

Dimensions
212.9 × 113 × 32.5 mm (8.4 × 4.4 × 1.3")

Mounting Locations

• Desktop
• Wall

WiFi Standard
WiFi 7

Spatial Streams
4

Weight

• Device: 548 g (1.21 lb)
• With Mount: 563 g (1.24 lb)

Enclosure Material
Polycarbonate

Mount Material
Polycarbonate

LCM Display
0.96" Status Display

Buttons
1 × Factory Reset Button

NDAA Compliant
Yes

Wireless Performance

MIMO Configuration

• 6 GHz: 2 × 2
• 5 GHz: 2 × 2

Maximum Data Rate

• 6 GHz: 5.8 Gbps (BW320)
• 5 GHz: 4.3 Gbps (BW240)

Antenna Gain

• 6 GHz: 8 dBi
• 5 GHz: 8 dBi

Maximum TX Power

• 6 GHz: 23 dBm
• 5 GHz: 26 dBm

Maximum Conducted TX Power
26 dBm (Combined)

Supported Wireless Standards And Data Rates

802.11be (WiFi 7)

• 6 GHz: 7.3 Mbps To 5.8 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/320)
• 5 GHz: 7.3 Mbps To 4.3 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/240)

802.11ax (WiFi 6)

• 7.3 Mbps To 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)

• 6.5 Mbps To 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160)

802.11n

• 6.5 Mbps To 300 Mbps (MCS0–MCS15, HT 20/40)

802.11a

• 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Channel Bandwidth

• 20 MHz
• 40 MHz
• 80 MHz
• 160 MHz
• 240 MHz
• 320 MHz

Wireless Security
WPA3 SAE (Always On)

Operating Frequency

• 5150–5875 MHz
• 5945–7125 MHz

Networking And Interfaces

Networking Interfaces

• 1 × 10 GbE RJ45 Port
• 7 × 2.5 GbE RJ45 Ports

PoE Interfaces
8 × PoE+ Ports

Maximum PoE Output Per Port
30 W

Total PoE Availability

• 60 W AC Adapter Input: 35 W
• 210 W AC Adapter Input: 185 W

Antennas
1 × Internal Antenna

Power

Power Method
DC Jack (54 V DC / 1.1 A)

Power Supply
54 V DC / 1.1 A Adapter (Included)

Maximum Power Consumption
25 W (Excluding PoE Output)

Supported Voltage Range
42.5–57 V DC

Management

Management Methods

• Ethernet
• WiFi

Application Requirements
UniFi Network Version 10.0.156 Or Later

Environmental

Ambient Operating Temperature
-30 °C To 40 °C (-22 °F To 104 °F)

Ambient Operating Humidity
5% To 95% Non-Condensing

Certifications

Compliance Standards

• CE
• FCC
• IC
