Ubiquiti U7 Lite Dual-band Wi-Fi 7 Ceiling-mounted Access Point

Ubiquiti U7 Lite Dual-band Wi-Fi 7 Ceiling-mounted Access Point

Features

• Wireless Meshing
• Band Steering
• 802.11v BSS Transition Management
• 802.11r Fast Roaming
• 802.11k Radio Resource Management (RRM)
• Advanced Radio Management
• Passpoint (Hotspot 2.0)

Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.

Technical Specification

WiFi Standard: Wi-Fi 7

Spatial Streams: 4

Coverage Area: 115 m² (1,250 ft²)

Max. Client Count: 200+

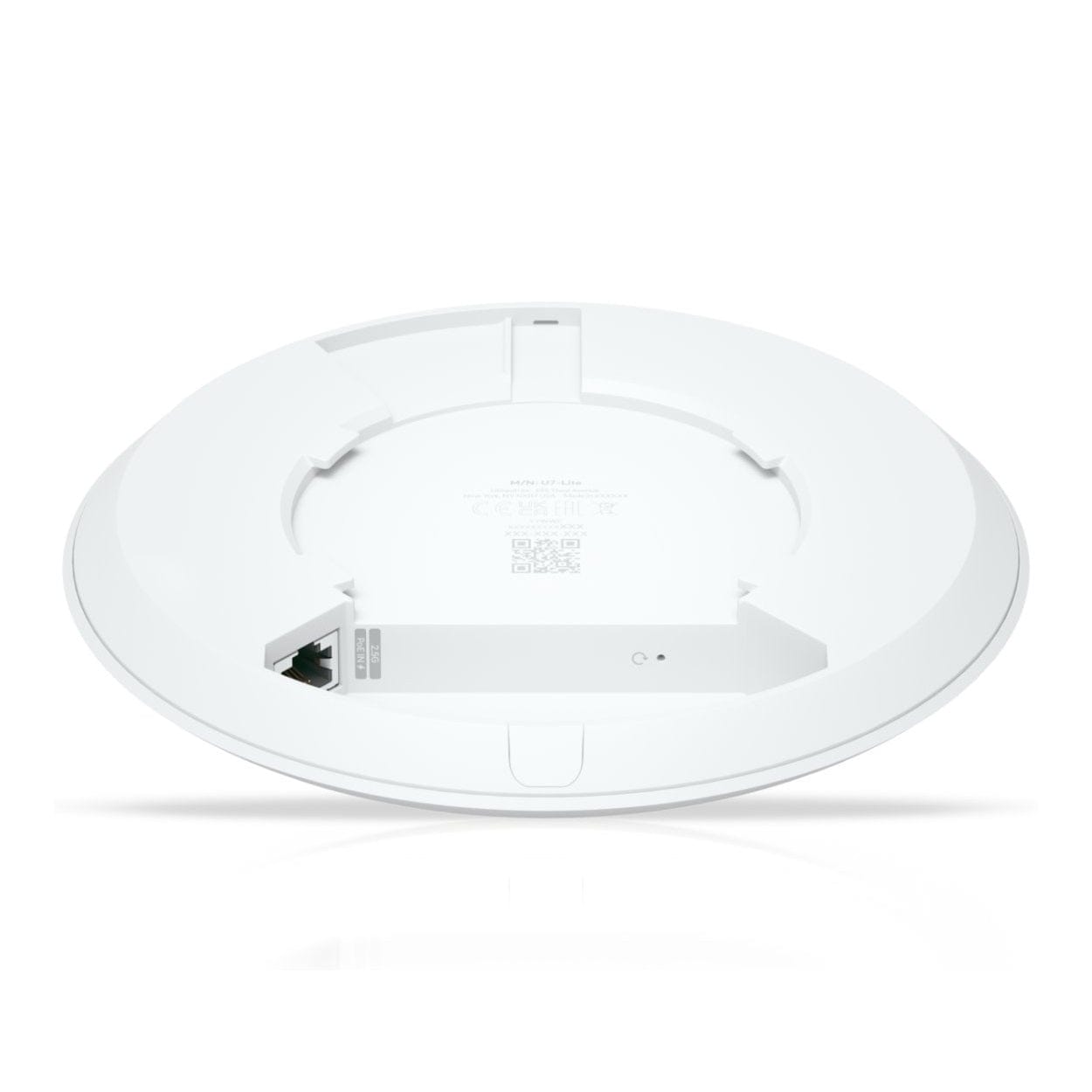

Networking Interface: 1x 2.5 GbE RJ45 port

MIMO

• 5 GHz: 2 x 2 (DL/UL MU-MIMO)
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

• 5 GHz: 4.3 Gbps (BW240)
• 2.4 GHz: 688 Mbps (BW40)

Enclosure Material: UV-stabilized polycarbonate

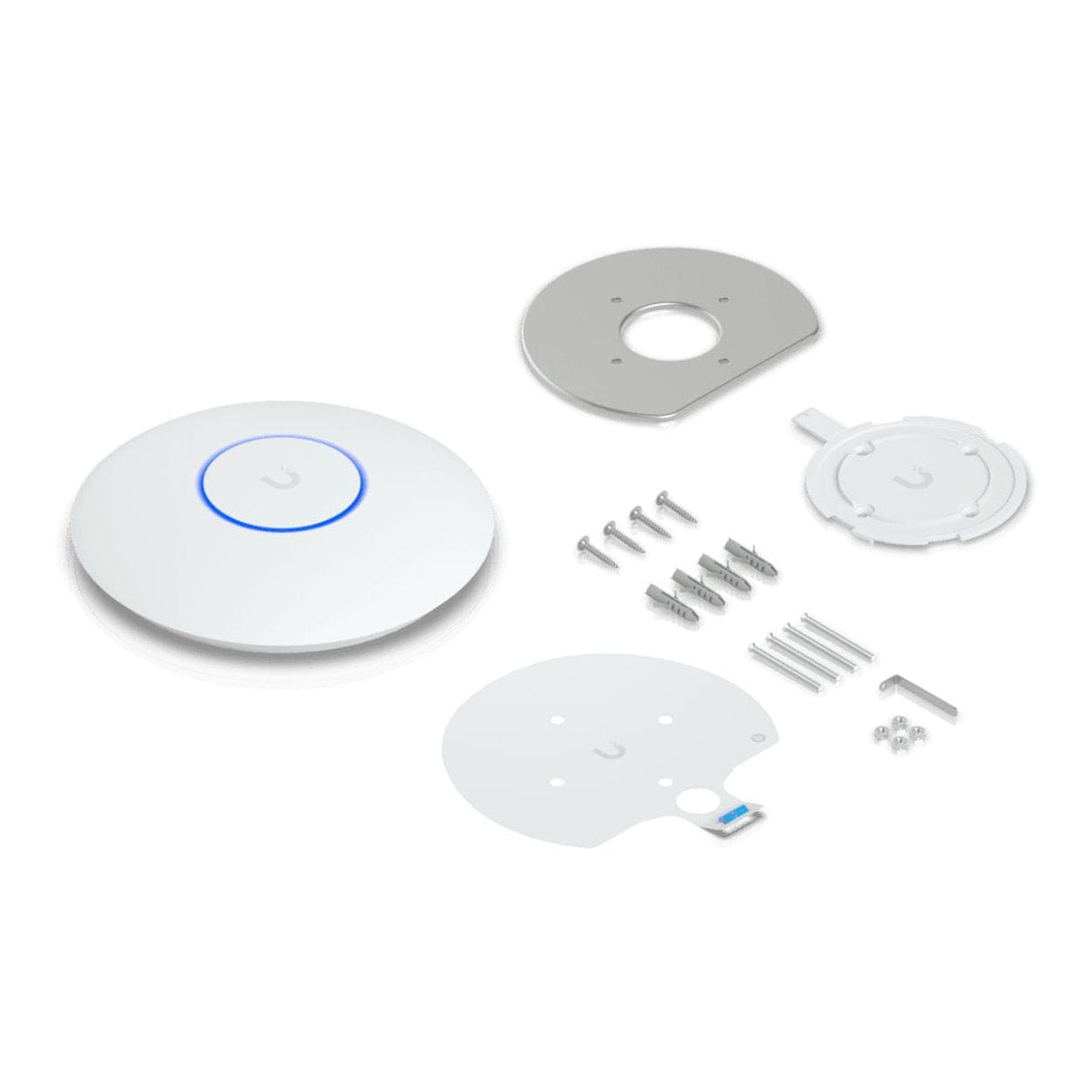

Mounting: Ceiling, Wall (Lite Mount Included)

Power Method: PoE (Power supply not included)

Supported Voltage Range: 42.5 — 57V DC

Max. Power Consumption: 13W

Weight: 313 g
