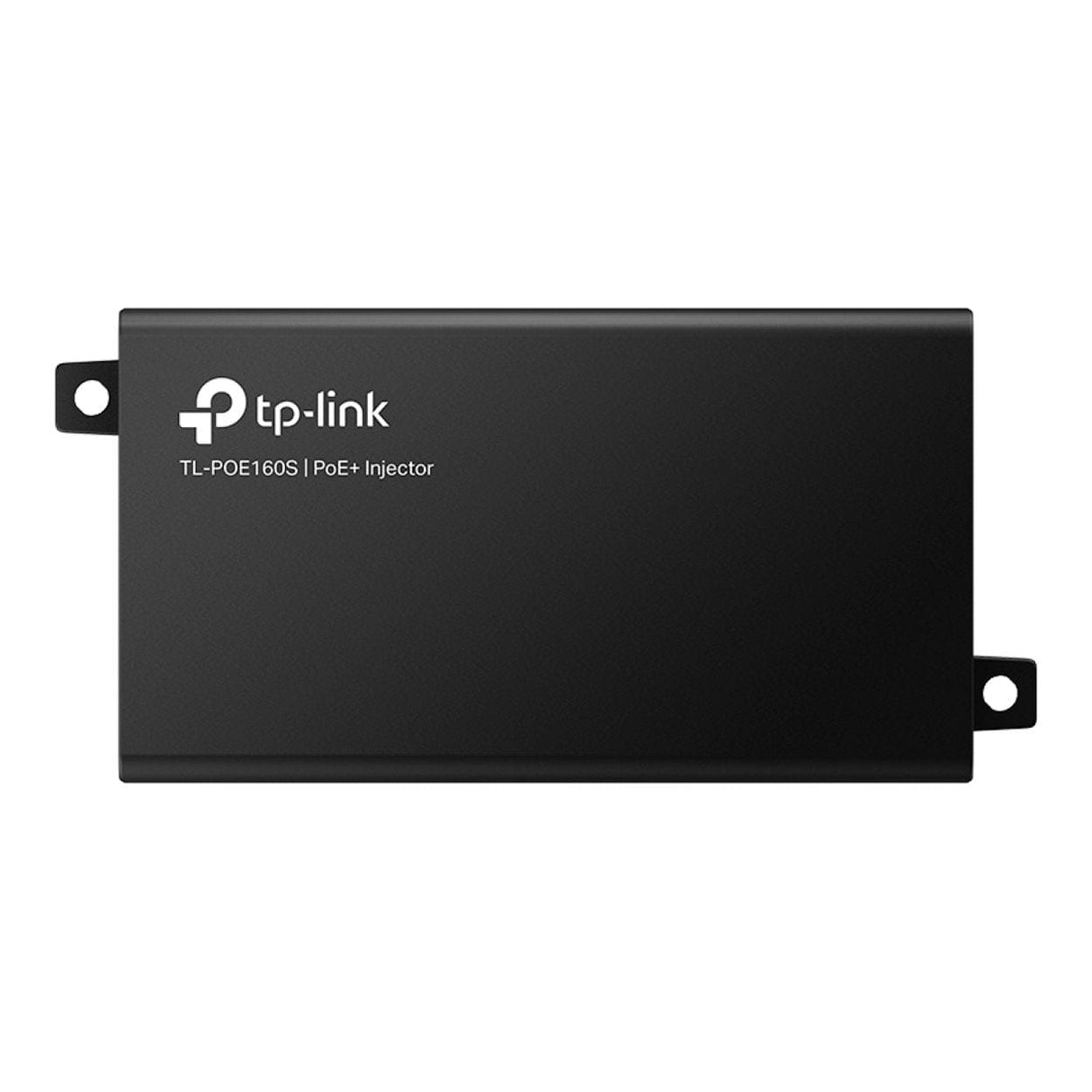

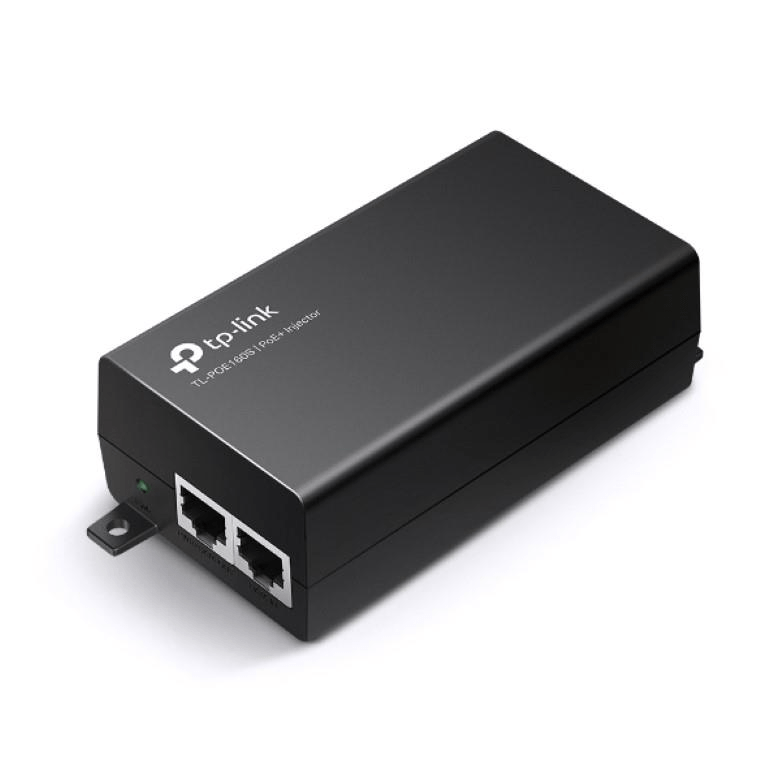

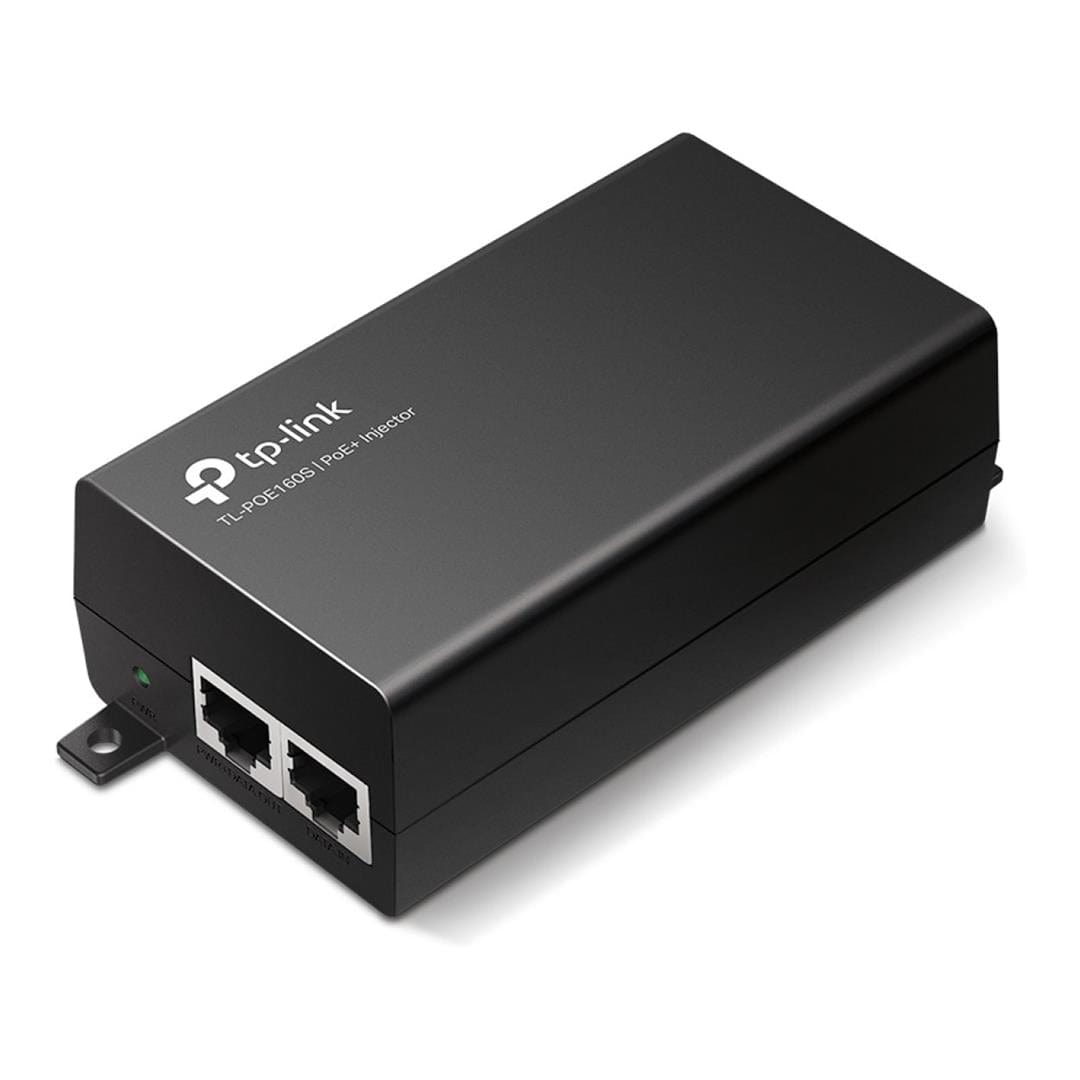

TP-Link Omada TL-POE160S Gigabit PoE+ Injector

TP-Link Omada TL-POE160S Gigabit PoE+ Injector

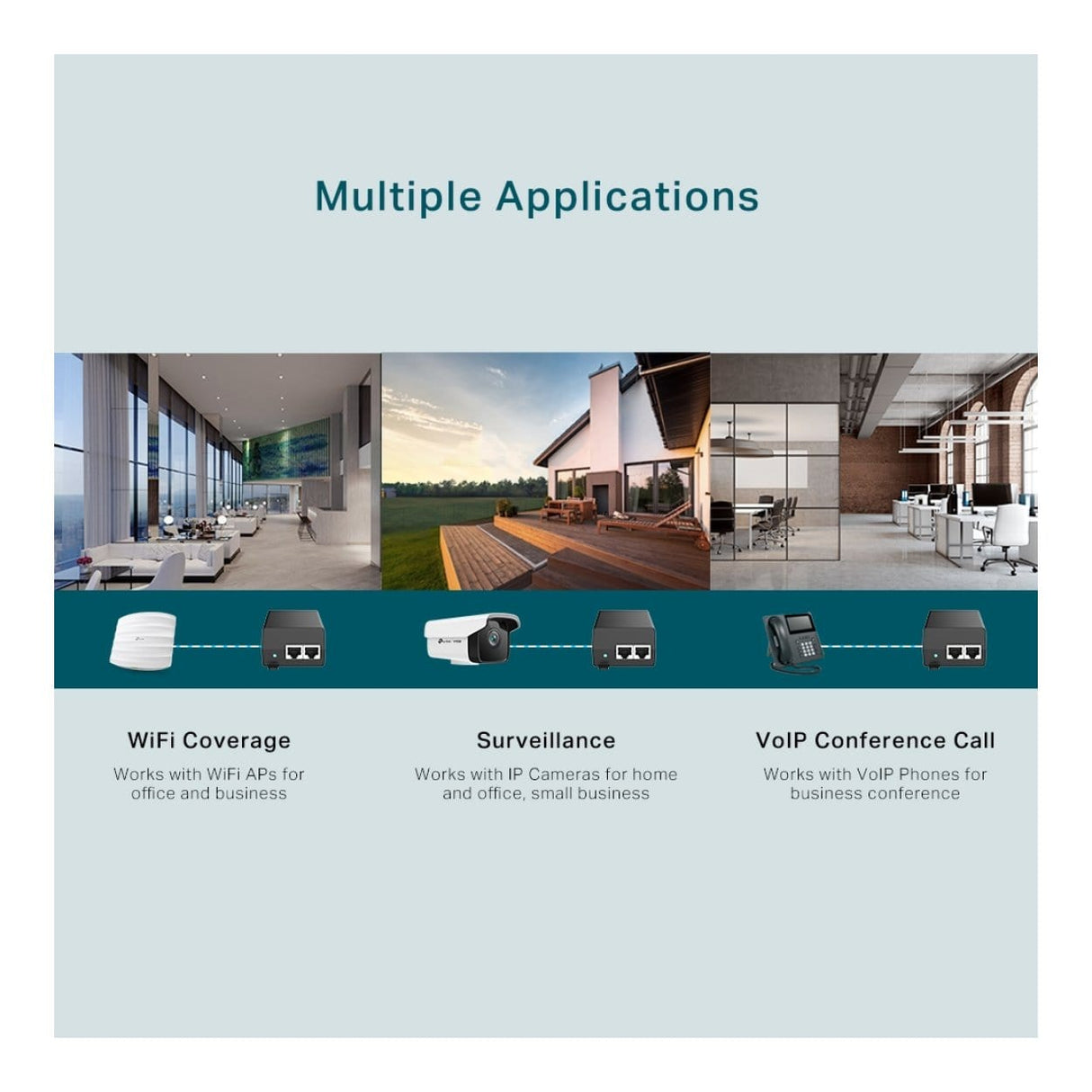

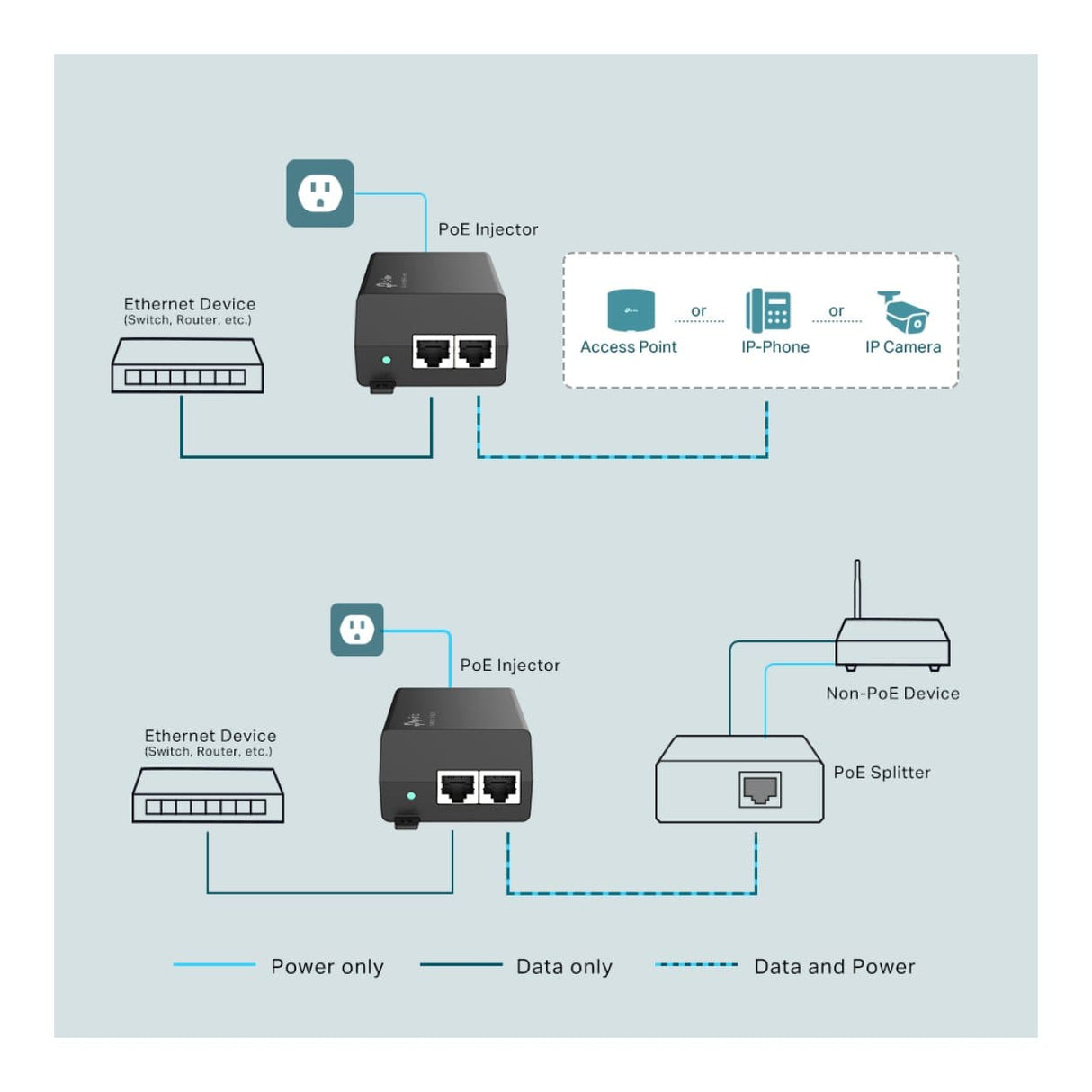

The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Features:

• 2 Gigabit ports ensure faster transmission
• Complies with IEEE802.3af/at standards, supplies up to 30 W
• Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
• Automatically determines and supplies the exact power to meet the device's need
• Wall-mounting and desktop design accommodates most installation scenarios
• Plug & Play installation, requires no configuration
• Integrated power supply

Technical Specifications:

Network
Standards and Protocols
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

Hardware Features
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable (maximum 100 m)

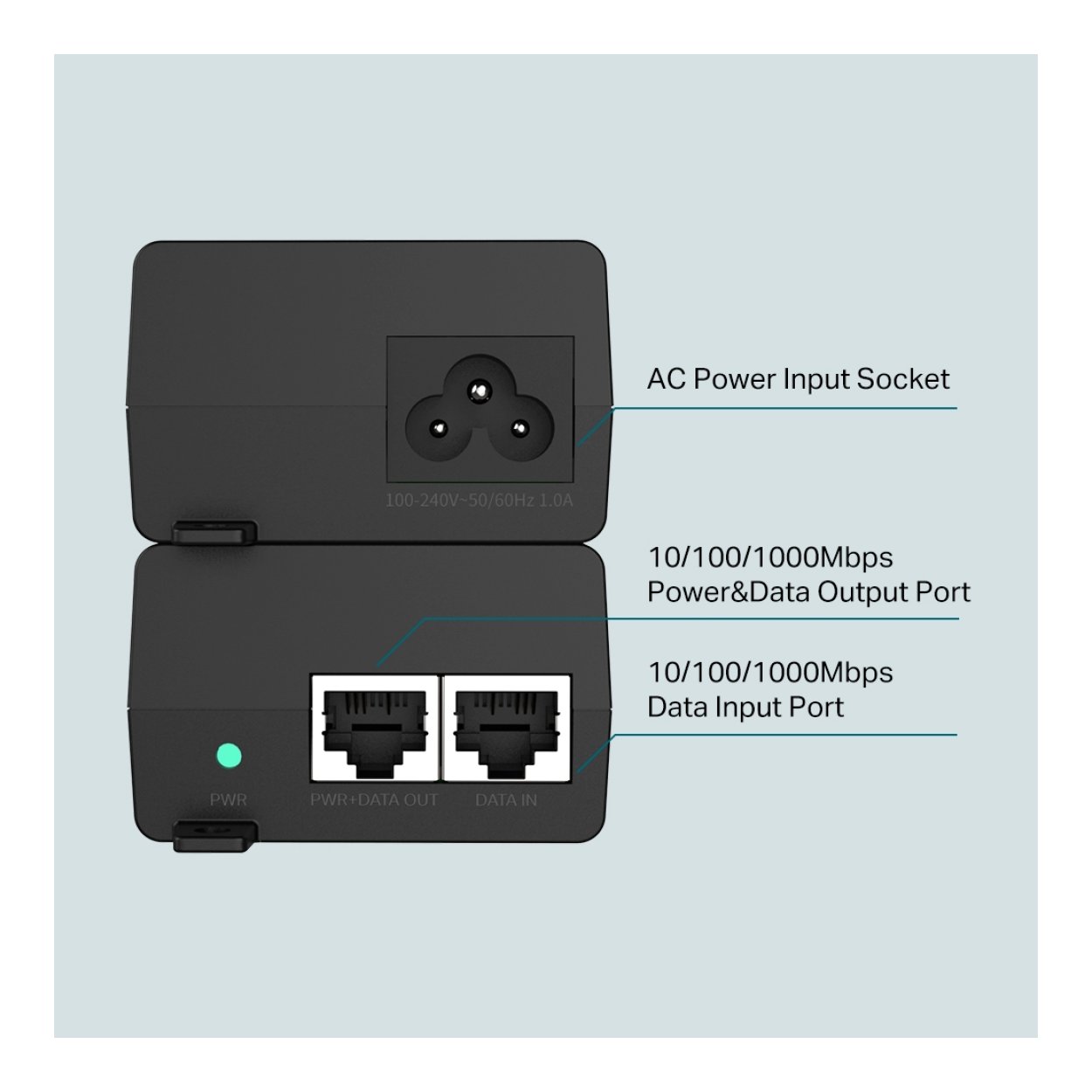

Ports
1× 10/100/1000 Mbps RJ45 data-in port
1× 10/100/1000 Mbps RJ45 power+data-out port
1× AC power port

Power Consumption
Input: 100–240 V, 50/60 Hz

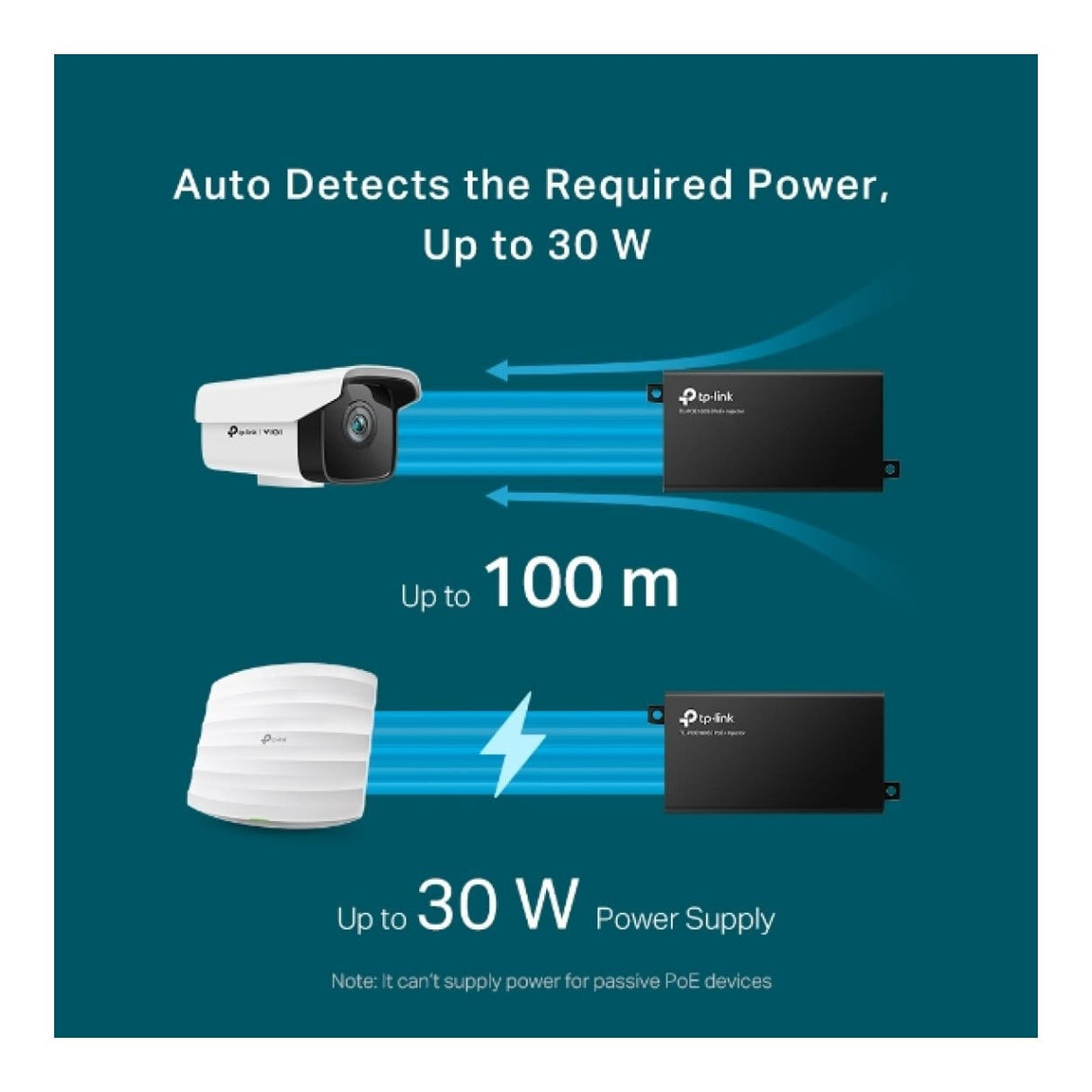

Output: Auto-determine the necessary power requirements (max. 30 W)

Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play

LED Indicator
ON: Supplying power normally
OFF: No power supply

Dimensions (W × D × H)
4.9 × 2.3 × 1.4 in (125 × 59 × 37 mm)

General
Certification
FCC, CE, RoHS

Environment
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90% RH non-condensing
Storage Humidity: 5% to 90% RH non-condensing

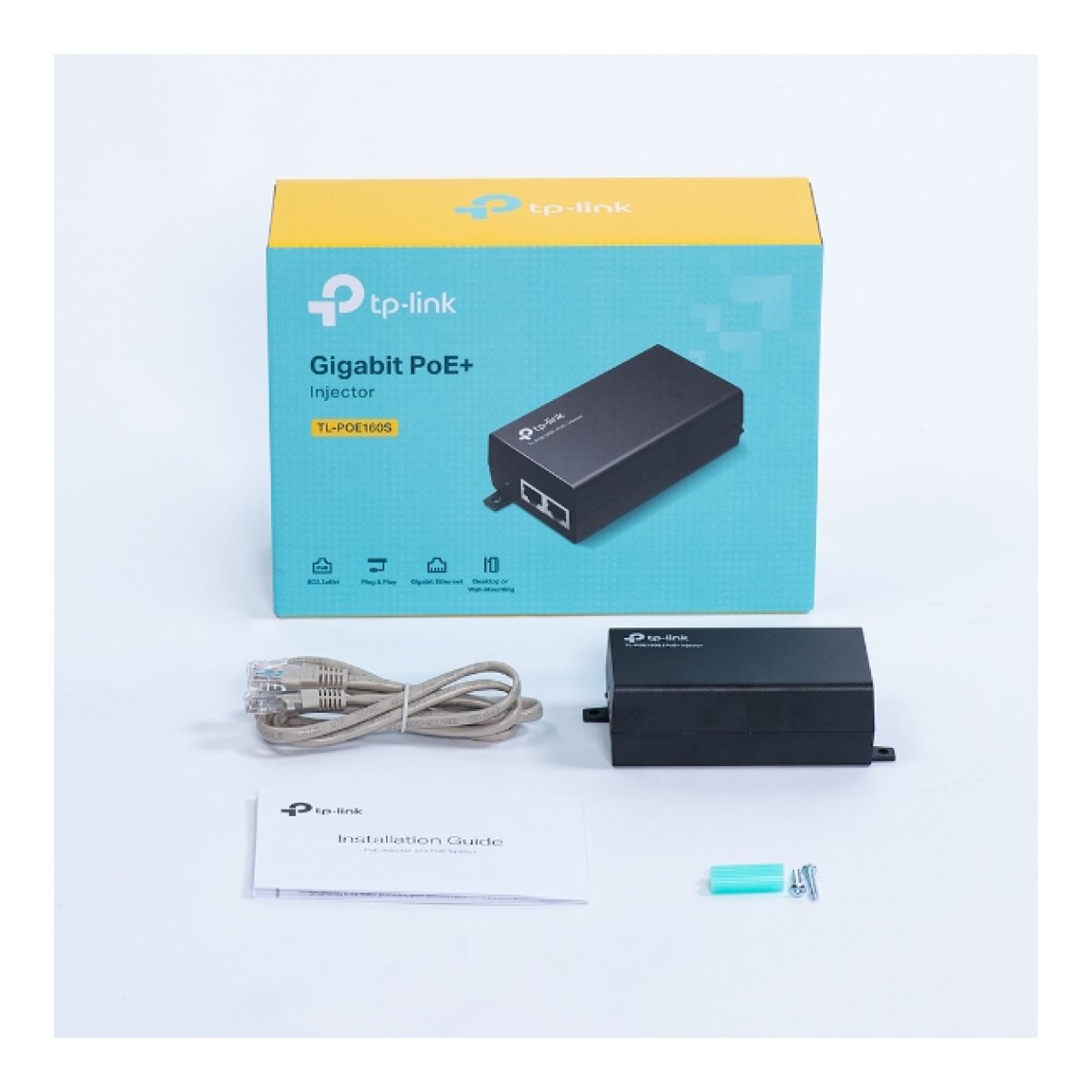

What's in the Box:

• PoE+ Injector TL-POE160S
• Installation Guide
• Power Cord
• RJ45 Cable
• Wall Mounting Kits
