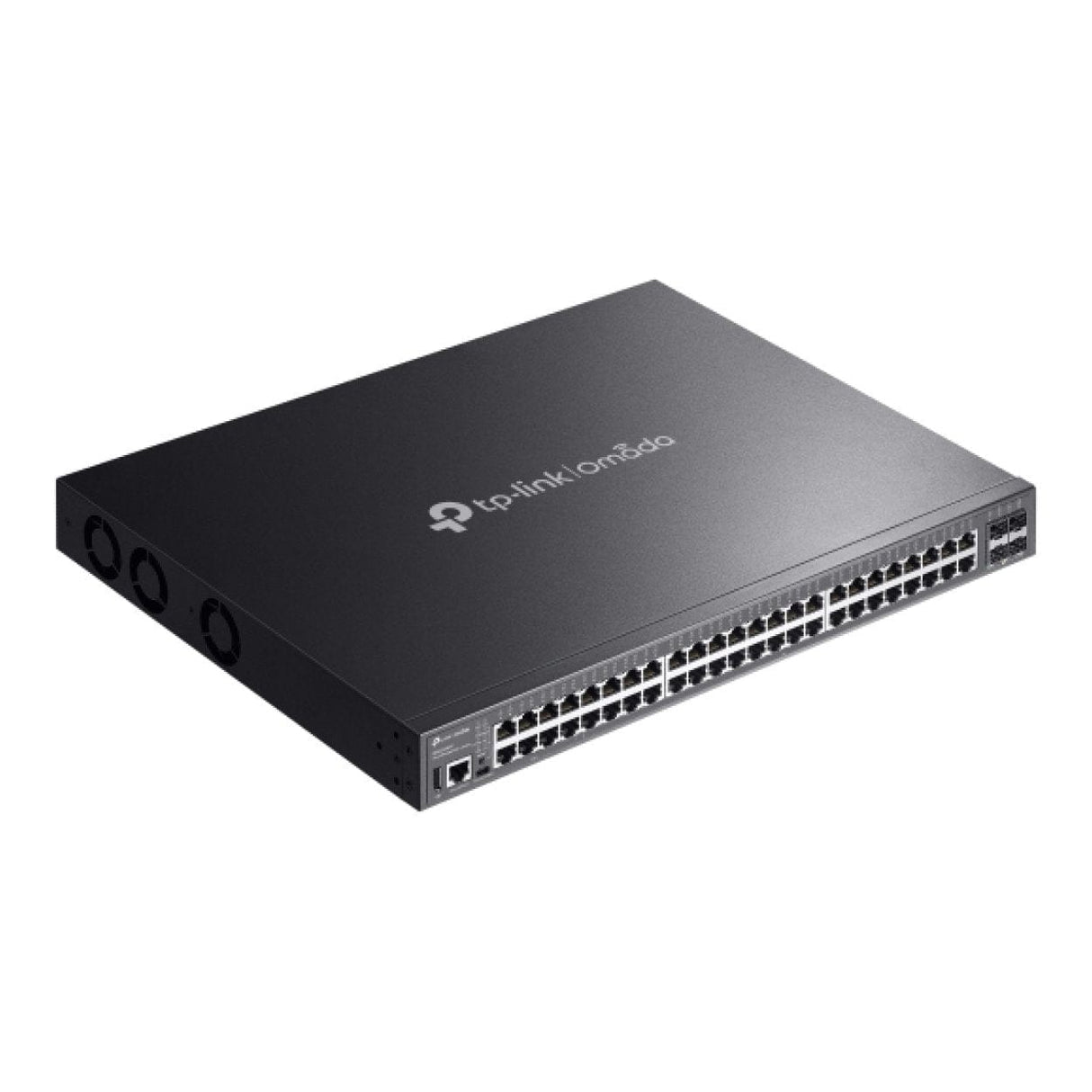

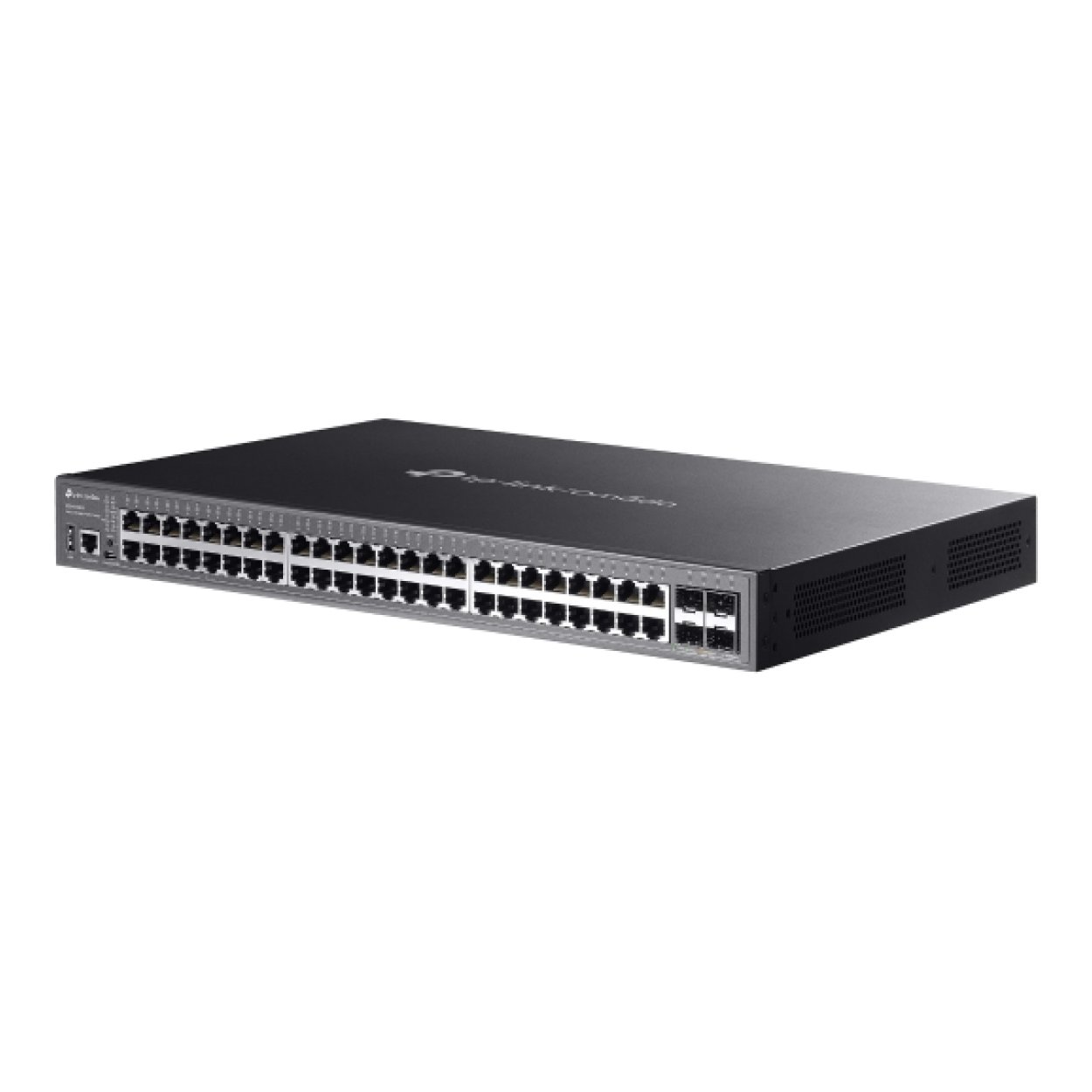

TP-Link Omada SG5452XMPP 48-port Gigabit Stackable Lite L3 PoE++ with 4× 10G Slots Managed Switch

TP-Link Omada SG5452XMPP 48-port Gigabit Stackable Lite L3 PoE++ with 4× 10G Slots Managed Switch

Omada SG5452XMPP is a dependable entry-level L3 managed PoE++ switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It boasts a 770W PoE budget,* 48× gigabit RJ45 ports (8× PoE++, 40× PoE+), 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452XMPP offers a reliable networking solution for SMEs, and ISPs.

Features:

• 8× Gigabit 802.3af/at/bt PoE++ ports (Max 90W per port)
• 40× Gigabit 802.3af/at PoE+ ports (Max 30W per port)
• 4× 10 Gbps SFP+ slots
• Up to 770W total PoE budget*
• Fast PoE and Perpetual PoE
• Physical stacking up to 4 units for built-in redundancy and performance
• L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
• Security strategies: ACL, Port Security, DoS Defend, 802.1X
• ERPS supports rapid protection and recovery in a ring topology
• Centralized cloud management via the Omada SDN controller
• Standalone management via web, CLI, SNMP, and RMON

IEEE 802.3af/at/bt-compliant Power over Ethernet

8× IEEE 802.3af/at/bt-compliant and 40× IEEE 802.3af/at-compliant PoE ports supply up to 770W total power to 802.3af, 802.3at, and 802.3bt devices.* Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.

High-speed Connectivity and Powerful Stacking

48× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 176 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities

Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.

Highly Available

ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.

Enhanced Security Functions

Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN

Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SG5452XMPP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

Technical Specifications:

Hardware Features

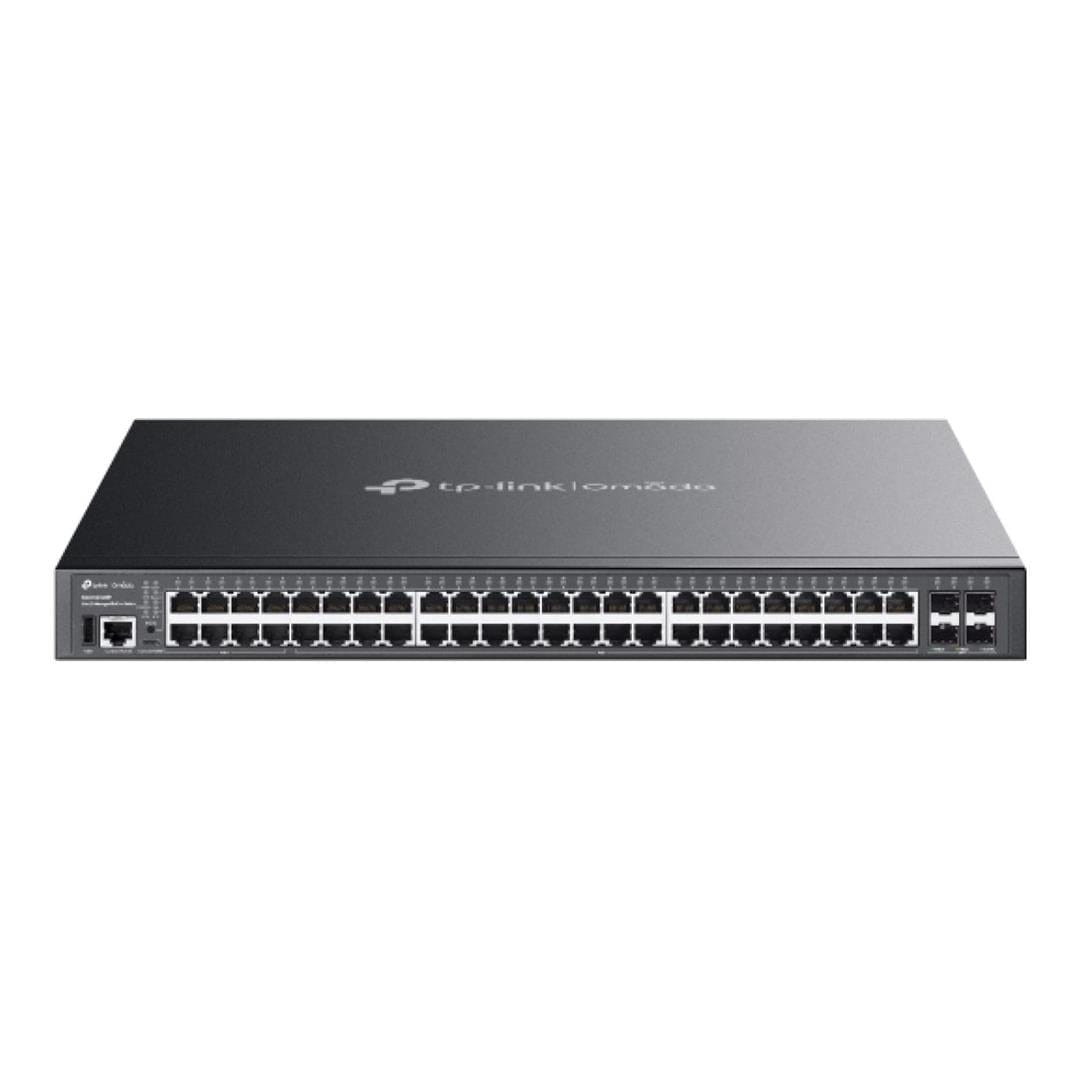

Interface: 48× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+), 4× 1/10 Gbps SFP+ Slots, 1× USB 2.0 Port, 1× RJ45 Console Port, 1× USB Type-C Console Port
Fan Quantity: 3

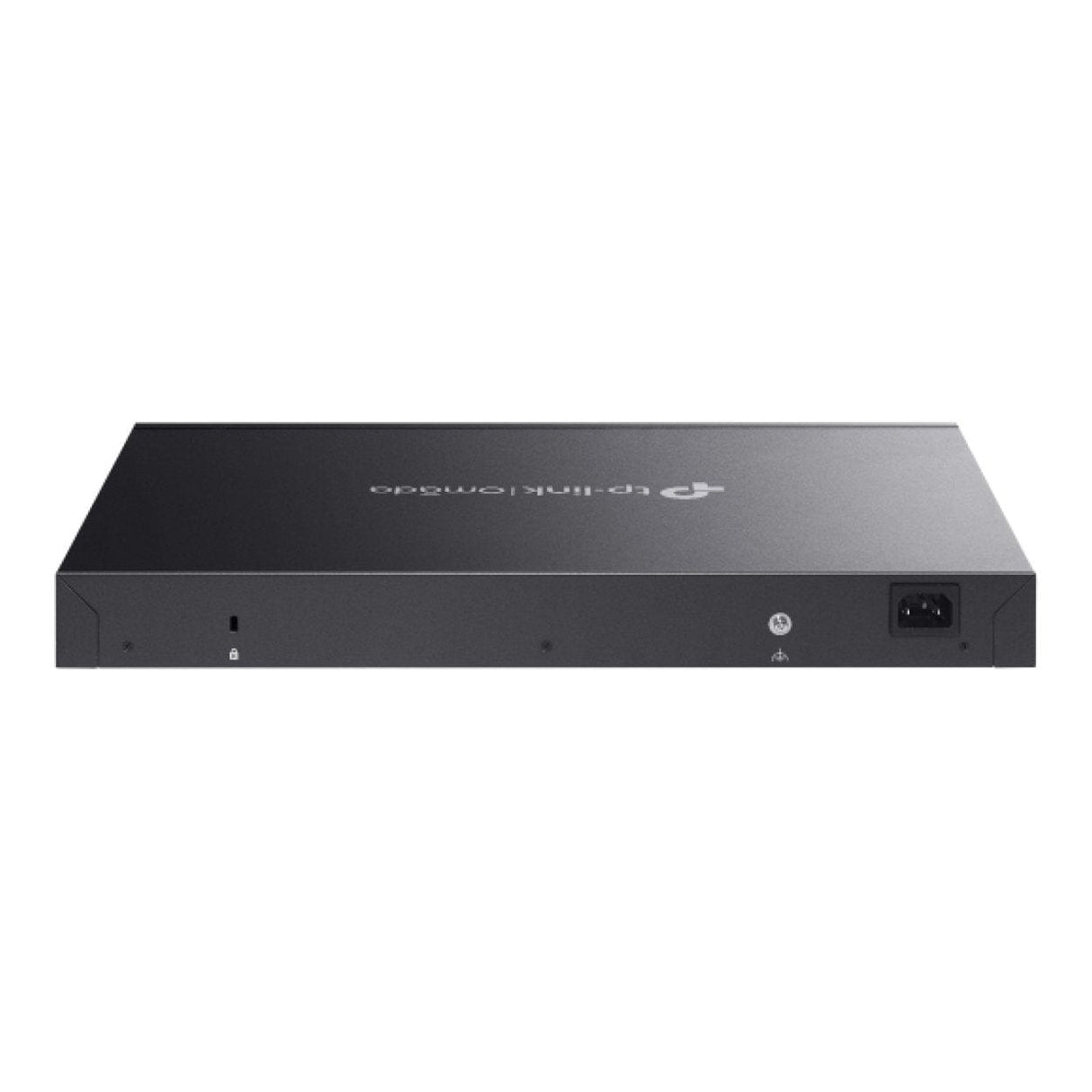

Power Supply: 100–240 V~ 50/60 Hz
PoE Ports: 802.3af/at/bt compliant; Ports 1–8 PoE++ (up to 90W per port); Ports 9–48 PoE+ (up to 30W per port); Power Budget 770W; Fast PoE; Perpetual PoE
Dimensions: 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in)
Mounting: Rackmountable
Max Power Consumption: 893.6 W (220V/50Hz) with 770W PD @25°C; 942.7 W (110V/60Hz) with 770W PD @25°C
Max Heat Dissipation: 3047.18 BTU/hr (220V/50Hz) with 770W PD @25°C; 3214.61 BTU/hr (110V/60Hz) with 770W PD @25°C

Performance
Switching Capacity: 176 Gbps per unit
Stacking: Up to 4 units; 10G SFP+ ports used for stacking; Up to 40 Gbps bandwidth (max 2 stacking ports)
Packet Forwarding Rate: 130.94 Mpps
MAC Address Table: 16K
Packet Buffer Memory: 12 Mbit
Jumbo Frame: 9 KB

Software Features

Quality of Service
Class of Service: 8 priority queues; Port Priority; IEEE 802.1p Priority; DSCP Priority; Queue Min-Bandwidth; Schedule Mode (SP, WRR, SP+WRR)
Bandwidth Control: Rate Limit; Storm Control
Voice VLAN; User-Defined OUI; QoS Remark (802.1P, DSCP)

L3 Features
IP Interfaces: IPv4 Max 128; IPv6 Max 128
Static Routing: IPv4 Max 512; IPv6 Max 128
Host Route Table: Max 1,024 entries
RIP v1/v2: Max 1,796
OSPF v2/v3: v2 Max 1,796; v3 Max 450
Static ARP: 512 entries
Dynamic ARP: 2,000 entries
Proxy ARP
DHCP Server: Max 64 IP Pools; Max 1,000 Manual Bindings
DHCP Relay: Relayed Interface; Relayed VLAN

L2 and L2+ Features
Link Aggregation; Spanning Tree Protocol; Loopback Detection (Port/VLAN); 802.3x Flow Control; ERPS; Port Mirroring; RSPAN
Multicast: IGMP Snooping; MLD Snooping; L2 Multicast Table Max 2,000; Fast Leave; MVR; Static Multicast Groups; Multicast Filtering

Advanced Features
Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule
ISP Features: 802.3ah OAM; L2PT; DLDP; DDM; sFlow

VLAN
Max 4K VLAN Groups (802.1Q); Tagged VLAN; MAC VLAN Entries 60; Multicast VLAN; Management VLAN; QinQ Max 256 entries; GVRP; Protocol VLAN (16 templates, 12 entries); Voice VLAN; Private VLAN

Security
Port Isolation; CPU-Defend; Dynamic ARP Inspection; DoS Defend
IP-MAC-Port Binding: 1,024 entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard
IPv6-MAC-Port Binding: 1,024 entries; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Guard
DHCP Filter
Port Security: Static/Dynamic; Up to 64 MAC addresses per port
Storm Control: Broadcast/Multicast/Unknown Unicast (kbps/ratio mode)
802.1X: Port-based; MAC-based; VLAN Assignment; MAB; Guest VLAN; RADIUS support
AAA (TACACS+)
Secure Management: HTTPS (SSLv3/TLS 1.2); SSHv2
IP/Port/MAC-based Access Control

Management Features
Omada App: Yes (requires Omada Controller)
Centralized Management: Omada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller (version 5.15.20 or later)
Cloud Access: Yes (requires Omada Controller)
Zero-Touch Provisioning: Yes (Omada Cloud-Based Controller required)
Web GUI; CLI (Console/Telnet); SNMP v1/v2c/v3; RMON (1,2,3,9); SDM Template; DHCP/BOOTP Client; LLDP/LLDP-MED; DHCP Auto Install; Dual Image; Dual Configuration; CPU Monitoring; Cable Diagnostics; Password Recovery; SNTP; System Log; IEEE 802.3az EEE

Others

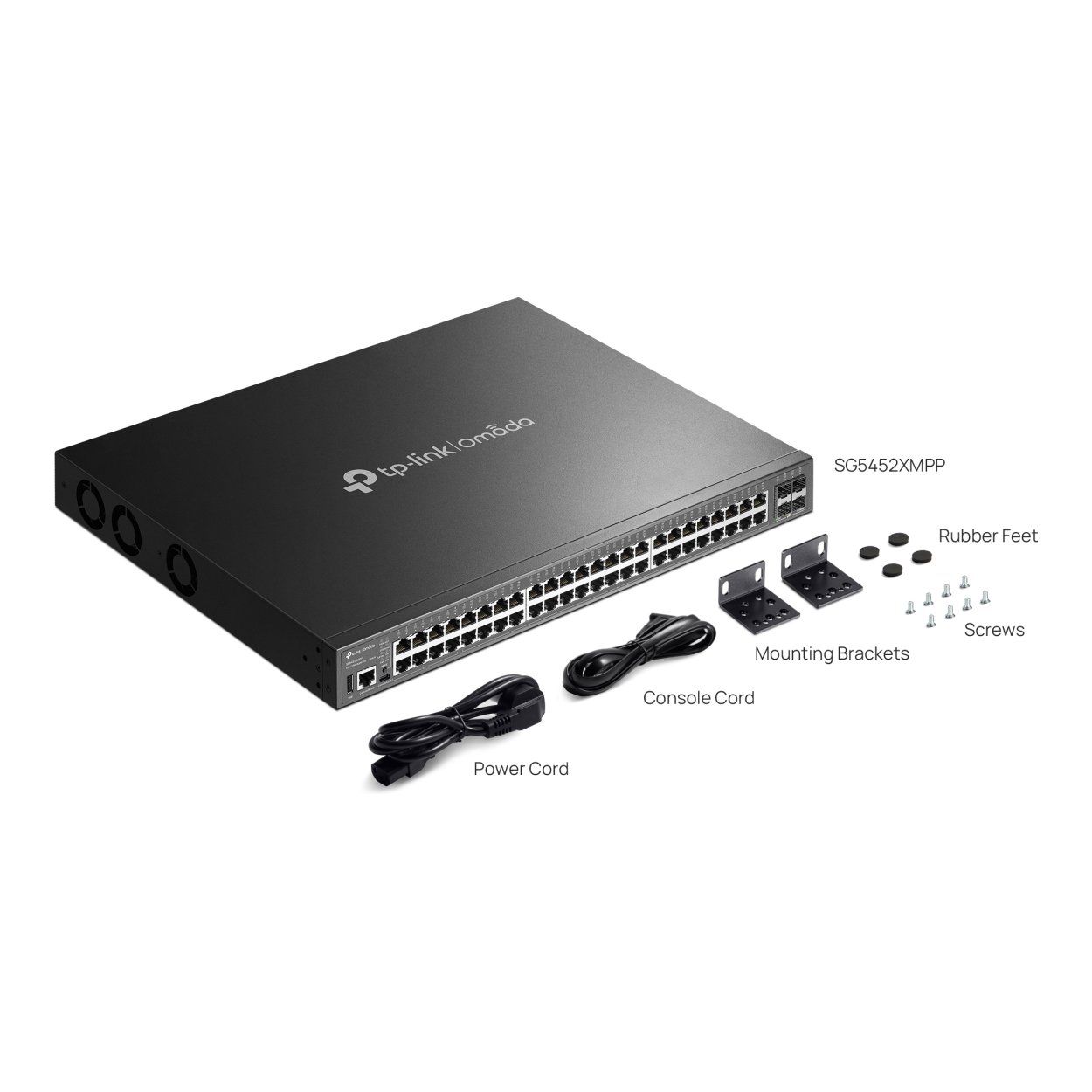

Package Contents: SG5452XMPP Switch; Power Cord; Console Cable; Rackmount Kits; Rubber Feet; Quick Installation Guide
System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10/11; macOS; NetWare; UNIX; Linux
Environment: Operating Temperature -5°C to 40°C; Storage Temperature -40°C to 70°C; Operating Humidity 10–90% RH non-condensing; Storage Humidity 5–90% RH non-condensing
