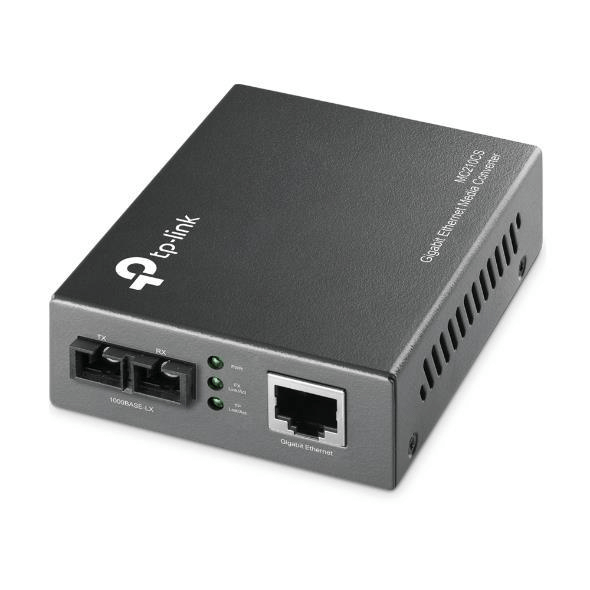

TP-Link Omada MC210CS Gigabit Single-Mode Media Converter

TP-Link Omada MC210CS Gigabit Single-Mode Media Converter

The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Features:

• 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Complies with IEEE 802.3ab and IEEE 802.3z
• Extends fiber distance up to 20km

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link´s MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.

Technical Specifications:

Maximum data transfer rate: 1000 Mbit/s

Networking standards: IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z

Ethernet interface type: Gigabit Ethernet

Fiber optic connector: SC

Connectivity technology: Wired

Maximum transfer distance: 15000 m

Wavelength: 1310 nm

Fiber mode structure: Single-mode

Product colour: Black

Power consumption (max): 1.8 W
