FirstShop | SKU: DS-PMA-C+

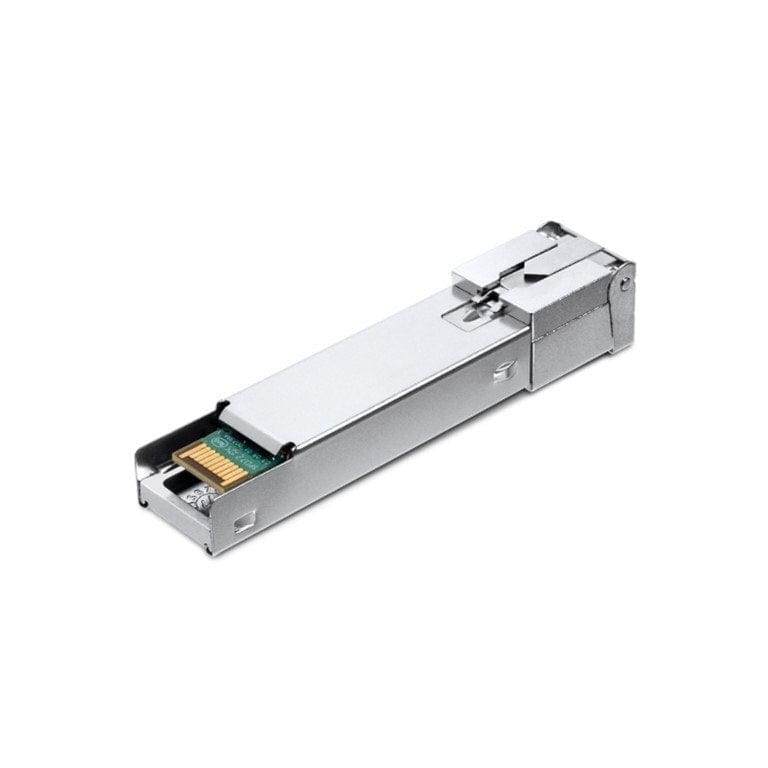

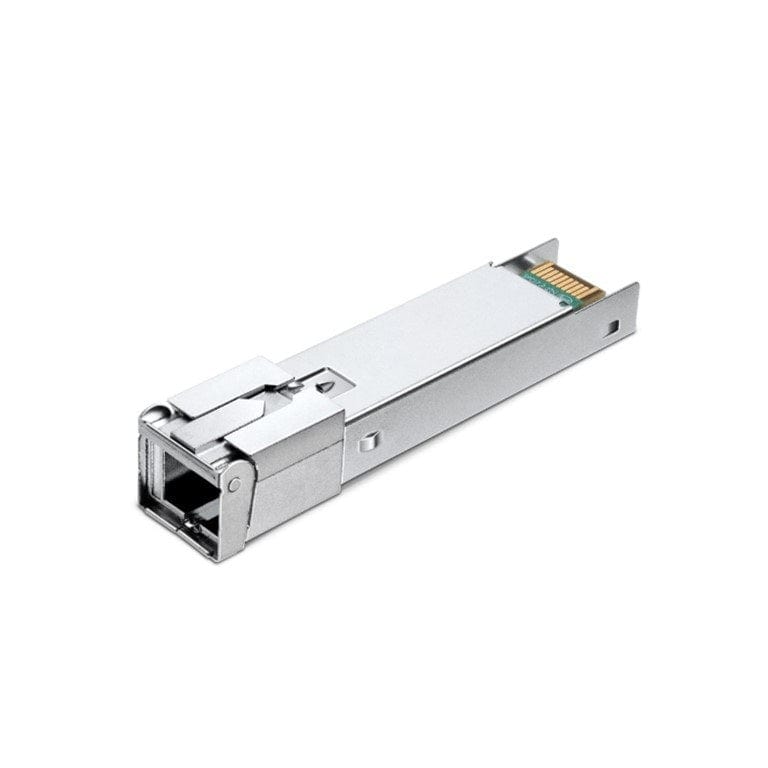

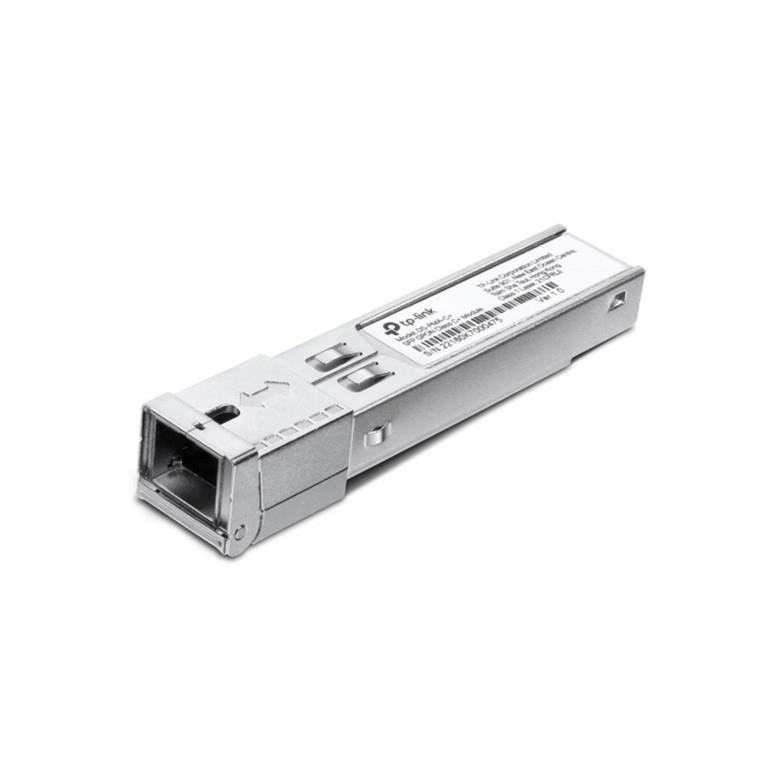

TP-Link DS-PMA-C+ SFP GPON Class C+ Transceiver Module

R 750⁰⁰

Delivery and Shipping

* Next Business Day Shipping Available - Learn more

Buy With Confidence. 14 Day Returns. Online. Learn More

Found a Better Price? We'll Match It - Guaranteed - Learn More

TP-Link DS-PMA-C+ SFP GPON Class C+ Transceiver Module

Features

Single-fiber SFP GPON Class C+ Module
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with TP-Link GPON OLT, such as DS-P7001-16, DS-P7001-08, and DS-P7001-04

Technical Specification

Product: GPON SFP Module

Wavelength

Connector

Fiber Type: Single Fiber (9/125um)

Data Rate

Power Level: Class C+ (Tx Optical Power +3~+7dBm, Rx Sensitivity <-30 dBm, Rx Saturation Optical Power>-12dBm)

Extinction Ratio: >8.2dB

Rx Optical Power Tolerance: >5dBm

Transmission Distance: Max. 20 km

Hot Swap: Yes

Nominal Voltage: 3.3 V (< ± 5ï¼…)

Diagnostic Function: Monitors parameters such as voltage, transceiver power, and temperature

Electrical Level
