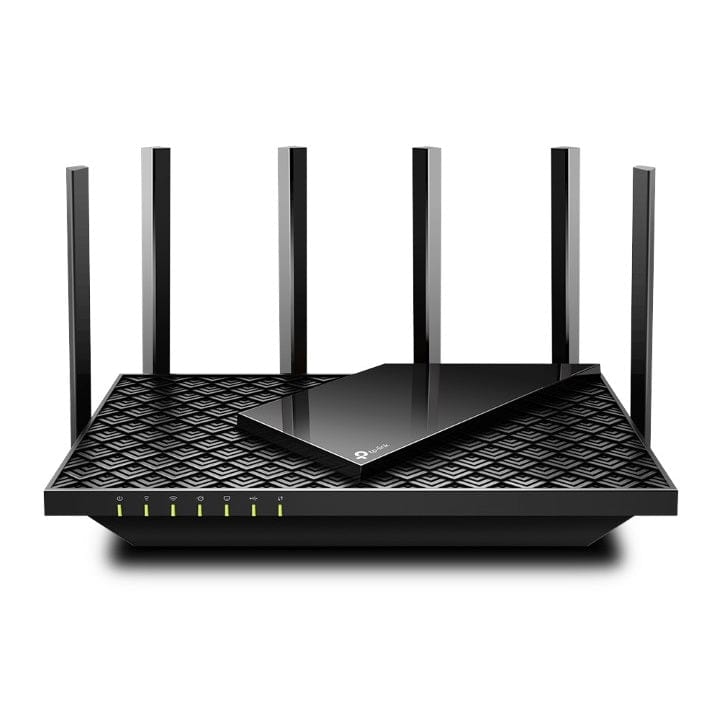

TP-Link Archer AX72 AX5400 Dual-Band Gigabit Wi-Fi 6 Router

TP-Link Archer AX72 AX5400 Dual-Band Gigabit WiFi 6 Router

High-End Wi-Fi 6 for Everyone

AX5400 Dual-Band 6-Stream Gigabit
Wi-Fi 6 Router

Features:

• Gigabit WiFi for 8K Streaming – 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time.
• Fully Featured Wi-Fi 6 – Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable a 4.8 Gbps ultra-fast connection.
• Connect 100+ Devices – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
• Extensive Coverage – 6x antennas and Beamforming ensure broad coverage.
• HomeShield – TP-Link's premium security services keep your home network safe with cutting-edge features for network and IoT protection.*
• More Vents, Less Heat – Improved vents area unleashes the full power of the whole machine.
• USB Sharing – 1x USB 3.0 port enables easy media sharing and private cloud building.
• Easy Setup – Set up the router in minutes with the Tether app.

Wi-Fi 6 Upgrades Everything

The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.

Warp Speed for Smooth 8K Streaming

Drastically improved speeds enable streaming, fast downloading, and gaming, all at the same time. Need to go faster? Hop on 5 GHz with full speed-boosting features, to stream multiple 8K videos without lagging.

Extensive Wi-Fi Coverage with Advanced Technology

Enjoy stable Wi-Fi connections even in the kitchen and bedroom. High-Power FEM, 6x Antennas, Beamforming, and 4T4R structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.

*Same Coverage Performance as Its Brother Archer AX72

Technical Specifications:

Wireless
Standards and Protocols: Wi-Fi 6, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds: AX5400

• 5 GHz: 4804 Mbps (802.11ax, HE160)
• 2.4 GHz: 574 Mbps (802.11ax)

WiFi Range: 3 Bedroom Houses, 6× Fixed High-Performance Antennas

• Beamforming: Concentrates wireless signal strength towards clients
• High-Power FEM: Improves transmission power
• 4T4R: Multiple streams strengthen fault tolerance

WiFi Capacity: High, Dual-Band

• 4×4 MU-MIMO: Communicates with multiple MU-MIMO clients
• OFDMA: Communicates with multiple Wi-Fi 6 clients
• Airtime Fairness: Improves network efficiency
• DFS: Reduces congestion
• 6 Streams: Connect more devices

Working Modes: Router Mode, Access Point Mode

Security
Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
HomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner

Guest Network: 1× 5 GHz, 1× 2.4 GHz

VPN Server: OpenVPN, PPTP, L2TP

VPN Client: OpenVPN, PPTP, L2TP

WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)

Hardware
Processor: 1 GHz Dual-Core CPU

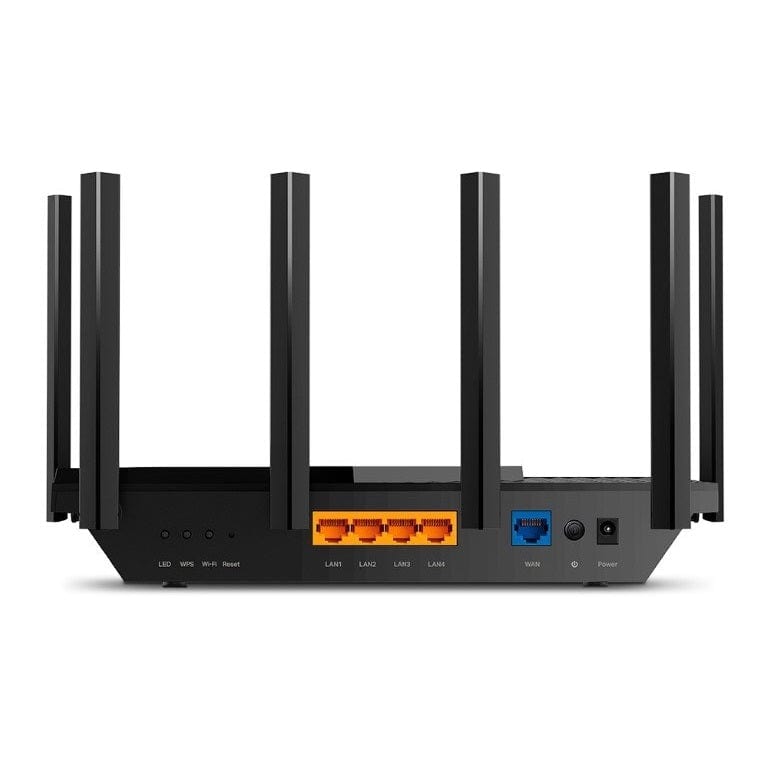

Ethernet Ports: 1× Gigabit WAN, 4× Gigabit LAN

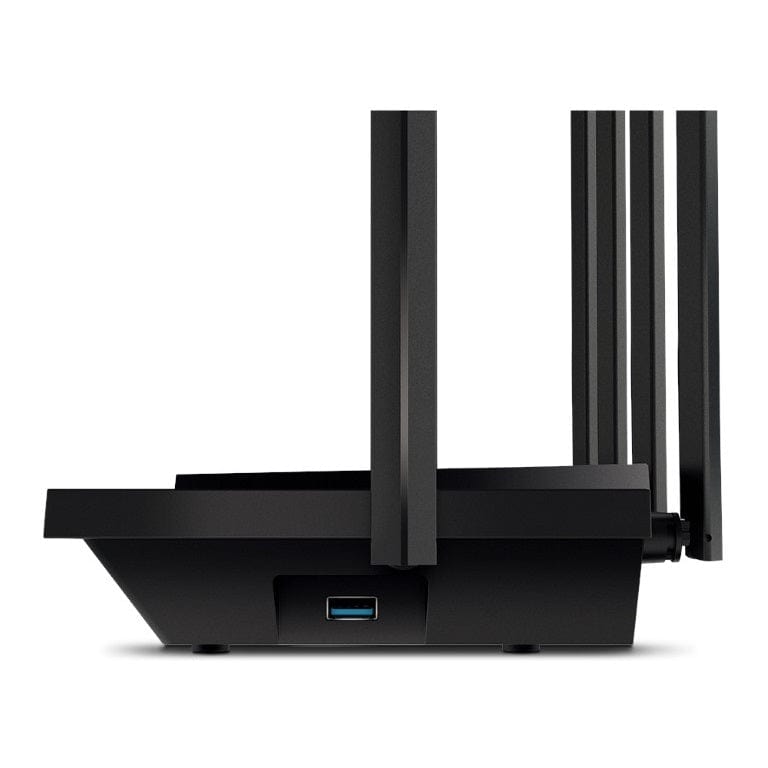

USB Support: 1× USB 3.0 Port

• Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
• Supported Functions: Apple Time Machine, FTP Server, Media Server, Samba Server

Buttons: Wi-Fi On/Off, Power On/Off, LED On/Off, WPS, Reset

Power: 12 V ⎓ 2.5 A

Software
Protocols: IPv4, IPv6

Service Kits: HomeShield

OneMesh™: Supported

Parental Controls: HomeShield Parental Controls, Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly/Monthly Reports

WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP

Quality of Service: QoS by Device

Cloud Service: Auto Firmware Upgrade, TP-Link ID, DDNS

NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server

IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN

DHCP: Address Reservation, DHCP Client List, Server

DDNS: TP-Link, NO-IP, DynDNS

Management Features: Tether App, Webpage

Others
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser; Cable or DSL Modem (if needed); Internet subscription

Certifications: FCC, CE, RoHS

Environment: Operating Temperature: 0℃~40℃, Storage Temperature: -40℃~70℃, Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

Test Data
WiFi Transmission Power: CE: <20dBm(2.4GHz), <23dBm(5.15~5.35GHz), <30dBm(5.47~5.725GHz); FCC: <24dBm(5.25~5.35GHz & 5.47~5.725GHz), <30dBm(2.4GHz & 5.15~5.25GHz & 5.725~5.825GHz)

WiFi Reception Sensitivity: 2.4GHz & 5GHz detailed values for 802.11ac/ax MCS levels

Physical
Dimensions (W×D×H): 10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm)

What’s in the Box:

• Wi-Fi Router Archer AX72
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
