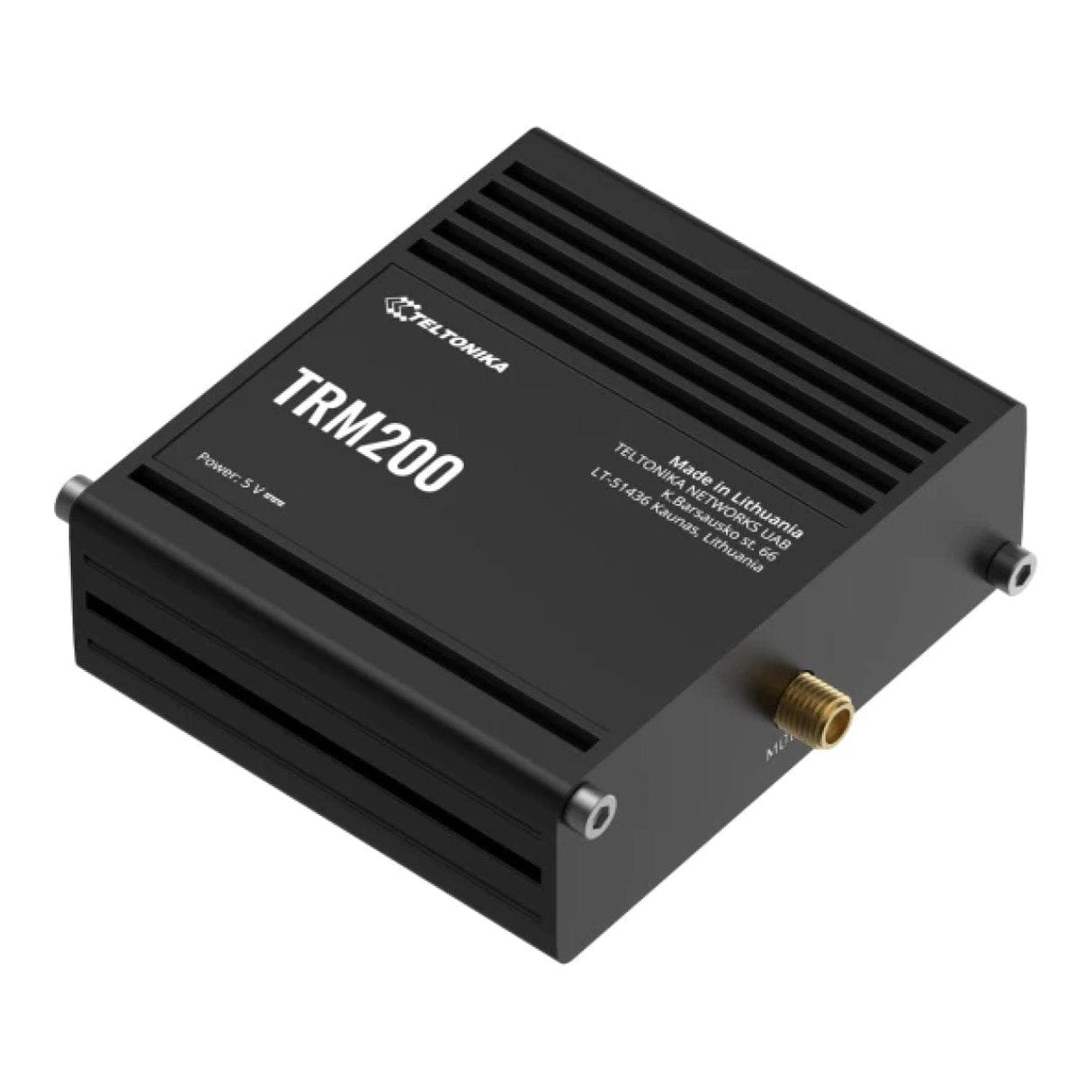

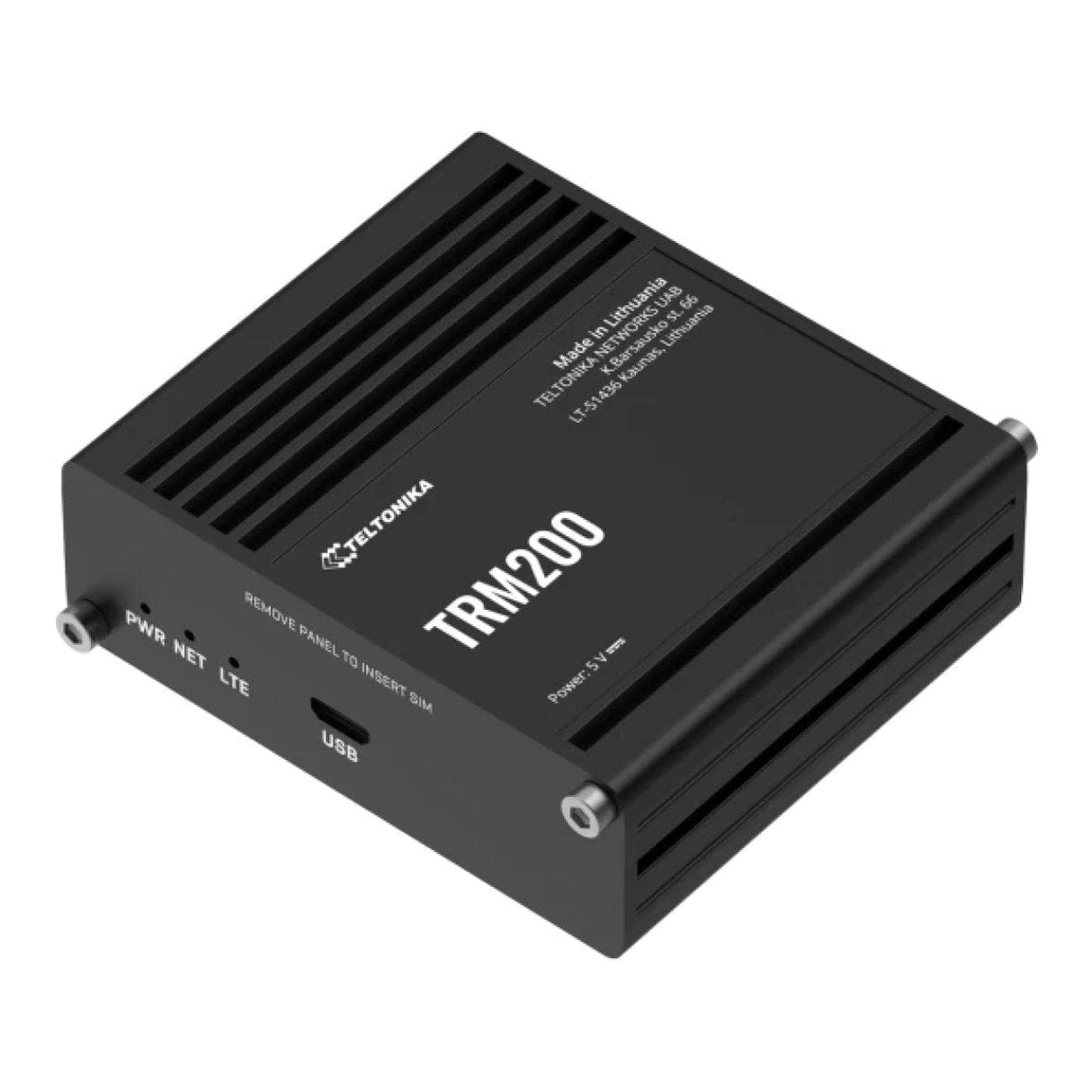

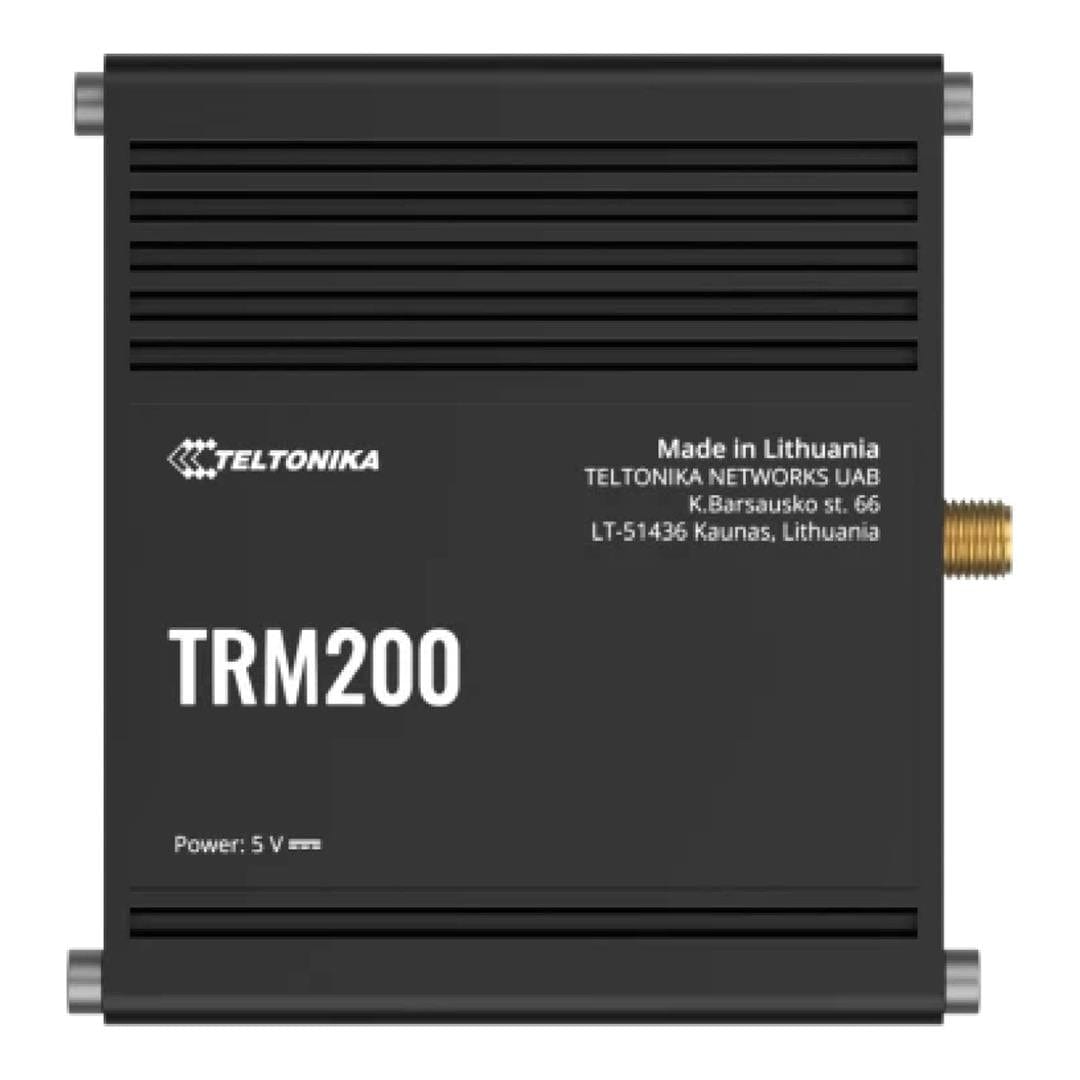

Teltonika TRM200 Industrial 4G Cat 4 Modem

Teltonika TRM200 Industrial 4G Cat 4 Modem

The TRM200 is an industrial-grade LTE Cat 4 modem, providing reliable 4G connectivity with full backward compatibility for 3G and 2G networks, ensuring seamless operation across diverse environments. Equipped with a micro USB port and an external antenna, this rugged modem is a cost-effective solution for upgrading existing industrial equipment with LTE capabilities.

Technical Specifications:

Mobile

Mobile module

• 4G – Cat 4 up to 75 DL/50 UL Mbps
• 3G – Up to 42 DL/5.76 UL Mbps
• 2G – Up to 236.8 DL/236.8 UL kbps

3GPP Release

• Release 9

Power

Connector

• microUSB

Input voltage range

• 5V - powered via microUSB

Power consumption

• Idle: < 0.9 W
• Max: < 3.2 W

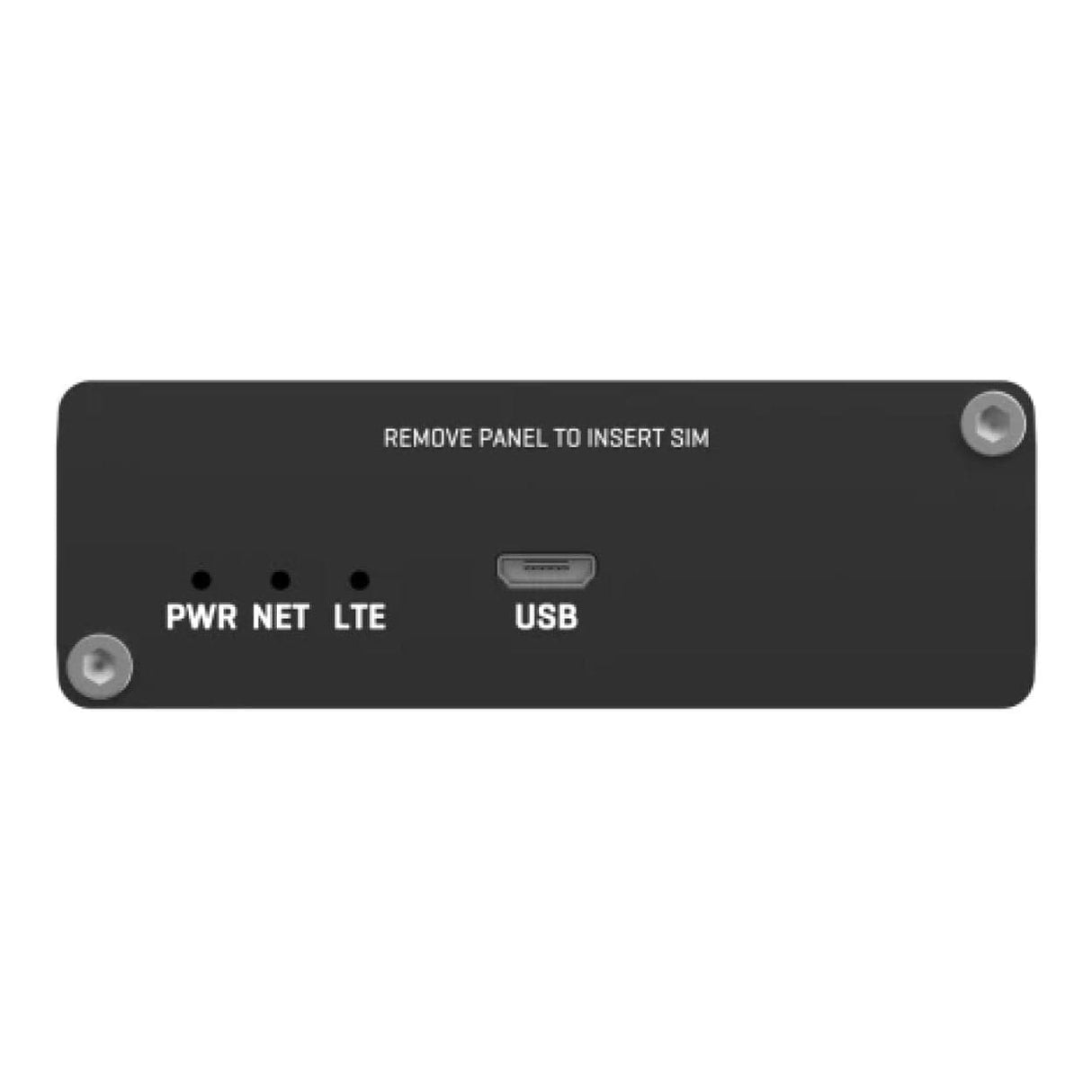

Physical Interfaces

Status LEDs

• 1 x Power LED
• 1 x Network LED
• 1 x Mobile LED

SIM

• 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

Power

• 1 x microUSB

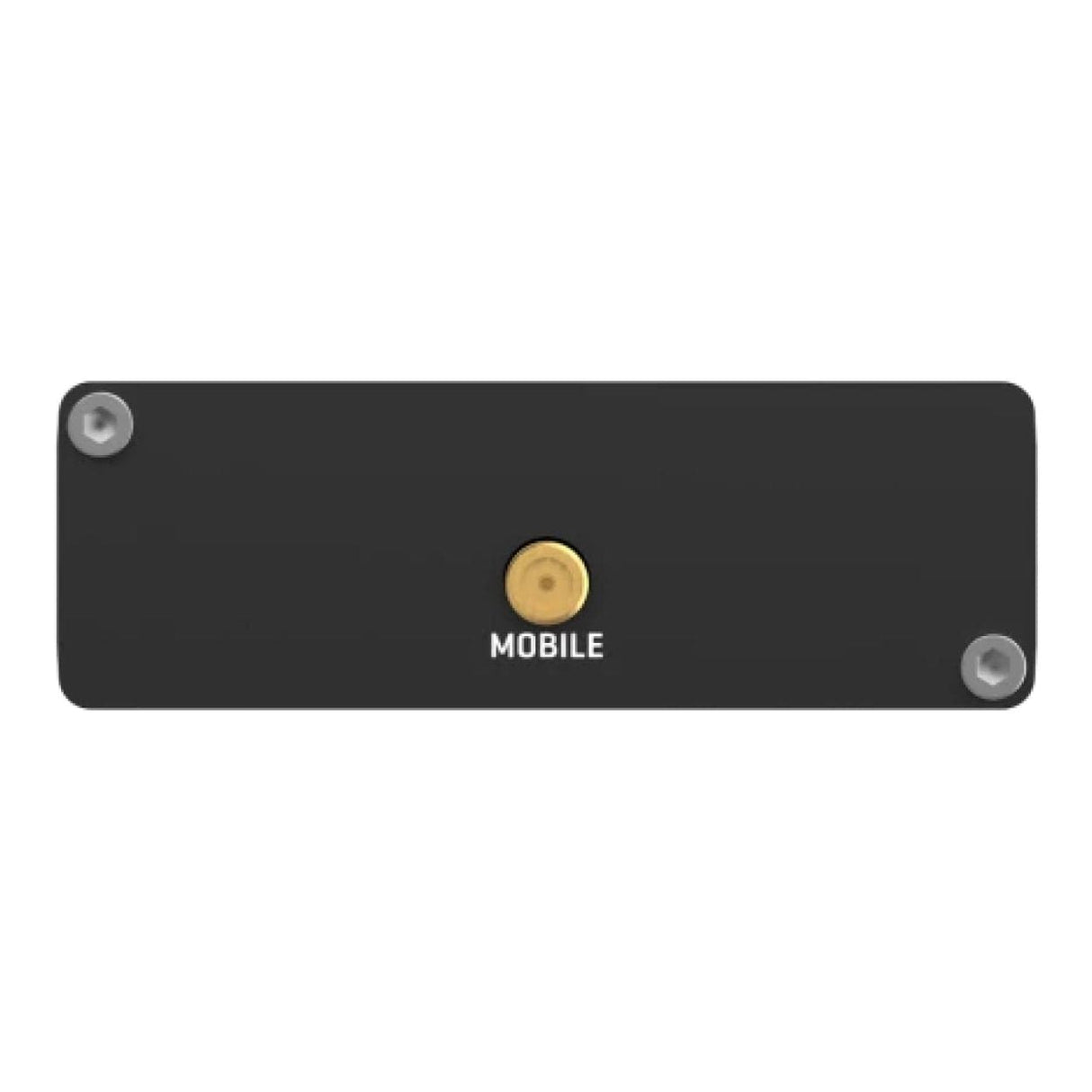

Antennas

• 1 x SMA for Mobile

Physical Specification

Casing material

• Aluminium housing

Dimensions (W x H x D)

• 74.5 x 25 x 64.5 mm

Weight

• 274 g

Mounting options

• DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature

• -40 °C to 75 °C

Operating humidity

• 10% to 90% non-condensing

Ingress Protection Rating

• IP30

TRM SOFTWARE

TRM SOFTWARE USB Driver RUT#03

• Windows 7/8/8.1/10, Linux 2.6 or later, Android 2.3/4.0/4.2/4.4/5.0/5.1/6.0/7.0

NDIS Driver

• Windows 7/8/8.1/10

Regulatory & Type Approvals

Regulatory

• CE, UKCA, CB, EAC, UCRF, WEEE
