Teltonika RUTX09 Industrial Cellular LTE Cat6 Router

R 5,49900

    Delivery and Shipping

    * Fast Delivery Available - Learn more

    Easy Returns

    Buy With Confidence. 14 Day Returns. Online. Learn More

    Price Match Guarantee

    Found a Better Price? We'll Match It - Guaranteed - Learn More

    Description

    Teltonika RUTX09 Industrial Cellular LTE Cat6 Router

    RUTX09 is an LTE-A Cat 6 cellular IoT router with dual-SIM, Carrier Aggregation, and four Gigabit Ethernet interfaces. Designed as a primary or backup internet source, it can offer up to 300 Mbps cellular speeds with high data throughput.

    Features

    • 4G LTE Cellular speeds up to 300Mbps with Carrier Aggregation
    • DUAL SIM - With auto failover, backup WAN and other switching scenarios
    • 4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported
    • Global Navigation Satellite System for location services and time synchronization

    Technical Specification

    Mobile module: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
    SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
    Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, Carrier aggregation
    SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
    USSD: Supports sending and reading Unstructured Supplementary Service Data messages
    Black/White list: Operator black/white list
    Multiple PDN: Possibility to use different PDNs for multiple network access and services
    Band management: Band lock, Used band status display
    APN: Auto APN
    Bridge: Direct connection (bridge) between mobile ISP and device on LAN
    Passthrough: Router assigns its mobile WAN IP address to another device on LAN
    WAN: 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
    LAN: 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
    Ethernet ports: 4 x RJ45 ports, 10/100/1000 Mbps
    I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
    Status LEDs: 3 x WAN type, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 3 x WAN status, 1x Power
    SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
    Power: 1 x 4-pin power connector
    Antennas: 2 x SMA for LTE, 1 x SMA for GNNS
    USB: 1 x USB A port for external devices

    Payment & Security

    Payment methods

      Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

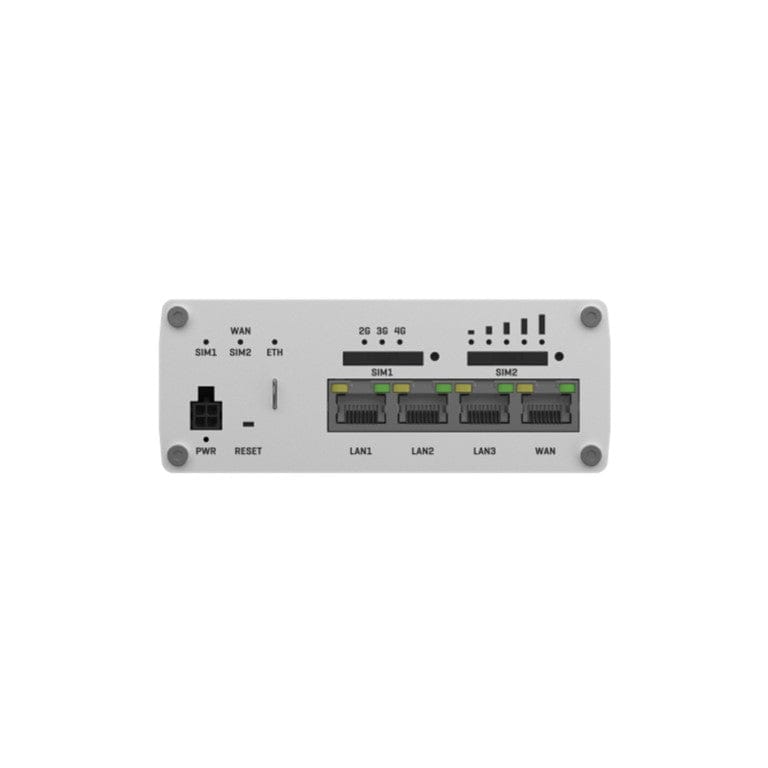

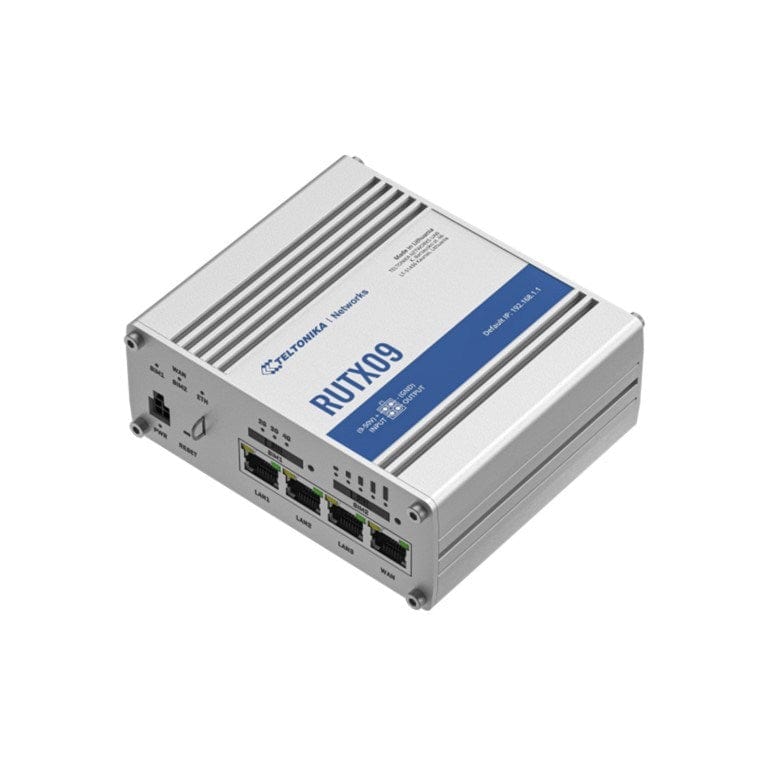

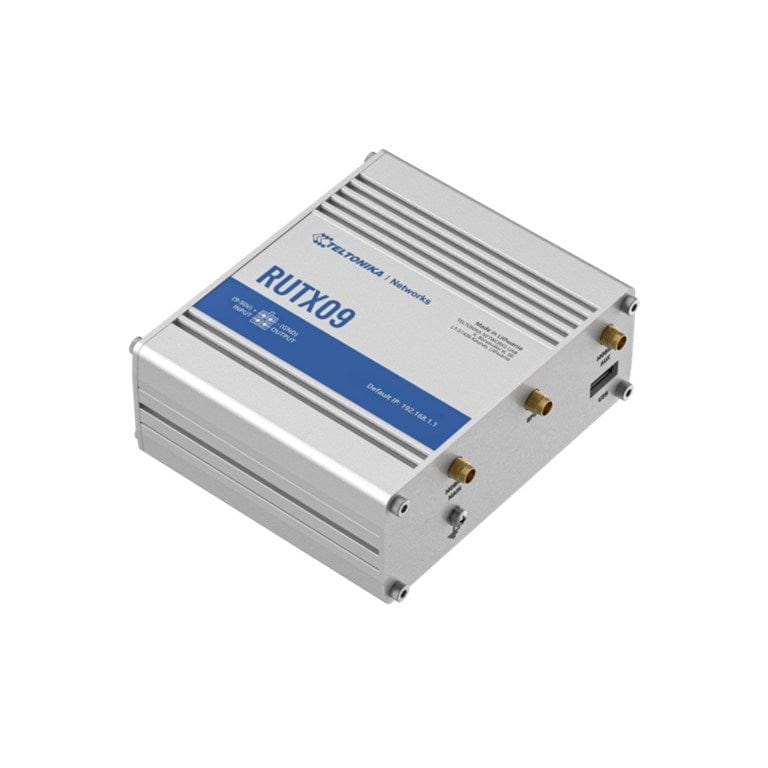

      Teltonika RUTX09 wired router Aluminium
