Teltonika RUTM30 ESIM LTE Wi-Fi 5 Cat 19 Industrial Compact 5G Router

Teltonika RUTM30 ESIM LTE Wi-Fi 5 Cat 19 Industrial Compact 5G Router

The RUTM30 is a compact, dual-SIM, multi-network router with eSIM™ that delivers 5G mobile connectivity for data-intensive applications. Equipped with two Gigabit Ethernet ports and dual-band Wi-Fi, it offers data connection redundancy with auto-failover. Its backward compatibility with LTE Cat 19 and multiple interfaces ensure long-term network expandability and simple upgrades. The RUTM30 is ideal for various IoT and M2M solutions that demand high-speed connectivity, easy setup, and remote access.

Features:

• Connectivity: 5G, 4G Cat19, 3G
• DUAL SIM: With auto failover, backup WAN, and other switching scenarios
• eSIM™: Seamless connectivity with eSIM™ SGP.22
• SA & NSA: Supports both architectures to leverage the 5G infrastructure

Technical Specifications:

Mobile Module
5G Sub-6GHz SA/NSA: 2.4/3.4 Gbps DL (4×4 MIMO), 900/550 Mbps UL (2×2)
4G LTE: Cat 19 1.6 Gbps DL, Cat 18 200 Mbps UL
3G: 42 Mbps DL, 5.76 Mbps UL
3GPP Release: Release 16
eSIM: Consumer type, supports up to 7 profiles, profile download/removal; does not include data plans
SIM Switch: 2× 2FF SIM + 1× eSIM, auto-switch on weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
Status Monitoring: IMSI, ICCID, operator, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS: SMS status/configuration, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, auto-reply
USSD: Supported
Block/Allow List: Operator block/allow by country or separate operators
Multiple PDN: Supported
Band Management: Band lock, used band status display
SIM Idle Protection: Periodic switching to prevent SIM blocking
SIM PIN Management: Set, change, or disable PIN
APN: Auto APN
Bridge: Direct connection between mobile ISP and LAN device
Passthrough: Router assigns mobile WAN IP to LAN device
Framed Routing: IP network behind 5G UE

Wireless
Wireless Mode: 802.11b/g/n/ac Wave 2 (Wi-Fi 5), dual-band, MU-MIMO, up to 867 Mbps, 802.11r fast transition, AP/STA modes
Wi-Fi Security: WPA2/WPA3, PEAP, EAP-TLS, AES-CCMP/TKIP, 802.11w PMF, client separation, disable auto-reconnect
SSID/ESSID: Stealth mode, MAC access control
Wi-Fi Users: Up to 150 simultaneous connections
Wireless Features: Mesh (802.11s), fast roaming, Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
MAC Filter: Allow/block list
QR Code: Network auto-login via QR
TravelMate: Forward hotspot landing page to connected devices

Ethernet
WAN: 1× 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX
LAN: 1× 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX

Networking
Routing: Static, dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based
Protocols: TCP, UDP, IPv4/IPv6, ICMP, NTP, DNS, HTTP/HTTPS, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN
VoIP Passthrough: H.323, SIP-ALG
Connection Monitoring: Ping/Wget Reboot, periodic reboot, LCP/ICMP link inspection
Firewall: Port forward, traffic rules, custom rules, TTL customization
Port Management: Speed, enable/disable, auto-configuration
Network Topology: Visual mapping of connected devices

Hotspot
Captive Portal: Internal/external RADIUS, SMS authentication, SSO, landing page customization, user groups, 9 default themes + custom theme upload
Hotspot 2.0: Seamless secure connection to trusted Wi-Fi networks

DHCP & Network Services
DHCP: Static/dynamic IP, relay, server configuration, static leases
QoS/SQM: Traffic priority by source/destination/service/protocol/port, WMM, 802.11e
DDNS: >77 providers, manual configuration
DNS over HTTPS: Secure DNS resolution
Network Backup & Load Balancing: Wi-Fi WAN, Mobile, VRRP, wired failover, traffic balancing
SSHFS: Remote filesystem mounting via SSH
VRF: Initial support

Traffic Management & Security
Monitoring: Real-time, wireless signal charts, traffic usage history
Firewall & Attack Prevention: DDOS, SYN flood, SSH, HTTP/HTTPS, port scan prevention
VLAN: Port/tag-based separation
Mobile Quota Control: Custom data limits per SIM
WEB Filter: Block/allow websites
Access Control: SSH, Web, CLI, Telnet
TPM: TPM 2.0 identification/authentication
Certificate Manager: CA, server, client, Let's Encrypt, SCEP certificates
802.1x: Port-based network access control

VPN & Tunneling
OpenVPN: Multiple clients/server, 27 encryption methods
IPsec: XFRM, IKEv1/v2, 14 encryption methods
GRE: Tunnel, GRE over IPsec
PPTP/L2TP: Client/server, L2TPv3, L2TP over IPsec
Stunnel: TLS proxy
DMVPN: Phase 2/3, dual hub support
SSTP: Client support
ZeroTier, WireGuard, Tinc, Tailscale: VPN client/server support

Industrial Protocols & IoT
OPC UA: Client/server, TCP
MQTT Gateway: Modbus MQTT
MODBUS: Server/client, TCP, custom registers, multiple data formats (INT, UINT, float, HEX, ASCII)
DNP3: Station/outstation, TCP
DLMS/COSEM: Client, TCP
API: Web API (beta), JSON-RPC over HTTP/HTTPS
RMS: Teltonika Remote Management System
IoT Platforms: ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core

System Characteristics
CPU: MediaTek Dual-Core, 880 MHz, MIPS1004Kc
RAM: 256 MB DDR3
Flash Storage: 16 MB serial NOR, 256 MB serial NAND
Firmware/Configuration: Web UI, FOTA, RMS, keep settings, factory reset, firmware customization, RutOS (OpenWrt-based), Busybox shell, Lua, C, C++

Input/Output
2× configurable digital I/O (4-pin power connector), digital input: 0–6 V low, 8–50 V high; digital output: open collector, max 30 V/300 mA
Events: Email, RMS, SMS
I/O Juggler: Conditional events

Power
Input Voltage: 9–50 VDC, reverse polarity & surge protection
PoE (passive): 9–50 VDC, mode B, not IEEE802.3af/at/bt
Power Consumption: Idle <3.9 W, Max <9 W
Connector: 4-pin industrial DC

Physical Interfaces

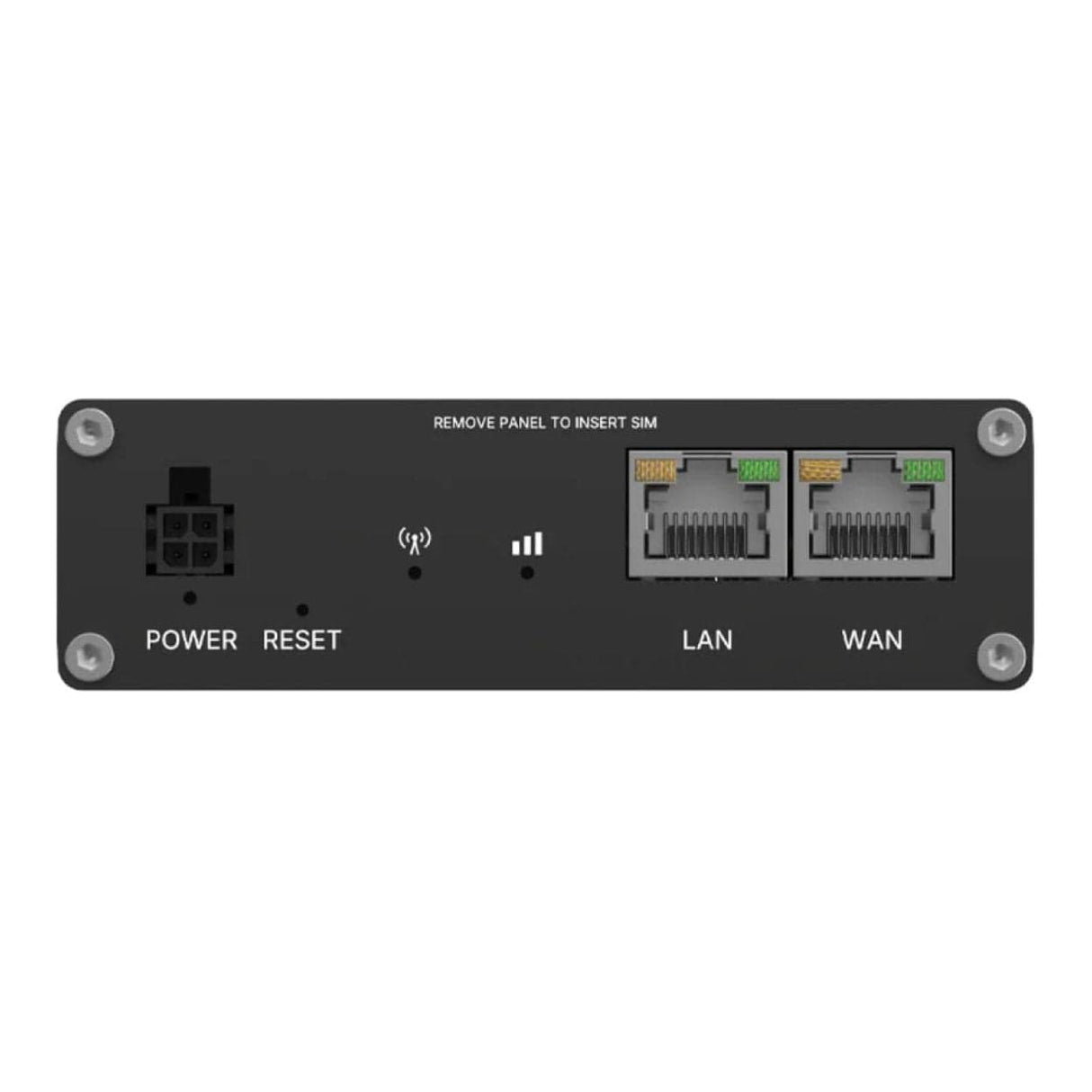

Ethernet: 2× RJ45, 10/100/1000 Mbps
I/O: 2× configurable digital I/O
Status LEDs: 1× mobile type (RGB), 1× mobile strength (RGB), 4× LAN, 1× Power
SIM: 2× 2FF mini SIM slots, 1.8/3 V, internal holders

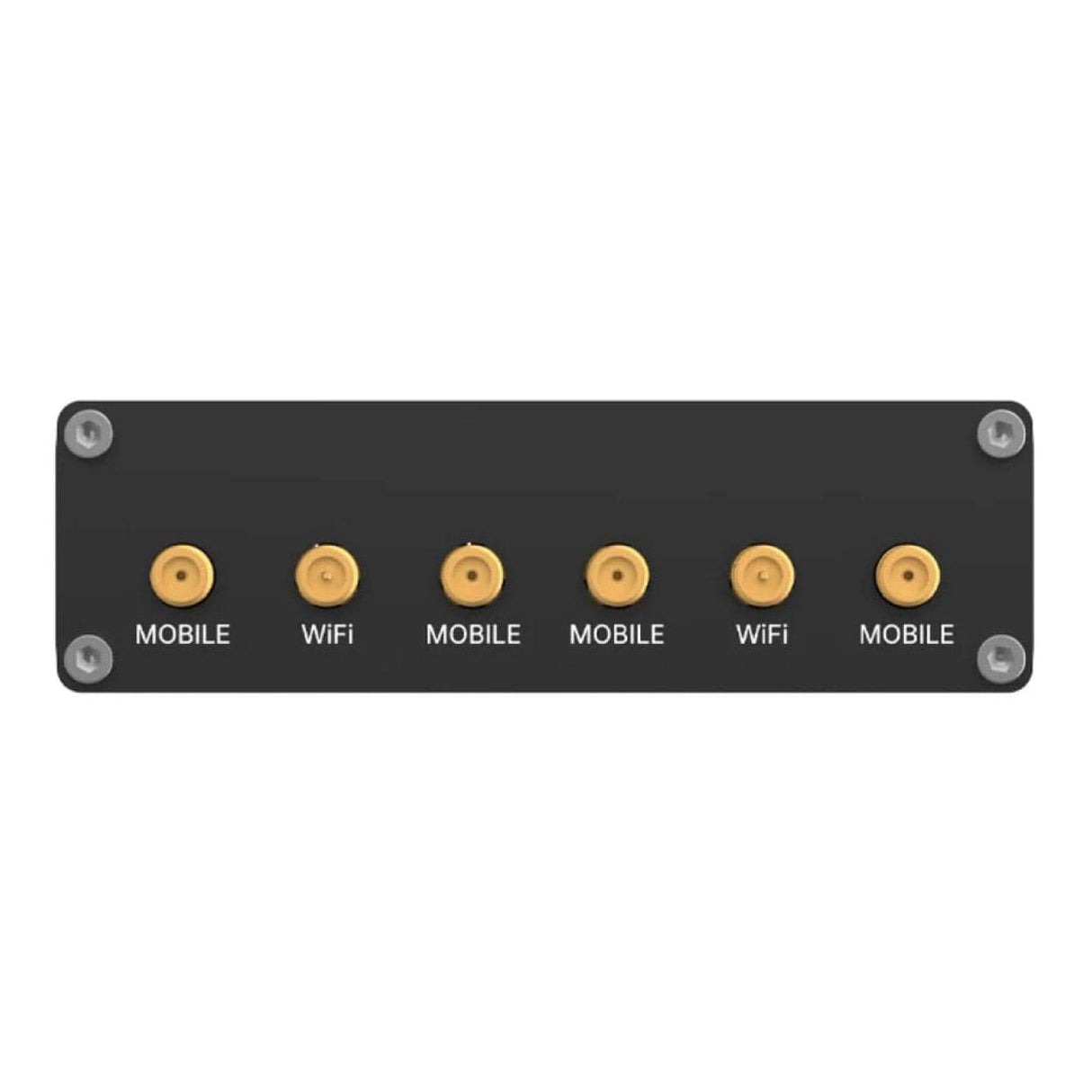

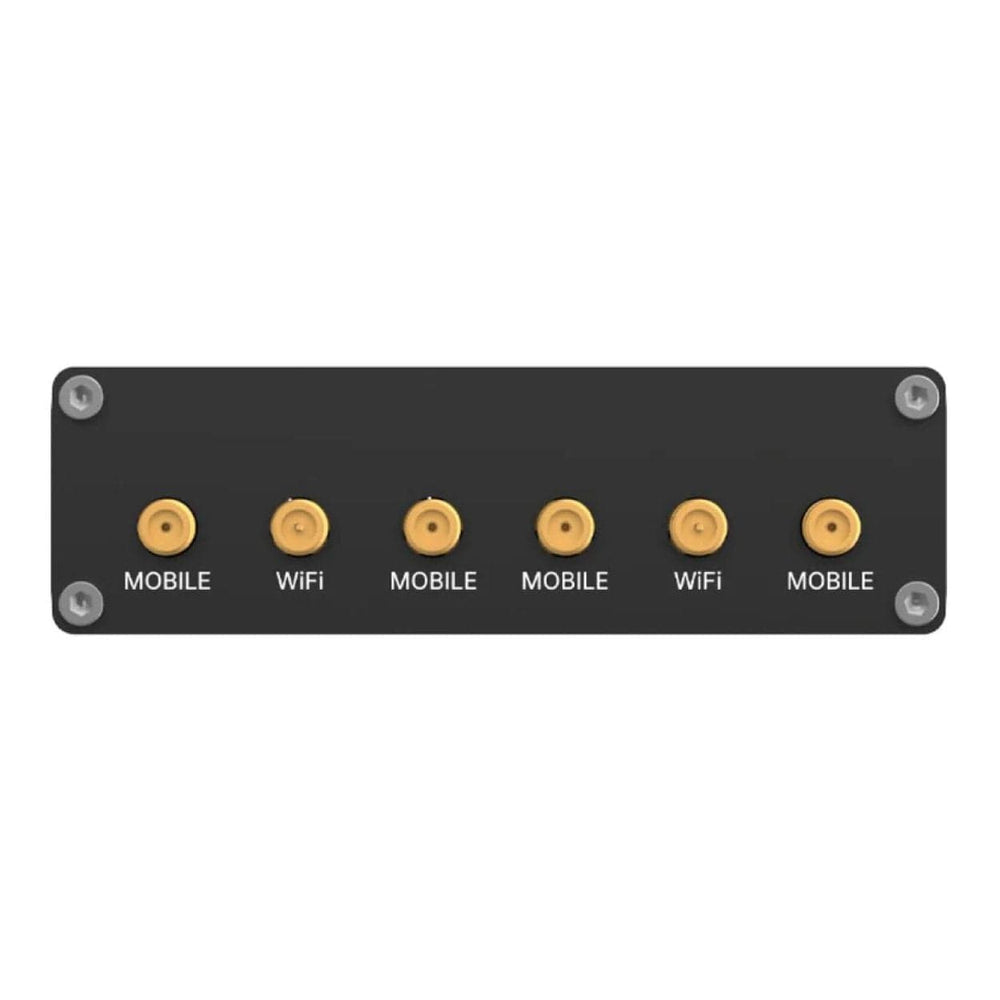

Antennas: 4× SMA (Mobile), 2× RP-SMA (Wi-Fi)
Reset: Reboot/User default/Factory reset

Physical Specifications
Casing: Anodized aluminum
Dimensions (W × H × D): 100 × 30 × 93.7 mm
Weight: 319 g
Mounting: DIN rail, wall mount, flat surface (kits required)

Operating Environment
Temperature: -40 °C to 75 °C
Humidity: 10%–90% non-condensing
Ingress Protection: IP30

Regulatory & Standards
Regulatory: CE, UKCA, CB, EAC, UCRF, RCM, R-NZ, WEEE
EMC: EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019 + A1:2021, EN 301 489-1/3/17/52 Vx.x
RF: EN 300 328 V2.2.2, EN 300 440 V2.2.1, EN 301 893 V2.1.1, EN 301 908-1/2/13/25 Vx.x

What’s in the Box:

• 5G Industrial Router
• 4-pin power cable
• Quick start guide
