Description

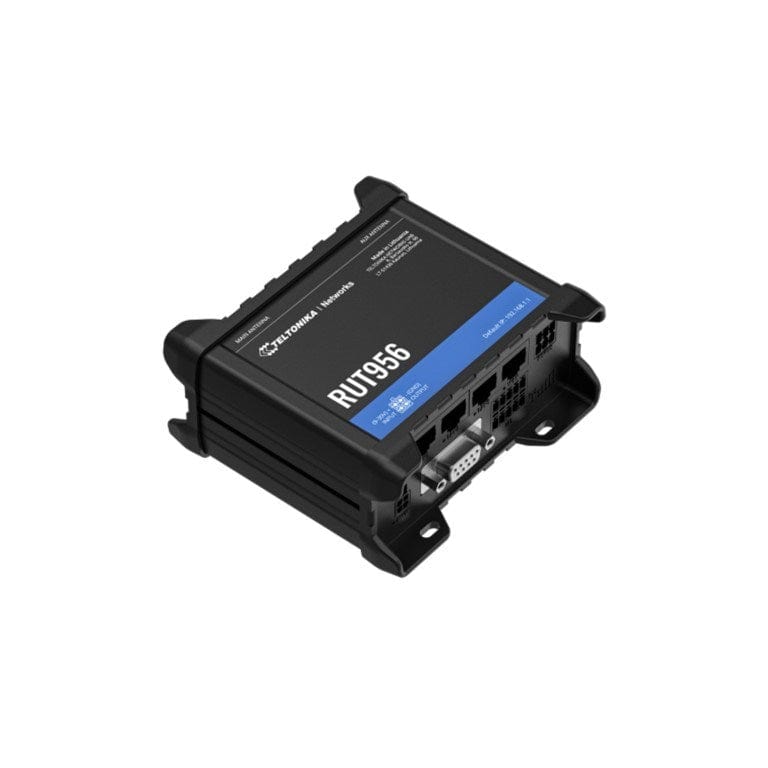

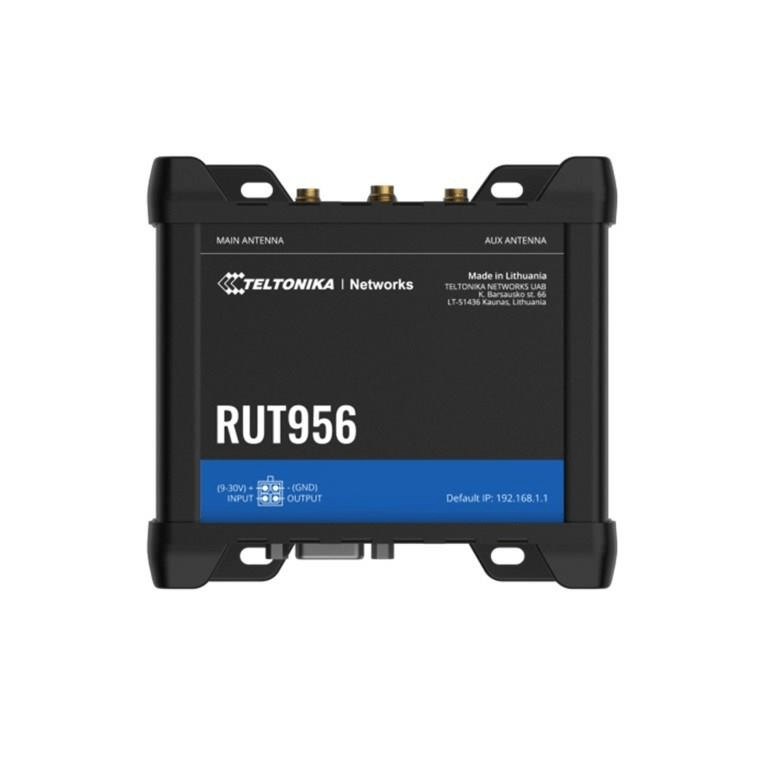

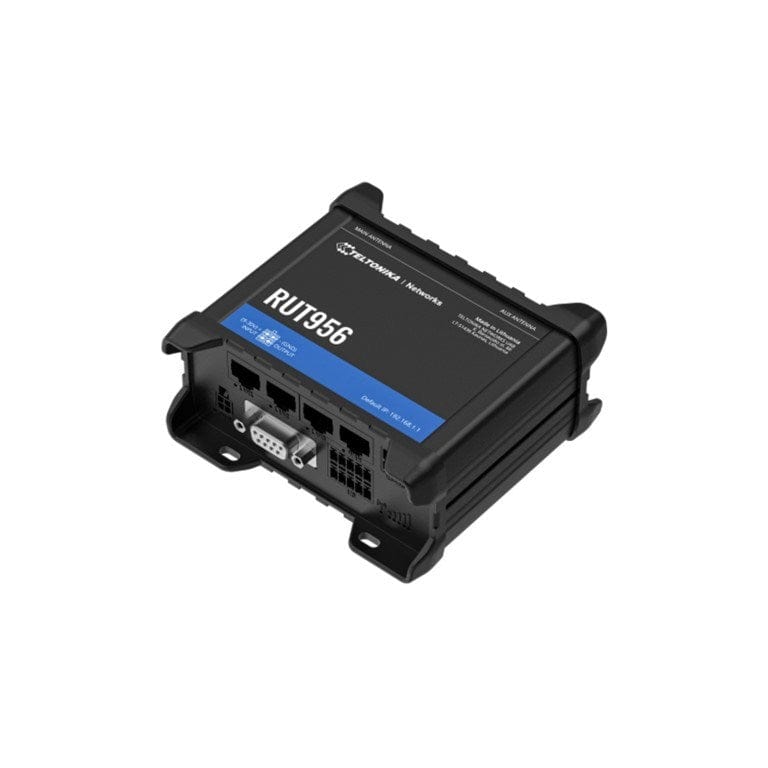

Teltonika RUT956 Industrial Cellular LTE Cat4 Router

RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.

Features

4G LTE (Cat 4), 3G, 2G
DUAL SIM - With auto failover, backup WAN and other switching scenarios
Ethernet, Serial (RS232, RS485) and multiple Inputs/Outputs
Global Navigation Satellite System for location services and time synchronization

Technical Specification

Mobile module: 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps

SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID

SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD: Supports sending and reading Unstructured Supplementary Service Data messages

Black/White list: Operator black/white list

Multiple PDN: Possibility to use different PDNs for multiple network access and services

Band management: Band lock, Used band status display

APN: Auto APN

Bridge: Direct connection (bridge) between mobile ISP and device on LAN

Passthrough: Router assigns its mobile WAN IP address to another device on LAN

Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)

WiFi security: WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation

SSID/ESSID: SSID stealth mode and access control based on MAC address

WiFi users: Up to 100 simultaneous connections

Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes

Wireless Connectivity Features: Fast roaming (802.11r), Relayd

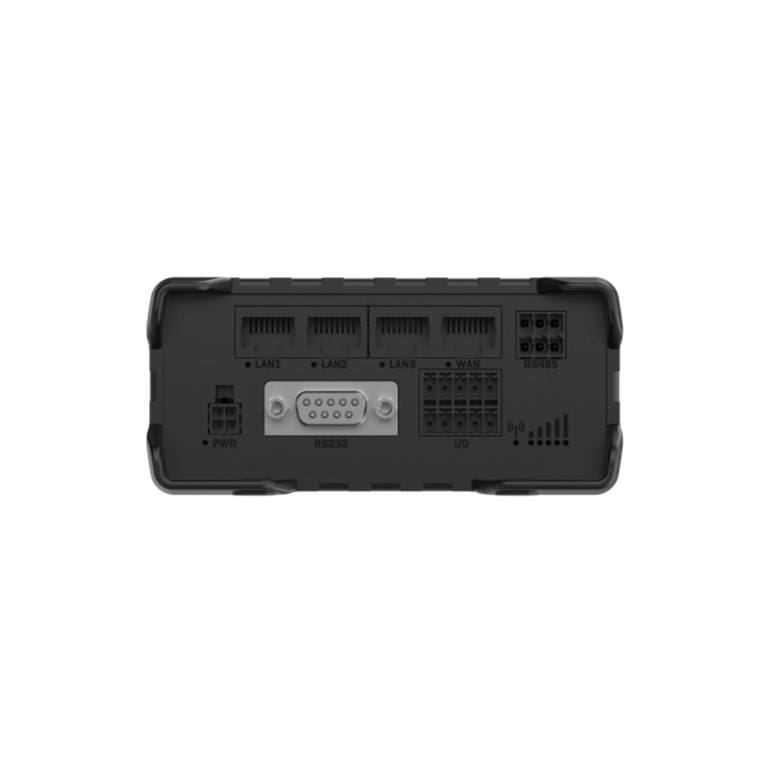

WAN: 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

LAN: 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Ethernet ports: 4 x RJ45 ports, 10/100 Mbps

I/O’s: 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)

Status LEDs: 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED

SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)

Power: 1 x 4-pin power connector

Input/output: 1x 10 pin industrial socket for inputs/outputs

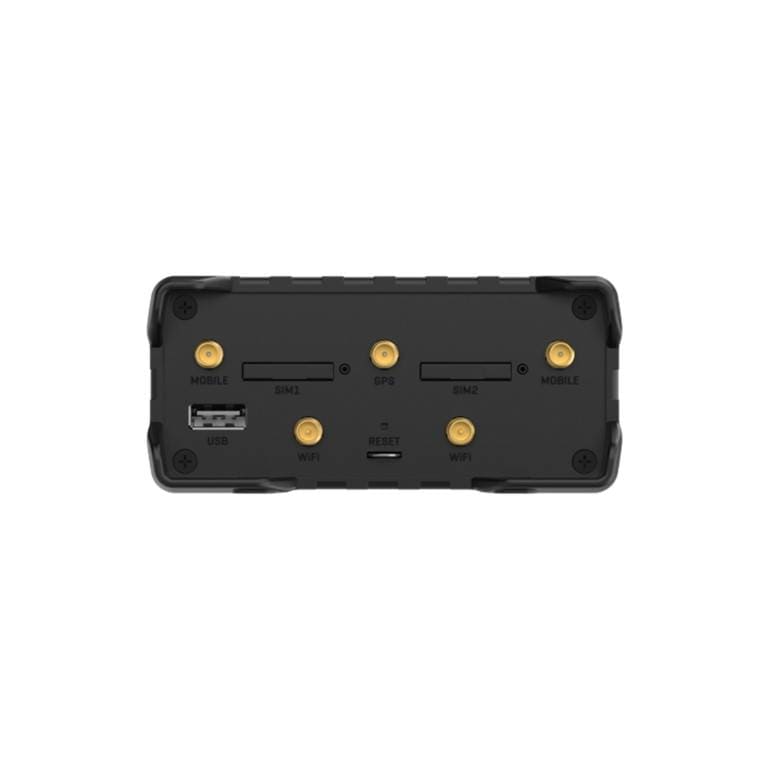

Antennas: 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS

USB: 1 x USB A port for external devices

RS232: 1 x DB9 socket

RS485: 1 x 6-pin industrial socket
