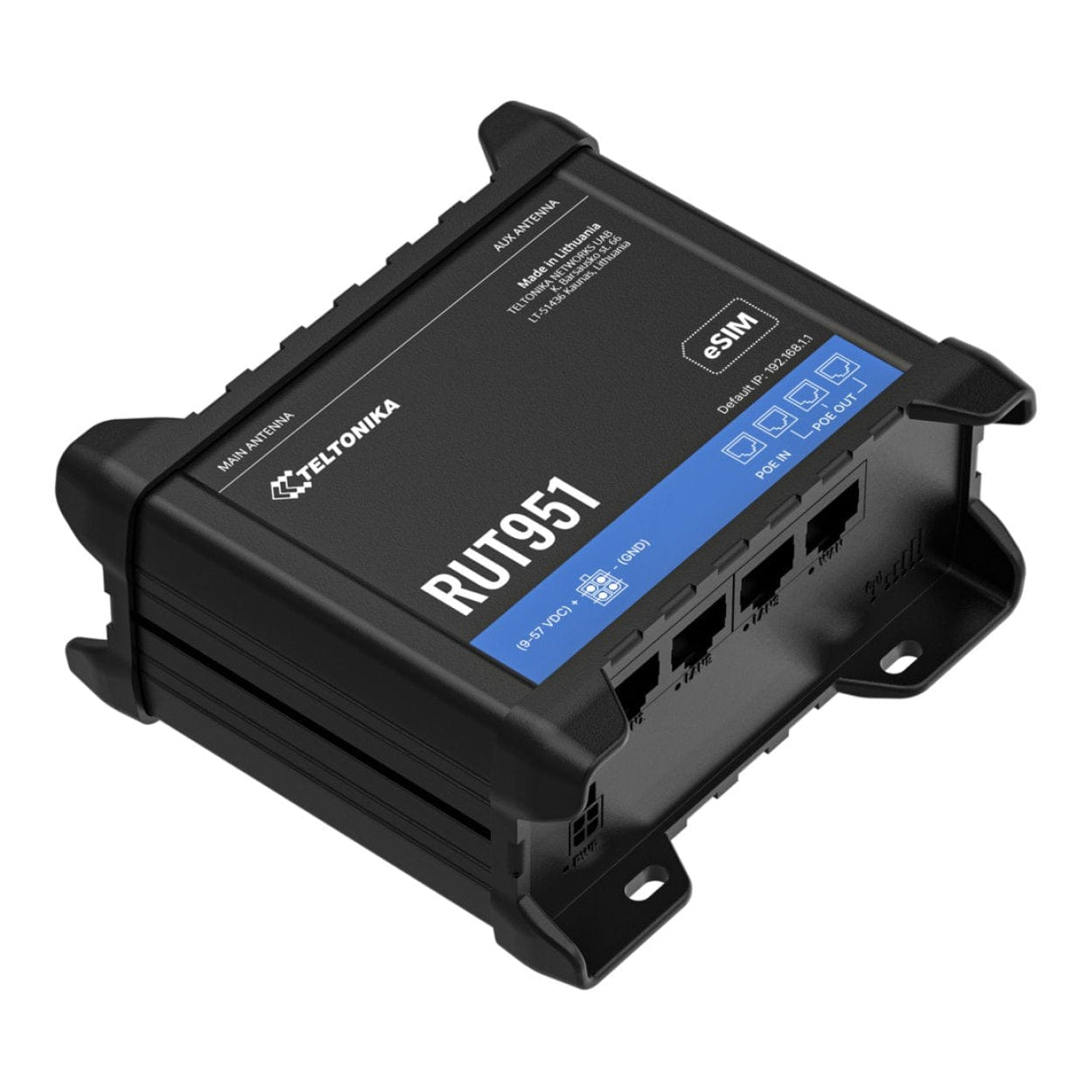

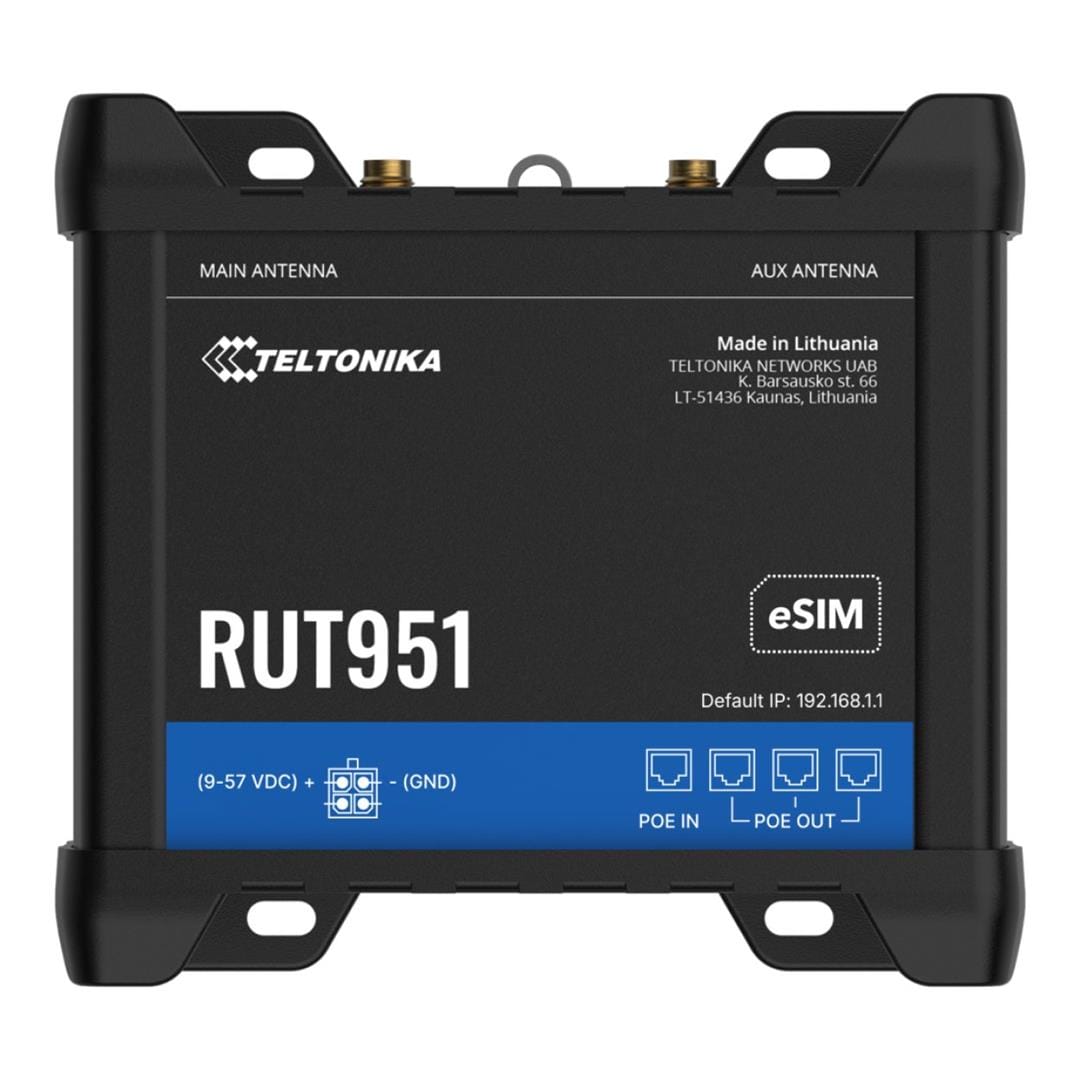

Teltonika RUT951 Dual-SIM LTE Wi-Fi 4 Cat 4 Industrial Router

Teltonika RUT951 Dual-SIM LTE Wi-Fi 4 Cat 4 Industrial Router

Building on the success of our bestseller 4G router, this enhanced version now features versatile Power over Ethernet (PoE+) capability. This robust router boasts dual SIM and eSIM, reliable Wi-Fi, and four PoE+ Ethernet ports. Powered by RutOS and designed for diverse IoT deployments, the RUT951 PoE+ ensures seamless data transmission and simplifies power management for your connected IoT solutions.

Features:

• Connectivity: 4G LTE (Cat 4), 3G, 2G
• Dual SIM & eSIM: Auto failover, backup WAN, and other switching scenarios
• PoE+: Total power budget of 90 W
• Wi-Fi: Wireless Access Point with Hotspot functionality

Technical Specifications:

Mobile
Mobile module
4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps

3GPP Release
Release 10/11 depending on the hardware version

SIM switch
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

eSIM
Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans

Status
IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS
SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD
Supports sending and reading Unstructured Supplementary Service Data messages

Block/Allow list
Operator block/allow list (by country or separate operators)

Multiple PDN
Possibility to use different PDNs for multiple network access and services

Band management
Band lock, Used band status display

SIM PIN code management
SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

APN
Auto APN

Bridge
Direct connection (bridge) between mobile ISP and device on LAN

Passthrough
Router assigns its mobile WAN IP address to another device on LAN

Wireless
Wireless mode
802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

Wi-Fi security
WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

SSID/ESSID
SSID stealth mode and access control based on MAC address

Wi-Fi users
Up to 100 simultaneous connections

Wireless Connectivity Features
Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

Wireless MAC filter
Allowlist, blocklist

Wireless QR code generator
Once scanned, a user will automatically enter your network without needing to input login information

TravelMate
Forward Wi-Fi hotspot landing page to a subsequent connected device

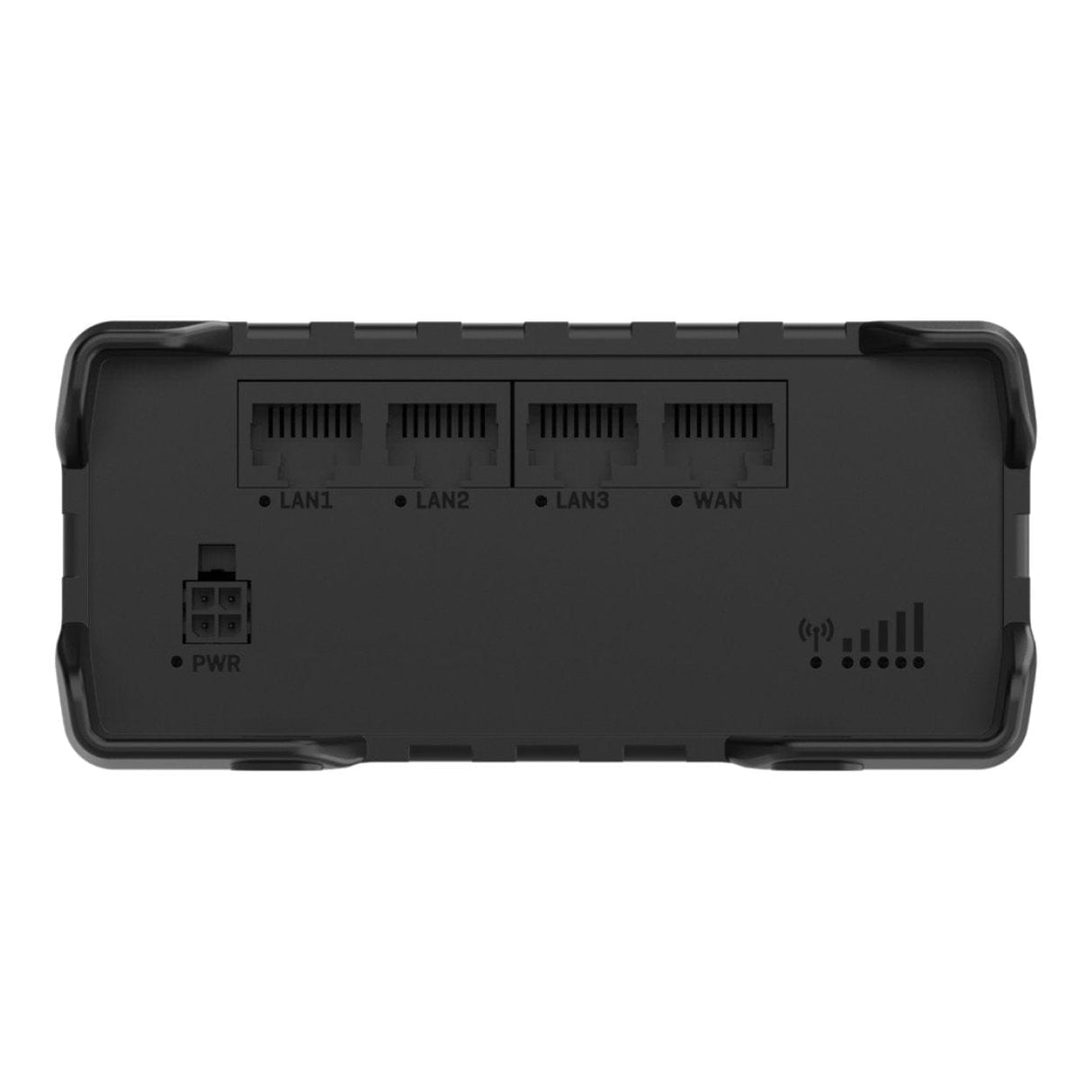

Ethernet
WAN

• 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

LAN

• 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network
Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall
Port forward, traffic rules, custom rules, TTL target customisation

Firewall status page
View all your Firewall statistics, rules, and rule counters

Port management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Network topology
Visual representation of your network, showing which devices are connected to which other devices

Hotspot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS
Supported >77 service providers, others can be configured manually

DNS over HTTPS
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Network backup
Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Load balancing
Balance Internet traffic over multiple WAN connections

SSHFS
Possibility to mount remote file system via SSH protocol

Traffic Management
Real-time monitoring, wireless signal charts, traffic usage history

Port Mirroring
Mirroring network traffic on Ethernet ports for monitoring and analysis

Security
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Firewall
Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

Attack prevention
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN
Port and tag-based VLAN separation

Mobile quota control
Mobile data limit, customizable period, start time, warning limit, phone number

WEB filter
Block list for blocking out unwanted websites, allow list for specifying allowed sites only

Access control
Flexible access control of SSH, Web interface, CLI and Telnet

Certificate Manager
Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates

VPN
OpenVPN
Multiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN Encryption
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsec
XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE
GRE tunnel, GRE tunnel over IPsec support

PPTP, L2TP
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Stunnel
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

DMVPN
Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTP
SSTP client instance support

ZeroTier
ZeroTier VPN client support

WireGuard
WireGuard VPN client and server support

Tinc
Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

OPC UA
Supported modes
Client, Server

Supported connection types
TCP

MQTT Gateway
Modbus MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker

MODBUS
Supported modes
Server, Client

Supported connection types
TCP

Custom registers
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

Supported data formats
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to Server
Protocol
HTTP(S), MQTT, Azure MQTT

Data to server
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

DNP3
Supported modes
Station, Outstation

Supported connection
TCP

DLMS/COSEM
DLMS Support
DLMS - standard protocol for utility meter data exchange

Supported modes
Client

Supported connection types
TCP
