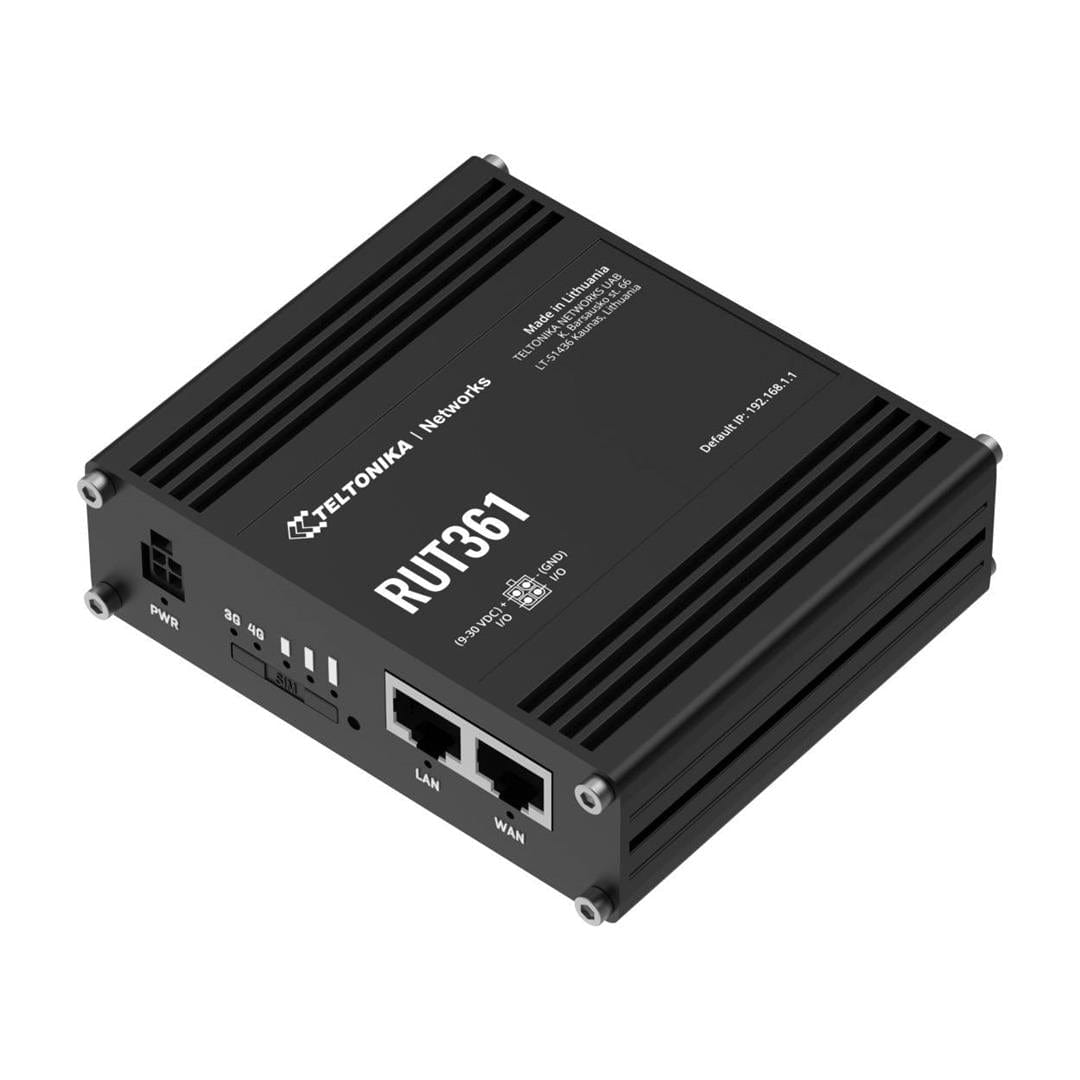

Teltonika RUT361 LTE Cat 6 Industrial Cellular Router

Teltonika RUT361 LTE Cat 6 Industrial Cellular Router

The RUT361 is a robust cellular router with speeds of up to 300 Mbps with carrier aggregation, vital for IoT solutions demanding uninterrupted networks in challenging environments. Remote monitoring, advanced security features, and WAN failover make this LTE Cat 6 router feature-rich, and two Wi-Fi antennas ensure greater device applicability in diverse M2M applications.

Mobile module

• 4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps

3GPP Release

• Release 12

Status

• IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS

• SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD

• Supports sending and reading Unstructured Supplementary Service Data messages

Black/White list

• Operator black/white list (by country or separate operators)

Multiple PDN

• Possibility to use different PDNs for multiple network access and services

Band management

• Band lock, Used band status display

SIM PIN code management

• SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

APN

• Auto APN

Bridge

• Direct connection (bridge) between mobile ISP and device on LAN

Passthrough

• Router assigns its mobile WAN IP address to another device on LAN

Wireless

• Wireless mode

  802.11b/g/n (Wi-Fi 4), 2x2 MIMO, Access Point (AP), Station (STA)

• Wi-Fi security

  WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

• SSID/ESSID

  ESSID stealth mode

• Wi-Fi users

  Up to 50 simultaneous connections

• Wireless Connectivity Features

  Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)

• Wireless MAC filter

  Allowlist, blocklist

• Wireless QR code generator

  Once scanned, a user will automatically enter your network without needing to input login information

Ethernet

• WAN

  1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

• LAN

  1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

• Routing

  Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

• Network protocols

  TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

• VoIP passthrough support

  H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

• Connection monitoring

  Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

• Firewall

  Port forward, traffic rules, custom rules, TTL target customisation

• Firewall status page

  View all your Firewall statistics, rules, and rule counters

• Ports management

  View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

• Network topology

  Visual representation of your network, showing which devices are connected to which other devices

• DHCP

  Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

• QoS / Smart Queue Management (SQM)

  Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

• DDNS

  Supported >25 service providers, others can be configured manually

• DNS over HTTPS

  DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

• Network backup

  VRRP, Wired options, each of which can be used as an automatic Failover, Wi-Fi WAN, Mobile

• Load balancing

  Balance Internet traffic over multiple WAN connections

• Hotspot

  Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

• SSHFS

  Possibility to mount remote file system via SSH protocol

• Traffic Management

  Real-time monitoring, wireless signal charts, traffic usage history

Security

• Authentication

  Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

• Firewall

  Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

• Attack prevention

  DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

• VLAN

  Port and tag-based VLAN separation

• Mobile quota control

  Mobile data limit, customizable period, start time, warning limit, phone number

• WEB filter

  Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

• Access control

  Flexible access control of SSH, Web interface, CLI and Telnet

• SSL certificate generation

  Let's encrypt support

API

• Teltonika Networks Web API (beta) support

  Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

System Characteristics

• CPU

  Mediatek, 580 MHz, MIPS 24KEc

• RAM

  128 MB, DDR2

• FLASH storage

  16 MB serial NOR flash

Power

• Connector

  4-pin industrial DC power socket

• Input voltage range

  9 - 30 VDC, reverse polarity protection, voltage surge/transient protection

• PoE (passive)

  Passive PoE (Optional - different hardware required; contact your sales manager)

• Power consumption

  Idle: < 2.4 W, Max: < 4.7 W
