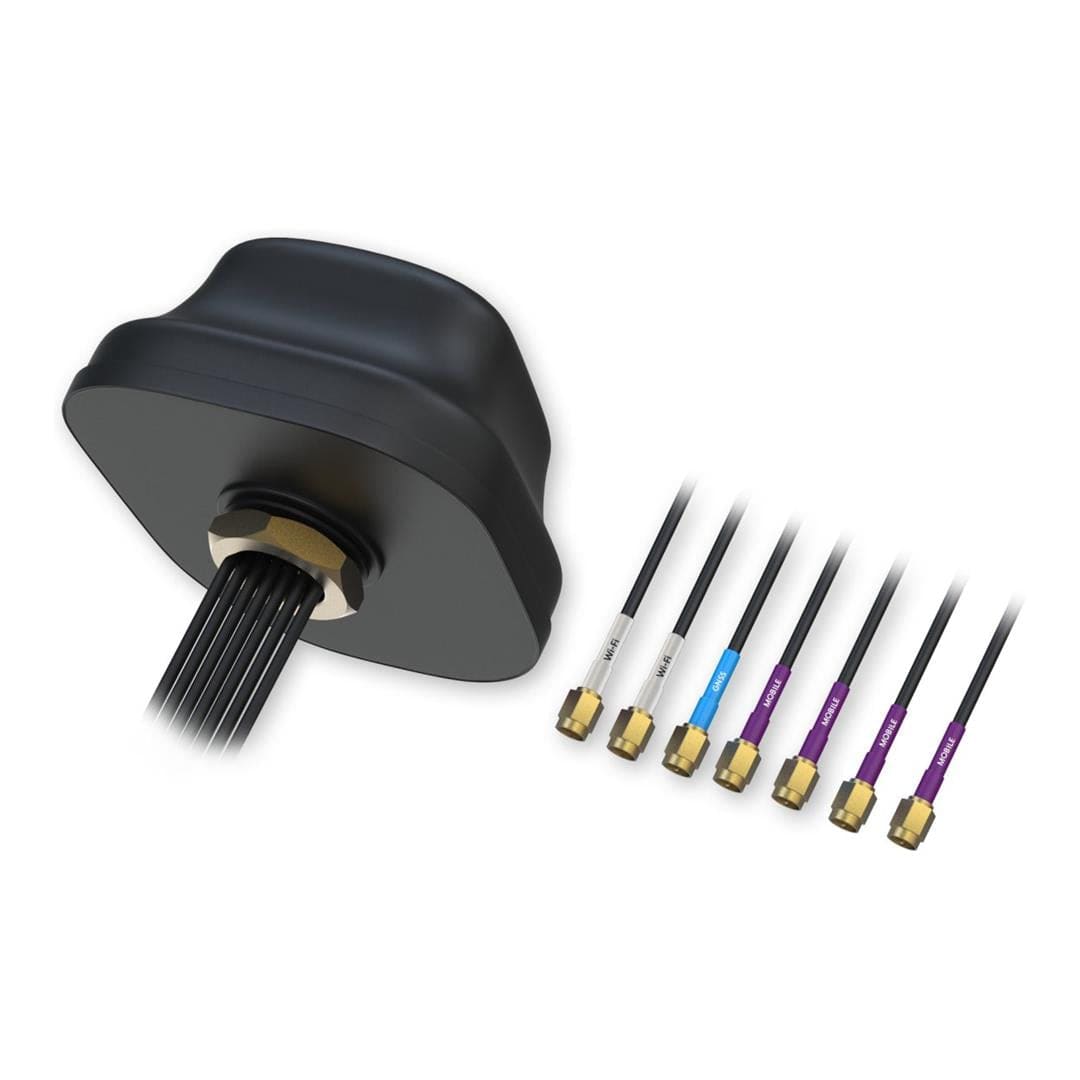

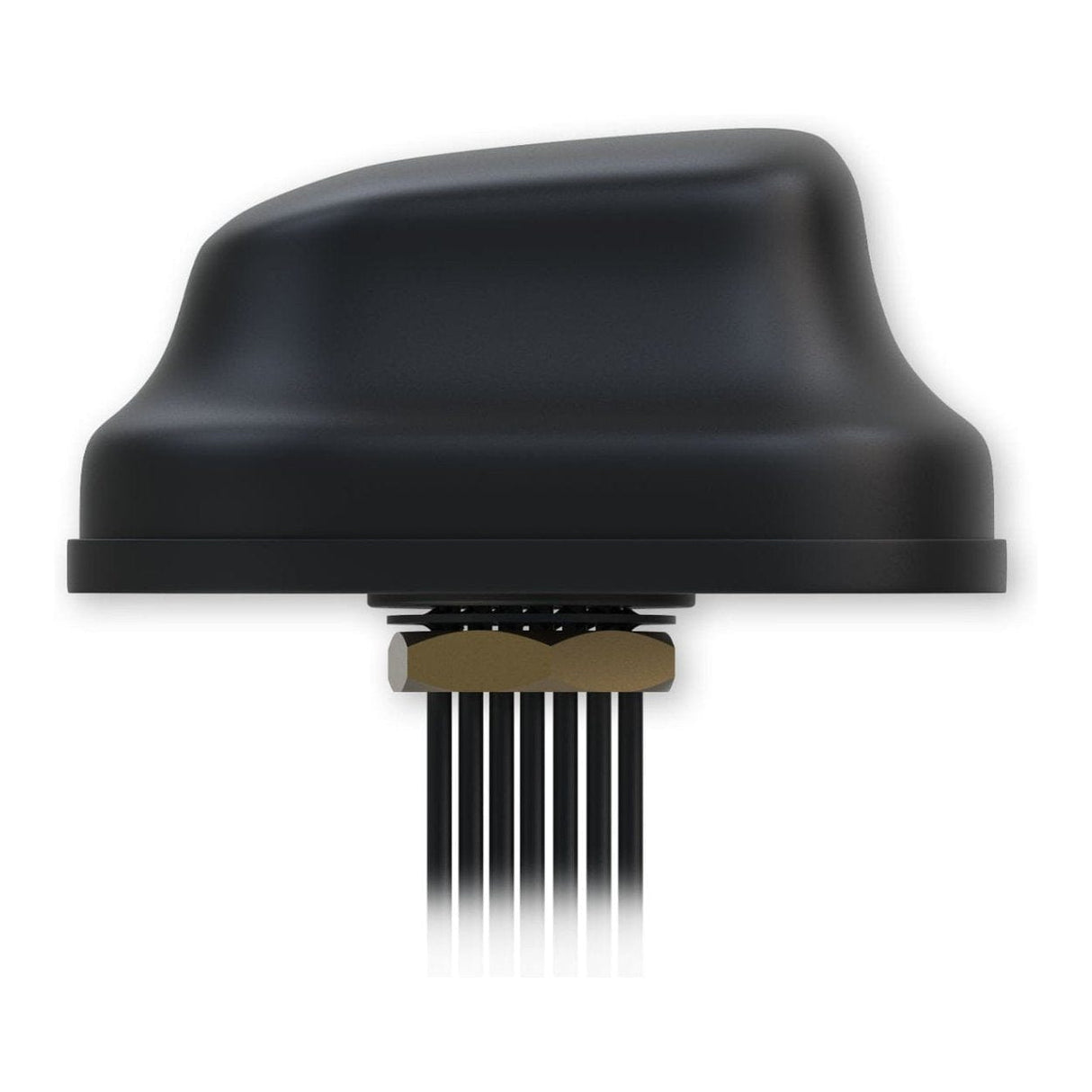

Teltonika PR1KC640 5G MIMO SMA 4 dBi Directional Network Antennaa

Teltonika PR1KC640 5G MIMO SMA 4 dBi Directional Network Antennaa

Technical Specifications:

5G Mobile MIMO Antenna

Frequency Range
617–960 / 1710–2690 / 2900–4200 MHz

Polarization
Linear

Gain
4.0 dBi

V.S.W.R
≤ 3.0

Impedance
50 Ω

Connector Type and Count

• 4 × SMA Male

GNSS Antenna

Compatibility
Compatible With RUTX50 Hardware Codes:

• RUTX50 0*****
• RUTX50 000305

Frequency Range
1164–1300 / 1559–1610 MHz

Polarization
RHCP

Supply Voltage
3–12 VDC

LNA Gain
40 ± 2 dB

V.S.W.R
≤ 2.0

Impedance
50 Ω

Current Consumption
≤ 60 mA

Connector Type and Count

• 1 × SMA Male

WiFi MIMO Antenna

Frequency Range
2400–2483.5 / 4900–5925 MHz

Polarization
Linear

Gain
4.0 dBi

V.S.W.R
≤ 2.5

Impedance
50 Ω

Connector Type and Count

• 2 × RP-SMA Male

Mechanical and Environmental

Mounting Method
Screw

Radome Ingress Protection Rating
IP67 (Excludes Cable Outlet)

Radome Material
UV-Resistant ABS/PC

Weight
960 ± 30 g

Housing Dimensions
189 × 182 × 85 mm

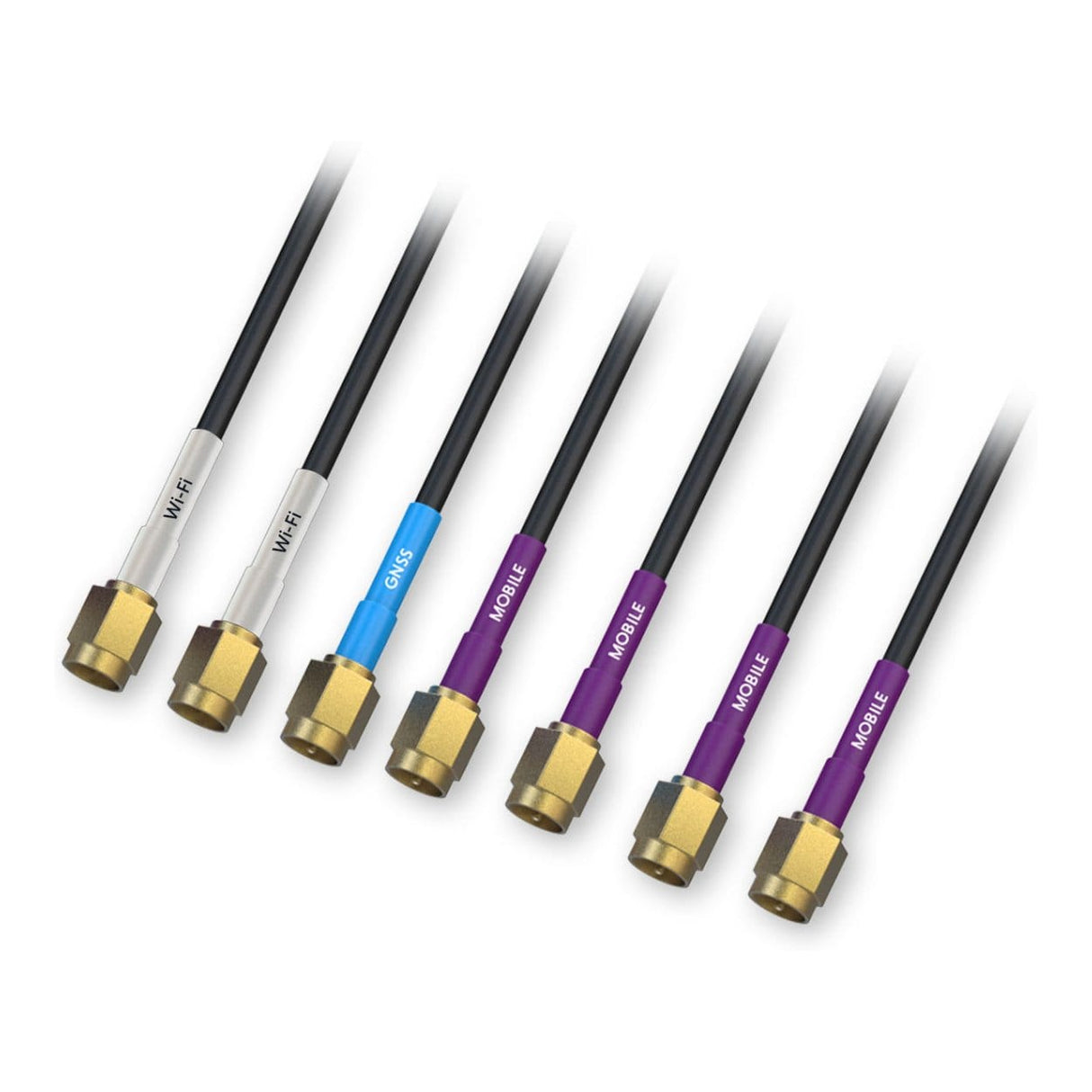

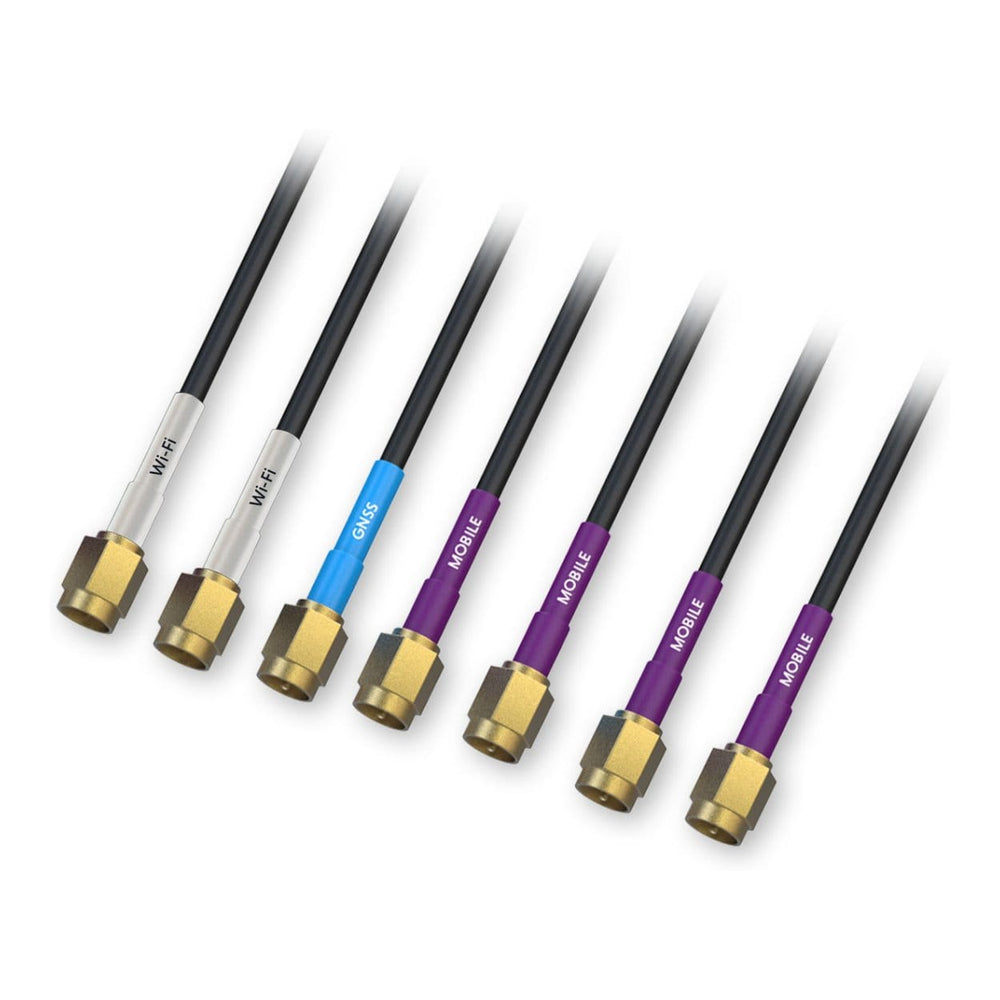

Cable

• 7 × LMR100, 3000 mm

Recommended Mounting Dimensions
Hole Ø28 mm, Panel Thickness Max 8 mm

Operating Temperature
-40°C to +85°C

RoHS Compliance
Yes

What's in the Box:

• 5G Mobile MIMO Antenna
• GNSS Antenna
• WiFi MIMO Antenna
