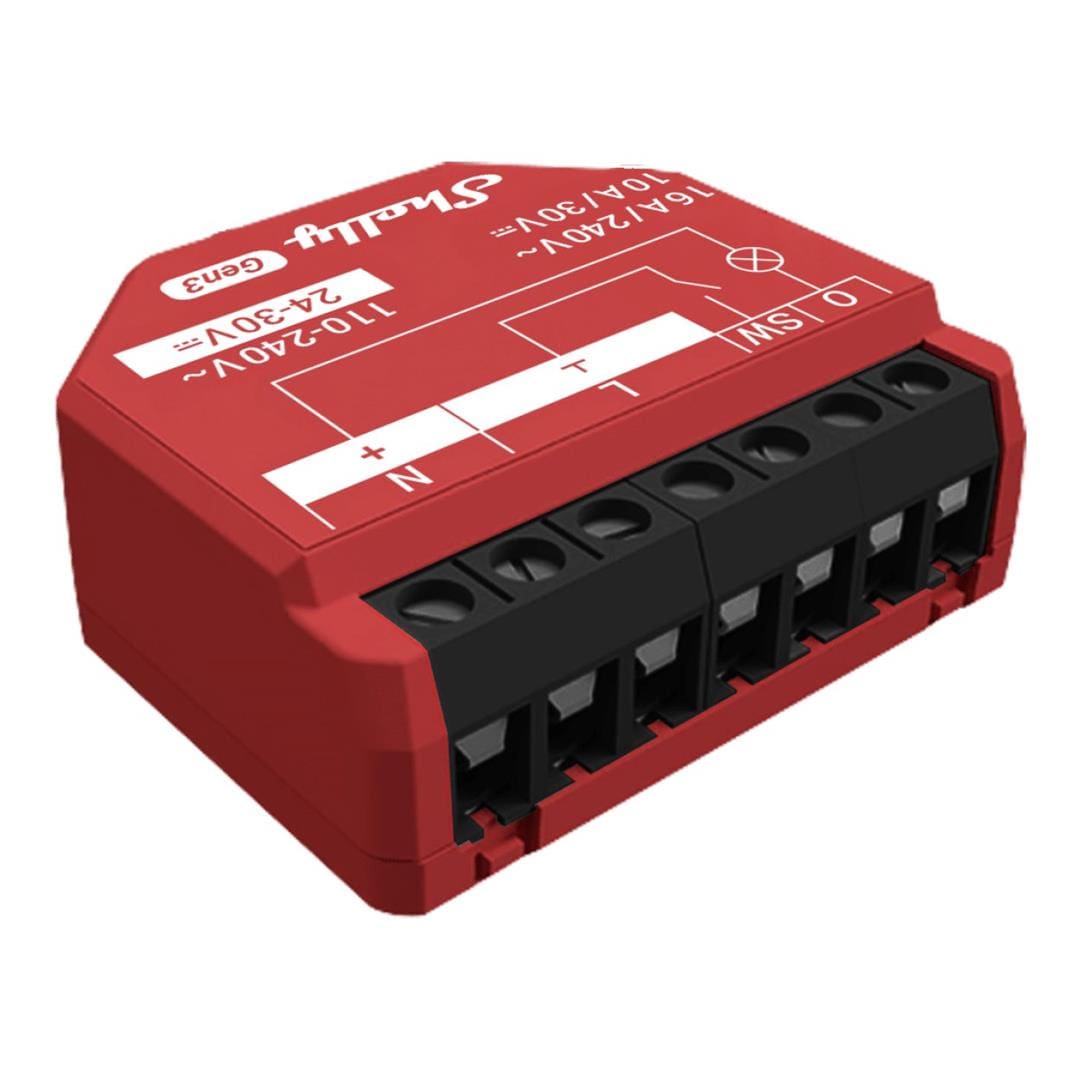

Shelly 1PM Gen3 Wi-Fi Operated Smart Switch

R 49900

    Delivery and Shipping

    * Next Business Day Shipping Available - Learn more

    Easy Returns

    Buy With Confidence. 14 Day Returns. Online. Learn More

    Price Match Guarantee

    Found a Better Price? We'll Match It - Guaranteed - Learn More

    Description

    Shelly 1PM Gen3 Wi-Fi Operated Smart Switch

    Wi-Fi-operated smart switch, with power monitoring​

    For remote control of a wide range of home appliances and office equipment.

    • Precise and real-time power metering with free cloud data storage for analysis and energy usage optimization
    • New processor – ESP-Shelly-C38F chip with an increased memory of 8 MB
    • Improved durability of terminals
    • High security
    • Wi-Fi range extender & Bluetooth gateway
    • Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
    • No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants
    • Supports KNXnet / IP communication

    Wi-Fi Operated

    Connect Shelly 1PM Gen3 to your Wi-Fi network. No HUB required!

    Bluetooth

    Add devices quickly and easily via Bluetooth connection, using Shelly Cloud App.

    Power Monitoring

    Shelly 1PM Gen3 provides precise monitoring of power consumption.

    Wide range of voltage support

    Use it to control a wide range of devices and appliances.

    Smart Schedules

    Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.

    Smart Scenes

    Set custom scenes by combining Shelly 1PM Gen3 with your other Shelly devices.

    Specifications

    Size (HxWxD): 37x42x16
    Weight: 27g
    Screw terminals max torque: 0.4 Nm
    Conductor cross section: 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
    Conductor stripped length: 6 to 7 mm
    Mounting: Wall console
    Shell material: Plastic
    Shell color: Red
    Terminal Color: Black
    Ambient working temperature: -20 °C to 40 °C
    Humidity: 30 % to 70 % RH
    Max. altitude: 2000m


    Electrical

    Power supply: 110-240 V~ / 24-30 V⎓
    Power consumption: < 1.2 W
    External protection: Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3)
    Output circuits ratings
    Max. switching voltage: 240 V~ / 30 V⎓
    Max. switching current: 16A (240 V~) / 10A (30 V⎓)


    Sensors, meters

    Internal-temperature sensor: Yes
    Voltmeter (AC): Yes
    Ammeter (AC): Yes


    Radio

    Wi-Fi
    Protocol: 802.11 b/g/n
    RF band: 2401 - 2483 ÐœHz
    Max. RF power: < 20 dBm
    Range:Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)


    Bluetooth

    Protocol: 4.2 with BLE
    RF band: 2400 - 2483.5 MHz
    Max. RF power: < 4 dBm
    Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)


    Microcontroller unit

    CPU: ESP-Shelly-C38F
    Flash: 8MB
