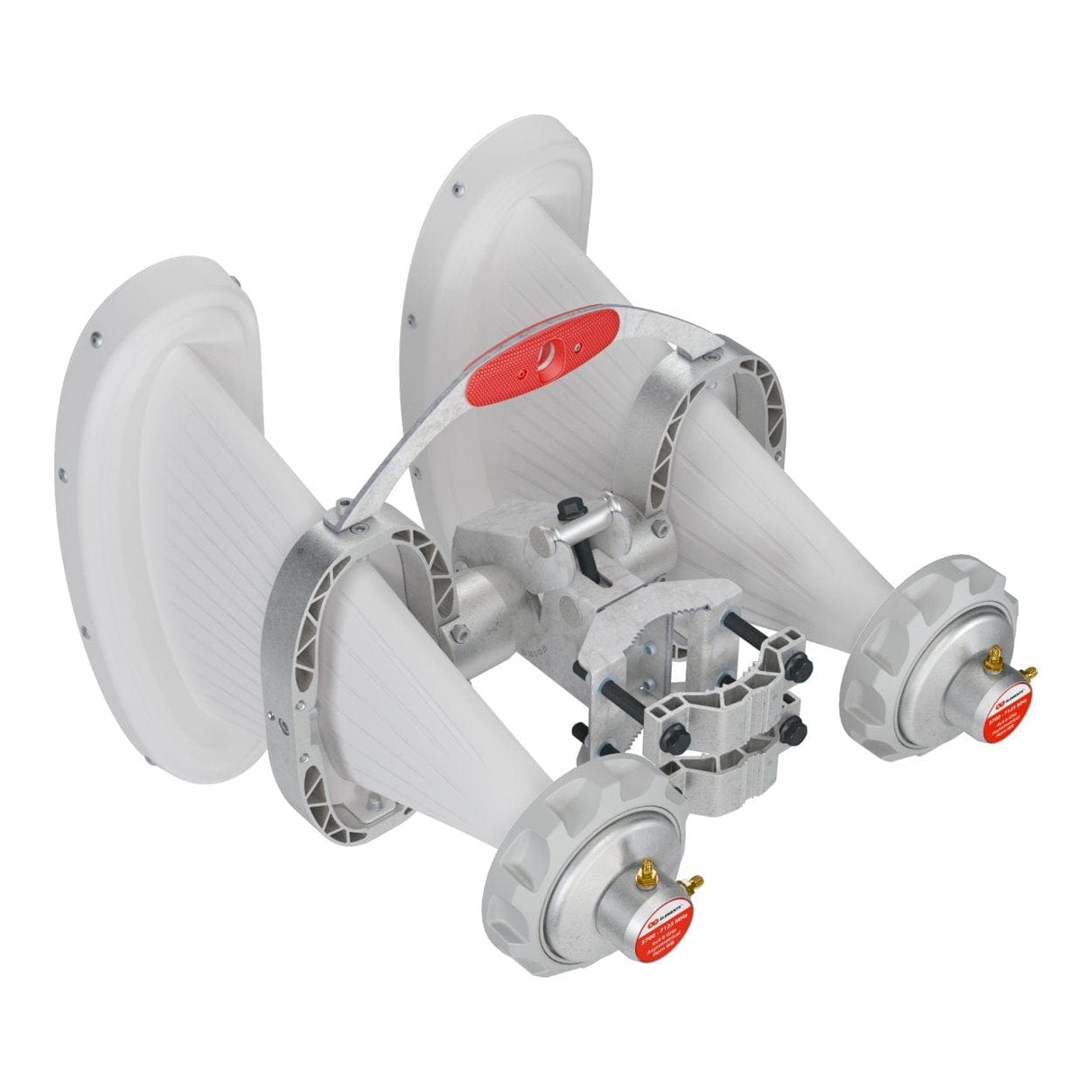

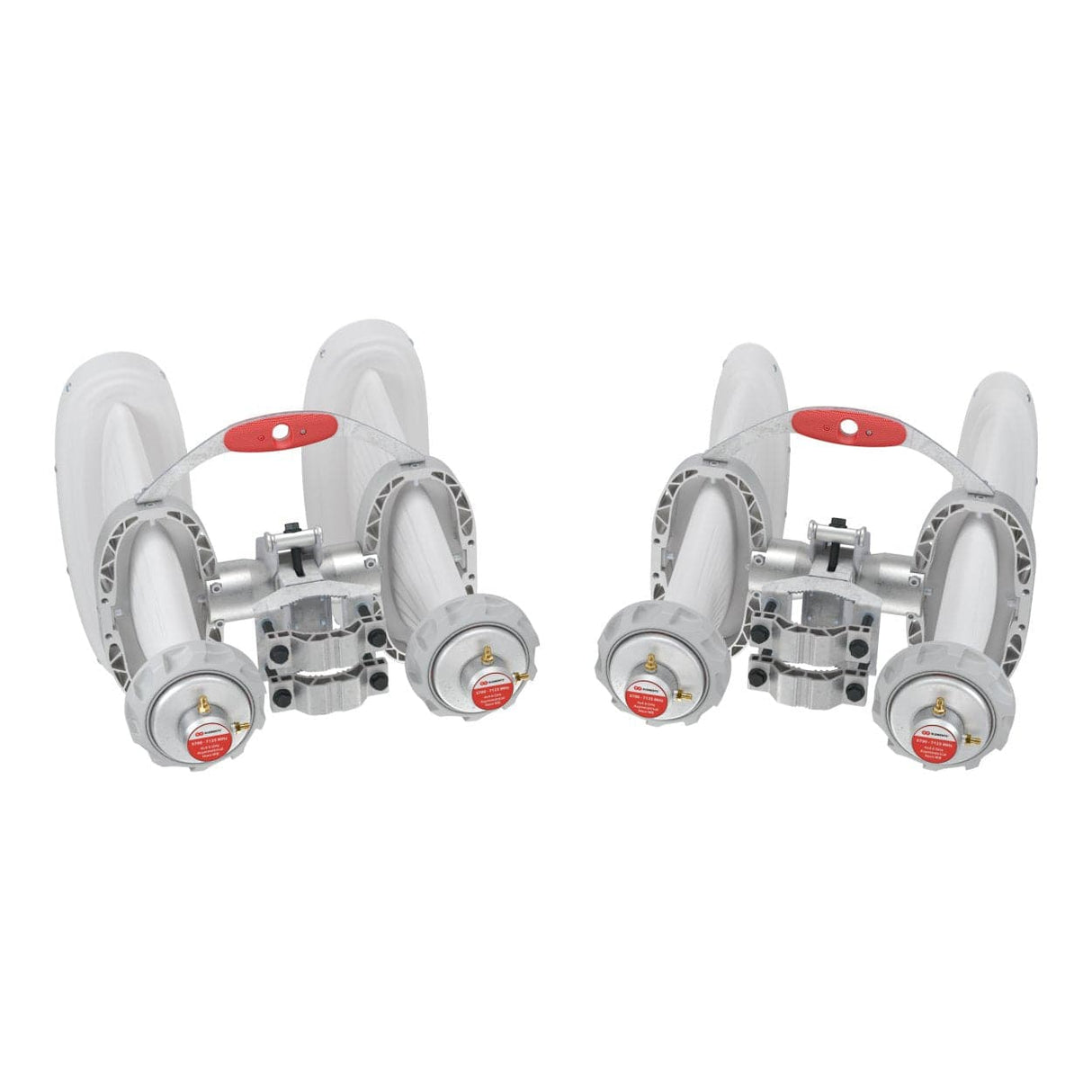

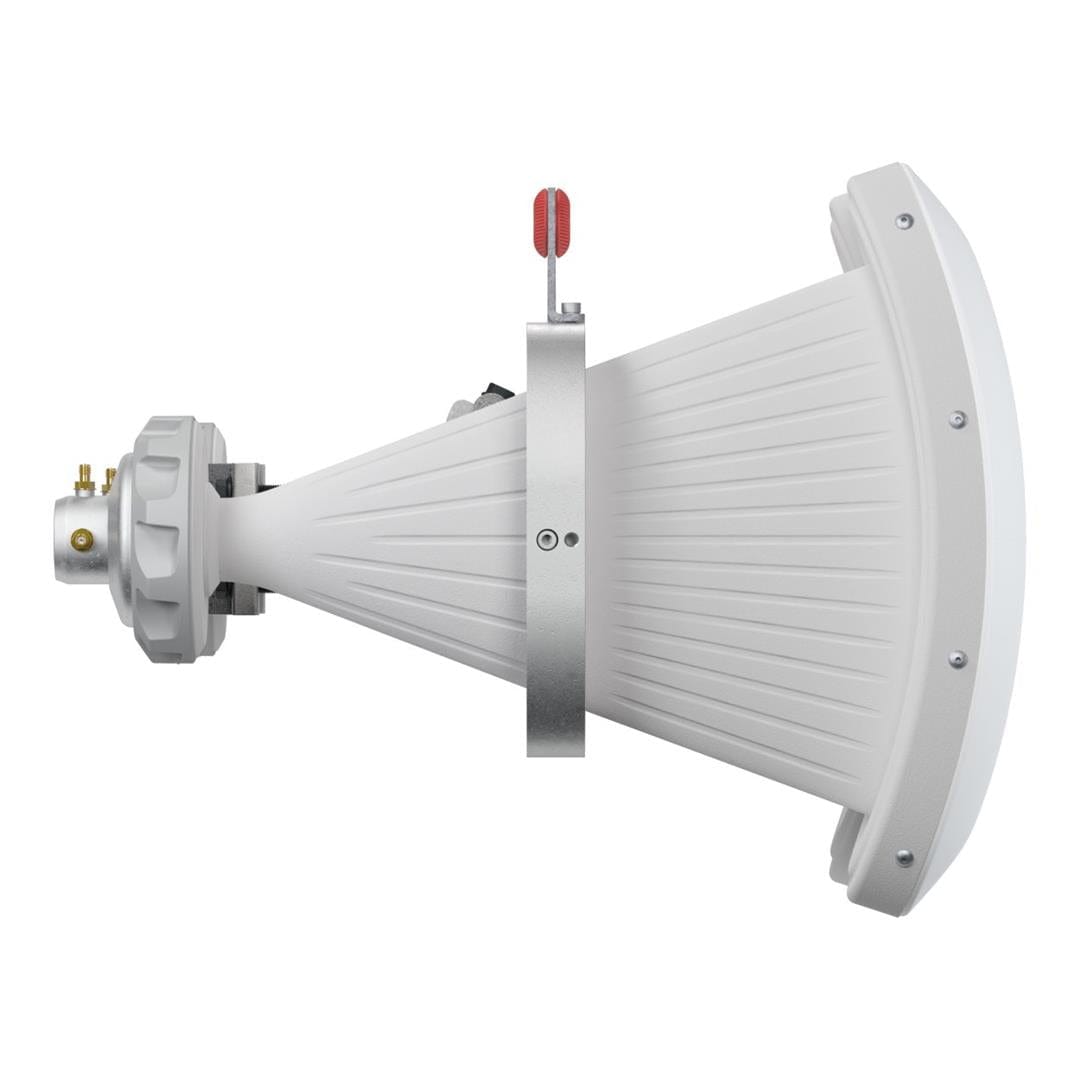

RF Elements Wideband 90 Degree 4x4 Asymmetrical Horn Antenna AH90WB-4x4-SMA

RF Elements Wideband 90 Degree 4x4 Asymmetrical Horn Antenna AH90WB-4x4-SMA

High Performance 4x4 6 GHz Horn Sector Antennas

4x4 Asymmetrical Horn Antennas are built to enable excellent performance of the Asymmetrical Horn WB antenna for high performance 4x4 outdoor deployments. 4x4 6 GHz Asymmetrical Horn WB Antennas provide excellent noise rejection, network scalability and beam performance like no other 4x4 antenna on the market.

Radiation Pattern

4x4 Asymmetrical Horn WB Antennas are optimized optimized for H and V radiation patterns providing the best radiation patterns over extremely wide band of operation. The optimization is for their shape as well for their balance between H and V, which are the essentials of Sector antenna performance.

Ultimate Scalability in 4x4

4x4 MuMIMO technology has gained the market share with increased throughput capability on AP. Our 4x4 6 GHz Asymmetrical Horn WB Antennas provide excellent performance enabling 4x4 radios to deliver their best. Radios will greatly benefit from the Asymmetrical Horn Antennas highly efficient beam.

Compact and Durable

4x4 6 GHz Asymmetrical Horn WB Antennas are built to last and to resist the harshest weather conditions. We use the premium materials: marine grade aluminum, stainless steel, high quality ABS plastic resulting in substantially lower weight of 4x4 Antenna compared to 4x4 5GHz Asymmetrical Horns. Innovative mounting system is built of stainless steel for ultimate strength and durability. Hardware is made of stainless steel with black surface coating to prevent galling at installation.

Innovative Bracket

4x4 Asymmetrical Horn WB Antennas feature an innovative mounting system. The mount is separated from the antenna, making the installation and adjustment quick and easy. First install the bracket on the pole with the correct azimuth orientation. After that simply slide the 4x4 Horn antenna in the bracket. The safety hook and grooves will safely keep the antenna in place. Adjust the elevation and tighten the bolts to finish the installation. In true RF elements^® fashion, only one tool is needed for the entire installation!
